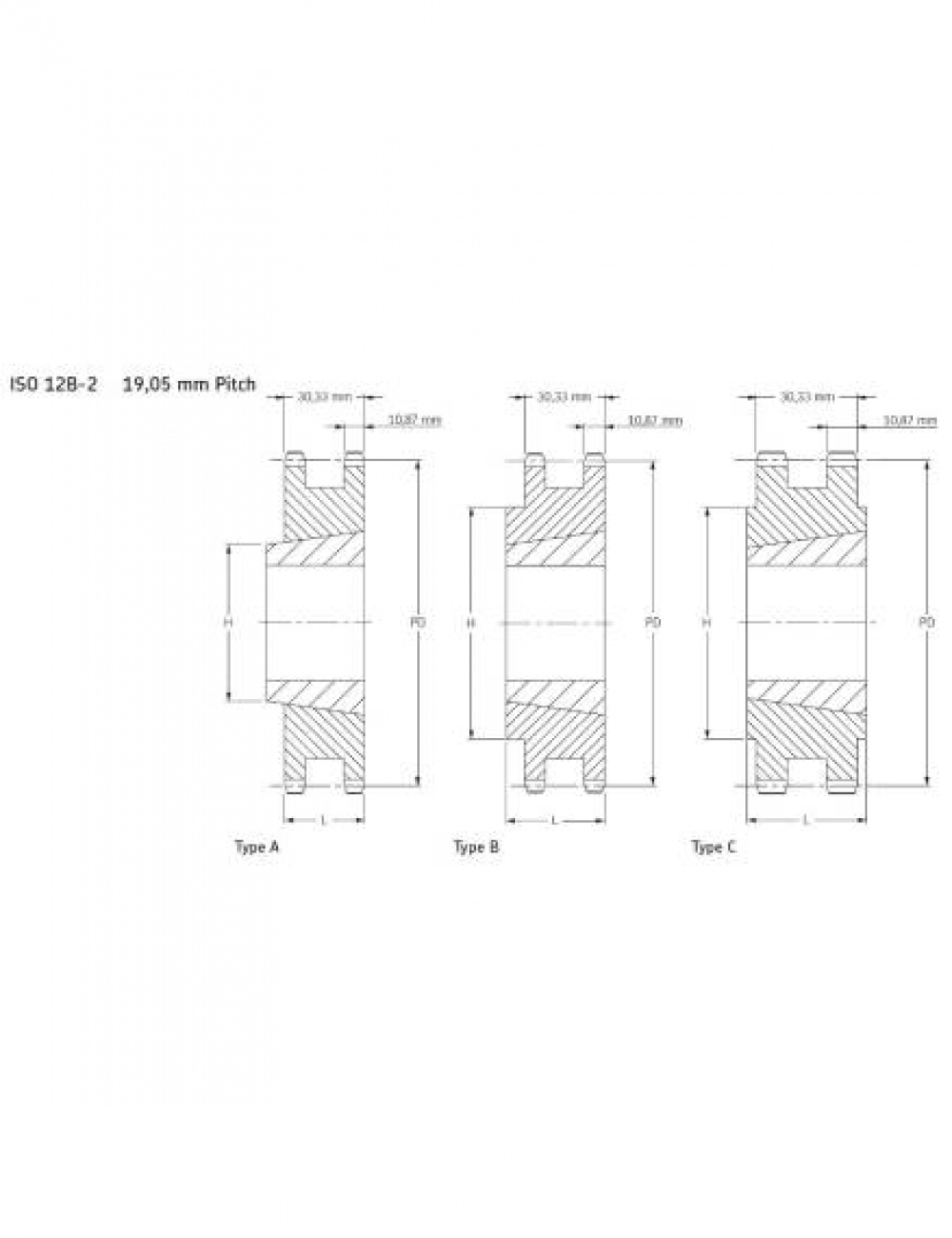

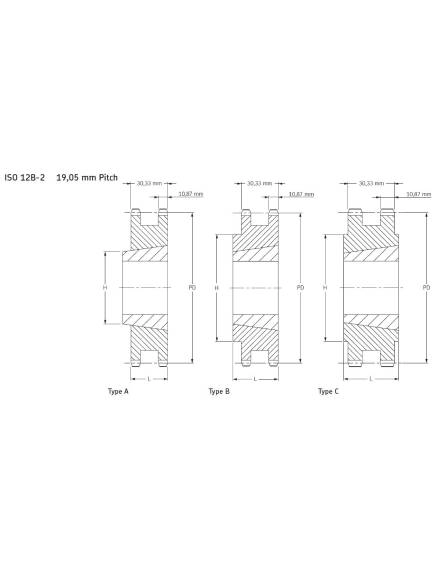

ISO PHS 12B - 2TBXX

No.Teeth = 12 , Bushing Size = 1215
DIMENSIONS :Pitch diameter = 73.61 mm , Type = A , Bore min. = 11 mm , Bore max. = 31.8 mm ,L = 30.3 mm , H = mm

No.Teeth = 13 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 79.59 mm , Type = A , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 30.3 mm , H = mm

No.Teeth = 14 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 85.61 mm , Type = A , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 30.3 mm , H = mm

No.Teeth = 15 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 91.63 mm , Type = A , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 30.3 mm , H = mm

No.Teeth = 16 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 97.65 mm , Type = A , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 30.3 mm , H = mm

No.Teeth = 17 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 103.67 mm , Type = A , Bore min. = 14 mm , Bore max. =41.3 mm ,L = 30.3 mm , H = mm

No.Teeth = 18 , Bushing Size = 2012
DIMENSIONS :Pitch diameter = 109.71 mm , Type = B , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 31.8 mm , H = 90 mm

No.Teeth = 19 , Bushing Size = 2012
DIMENSIONS :Pitch diameter = 115.75 mm , Type = B , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 32.0 mm , H = 90 mm

No.Teeth = 20 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 121.78 mm , Type = B , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 45.0 mm , H = 102 mm

No.Teeth = 21 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 127.82 mm , Type = B , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 45.0 mm , H = 108 mm

No.Teeth = 22 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 133.86 mm , Type = B , Bore min. =16 mm , Bore max. = 63.5 mm ,L = 45.0 mm , H = 108 mm

No.Teeth = 23 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 139.90 mm , Type = B , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 45.0 mm , H = 108 mm

No.Teeth = 24 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 145.94 mm , Type = B , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 45.0 mm , H =108 mm

No.Teeth = 25 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 152.00 mm , Type = B , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 45.0 mm , H = 108 mm

No.Teeth = 26 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 158.04 mm , Type = B , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 45.0 mm , H = 108 mm

No.Teeth = 27 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 164.09 mm , Type = B , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 45.0 mm , H = 108 mm

No.Teeth = 28 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 170.13 mm , Type = B , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 45.0 mm , H = 108 mm

No.Teeth = 30 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 182.25 mm , Type = B , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 45.0 mm , H = 108 mm

No.Teeth = 32 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 194.36 mm , Type = B , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 44.5 mm , H = 130 mm

No.Teeth = 35 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 212.52 mm , Type = B , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 44.5 mm , H = 130 mm

No.Teeth = 38 , Bushing Size = 3020
DIMENSIONS :Pitch diameter = 230.69 mm , Type = B , Bore min. = 25 mm , Bore max. = 76.2 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 40 , Bushing Size = 3020
DIMENSIONS :Pitch diameter = 230.69 mm , Type = C , Bore min. = 25 mm , Bore max. = 76.2 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 42 , Bushing Size = 3020
DIMENSIONS :Pitch diameter = 254.93 mm , Type = C , Bore min. = 25 mm , Bore max. = 76.2 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 45 , Bushing Size = 3020
DIMENSIONS :Pitch diameter = 273.10 mm , Type = C , Bore min. = 25 mm , Bore max. = 76.2 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 54 , Bushing Size = 3020
DIMENSIONS :Pitch diameter = 327.64 mm , Type = C , Bore min. = 25 mm , Bore max. =76.2 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 57 , Bushing Size = C
DIMENSIONS :Pitch diameter = 345.81 mm , Type = C , Bore min. = 25 mm , Bore max. = 76.2 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 60 , Bushing Size = 3020
DIMENSIONS :Pitch diameter = 363.99 mm , Type = C , Bore min. = 25 mm , Bore max. = 76.2 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 65 , Bushing Size = 3020
DIMENSIONS :Pitch diameter = 394.29 mm , Type = C , Bore min. = 25 mm , Bore max. = 76.2 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 70 , Bushing Size = 3020
DIMENSIONS :Pitch diameter = 424.60 mm , Type = C , Bore min. = 25 mm , Bore max. = 76.2 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 76 , Bushing Size = 3020
DIMENSIONS :Pitch diameter = 460.99 mm , Type = C , Bore min. = 25 mm , Bore max. = 76.2 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 84 , Bushing Size = 3020
DIMENSIONS :Pitch diameter = 509.48 mm , Type = C , Bore min. = 25 mm , Bore max. = 76.2 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 95 , Bushing Size = 3020
DIMENSIONS :Pitch diameter = 576.17 mm , Type = C , Bore min. = 25 mm , Bore max. = 76.2 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 114 , Bushing Size = 3020
DIMENSIONS :Pitch diameter = 691.36 mm , Type = C , Bore min. = 25 mm , Bore max. = 76.2 mm ,L = 76.0 mm , H = 140 mm
