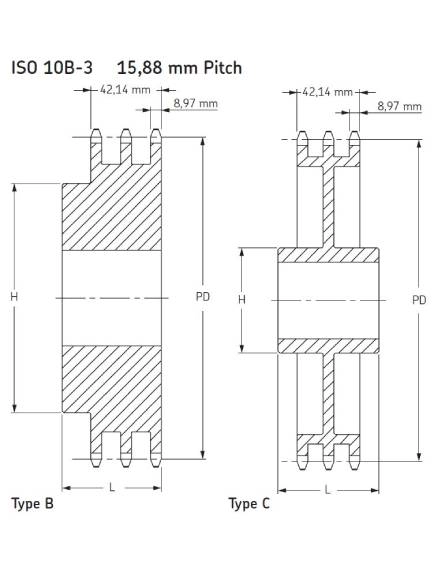

ISO PHS 10B - 3BXX

No.Teeth = 11

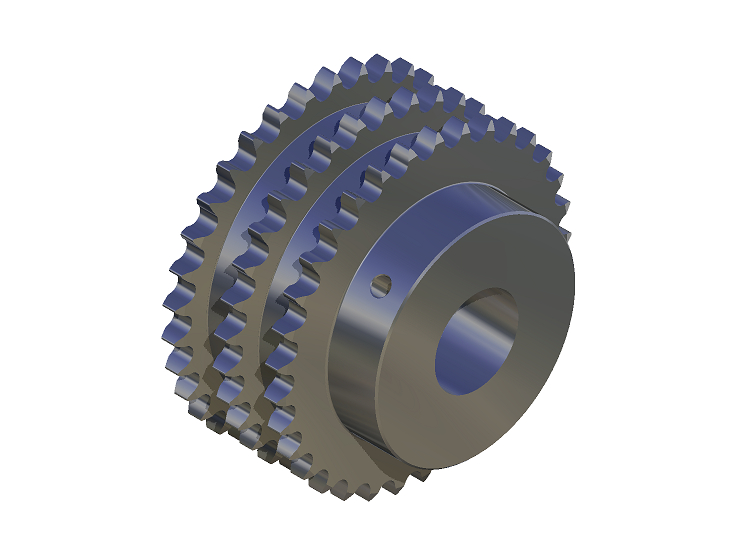

DIMENSIONS :Pitch diameter = 56.34 mm , Type = B , Bore min. = 16 mm , Bore max. = 24 mm ,H = 39 mm , L = 55 mm

No.Teeth = 12
DIMENSIONS :Pitch diameter = 61.34 mm , Type = B , Bore min. = 16 mm , Bore max. = 29 mm ,H = 44 mm , L = 55 mm

No.Teeth = 13
DIMENSIONS :Pitch diameter = 66.32 mm , Type = B , Bore min. = 16 mm , Bore max. = 34 mm ,H = 49 mm , L = 55 mm

No.Teeth = 14
DIMENSIONS :Pitch diameter = 71.34 mm , Type = B , Bore min. = 16 mm , Bore max. = 35 mm ,H = 54 mm , L = 55 mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 76.36 mm , Type = B , Bore min. = 16 mm , Bore max. = 38 mm ,H = 59 mm , L = 55 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 81.37 mm , Type = B , Bore min. = 16 mm , Bore max. = 42 mm ,H = 64 mm , L = 60 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 86.38 mm , Type = B , Bore min. = 16 mm , Bore max. = 45 mm ,H = 69 mm , L = 60 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 91.42 mm , Type = B , Bore min. = 16 mm , Bore max. = 48 mm ,H = 74 mm , L = 60 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 96.45 mm , Type = B , Bore min. = 16 mm , Bore max. = 52 mm ,H = 79 mm , L = 60 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 101.49 mm , Type = B , Bore min. = 16 mm , Bore max. = 56 mm ,H = 84 mm , L = 60 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 106.52 mm , Type = B , Bore min. = 20 mm , Bore max. = 56 mm ,H = 85 mm , L = 60 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 111.55 mm , Type = B , Bore min. = 20 mm , Bore max. = 60 mm ,H = 90 mm , L = 60 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 116.58 mm , Type = B , Bore min. = 20 mm , Bore max. = 62 mm ,H = 95 mm , L = 60 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 121.62 mm , Type = B , Bore min. = 20 mm , Bore max. = 64 mm ,H = 100 mm , L = 60 mm

No.Teeth = 25
DIMENSIONS :Pitch diameter = 126.66 mm , Type = B , Bore min. = 20 mm , Bore max. = 68 mm ,H = 105 mm , L = 60 mm

No.Teeth = 26
DIMENSIONS :Pitch diameter = 131.70 mm , Type = B , Bore min. = 20 mm , Bore max. = 73 mm ,H = 110 mm , L = 60 mm

No.Teeth = 27
DIMENSIONS :Pitch diameter = 136.75 mm , Type = B , Bore min. = 20 mm , Bore max. = 73 mm ,H = 110 mm , L = 60 mm

No.Teeth = 28
DIMENSIONS :Pitch diameter = 141.78 mm , Type = B , Bore min. = 20 mm , Bore max. = 76 mm ,H = 115 mm , L = 60 mm

No.Teeth = 29
DIMENSIONS :Pitch diameter = 146.83 mm , Type = B , Bore min. = 20 mm , Bore max. = 76 mm ,H = 115 mm , L = 60 mm

No.Teeth = 30
DIMENSIONS :Pitch diameter = 151.87 mm , Type = B , Bore min. = 20 mm , Bore max. = 80 mm ,H = 120 mm , L = 60 mm

No.Teeth = 32
DIMENSIONS :Pitch diameter = 161.95 mm , Type = B , Bore min. = 20 mm , Bore max. = 80 mm ,H = 120 mm , L = 60 mm

No.Teeth = 35
DIMENSIONS :Pitch diameter = 177.10 mm , Type = B , Bore min. = 20 mm , Bore max. = 80 mm ,H = 120 mm , L = 60 mm

No.Teeth = 36
DIMENSIONS :Pitch diameter = 182.15 mm , Type = B , Bore min. = 25 mm , Bore max. = 80 mm ,H = 120 mm , L = 60 mm

No.Teeth = 38
DIMENSIONS :Pitch diameter = 192.24 mm , Type = B , Bore min. = 25 mm , Bore max. = 80 mm ,H = 120 mm , L = 60 mm

No.Teeth = 45
DIMENSIONS :Pitch diameter = 227.58 mm , Type = B , Bore min. = 25 mm , Bore max. = 80 mm ,H = 130 mm , L = 60 mm

No.Teeth = 48
DIMENSIONS :Pitch diameter = 242.73 mm , Type = B , Bore min. = 25 mm , Bore max. = 80 mm ,H = 130 mm , L = 60 mm

No.Teeth = 57
DIMENSIONS :Pitch diameter = 288.18 mm , Type = B , Bore min. = 25 mm , Bore max. = 80 mm ,H = 130 mm , L = 64 mm

No.Teeth = 60
DIMENSIONS :Pitch diameter = 303.32 mm , Type = B , Bore min. = 25 mm , Bore max. = 80 mm ,H = 130 mm , L = 67 mm

No.Teeth = 76

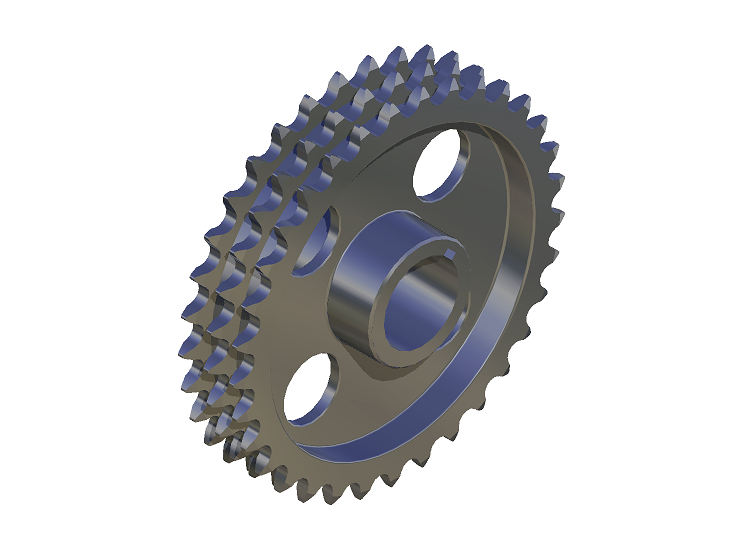

DIMENSIONS :Pitch diameter = 384.16 mm , Type = C , Bore min. = 25 mm , Bore max. = 80 mm ,H =130 mm , L = 67 mm

No.Teeth = 80
DIMENSIONS :Pitch diameter = 404.35 mm , Type = C , Bore min. = 25 mm , Bore max. = 80 mm ,H = 130 mm , L = 67 mm

No.Teeth = 95
DIMENSIONS :Pitch diameter = 480.14 mm , Type = C , Bore min. = 25 mm , Bore max. = 80 mm ,H = 130 mm , L = 67 mm

No.Teeth = 114
DIMENSIONS :Pitch diameter = 576.13 mm , Type = C , Bore min. = 25 mm , Bore max. = 80 mm ,H = 130 mm , L = 67 mm
