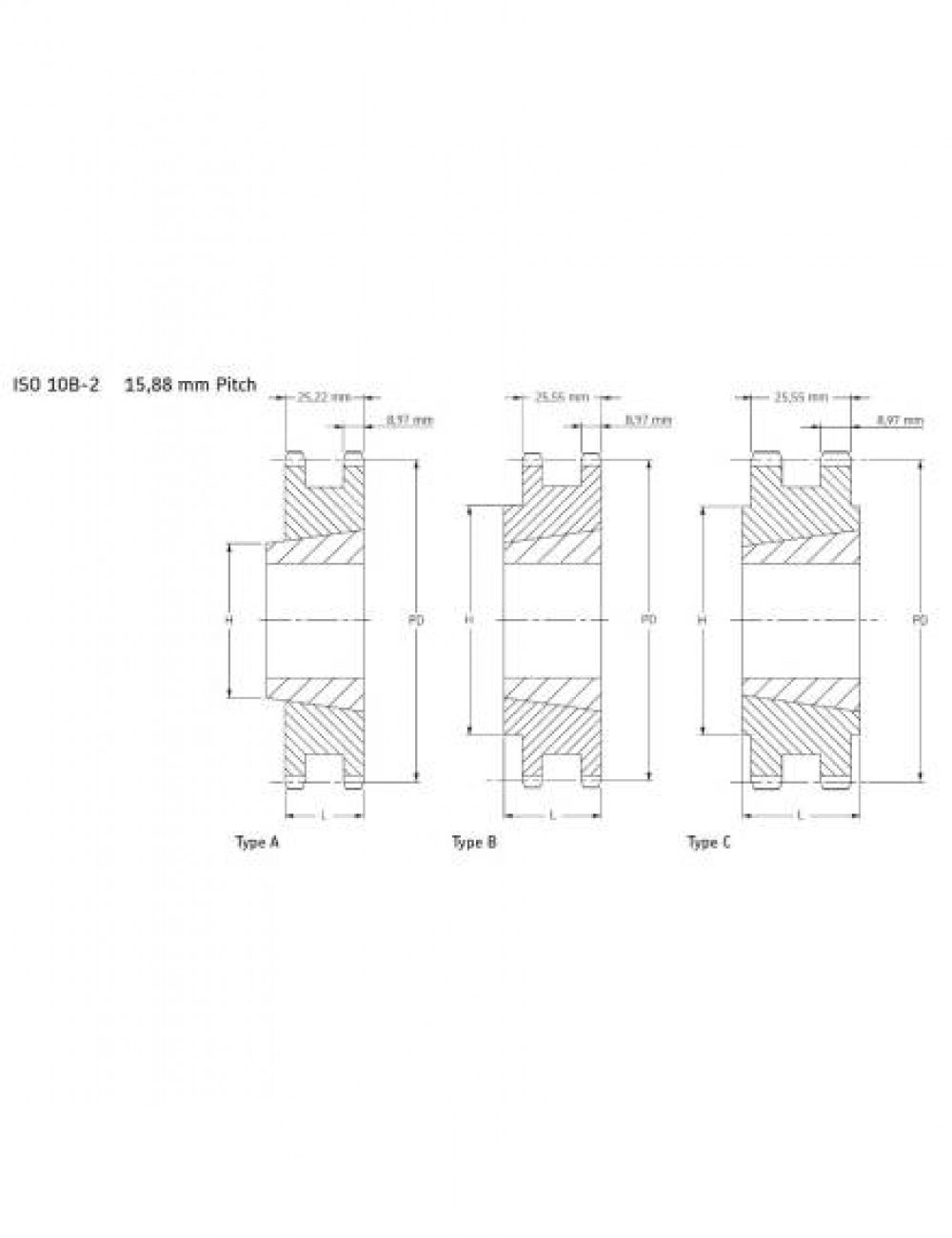

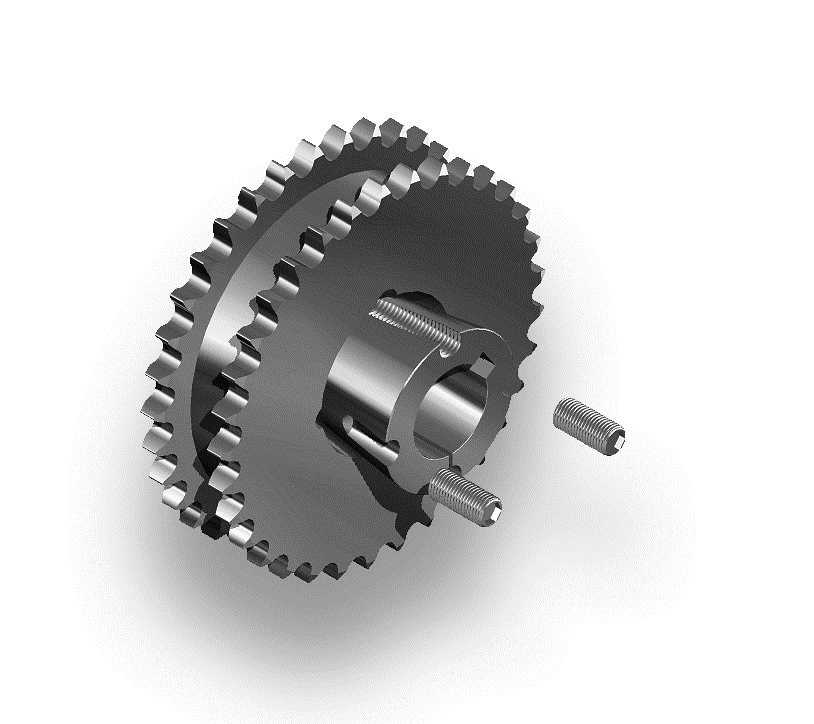

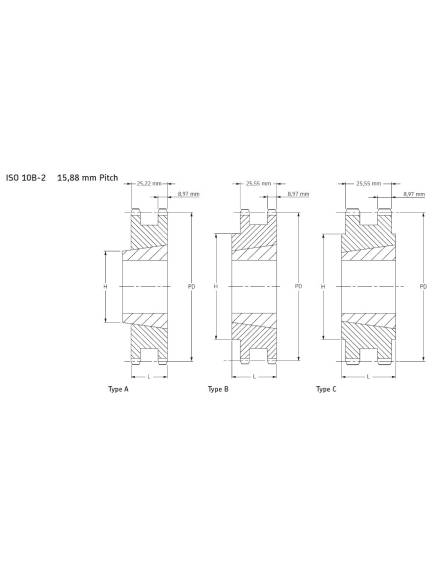

ISO PHS 10B - 2TBXX

No.Teeth = 14 , Bushing Size = 1008
DIMENSIONS :Pitch diameter = 71.34 mm , Type = A , Bore min. = 9 mm , Bore max. = 25.4 mm ,L = 25.5 mm , H = mm

No.Teeth = 15 , Bushing Size = 1210
DIMENSIONS :Pitch diameter = 76.36 mm , Type = A , Bore min. = 11 mm , Bore max. = 31.8 mm ,L =25.5 mm , H = mm

No.Teeth = 16 , Bushing Size = 1210
DIMENSIONS :Pitch diameter = 81.37 mm , Type = A , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 25.5 mm , H = mm

No.Teeth = 17 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 86.39 mm , Type = A , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 25.5 mm , H = mm

No.Teeth = 18 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 91.42 mm , Type = A , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 25.5 mm , H = mm

No.Teeth = 19 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 96.45 mm , Type = A , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 25.5 mm , H = mm

No.Teeth = 20 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 101.49 mm , Type = B , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 25.5 mm , H = mm

No.Teeth = 21 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 106.52 mm , Type = B , Bore min. = 14 mm , Bore max. =41.3 mm ,L = 25.5 mm , H = mm

No.Teeth = 22 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 111.55 mm , Type = B , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 25.5 mm , H = mm

No.Teeth = 23 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 116.58 mm , Type = B , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 25.5 mm , H = mm

No.Teeth = 24 , Bushing Size =2012
DIMENSIONS :Pitch diameter = 121.62 mm , Type = B , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 32.0 mm , H = 90 mm

No.Teeth = 25 , Bushing Size = 2012
DIMENSIONS :Pitch diameter = 126.66 mm , Type = B , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 32.0 mm , H = 90 mm

No.Teeth = 26 , Bushing Size = 2012
DIMENSIONS :Pitch diameter = 131.70 mm , Type = B , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 32.0 mm , H = 90 mm

No.Teeth = 27 , Bushing Size = 2012
DIMENSIONS :Pitch diameter = 136.75 mm , Type = B , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 32.0 mm , H = 90 mm

No.Teeth = 28 , Bushing Size = 2012
DIMENSIONS :Pitch diameter = 141.78 mm , Type = B , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 32.0 mm , H = 90 mm

No.Teeth = 29 , Bushing Size = 2012
DIMENSIONS :Pitch diameter = 146.83 mm , Type = B , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 32.0 mm , H = 90 mm

No.Teeth = 30 , Bushing Size = 2012
DIMENSIONS :Pitch diameter = 151.87 mm , Type = B , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 32.0 mm , H = 90 mm

No.Teeth = 36 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 182.15 mm , Type = C , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 45.0 mm , H = 110 mm

No.Teeth = 38 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 192.24 mm , Type = C , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 45.0 mm , H = 110 mm

No.Teeth = 42 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 212.44 mm , Type = C , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 45.0 mm , H = 110 mm

No.Teeth = 45 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 227.58 mm , Type = C , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 45.0 mm , H =110 mm

No.Teeth = 48 , Bushing Size = 2517
DIMENSIONS :Pitch diameter =242.73 mm , Type = C , Bore min. = 16 mm , Bore max. =63.5 mm ,L = 45.0 mm , H = 110 mm

No.Teeth = 57 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 288.18 mm , Type = C , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 45.0 mm , H = 110 mm

No.Teeth = 60 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 303.32 mm , Type = C , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 45.0 mm , H = 110 mm

No.Teeth = 68 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 343.74 mm , Type = C , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 45.0 mm , H = 110 mm

No.Teeth = 76 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 384.16 mm , Type = C , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 45.0 mm , H = 110 mm

No.Teeth = 84 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 424.57 mm , Type = C , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 45.0 mm , H = 110 mm

No.Teeth = 95 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 480.14 mm , Type = C , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 45.0 mm , H = 110 mm

No.Teeth = 114 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 576.13 mm , Type = C , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 45.0 mm , H = 110 mm
