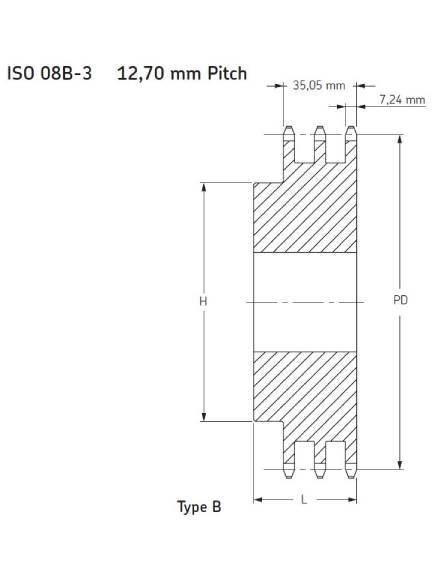

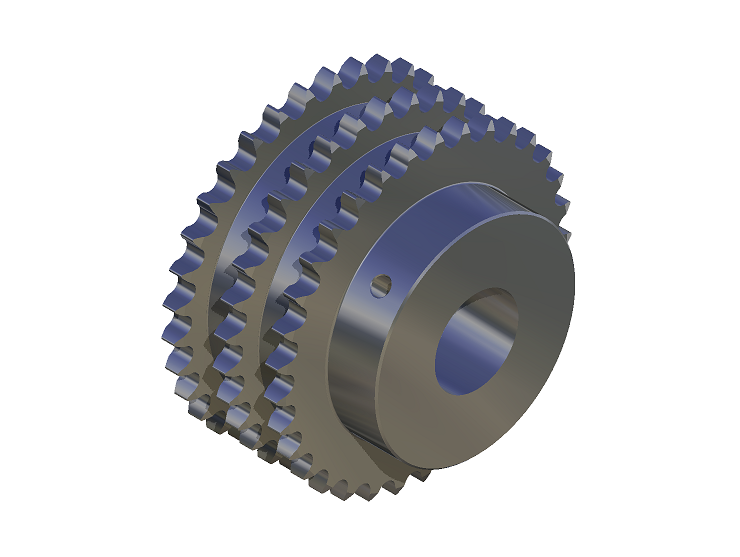

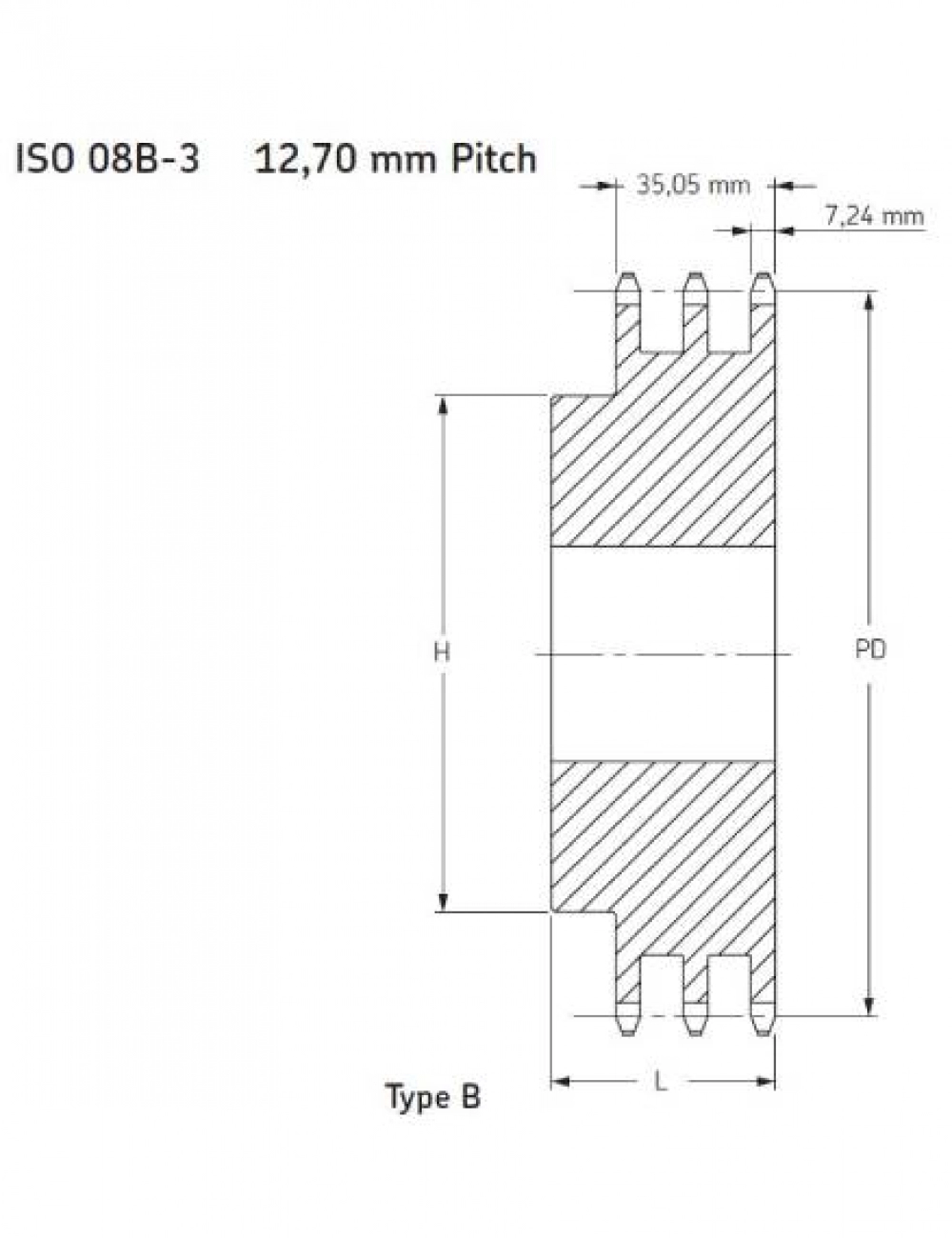

ISO PHS 08B - 3BXX

No.Teeth = 11
DIMENSIONS :Pitch diameter = 45.07 mm , Type = B , Bore min. = 14 mm , Bore max. = 22 mm ,H = 32mm , L =50 mm

No.Teeth = 12
DIMENSIONS :Pitch diameter = 49.07 mm , Type = B , Bore min. = 14 mm , Bore max. = 24 mm ,H = 35 mm , L = 50 mm

No.Teeth = 13
DIMENSIONS :Pitch diameter = 53.06 mm , Type = B , Bore min. = 14 mm , Bore max. = 25 mm ,H = 38 mm , L = 50 mm

No.Teeth = 14
DIMENSIONS :Pitch diameter = 57.07 mm , Type = B , Bore min. = 14 mm , Bore max. = 28 mm ,H = 42 mm , L =50 mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 61.09 mm , Type = B , Bore min. = 14 mm , Bore max. = 31 mm ,H = 46 mm , L = 50 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 65.10 mm , Type = B , Bore min. = 16 mm , Bore max. = 35 mm ,H = 50 mm , L= 50 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 69.11 mm , Type = B , Bore min. = 16 mm , Bore max. = 36 mm ,H = 54 mm , L = 50 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 73.14 mm , Type = B , Bore min. = 16 mm , Bore max. = 38 mm ,H = 58 mm , L = 50 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 77.16 mm , Type = B , Bore min. = 16 mm , Bore max. = 40 mm ,H = 62 mm , L = 50 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 81.19 mm , Type = B , Bore min. = 16 mm , Bore max. = 40 mm ,H = 66 mm , L = 50 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 85.22 mm , Type = B , Bore min. = 16 mm , Bore max. = 45 mm ,H = 70 mm , L = 55 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 89.24 mm , Type = B , Bore min. = 16 mm , Bore max. = 45 mm ,H = 70 mm , L = 55 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 93.27 mm , Type = B , Bore min. = 16 mm , Bore max. = 45 mm ,H =70 mm , L = 55 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 97.29 mm , Type = B , Bore min. = 16 mm , Bore max. = 50 mm ,H = 75 mm , L = 55 mm

No.Teeth = 25
DIMENSIONS :Pitch diameter = 101.33 mm , Type = B , Bore min. = 16 mm , Bore max. = 52 mm ,H = 80 mm , L = 55 mm

No.Teeth = 26
DIMENSIONS :Pitch diameter = 105.36 mm , Type = B , Bore min. = 20 mm , Bore max. = 56 mm ,H = 85 mm , L = 55 mm

No.Teeth = 27
DIMENSIONS :Pitch diameter = 109.40 mm , Type = B , Bore min. = 20 mm , Bore max. = 56 mm ,H = 85 mm , L = 55 mm

No.Teeth = 28
DIMENSIONS :Pitch diameter = 113.42 mm , Type = B , Bore min. = 20 mm , Bore max. = 60 mm ,H = 90 mm , L = 55 mm

No.Teeth = 29
DIMENSIONS :Pitch diameter = 117.46 mm , Type = B , Bore min. = 20 mm , Bore max. = 62 mm ,H = 95 mm , L = 55 mm

No.Teeth = 30
DIMENSIONS :Pitch diameter = 121.50 mm , Type = B , Bore min. = 20 mm , Bore max. = 64 mm ,H = 100 mm , L = 55 mm

No.Teeth = 35
DIMENSIONS :Pitch diameter = 141.68 mm , Type = B , Bore min. = 20 mm , Bore max. = 73 mm ,H = 110 mm , L = 55 mm

No.Teeth = 36
DIMENSIONS :Pitch diameter = 145.72 mm , Type = B , Bore min. = 25 mm , Bore max. = 80 mm ,H = 120 mm , L = 55 mm

No.Teeth = 38
DIMENSIONS :Pitch diameter = 153.80 mm , Type = B , Bore min. = 25 mm , Bore max. = 80 mm ,H = 120 mm , L = 55 mm

No.Teeth = 42
DIMENSIONS :Pitch diameter = 169.95 mm , Type = B , Bore min. = 25 mm , Bore max. = 80 mm ,H = 120 mm , L = 60 mm

No.Teeth = 45
DIMENSIONS :Pitch diameter = 182.07 mm , Type = B , Bore min. = 25 mm , Bore max. = 80 mm ,H = 120 mm , L = 60 mm

No.Teeth = 48
DIMENSIONS :Pitch diameter = 192.18 mm , Type = B , Bore min. =25 mm , Bore max. = 80 mm ,H = 120 mm , L = 60 mm

No.Teeth = 52
DIMENSIONS :Pitch diameter = 210.34 mm , Type = B , Bore min. = 25 mm , Bore max. = 80 mm ,H = 120 mm , L = 60 mm

No.Teeth = 54
DIMENSIONS :Pitch diameter = 218.43 mm , Type = B , Bore min. = 25 mm , Bore max. = 80 mm ,H = 120 mm , L = 60 mm

No.Teeth = 57
DIMENSIONS :Pitch diameter = 230.54 mm , Type = B , Bore min. = 25 mm , Bore max. = 80 mm ,H = 120 mm , L = 60 mm

No.Teeth = 60
DIMENSIONS :Pitch diameter = 242.66 mm , Type = B , Bore min. = 25 mm , Bore max. = 85 mm ,H = 120 mm , L = 60 mm

No.Teeth = 68
DIMENSIONS :Pitch diameter = 274.99 mm , Type = B , Bore min. = 25 mm , Bore max. = 85 mm ,H = 120 mm , L = 60 mm

No.Teeth = 72
DIMENSIONS :Pitch diameter = 291.16 mm , Type = B , Bore min. = 25 mm , Bore max. = 85 mm ,H = 120 mm , L = 60 mm

No.Teeth = 76
DIMENSIONS :Pitch diameter = 307.33 mm , Type = B , Bore min. = 25 mm , Bore max. = 85 mm ,H = 120 mm , L = 60 mm

No.Teeth = 84
DIMENSIONS :Pitch diameter = 339.65 mm , Type = B , Bore min. = 25 mm , Bore max. = 85 mm ,H = 120 mm , L = 60 mm

No.Teeth = 95
DIMENSIONS :Pitch diameter = 384.11 mm , Type = B , Bore min. = 25 mm , Bore max. = 85 mm ,H = 120 mm , L = 60 mm

No.Teeth = 114
DIMENSIONS :Pitch diameter = 460.90 mm , Type = B , Bore min. = 25 mm , Bore max. = 85 mm ,H = 120 mm , L = 60 mm
