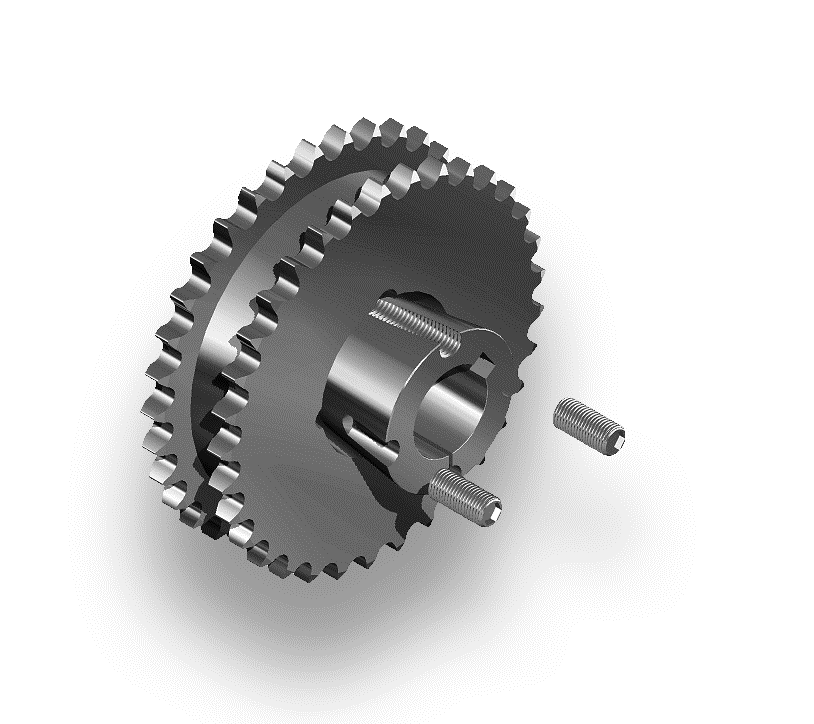

ISO PHS 08B - 2TBXX

No.Teeth = 15 , Bushing Size = 1008

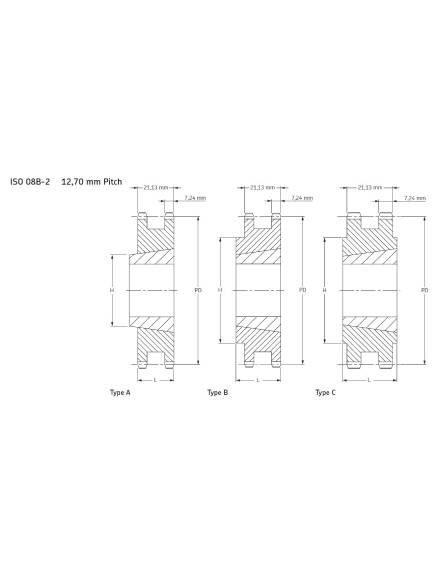

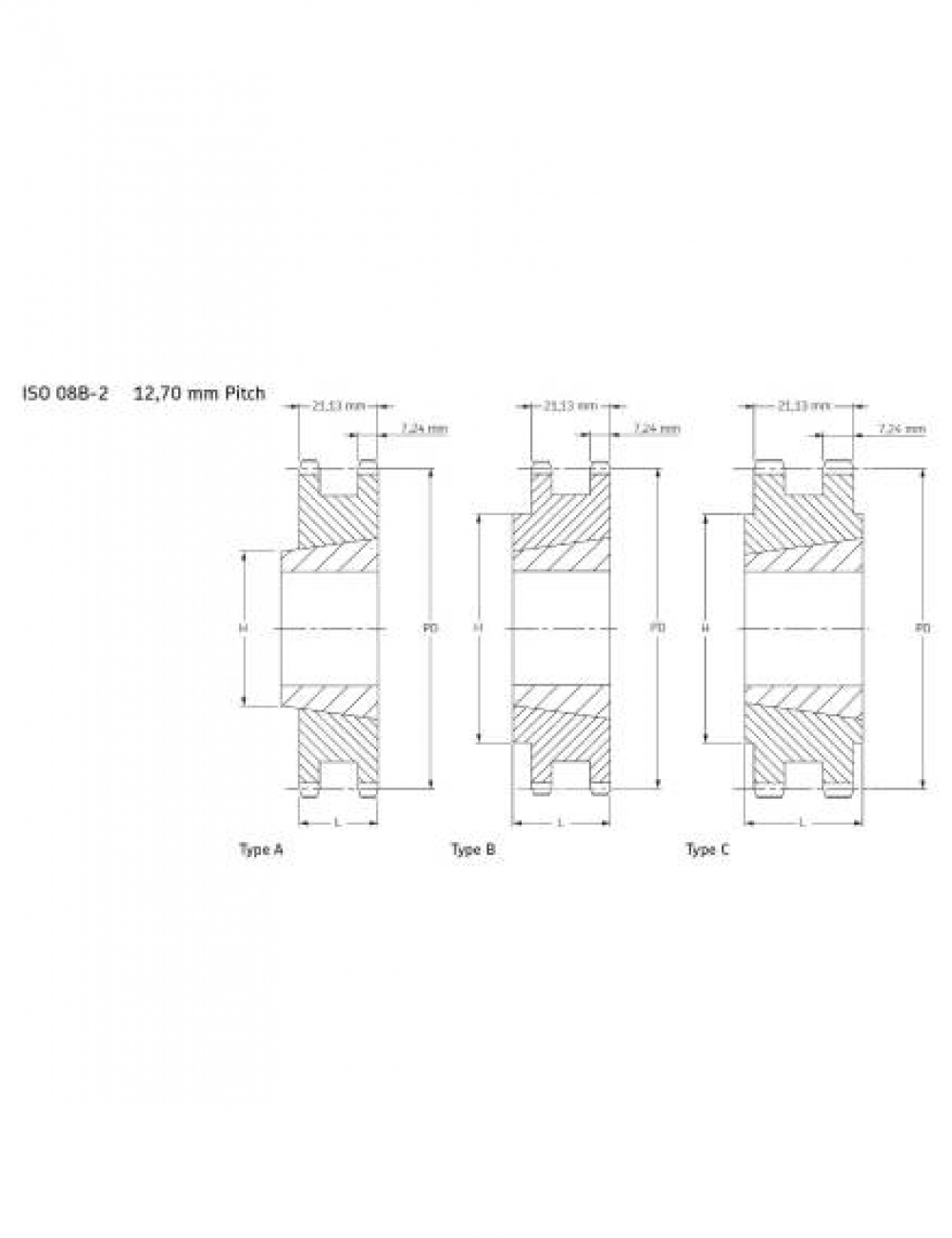

DIMENSIONS :Pitch diameter = 61.09 mm , Type = A , Bore min. = 9 mm , Bore max. = 25.4 mm ,L = 22.0 mm , H = 46 mm

No.Teeth = 16 , Bushing Size = 1108
DIMENSIONS :Pitch diameter = 65.10 mm , Type = A , Bore min. = 9 mm , Bore max. = 28.0 mm ,L =22.0 mm , H = 50 mm

No.Teeth = 17 , Bushing Size = 1210
DIMENSIONS :Pitch diameter = 69.11 mm , Type = A , Bore min. =11 mm , Bore max. = 31.8 mm ,L = 25.0 mm , H = 56 mm

No.Teeth = 18 , Bushing Size = B
DIMENSIONS :Pitch diameter = 73.14 mm , Type = A , Bore min. = 11 mm , Bore max. = 31.8 mm ,L = 25.0 mm , H = 60 mm

No.Teeth = 19 , Bushing Size = 1210
DIMENSIONS :Pitch diameter = 77.16 mm , Type = B , Bore min. = 11 mm , Bore max. = 31.8 mm ,L = 25.0 mm , H = 62 mm

No.Teeth = 20 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 81.19 mm , Type = B , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 25.0 mm , H = 68 mm

No.Teeth = 21 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 85.22 mm , Type = B , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 25.0 mm , H = 70 mm

No.Teeth = 22 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 89.24 mm , Type = B , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 25.0 mm , H = 76 mm

No.Teeth = 23 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 93.27 mm , Type = B , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 25.0 mm , H = 79 mm

No.Teeth = 24 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 97.29 mm , Type = B , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 32.0 mm , H = 84 mm

No.Teeth = 25 , Bushing Size = 2012
DIMENSIONS :Pitch diameter = 101.33 mm , Type = B , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 32.0 mm , H = 87 mm

No.Teeth = 26 , Bushing Size = 2012
DIMENSIONS :Pitch diameter = 105.36 mm , Type = B , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 32.0 mm , H = 87 mm

No.Teeth = 27 , Bushing Size = 2012
DIMENSIONS :Pitch diameter =109.40 mm , Type = B , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 32.0 mm , H = 87 mm

No.Teeth = 28 , Bushing Size = 2012
DIMENSIONS :Pitch diameter = 113.42 mm , Type = B , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 32.0 mm , H = 87 mm

No.Teeth = 29 , Bushing Size = 2012
DIMENSIONS :Pitch diameter = 117.46 mm , Type = B , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 32.0 mm , H = 87 mm

No.Teeth = 30 , Bushing Size = 2012
DIMENSIONS :Pitch diameter = 121.50 mm , Type = B , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 32.0 mm , H = 87 mm

No.Teeth = 35 , Bushing Size = 2012
DIMENSIONS :Pitch diameter = 141.68 mm , Type = B , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 32.0 mm , H = 100 mm

No.Teeth = 36 , Bushing Size = 2012
DIMENSIONS :Pitch diameter = 145.72 mm , Type = B , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 32.0 mm , H = 100 mm

No.Teeth = 38 , Bushing Size = 2012
DIMENSIONS :Pitch diameter = 153.80 mm , Type = B , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 32.0 mm , H = 100 mm

No.Teeth = 42 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 169.94 mm , Type = C , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 32.0 mm , H = 100 mm

No.Teeth = 45 , Bushing Size = 2012
DIMENSIONS :Pitch diameter = 182.07 mm , Type = C , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 32.0 mm , H = 100 mm

No.Teeth = 48 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 194.18 mm , Type = C , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 32.0 mm , H = 100 mm

No.Teeth = 54 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 218.42 mm , Type = C , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 32.0 mm , H = 100 mm

No.Teeth = 57 , Bushing Size = 2012
DIMENSIONS :Pitch diameter = 230.53 mm , Type = C , Bore min. = 14 mm , Bore max. = 50,8 mm ,L = 32.0 mm , H = 100 mm

No.Teeth = 60 , Bushing Size = 2517 DIMENSIONS :Pitch diameter = 242.66 mm , Type = C , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 32.0 mm , H = 100 mm

No.Teeth = 68 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 274.99 mm , Type = C , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 32.0 mm , H = 100 mm

No.Teeth = 70 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 283.07 mm , Type = C , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 32.0 mm , H = 100 mm

No.Teeth = 72 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 291.15 mm , Type = C , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 32.0 mm , H = 100 mm

No.Teeth = 76 , Bushing Size = 2012
DIMENSIONS :Pitch diameter = 307.31 mm , Type = C , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 32.0 mm , H = 100 mm

No.Teeth = 84 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 339.65 mm , Type = C , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 32.0 mm , H = 100 mm

No.Teeth = 95 , Bushing Size = 2012
DIMENSIONS :Pitch diameter = 384.10 mm , Type = C , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 32.0 mm , H = 100 mm

No.Teeth = 96 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 388.15 mm , Type = C , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 32.0 mm , H = 110 mm

No.Teeth = 114 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 460.90 mm , Type = C , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 45.0 mm , H = 110 mm
