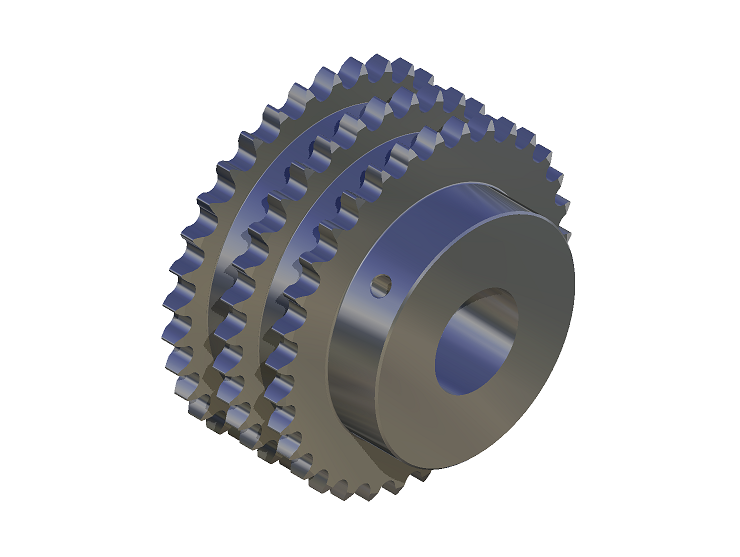

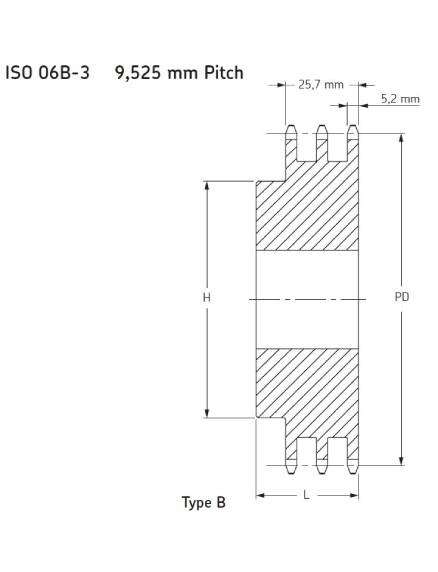

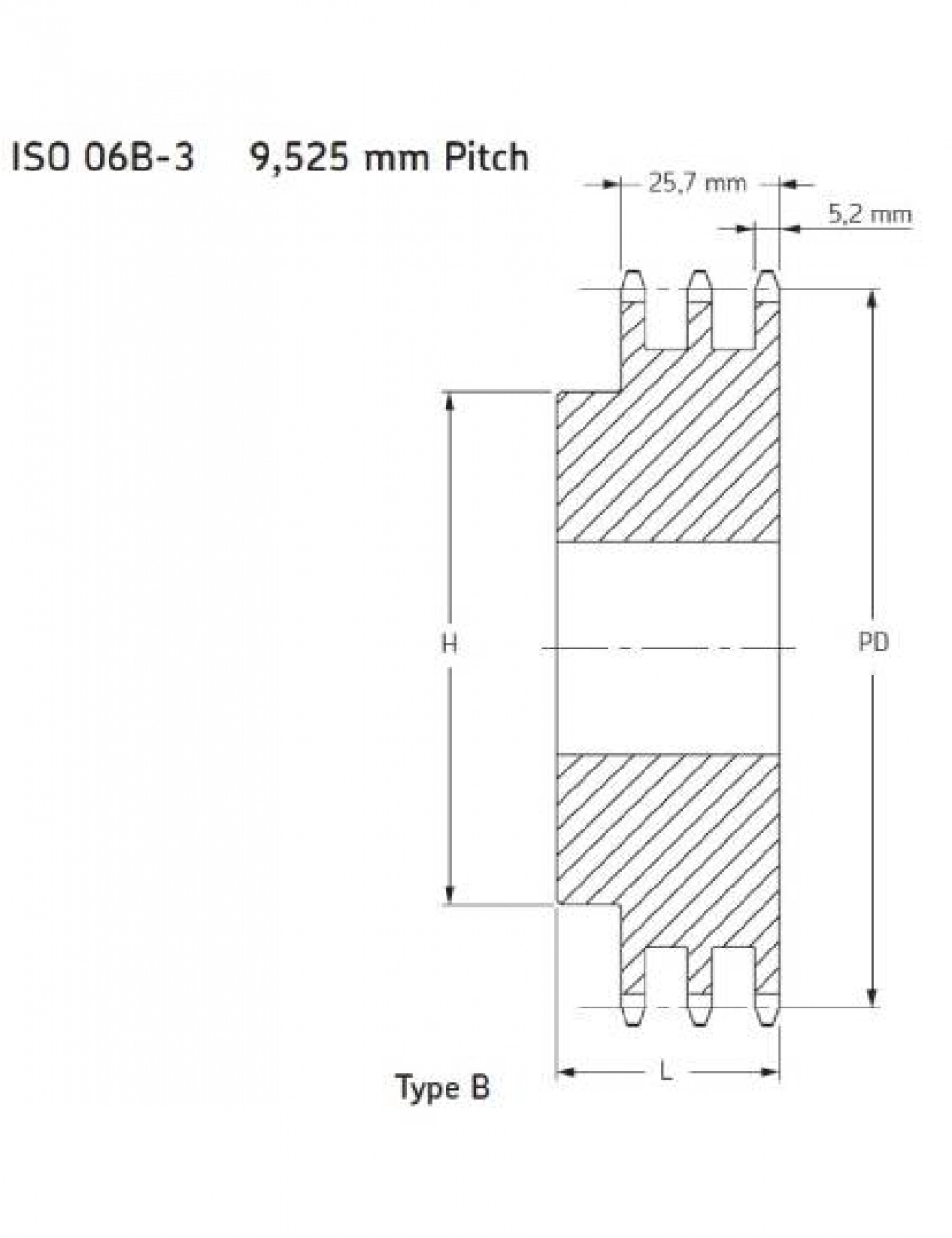

ISO PHS 06B - 3BXX

No.Teeth = 12
DIMENSIONS :Pitch diameter = 36.80 mm , Type = B , Bore min. = 10 mm , Bore max. = 16 mm ,H = 25 mm , L = 35 mm

No.Teeth = 13
DIMENSIONS :Pitch diameter = 39.79 mm , Type = B , Bore min. = 10 mm , Bore max. =18 mm ,H = 28 mm , L = 35 mm

No.Teeth = 14
DIMENSIONS :Pitch diameter = 42.80 mm , Type = B , Bore min. = 12 mm , Bore max. = 18 mm ,H = 31 mm , L = 35 mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 45.81 mm , Type = B , Bore min. = 12 mm , Bore max. = 20 mm ,H = 34 mm , L = 35 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 48.82 mm , Type = B , Bore min. = 12 mm , Bore max. =20 mm ,H = 37 mm , L = 35 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 51.83 mm , Type = B , Bore min. = 12 mm , Bore max. = 24 mm ,H = 40 mm , L = 35 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 54.85 mm , Type = B , Bore min. = 12 mm , Bore max. = 25 mm ,H = 43 mm , L = 35 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 57.87 mm , Type = B , Bore min. = 12 mm , Bore max. = 28 mm ,H = 46 mm , L = 35 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 60.89 mm , Type = B , Bore min. = 12 mm , Bore max. = 30 mm ,H = 49 mm , L = 35 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 63.91 mm , Type = B , Bore min. = 14 mm , Bore max. = 30 mm ,H = 52 mm , L = 40 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 66.93 mm , Type = B , Bore min. = 14 mm , Bore max. = 35 mm ,H = 55 mm , L = 40 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 69.95 mm , Type = B , Bore min. = 14 mm , Bore max. = 38 mm ,H = 58 mm , L = 40 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 72.97 mm , Type = B , Bore min. = 14 mm , Bore max. = 39 mm ,H = 61 mm , L = 40 mm

No.Teeth = 25
DIMENSIONS :Pitch diameter = 76.02 mm , Type = B , Bore min. = 14 mm , Bore max. = 40 mm ,H = 64 mm , L = 40 mm

No.Teeth = 26
DIMENSIONS :Pitch diameter = 79.02 mm , Type = B , Bore min. = 14 mm , Bore max. = 42 mm ,H = 67 mm , L =40 mm

No.Teeth = 27
DIMENSIONS :Pitch diameter = 81.02 mm , Type = B , Bore min. =14 mm , Bore max. = 45 mm ,H = 70 mm , L = 40 mm

No.Teeth = 28
DIMENSIONS :Pitch diameter = 85.07 mm , Type = B , Bore min. = 14 mm , Bore max. = 48 mm ,H =73 mm , L = 40 mm

No.Teeth = 29
DIMENSIONS :Pitch diameter = 88.09 mm , Type = B , Bore min. = 14 mm , Bore max. = 50 mm ,H =76 mm , L = 40 mm

No.Teeth = 30
DIMENSIONS :Pitch diameter = 91.12 mm , Type = B , Bore min. = 14 mm , Bore max. = 52 mm ,H = 79 mm , L = 40 mm

No.Teeth = 32
DIMENSIONS :Pitch diameter = 97.17 mm , Type = B , Bore min. = 16 mm , Bore max. = 52 mm ,H = 80 mm , L = 40 mm

No.Teeth = 35
DIMENSIONS :Pitch diameter = 106.26 mm , Type = B , Bore min. = 16 mm , Bore max. = 52 mm ,H = 85 mm , L = 40 mm

No.Teeth = 36
DIMENSIONS :Pitch diameter = 109.29 mm , Type = B , Bore min. = 16 mm , Bore max. = 60 mm ,H = 90 mm , L = 40 mm

No.Teeth = 38
DIMENSIONS :Pitch diameter = 115.35 mm , Type = B , Bore min. = 16 mm , Bore max. = 60 mm ,H = 90 mm , L = 40 mm

No.Teeth = 40
DIMENSIONS :Pitch diameter = 121.40 mm , Type = B , Bore min. = 16 mm , Bore max. = 60 mm ,H = 90 mm , L = 40 mm

No.Teeth = 42
DIMENSIONS :Pitch diameter = 127.46 mm , Type = B , Bore min. = 16 mm , Bore max. = 60 mm ,H = 90 mm , L = 56 mm

No.Teeth = 45
DIMENSIONS :Pitch diameter = 136.55 mm , Type = B , Bore min. = 16 mm , Bore max. = 60 mm ,H = 90 mm , L = 56 mm

No.Teeth = 48
DIMENSIONS :Pitch diameter = 145.64 mm , Type = B , Bore min. = 16 mm , Bore max. = 60 mm ,H = 90 mm , L = 56 mm

No.Teeth = 52
DIMENSIONS :Pitch diameter = 157.75 mm , Type = B , Bore min. = 16 mm , Bore max. = 60 mm ,H = 90 mm , L = 56 mm

No.Teeth = 57
DIMENSIONS :Pitch diameter = 172.91 mm , Type = B , Bore min. = 16 mm , Bore max. = 60 mm ,H = 90 mm , L = 56 mm

No.Teeth = 60
DIMENSIONS :Pitch diameter = 181.99 mm , Type = B , Bore min. = 16 mm , Bore max. = 60 mm ,H = 90 mm , L = 56 mm

No.Teeth = 68
DIMENSIONS :Pitch diameter = 206.24 mm , Type = B , Bore min. = 16 mm , Bore max. = 60 mm ,H = 90 mm , L = 56 mm

No.Teeth = 70
DIMENSIONS :Pitch diameter = 212.30 mm , Type = B , Bore min. = 16 mm , Bore max. = 60 mm ,H = 90 mm , L = 56 mm

No.Teeth = 72
DIMENSIONS :Pitch diameter = 218.37 mm , Type = B , Bore min. =16 mm , Bore max. = 60 mm ,H = 90 mm , L = 56 mm

No.Teeth = 76
DIMENSIONS :Pitch diameter = 230.49 mm , Type = B , Bore min. = 16 mm , Bore max. = 64 mm ,H = 90mm , L = 56 mm

No.Teeth = 84
DIMENSIONS :Pitch diameter = 254.74 mm , Type = B , Bore min. = 16 mm , Bore max. = 64 mm ,H = 90 mm , L = 56 mm

No.Teeth = 95
DIMENSIONS :Pitch diameter = 288.08 mm , Type = B , Bore min. = 16 mm , Bore max. = 64 mm ,H = 90 mm , L = 56 mm

No.Teeth = 96
DIMENSIONS :Pitch diameter = 291.11 mm , Type = B , Bore min. = 16 mm , Bore max. = 64 mm ,H = 90 mm , L = 56 mm

No.Teeth = 114
DIMENSIONS :Pitch diameter = 345.69 mm , Type = B , Bore min. = 16 mm , Bore max. = 64 mm ,H = 90 mm , L = 56 mm
