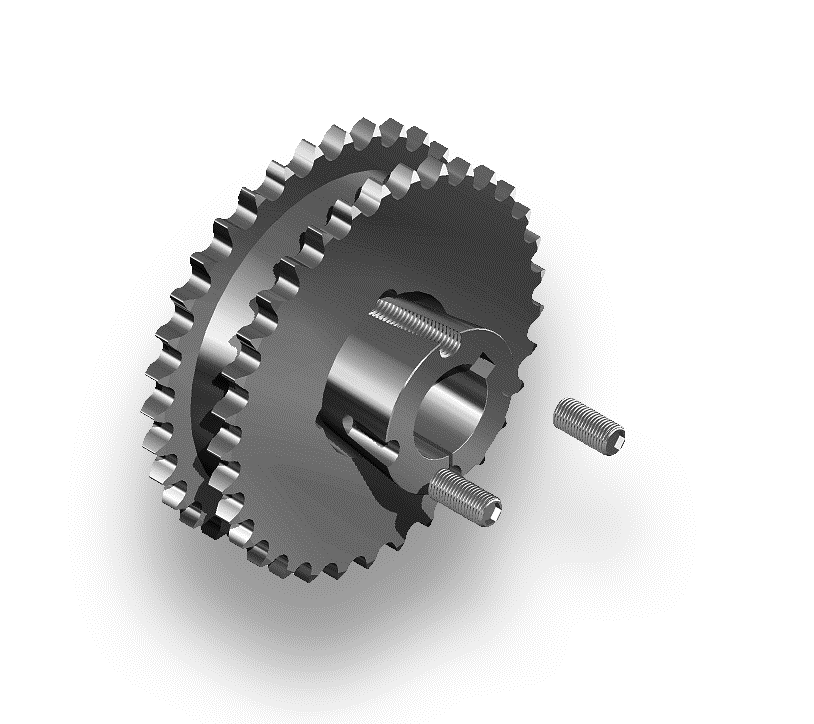

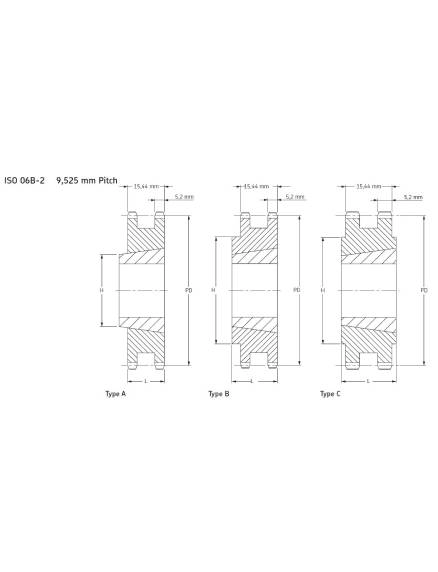

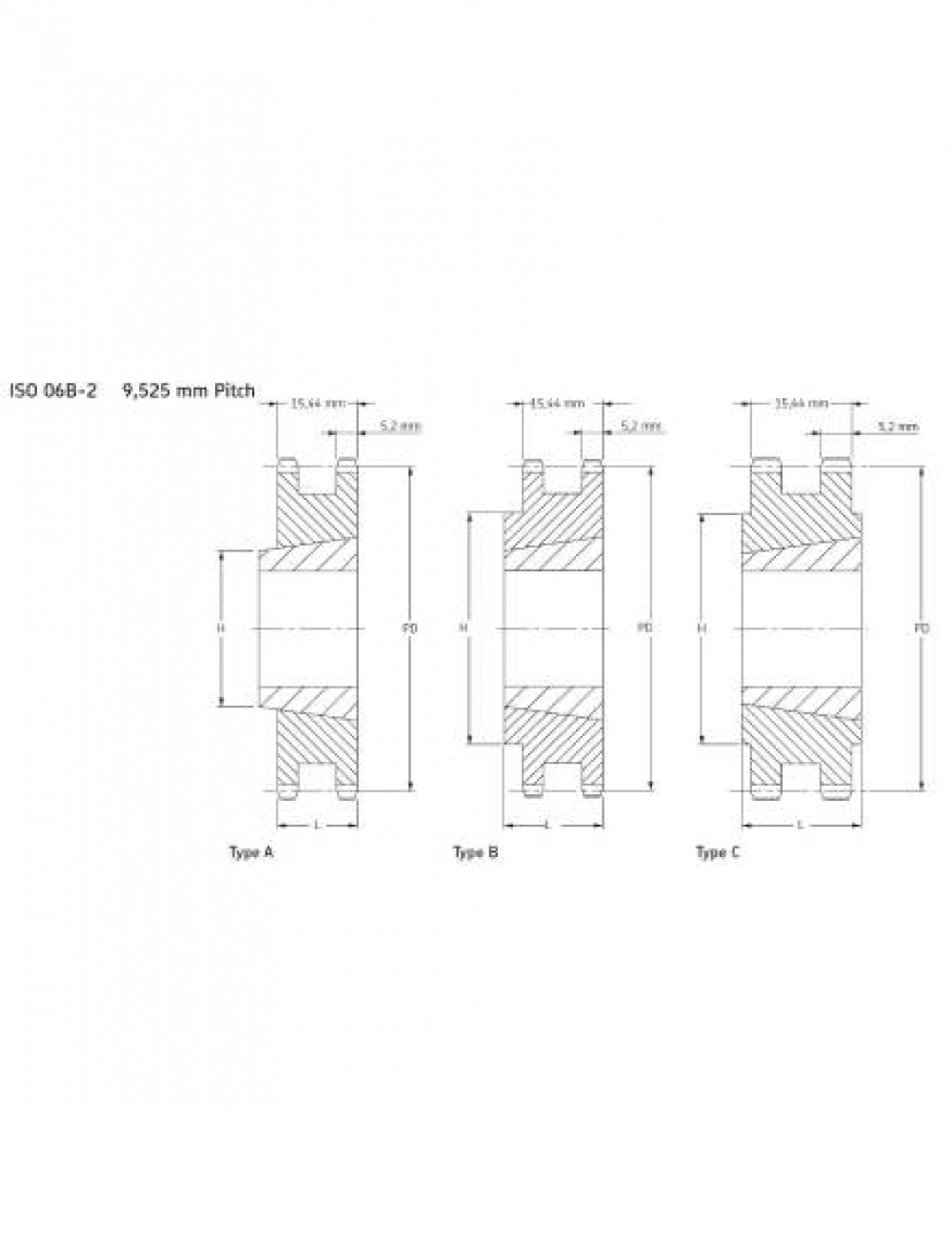

ISO PHS 06B - 2TBXX

No.Teeth = 16 , Bushing Size = 1108
DIMENSIONS :Pitch diameter = 48.82 mm , Type = B , Bore min. = 9 mm , Bore max. = 25.4 mm ,L = 22.0 mm , H = 41 mm

No.Teeth = 17 , Bushing Size = 1008
DIMENSIONS :Pitch diameter = 51.83 mm , Type = B , Bore min. = 9 mm , Bore max. = 25.4 mm ,L = 22.0 mm , H = 41 mm

No.Teeth = 18 , Bushing Size = 1008
DIMENSIONS :Pitch diameter = 54.85 mm , Type = B , Bore min. = 9 mm , Bore max. = 25.4 mm ,L = 22.0 mm , H = 45 mm

No.Teeth = 19 , Bushing Size = 1008
DIMENSIONS :Pitch diameter = 57.87 mm , Type = B , Bore min. =9 mm , Bore max. = 25.4 mm ,L = 22.0 mm , H = 46 mm

No.Teeth = 20 , Bushing Size = 1008
DIMENSIONS :Pitch diameter = 60.89 mm , Type = B , Bore min. = 9 mm , Bore max. = 25.4 mm ,L = 22.0 mm , H = 48 mm

No.Teeth = 21 , Bushing Size = 1008
DIMENSIONS :Pitch diameter = 63.91 mm , Type = B , Bore min. = 9 mm , Bore max. = 25.4 mm ,L = 22.0 mm , H = 49 mm

No.Teeth = 22 , Bushing Size = 1108
DIMENSIONS :Pitch diameter = 66.93 mm , Type = B , Bore min. = 9 mm , Bore max. = 25.4 mm ,L = 22.0 mm , H = 52 mm

No.Teeth = 23 , Bushing Size = 1210
DIMENSIONS :Pitch diameter = 69.95 mm , Type = B , Bore min. = 11 mm , Bore max. = 31.8 mm ,L = 25.0 mm , H = 59 mm

No.Teeth = 24 , Bushing Size = 1210
DIMENSIONS :Pitch diameter = 72.97 mm , Type = B , Bore min. = 11 mm , Bore max. = 31.8 mm ,L = 25.0 mm , H = 63 mm

No.Teeth = 25 , Bushing Size = 1210
DIMENSIONS :Pitch diameter = 76.00 mm , Type = B , Bore min. = 11 mm , Bore max. = 31.8 mm ,L = 25.0 mm , H = 64 mm

No.Teeth = 26 , Bushing Size = 1210
DIMENSIONS :Pitch diameter = 79.02 mm , Type = B , Bore min. = 11 mm , Bore max. = 31.8 mm ,L = 25.0 mm , H = 65 mm

No.Teeth = 27 , Bushing Size = 1210
DIMENSIONS :Pitch diameter = 82.05 mm , Type = B , Bore min. = 11 mm , Bore max. = 31.8 mm ,L = 25.0 mm , H = 70 mm

No.Teeth = 28 , Bushing Size = 1210
DIMENSIONS :Pitch diameter = 85.07 mm , Type = B , Bore min. = 11 mm , Bore max. = 31.8 mm ,L = 25.0 mm , H = 70 mm

No.Teeth = 29 , Bushing Size = 1210
DIMENSIONS :Pitch diameter = 88.09 mm , Type = 1210 , Bore min. = 11 mm , Bore max. = 31.8 mm ,L = 25.0 mm , H = 70 mm

No.Teeth = 30 , Bushing Size = 1210
DIMENSIONS :Pitch diameter = 91.12 mm , Type = B , Bore min. = 11 mm , Bore max. = 31.8 mm ,L =25.0 mm , H = 70 mm

No.Teeth = 32 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 97.17 mm , Type = B , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 25.0 mm , H = 80 mm

No.Teeth = 35 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 106.26 mm , Type = B , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 25.0 mm , H = 80 mm

No.Teeth = 38 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 115.35 mm , Type = B , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 25.0 mm , H = 80 mm

No.Teeth = 40 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 121.40 mm , Type = B , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 25.0 mm , H = 80 mm

No.Teeth = 45 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 136.55 mm , Type = B , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 25.0 mm , H = 80 mm

No.Teeth = 48 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 145.64 mm , Type = B , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 25.0 mm , H = 80 mm

No.Teeth = 54 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 163.82 mm , Type = B , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 25.0 mm , H = 80 mm

No.Teeth = 57 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 172.91 mm , Type = B , Bore min. = 14 mm , Bore max. = 41.3 mm ,L =25.0 mm , H = 80 mm

No.Teeth = 60 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 182.00 mm , Type = B , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 25.0 mm , H = 80 mm

No.Teeth = 70 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 212.30 mm , Type = B , Bore min. = 14 mm , Bore max. = 41.3 mm ,L =25.0 mm , H = 80 mm

No.Teeth = 76 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 230.49 mm , Type = B , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 25.0 mm , H = 80 mm

No.Teeth = 95 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 288.08 mm , Type = B , Bore min. = 14 mm , Bore max. = 41.3 mm ,L = 25.0 mm , H = 90 mm

No.Teeth = 114 , Bushing Size = 1610
DIMENSIONS :Pitch diameter = 345.68 mm , Type = B , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 38.0 mm , H = 95 mm
