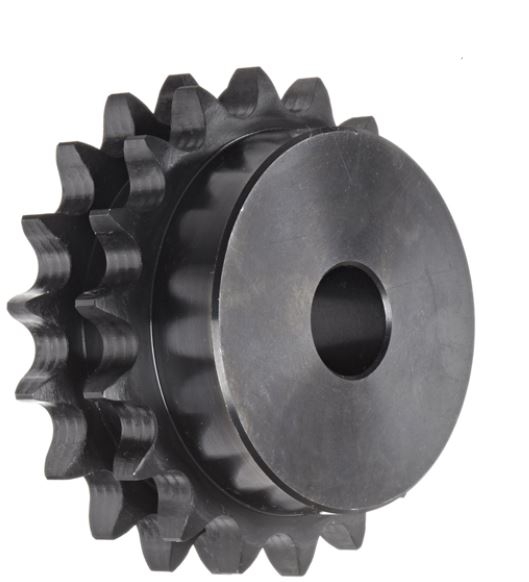

ISO PHS 32B - 2BXX

No.Teeth = 11

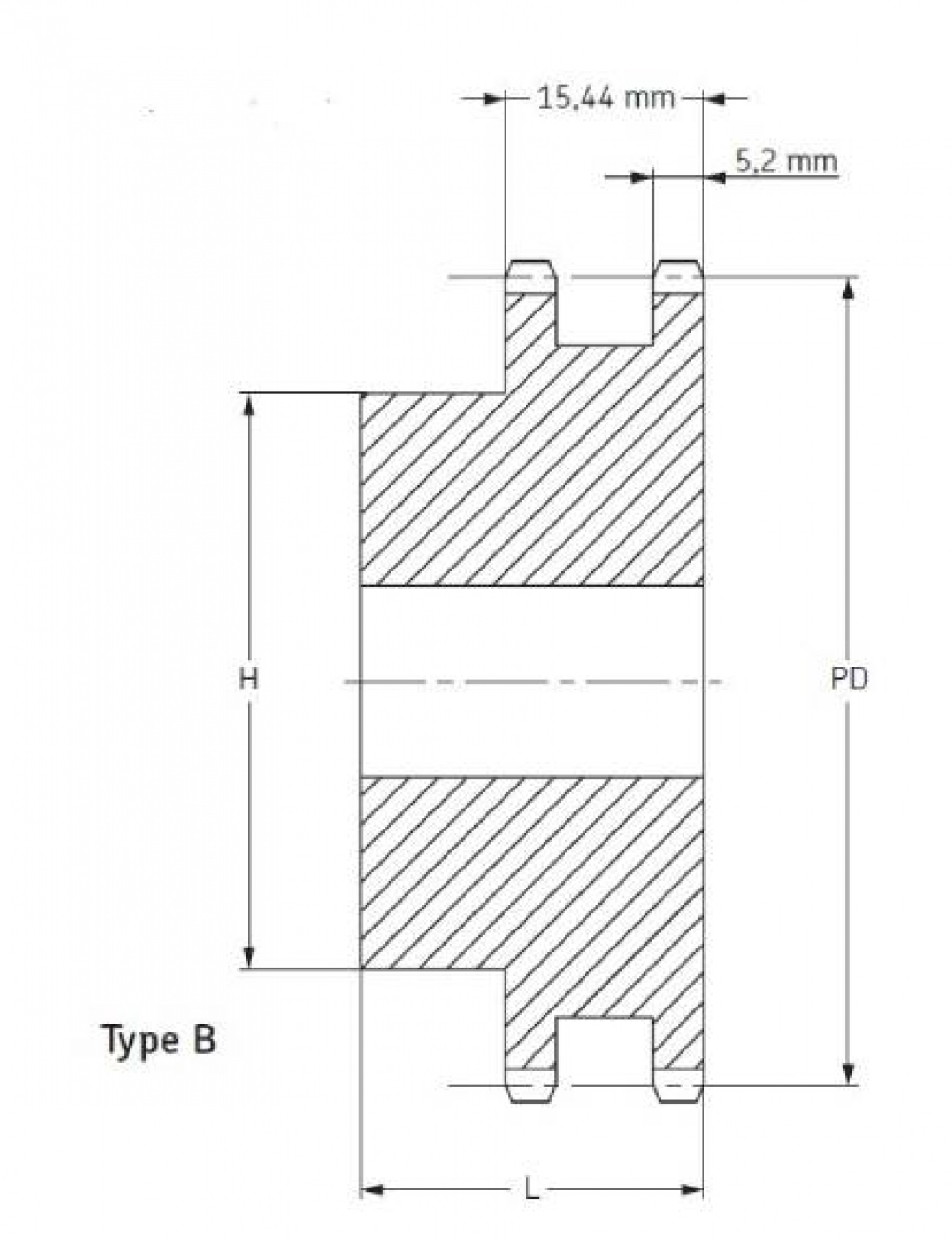

DIMENSIONS :Pitch diameter = 180 mm , Bore min. = 30 mm , Bore max. = 80 mm , H = 120 mm , L = 120 mm

No.Teeth = 12
DIMENSIONS :Pitch diameter = 196.29 mm , Bore min. = 30 mm , Bore max. = 89 mm , H = 133 mm , L = 120 mm

No.Teeth = 13
DIMENSIONS :Pitch diameter = 212.29 mm , Bore min. = 30 mm , Bore max. = 96 mm , H = 145 mm , L = 120mm

No.Teeth = 14
DIMENSIONS :Pitch diameter = 229.29 mm , Bore min. = 30 mm , Bore max. = 103 mm , H = 145 mm , L = 120 mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 244.30 mm , Bore min. = 30 mm , Bore max. = 106 mm , H = 160 mm , L = 120 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 260.40 mm , Bore min. = 30 mm , Bore max. = 120 mm , H = 160 mm , L = 120 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 276.40 mm , Bore min. = 30 mm , Bore max. = 120 mm , H = 180 mm , L =120 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 292.55 mm , Bore min. = 30 mm , Bore max. = 120 mm , H = 180 mm , L = 120 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 308.66 mm , Bore min. = 30 mm , Bore max. = 120 mm , H = 200 mm , L = 120 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 324.71 mm , Bore min. = 30 mm , Bore max. = 130 mm , H = 200 mm , L = 120 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 356.98 mm , Bore min. = 30 mm , Bore max. = 130 mm , H = 200 mm , L = 120 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 356.98 mm , Bore min. = 30 mm , Bore max. = 130 mm , H = 200 mm , L = 120 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 373.08 mm , Bore min. = 30 mm , Bore max. = 130 mm , H = 200 mm , L = 120 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 389.18 mm , Bore min. = 30 mm , Bore max. = 130 mm , H = 200 mm , L =120 mm

No.Teeth = 25
DIMENSIONS :Pitch diameter = 405.33 mm , Bore min. = 30 mm , Bore max. = 130 mm , H = 200 mm , L = 120 mm

No.Teeth = 26
DIMENSIONS :Pitch diameter = 421.44 mm , Bore min. = 30 mm , Bore max. = 130 mm , H = 200 mm , L =120 mm

No.Teeth = 28
DIMENSIONS :Pitch diameter = 453.69 mm , Bore min. = 30 mm , Bore max. = 130 mm , H = 200 mm , L = 120 mm

No.Teeth = 30
DIMENSIONS :Pitch diameter = 486.00 mm , Bore min. = 30 mm , Bore max. = 130 mm , H = 200 mm , L = 120 mm

No.Teeth = 38
DIMENSIONS :Pitch diameter = 615.14 mm , Bore min. = 30 mm , Bore max. = 178 mm , H = 200 mm , L = 120 mm

No.Teeth = 40
DIMENSIONS :Pitch diameter = 647.49 mm , Bore min. = 30 mm , Bore max. = 178 mm , H = 200 mm , L = 120 mm

No.Teeth = 45
DIMENSIONS :Pitch diameter = 728.26 mm , Bore min. = 30 mm , Bore max. =178 mm , H = 200 mm , L = 120 mm

No.Teeth = 48
DIMENSIONS :Pitch diameter = 776.72 mm , Bore min. = 30 mm , Bore max. = 178 mm , H = 200 mm , L = 120 mm

No.Teeth = 54
DIMENSIONS :Pitch diameter = 873.68 mm , Bore min. = 30 mm , Bore max. = 178 mm , H = 220 mm , L = 120 mm

No.Teeth = 57
DIMENSIONS :Pitch diameter = 922.16 mm , Bore min. = 30 mm , Bore max. = 178 mm , H = 220 mm , L = 120 mm

No.Teeth = 58
DIMENSIONS :Pitch diameter = 1099.96 mm , Bore min. = 30 mm , Bore max. = 178 mm , H = 220 mm , L = 130 mm

No.Teeth = 76
DIMENSIONS :Pitch diameter = 1229.28 mm , Bore min. = 30 mm , Bore max. = 178 mm , H =220 mm , L = 130 mm
