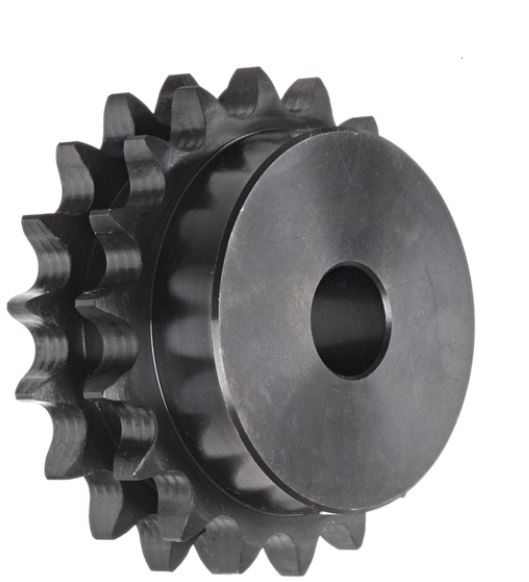

ISO PHS 28B - 2BXX

No.Teeth = 11

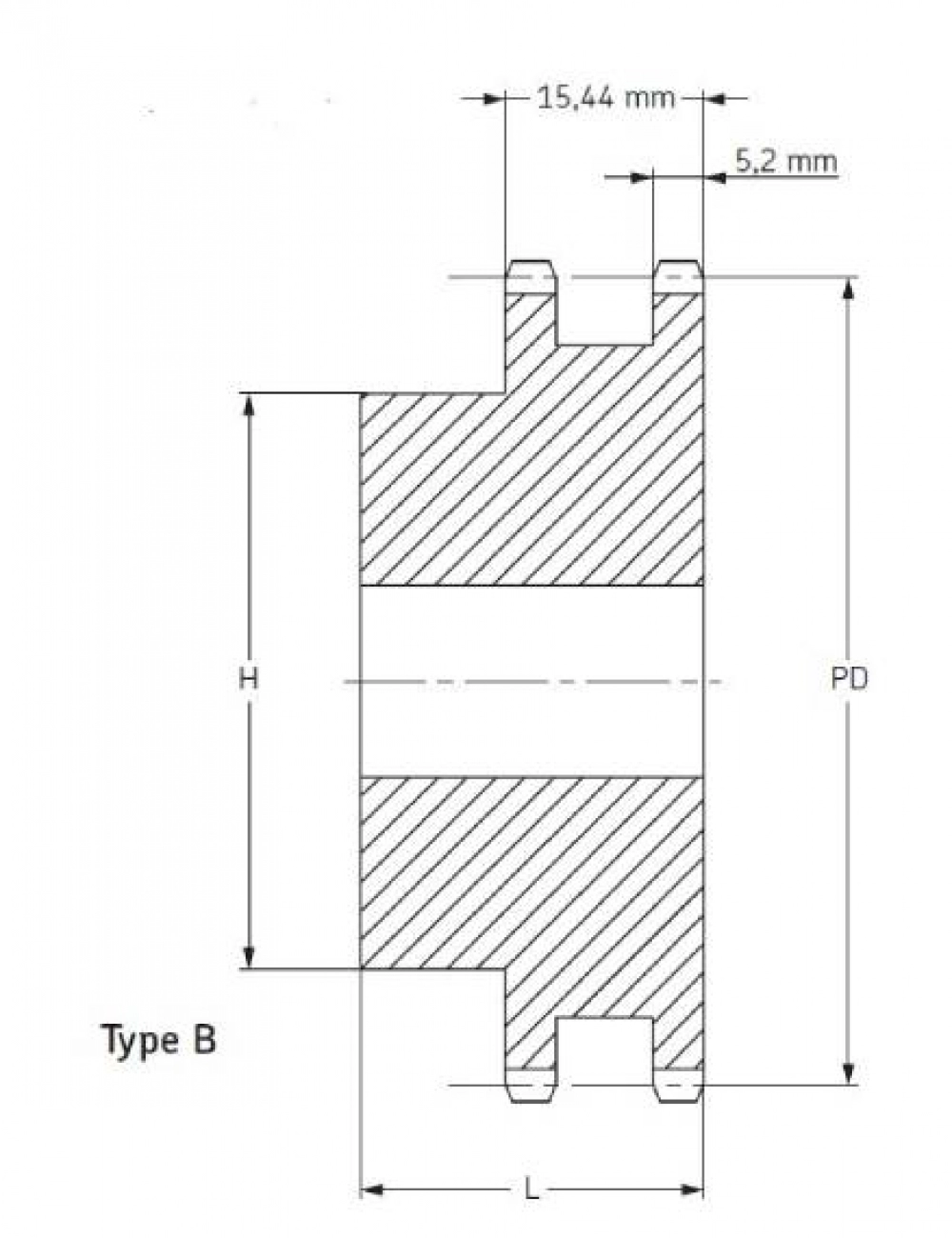

DIMENSIONS :Pitch diameter = 157.77 mm , Bore min. = 25 mm , Bore max. = 73 mm , H = 112 mm , L = 120 mm

No.Teeth = 12
DIMENSIONS :Pitch diameter = 171.74 mm , Bore min. = 25 mm , Bore max. = 84 mm , H = 125 mm , L = 120 mm

No.Teeth = 13
DIMENSIONS :Pitch diameter = 185.75 mm , Bore min. = 25 mm , Bore max. = 84 mm , H =125 mm , L = 120 mm

No.Teeth = 14
DIMENSIONS :Pitch diameter = 199.76 mm , Bore min. =25 mm , Bore max. =87 mm , H = 125 mm , L = 120 mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 213.79 mm , Bore min. = 25 mm , Bore max. = 96 mm , H = 145 mm , L = 120 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 227.84 mm , Bore min. = 30 mm , Bore max. = 108 mm , H = 160 mm , L = 120 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 241.91 mm , Bore min. = 30 mm , Bore max. = 114 mm , H = 160 mm , L = 120 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 255.98 mm , Bore min. = 30 mm , Bore max. = 114 mm , H = 160 mm , L = 120 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 270.06 mm , Bore min. = 30 mm , Bore max. = 133 mm , H = 180 mm , L = 120 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 284.15 mm , Bore min. = 30 mm , Bore max. = 133 mm , H = 180 mm , L = 120 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 298.24 mm , Bore min. = 30 mm , Bore max. = 133 mm , H = 180 mm , L =120 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 312.34 mm , Bore min. = 30 mm , Bore max. = 133 mm , H = 180 mm , L = 120 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 326.44 mm , Bore min. = 30 mm , Bore max. = 133 mm , H = 180 mm , L = 120 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 340.55 mm , Bore min. = 30 mm , Bore max. = 133 mm , H = 180 mm , L = 120 mm

No.Teeth = 25
DIMENSIONS :Pitch diameter =354.66 mm , Bore min. =30 mm , Bore max. = 133 mm , H = 180 mm , L = 120 mm

No.Teeth = 26
DIMENSIONS :Pitch diameter = 368.77 mm , Bore min. = 30 mm , Bore max. = 133 mm , H = 180 mm , L = 120 mm

No.Teeth = 28
DIMENSIONS :Pitch diameter = 397.00 mm , Bore min. = 30 mm , Bore max. = 133 mm , H = 180 mm , L = 120 mm

No.Teeth = 30
DIMENSIONS :Pitch diameter = 425.24 mm , Bore min. = 30 mm , Bore max. = 133 mm , H = 180 mm , L = 120 mm

No.Teeth = 32
DIMENSIONS :Pitch diameter = 453.49 mm , Bore min. = 30 mm , Bore max. = 133 mm , H = 180 mm , L = 120 mm

No.Teeth = 38
DIMENSIONS :Pitch diameter = 538.27 mm , Bore min. = 30 mm , Bore max. = 133 mm , H = 180 mm , L = 120 mm

No.Teeth = 40
DIMENSIONS :Pitch diameter = 566.54 mm , Bore min. = 30 mm , Bore max. = 137 mm , H = 200 mm , L =120 mm

No.Teeth = 45
DIMENSIONS :Pitch diameter = 637.22 mm , Bore min. = 30 mm , Bore max. = 137 mm , H = 200 mm , L = 120 mm

No.Teeth = 48
DIMENSIONS :Pitch diameter = 679.63 mm , Bore min. = 30 mm , Bore max. = 137 mm , H = 200 mm , L =120 mm

No.Teeth = 54
DIMENSIONS :Pitch diameter = 764.46 mm , Bore min. = 30 mm , Bore max. = 162 mm , H = 200 mm , L = 120 mm

No.Teeth = 57
DIMENSIONS :Pitch diameter = 806.90 mm , Bore min. = 30 mm , Bore max. = 162 mm , H = 200 mm , L = 120 mm

No.Teeth = 60
DIMENSIONS :Pitch diameter = 849.32 mm , Bore min. = 30 mm , Bore max. = 162 mm , H = 200 mm , L = 130 mm

No.Teeth = 68
DIMENSIONS :Pitch diameter = 962.46 mm , Bore min. = 30 mm , Bore max. = 162 mm , H = 200 mm , L = 130 mm

No.Teeth = 72
DIMENSIONS :Pitch diameter = 1019.05 mm , Bore min. = 30 mm , Bore max. = 162 mm , H = 200 mm , L = 130 mm

No.Teeth = 76
DIMENSIONS :Pitch diameter = 1075.62 mm , Bore min. = 30 mm , Bore max. = 162 mm , H =200 mm , L = 130 mm
