ISO PHS 16B - 2BXX

No.Teeth = 11

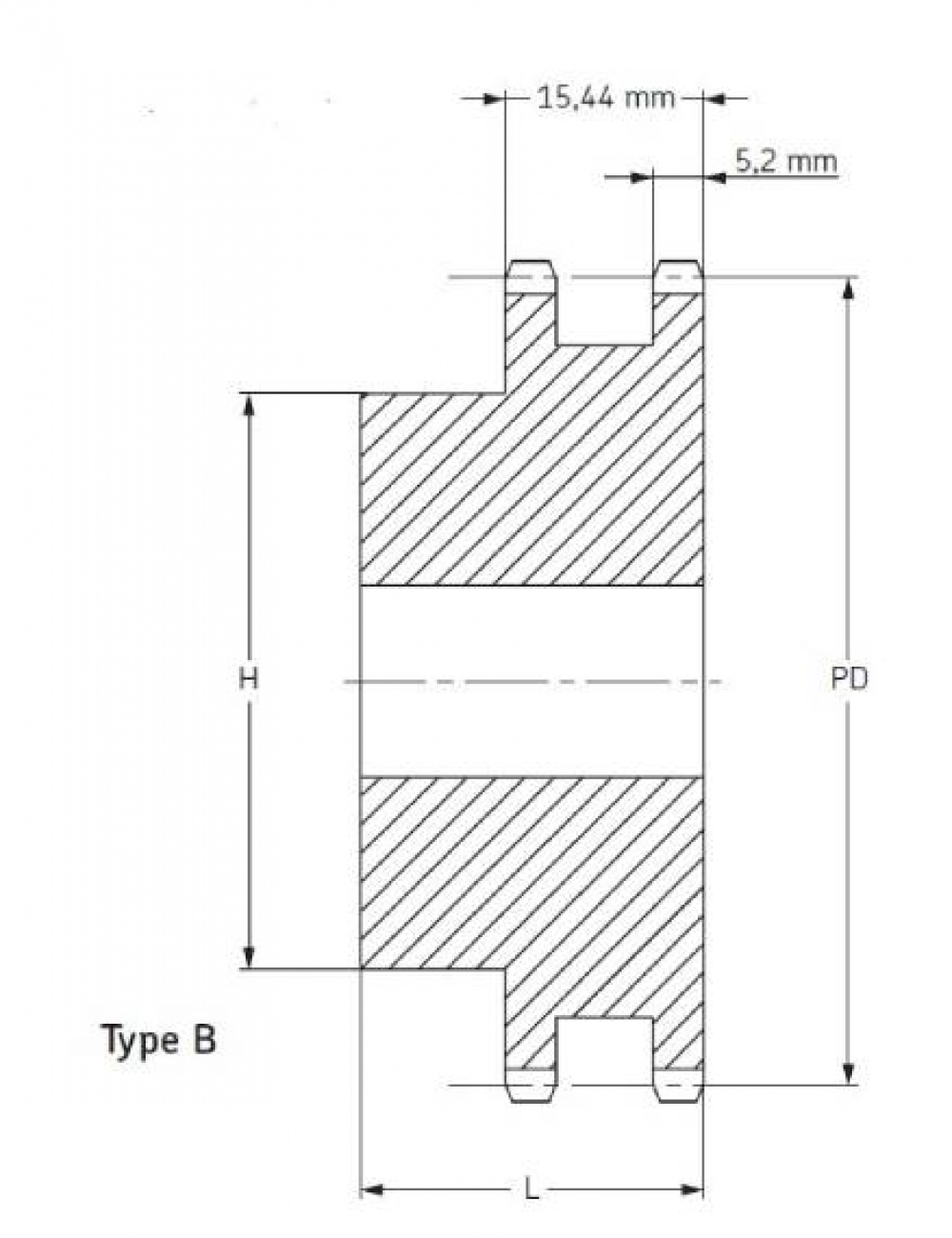

DIMENSIONS :Pitch diameter = 90.14 mm , Bore min. = 20 mm , Bore max. = 42 mm , H = 64 mm , L = 70 mm

No.Teeth = 12
DIMENSIONS :Pitch diameter = 98.14 mm , Bore min. = 20 mm , Bore max. = 45 mm , H = 72 mm , L =70 mm

No.Teeth = 13
DIMENSIONS :Pitch diameter = 106.12 mm , Bore min. = 20 mm , Bore max. = 48 mm , H = 80 mm , L =70 mm

No.Teeth = 14
DIMENSIONS :Pitch diameter = 114.15 mm , Bore min. = 20 mm , Bore max. = 53 mm , H = 88 mm , L = 70 mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 122.17 mm , Bore min. = 20 mm , Bore max. = 58 mm , H = 96 mm , L =70 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 130.20 mm , Bore min. = 20 mm , Bore max. = 66 mm , H = 104 mm , L = 70 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 138.22 mm , Bore min. = 20 mm , Bore max. = 70 mm , H = 112 mm , L = 70 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 146.28 mm , Bore min. = 20 mm , Bore max. = 80 mm , H = 120 mm , L = 70 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 154.33 mm , Bore min. = 20 mm , Bore max. = 70 mm , H = 128 mm , L = 70 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 162.38 mm , Bore min. =20 mm , Bore max. = 85 mm , H = 130 mm , L = 70 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 170.43 mm , Bore min. = 25 mm , Bore max. = 75 mm , H = 130 mm , L = 70 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 178.48 mm , Bore min. = 25 mm , Bore max. = 85 mm , H = 130 mm , L = 70 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 186.53 mm , Bore min. = 25 mm , Bore max. = 75 mm , H = 130 mm , L = 70 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 194.59 mm , Bore min. = 25 mm , Bore max. = 85 mm , H = 130 mm , L = 70 mm

No.Teeth = 25
DIMENSIONS :Pitch diameter = 202.66 mm , Bore min. = 25 mm , Bore max. = 75 mm , H = 130 mm , L = 70 mm

No.Teeth = 26
DIMENSIONS :Pitch diameter = 210.72 mm , Bore min. = 25 mm , Bore max. = 85 mm , H = 130 mm , L = 70 mm

No.Teeth = 27
DIMENSIONS :Pitch diameter = 218.79 mm , Bore min. = 25 mm , Bore max. = 75 mm , H = 130 mm , L = 70 mm

No.Teeth = 28
DIMENSIONS :Pitch diameter = 226.85 mm , Bore min. = 25 mm , Bore max. = 85 mm , H = 130 mm , L = 70 mm

No.Teeth = 29
DIMENSIONS :Pitch diameter = 234.92 mm , Bore min. = 25 mm , Bore max. = 85 mm , H = 130 mm , L = 70 mm

No.Teeth = 30
DIMENSIONS :Pitch diameter = 243.00 mm , Bore min. = 25 mm , Bore max. = 75 mm , H = 130 mm , L = 70 mm

No.Teeth = 32
DIMENSIONS :Pitch diameter = 259.13 mm , Bore min. = 25 mm , Bore max. = 95 mm , H = 140 mm , L = 70 mm

No.Teeth = 35
DIMENSIONS :Pitch diameter = 283.36 mm , Bore min. = 25 mm , Bore max. = 95 mm , H = 140 mm , L = 70 mm

No.Teeth = 36
DIMENSIONS :Pitch diameter = 291.44 mm , Bore min. = 25 mm , Bore max. = 95 mm , H = 140 mm , L = 70 mm

No.Teeth = 38
DIMENSIONS :Pitch diameter = 307.59 mm , Bore min. = 25 mm , Bore max. = 75 mm , H = 140 mm , L = 70mm

No.Teeth = 42
DIMENSIONS :Pitch diameter = 339.90 mm , Bore min. = 25 mm , Bore max. = 95 mm , H = 140 mm , L = 70 mm

No.Teeth = 45
DIMENSIONS :Pitch diameter = 364.13 mm , Bore min. = 25 mm , Bore max. = 85 mm , H = 140 mm , L = 70 mm

No.Teeth = 57
DIMENSIONS :Pitch diameter = 461.07 mm , Bore min. = 25 mm , Bore max. = 85 mm , H = 150 mm , L = 85 mm

No.Teeth = 60
DIMENSIONS :Pitch diameter = 485.32 mm , Bore min. = 25 mm , Bore max. = 95 mm , H = 150 mm , L = 85 mm

No.Teeth = 68
DIMENSIONS :Pitch diameter = 549.98 mm , Bore min. = 25 mm , Bore max. = 96 mm , H = 160 mm , L = 90mm

No.Teeth = 76
DIMENSIONS :Pitch diameter = 614.65 mm , Bore min. = 25 mm , Bore max. = 100 mm , H = 160 mm , L = 90 mm

No.Teeth = 80
DIMENSIONS :Pitch diameter = 646.96 mm , Bore min. = 25 mm , Bore max. = 102 mm , H = 160 mm , L = 90 mm

No.Teeth = 95
DIMENSIONS :Pitch diameter = 768.22 mm , Bore min. = 25 mm , Bore max. = 100 mm , H = 160 mm , L = 90mm

No.Teeth = 114
DIMENSIONS :Pitch diameter = 921.81 mm , Bore min. = 25 mm , Bore max. = 102 mm , H = 160 mm , L = 90 mm
