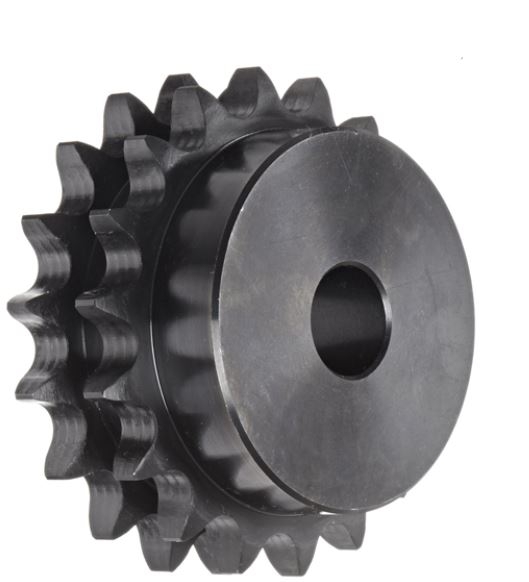

ISO PHS 10B - 2BXX

No.Teeth = 11

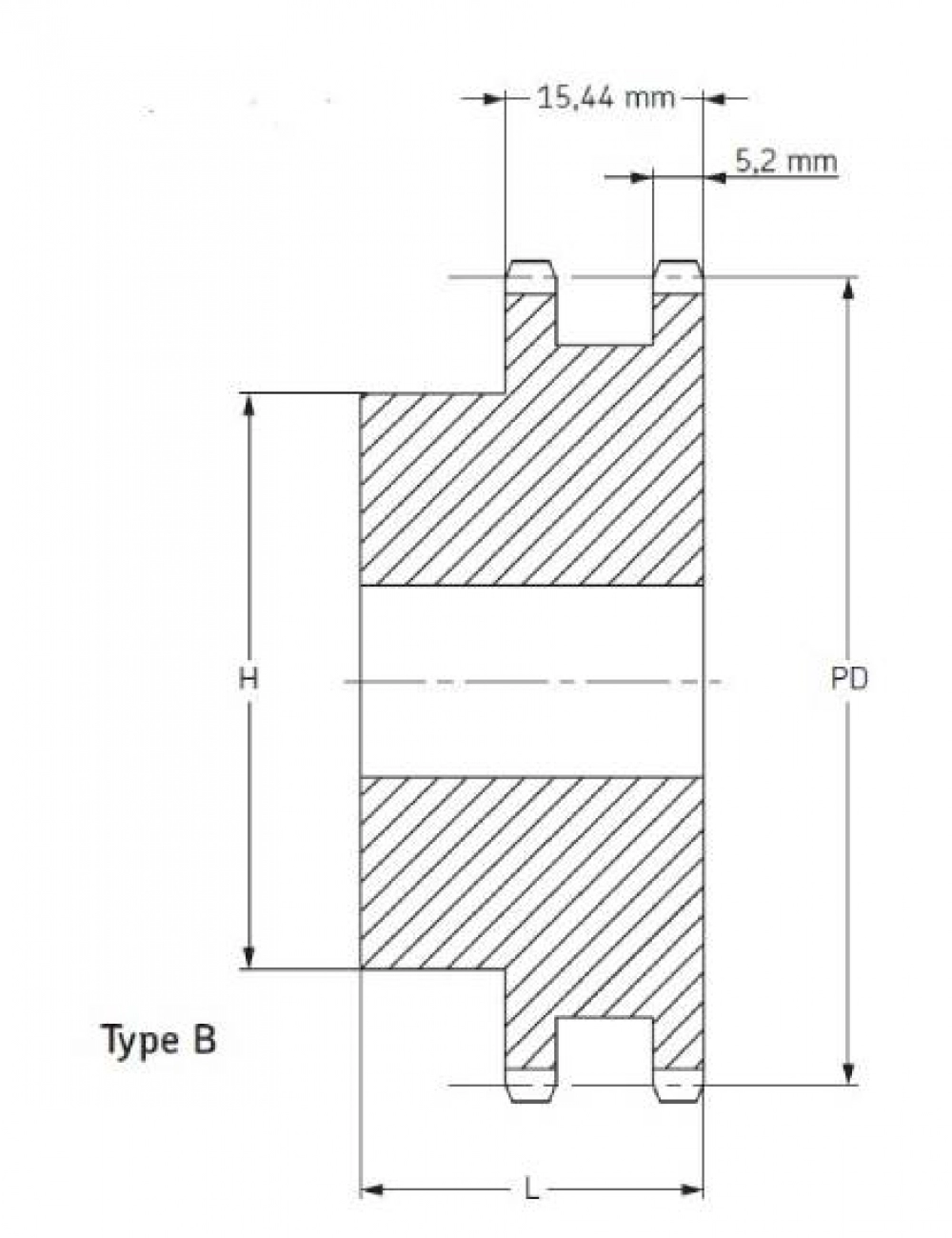

DIMENSIONS :Pitch diameter = 56.34 mm , Bore min. = 14 mm , Bore max. = 24 mm , H = 39 mm , L =40 mm

No.Teeth = 12
DIMENSIONS :Pitch diameter = 61.34 mm , Bore min. = 14 mm , Bore max. = 25 mm , H = 44 mm , L = 40 mm

No.Teeth = 13
DIMENSIONS :Pitch diameter = 66.32 mm , Bore min. = 14 mm , Bore max. = 29 mm , H = 49 mm , L = 40 mm

No.Teeth = 14
DIMENSIONS :Pitch diameter = 71.34 mm , Bore min. = 14 mm , Bore max. = 35 mm , H = 54 mm , L =40 mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 76.36 mm , Bore min. = 14 mm , Bore max. = 35 mm , H = 59 mm , L = 40 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 81.37 mm , Bore min. = 16 mm , Bore max. = 40 mm , H = 64 mm , L = 45 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 86.39 mm , Bore min. = 16 mm , Bore max. = 40 mm , H = 69 mm , L =45 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 91.42 mm , Bore min. = 16 mm , Bore max. = 46 mm , H = 79mm , L = 45 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 96.45 mm , Bore min. = 16 mm , Bore max. = 46 mm , H = 79 mm , L = 45 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 101.49 mm , Bore min. = 16 mm , Bore max. = 56 mm , H = 84 mm , L = 45 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 106.52 mm , Bore min. = 16 mm , Bore max. = 55 mm , H = 85 mm , L = 45 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 111.55 mm , Bore min. = 16 mm , Bore max. = 60 mm , H = 90 mm , L = 45 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 116.58 mm , Bore min. = 16 mm , Bore max. = 55 mm , H = 95 mm , L = 45 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 121.62 mm , Bore min. = 16 mm , Bore max. = 64 mm , H = 100 mm , L = 45 mm

No.Teeth = 25
DIMENSIONS :Pitch diameter = 126.66 mm , Bore min. = 16 mm , Bore max. = 55 mm , H = 105 mm , L = 45 mm

No.Teeth = 26
DIMENSIONS :Pitch diameter = 131.70 mm , Bore min. = 20 mm , Bore max. = 73 mm , H = 110 mm , L = 45mm

No.Teeth = 27
DIMENSIONS :Pitch diameter = 136.75 mm , Bore min. = 20 mm , Bore max. = 55 mm , H = 110 mm , L = 45 mm

No.Teeth = 28
DIMENSIONS :Pitch diameter = 141,78 mm , Bore min. = 20 mm , Bore max. = 76 mm , H = 115 mm , L =45 mm

No.Teeth = 29
DIMENSIONS :Pitch diameter = 146.83 mm , Bore min. = 20 mm , Bore max. = 76 mm , H = 115 mm , L = 45 mm

No.Teeth = 30
DIMENSIONS :Pitch diameter = 151.87 mm , Bore min. = 20 mm , Bore max. = 58 mm , H = 120 mm , L = 45 mm

No.Teeth = 32
DIMENSIONS :Pitch diameter = 161.95 mm , Bore min. = 20 mm , Bore max. = 80 mm , H = 120 mm , L = 45 mm

No.Teeth = 35
DIMENSIONS :Pitch diameter = 177.10 mm , Bore min. = 20 mm , Bore max. = 80 mm , H = 120 mm , L = 45 mm

No.Teeth = 36
DIMENSIONS :Pitch diameter = 182.15 mm , Bore min. = 20 mm , Bore max. = 80 mm , H = 120 mm , L = 45 mm

No.Teeth = 38
DIMENSIONS :Pitch diameter = 192.24 mm , Bore min. = 20 mm , Bore max. = 58 mm , H = 120 mm , L = 45 mm

No.Teeth = 40
DIMENSIONS :Pitch diameter = 202.34 mm , Bore min. = 20 mm , Bore max. = 80 mm , H = 120 mm , L = 45 mm

No.Teeth = 45
DIMENSIONS :Pitch diameter = 227.58 mm , Bore min. = 20 mm , Bore max. = 60 mm , H = 120 mm , L = 50 mm

No.Teeth = 48
DIMENSIONS :Pitch diameter = 242.73 mm , Bore min. = 20 mm , Bore max. = 80 mm , H = 120 mm , L = 50mm

No.Teeth = 57
DIMENSIONS :Pitch diameter = 288.18 mm , Bore min. = 20 mm , Bore max. = 60 mm , H = 120 mm , L = 50 mm

No.Teeth = 60
DIMENSIONS :Pitch diameter = 303.32 mm , Bore min. = 20 mm , Bore max. = 85 mm , H = 120 mm , L = 57mm

No.Teeth = 70
DIMENSIONS :Pitch diameter = 353.84 mm , Bore min. = 20 mm , Bore max. = 85 mm , H = 120 mm , L = 57 mm

No.Teeth = 76
DIMENSIONS :Pitch diameter = 384.16 mm , Bore min. = 20 mm , Bore max. = 85 mm , H = 120 mm , L = 57 mm

No.Teeth = 80
DIMENSIONS :Pitch diameter = 404.35 mm , Bore min. = 20 mm , Bore max. = 85 mm , H = 130 mm , L = 58mm

No.Teeth = 95
DIMENSIONS :Pitch diameter = 480.14 mm , Bore min. = 20 mm , Bore max. = 85 mm , H = 130 mm , L = 58 mm

No.Teeth = 114
DIMENSIONS :Pitch diameter = 576.13 mm , Bore min. = 20 mm , Bore max. = 85 mm , H = 130 mm , L = 58 mm
