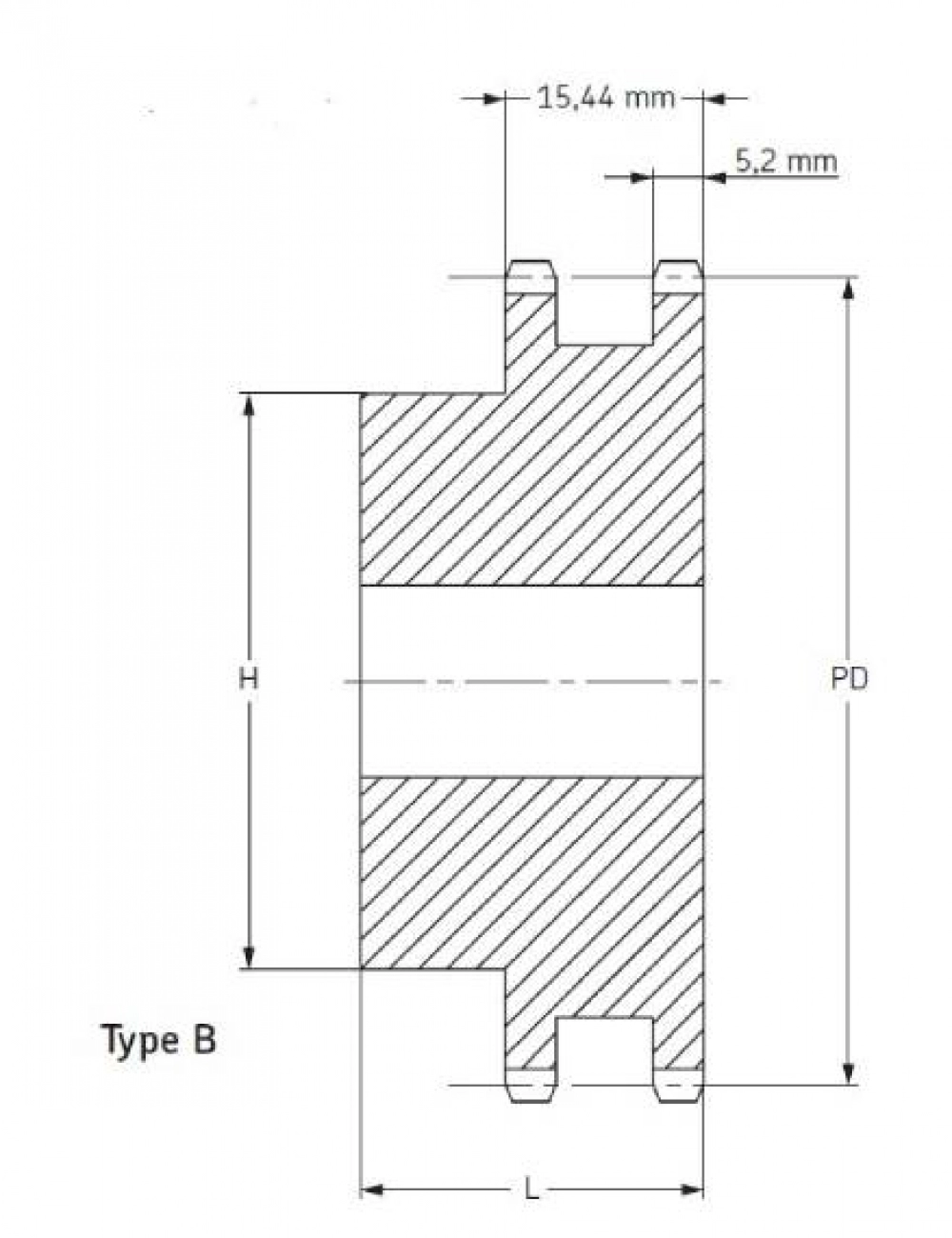

ISO PHS 06B - 2BXX

No.Teeth = 12
DIMENSIONS :Pitch diameter = 36.80 mm , Bore min. = 10 mm , Bore max. = 12 mm , H = 25 mm , L = 25mm

No.Teeth = 13
DIMENSIONS :Pitch diameter = 39.79 mm , Bore min. = 10 mm , Bore max. = 12 mm , H = 28 mm , L = 25mm

No.Teeth = 14
DIMENSIONS :Pitch diameter = 42.80 mm , Bore min. = 10 mm , Bore max. = 18 mm , H = 31 mm , L =25 mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 45.81 mm , Bore min. =10 mm , Bore max. = 18 mm , H = 34 mm , L = 25 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 48.82 mm , Bore min. = 12 mm , Bore max. = 20 mm , H = 37 mm , L = 30 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 51.83 mm , Bore min. = 12 mm , Bore max. = 23 mm , H = 40 mm , L = 30 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 54.85 mm , Bore min. = 12 mm , Bore max. = 25 mm , H = 43 mm , L = 30mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 57.87 mm , Bore min. = 12 mm , Bore max. = 28 mm , H = 46 mm , L = 30 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 60.89 mm , Bore min. = 12 mm , Bore max. = 25 mm , H = 49 mm , L = 30 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 63.91 mm , Bore min. = 12 mm , Bore max. = 30 mm , H = 52 mm , L = 30 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 66.93 mm , Bore min. = 12 mm , Bore max. = 28 mm , H = 55 mm , L =30 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 69.95 mm , Bore min. = 12 mm , Bore max. = 35 mm , H = 58 mm , L = 30 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 72.97 mm , Bore min. = 12 mm , Bore max. = 32 mm , H = 61 mm , L = 30mm

No.Teeth = 25
DIMENSIONS :Pitch diameter = 76.00 mm , Bore min. = 12 mm , Bore max. = 40 mm , H = 64 mm , L = 30 mm

No.Teeth = 26
DIMENSIONS :Pitch diameter = 79.02 mm , Bore min. = 12 mm , Bore max. = 32 mm , H = 67 mm , L = 30 mm

No.Teeth = 27
DIMENSIONS :Pitch diameter = 82.05 mm , Bore min. = 12 mm , Bore max. = 40 mm , H = 70 mm , L =30 mm

No.Teeth = 28
DIMENSIONS :Pitch diameter = 85.07 mm , Bore min. = 12 mm , Bore max. = 32 mm , H = 73 mm , L = 30 mm

No.Teeth = 29
DIMENSIONS :Pitch diameter = 88.09 mm , Bore min. = 12 mm , Bore max. = 32 mm , H = 76mm , L = 30 mm

No.Teeth = 30
DIMENSIONS :Pitch diameter = 91.12 mm , Bore min. = 12 mm , Bore max. = 40 mm , H = 79 mm , L = 30 mm

No.Teeth = 32
DIMENSIONS :Pitch diameter = 97.17 mm , Bore min. = 16 mm , Bore max. = 52 mm , H = 80 mm , L = 30 mm

No.Teeth = 35
DIMENSIONS :Pitch diameter = 106.26 mm , Bore min. = 16 mm , Bore max. = 52 mm , H = 80 mm , L = 30mm

No.Teeth = 36
DIMENSIONS :Pitch diameter = 109.29 mm , Bore min. = 16 mm , Bore max. = 60 mm , H = 90 mm , L = 30 mm

No.Teeth = 38
DIMENSIONS :Pitch diameter = 115.35 mm , Bore min. = 16 mm , Bore max. = 50 mm , H = 90 mm , L = 30 mm

No.Teeth = 40
DIMENSIONS :Pitch diameter = 121.40 mm , Bore min. = 16 mm , Bore max. = 52 mm , H = 90 mm , L = 30 mm

No.Teeth = 42
DIMENSIONS :Pitch diameter = 127.46 mm , Bore min. = 16 mm , Bore max. = 60 mm , H = 90 mm , L = 40 mm

No.Teeth = 45
DIMENSIONS :Pitch diameter = 136.55 mm , Bore min. = 16 mm , Bore max. = 50 mm , H =90 mm , L = 40 mm

No.Teeth = 48
DIMENSIONS :Pitch diameter = 145.64 mm , Bore min. =16 mm , Bore max. = 60 mm , H =90 mm , L = 40mm

No.Teeth = 52
DIMENSIONS :Pitch diameter = 157.75 mm , Bore min. = 16 mm , Bore max. = 60 mm , H = 90 mm , L = 40 mm

No.Teeth = 57
DIMENSIONS :Pitch diameter = 172.91 mm , Bore min. = 16 mm , Bore max. = 50 mm , H = 90 mm , L = 40 mm

No.Teeth = 60
DIMENSIONS :Pitch diameter = 182.00 mm , Bore min. = 16 mm , Bore max. = 60 mm , H = 90 mm , L = 40 mm

No.Teeth = 68
DIMENSIONS :Pitch diameter = 206.24 mm , Bore min. = 16 mm , Bore max. = 60 mm , H = 90 mm , L = 40 mm

No.Teeth = 70
DIMENSIONS :Pitch diameter = 212.30 mm , Bore min. = 16 mm , Bore max. = 60 mm , H = 90 mm , L = 40 mm

No.Teeth = 72
DIMENSIONS :Pitch diameter = 218.37 mm , Bore min. = 16 mm , Bore max. = 60 mm , H = 90 mm , L =40 mm

No.Teeth = 76
DIMENSIONS :Pitch diameter = 230.49 mm , Bore min. = 16 mm , Bore max. = 50 mm , H = 90 mm , L = 40 mm

No.Teeth = 84
DIMENSIONS :Pitch diameter = 254.74 mm , Bore min. = 16 mm , Bore max. = 60 mm , H = 90 mm , L =40 mm

No.Teeth = 95
DIMENSIONS :Pitch diameter = 288.08 mm , Bore min. = 16 mm , Bore max. = 62 mm , H = 90 mm , L = 40 mm

No.Teeth = 96
DIMENSIONS :Pitch diameter = 291.11 mm , Bore min. = 16 mm , Bore max. = 62 mm , H = 90 mm , L = 40 mm

No.Teeth = 114
DIMENSIONS :Pitch diameter = 343.68 mm , Bore min. = 16 mm , Bore max. = 62 mm , H = 90 mm , L = 40 mm
