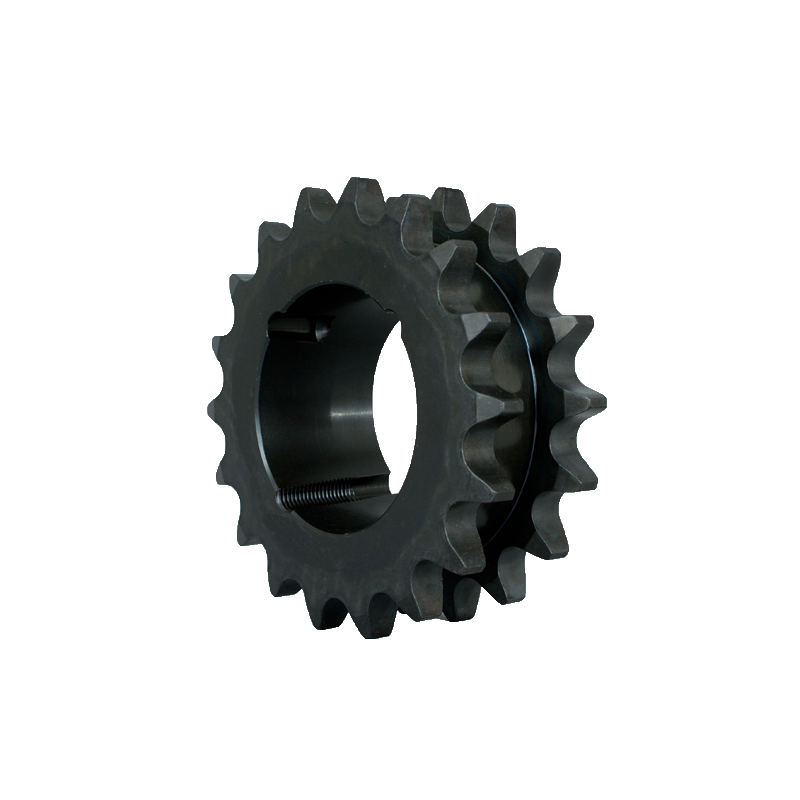

ISO PHS 16B - 1DSTBXX

No.Teeth = 12

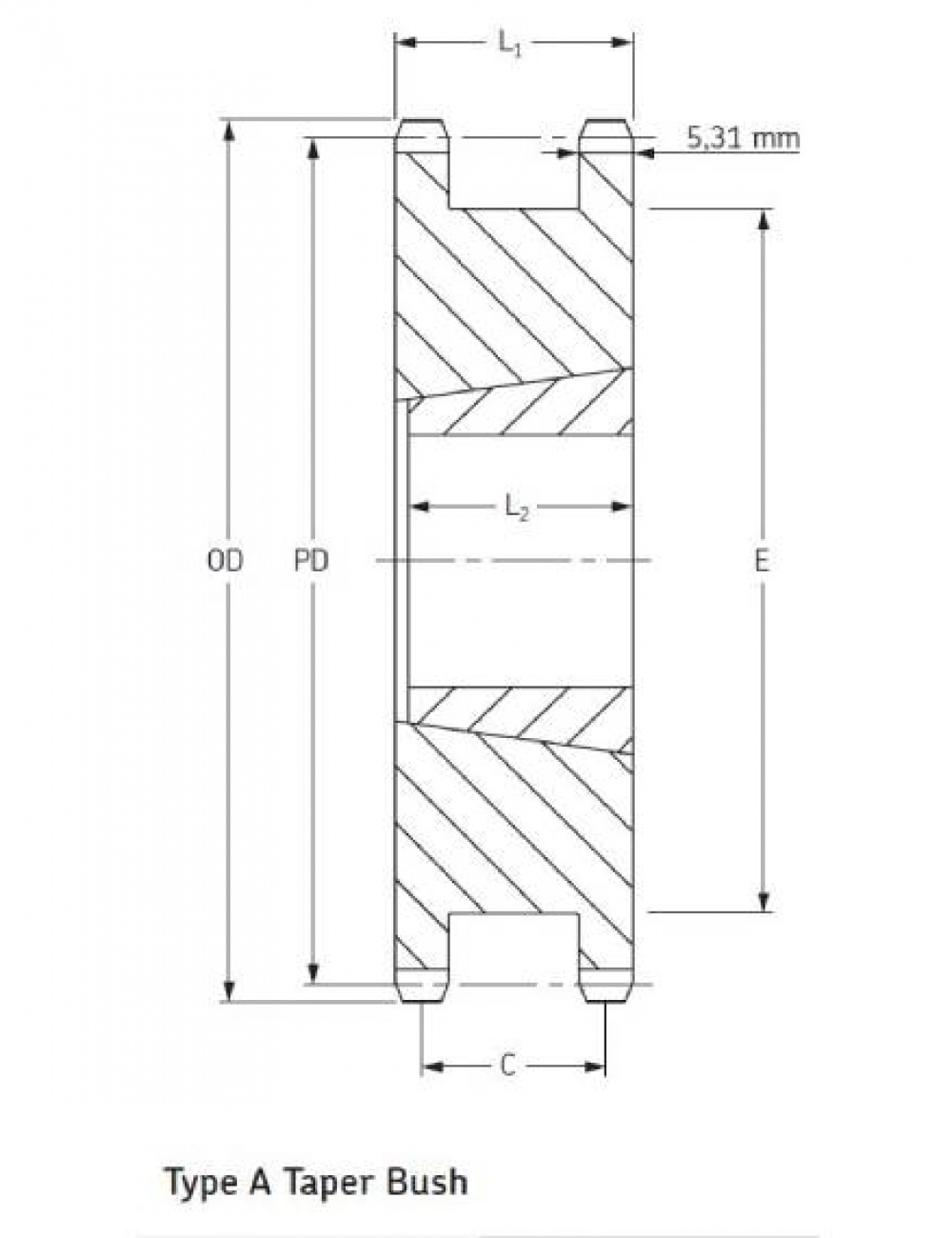

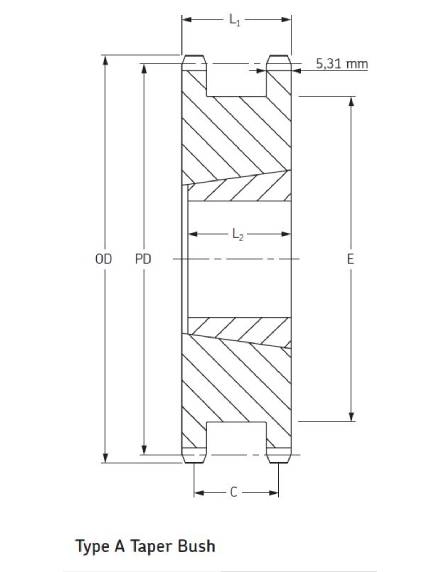

DIMENSIONS :Pitch diameter = 98.14 mm , Bore min. = 14 mm , Bore max. = 42 mm , L1= 63.5 mm , C = 46.50 mm, E = 72 mm

No.Teeth = 13
DIMENSIONS :Pitch diameter = 106.12 mm , Bore min. = 14 mm , Bore max. = 42 mm , L1= 63.5 mm , C = 46.50 mm, E = 80 mm

No.Teeth = 14
DIMENSIONS :Pitch diameter = 114.15 mm , Bore min. = 14 mm , Bore max. = 50 mm , L1= 63.5 mm , C =46.50 mm, E = 88 mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 122.17 mm , Bore min. = 14 mm , Bore max. = 50 mm , L1= 63.5 mm , C = 46.50 mm, E = 96 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 130.20 mm , Bore min. = 14 mm , Bore max. = 50 mm , L1= 63.5 mm , C =46.50 mm, E = 104 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 138.22 mm , Bore min. = 16 mm , Bore max. = 65 mm , L1= 63.5 mm , C = 46.50 mm, E = 112 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 146.28 mm , Bore min. = 16 mm , Bore max. = 65 mm , L1= 63.5 mm , C = 46.50 mm, E = 120 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 154.33 mm , Bore min. = 25 mm , Bore max. = 75 mm , L1= 63.5 mm , C = 46.50 mm, E = 128 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 162.38 mm , Bore min. = 25 mm , Bore max. = 75 mm , L1= 63.5 mm , C = 46.50 mm, E = 135 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 170.43 mm , Bore min. = 25 mm , Bore max. = 75 mm , L1= 63.5 mm , C = 46.50 mm, E = 142 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 178.48 mm , Bore min. = 25 mm , Bore max. = 75 mm , L1= 63.5 mm , C = 46.50 mm, E = 151 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 186.59 mm , Bore min. = 35 mm , Bore max. = 90 mm , L1= 63.5 mm , C =46.50 mm, E = 160 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 194.59 mm , Bore min. = 35 mm , Bore max. = 90 mm , L1=63.5 mm , C = 46.50 mm, E = 167 mm

No.Teeth = 25
DIMENSIONS :Pitch diameter = 178.49 mm , Bore min. = 35 mm , Bore max. = 90 mm , L1= 63.5 mm , C = 46.50 mm, E = 175 mm
