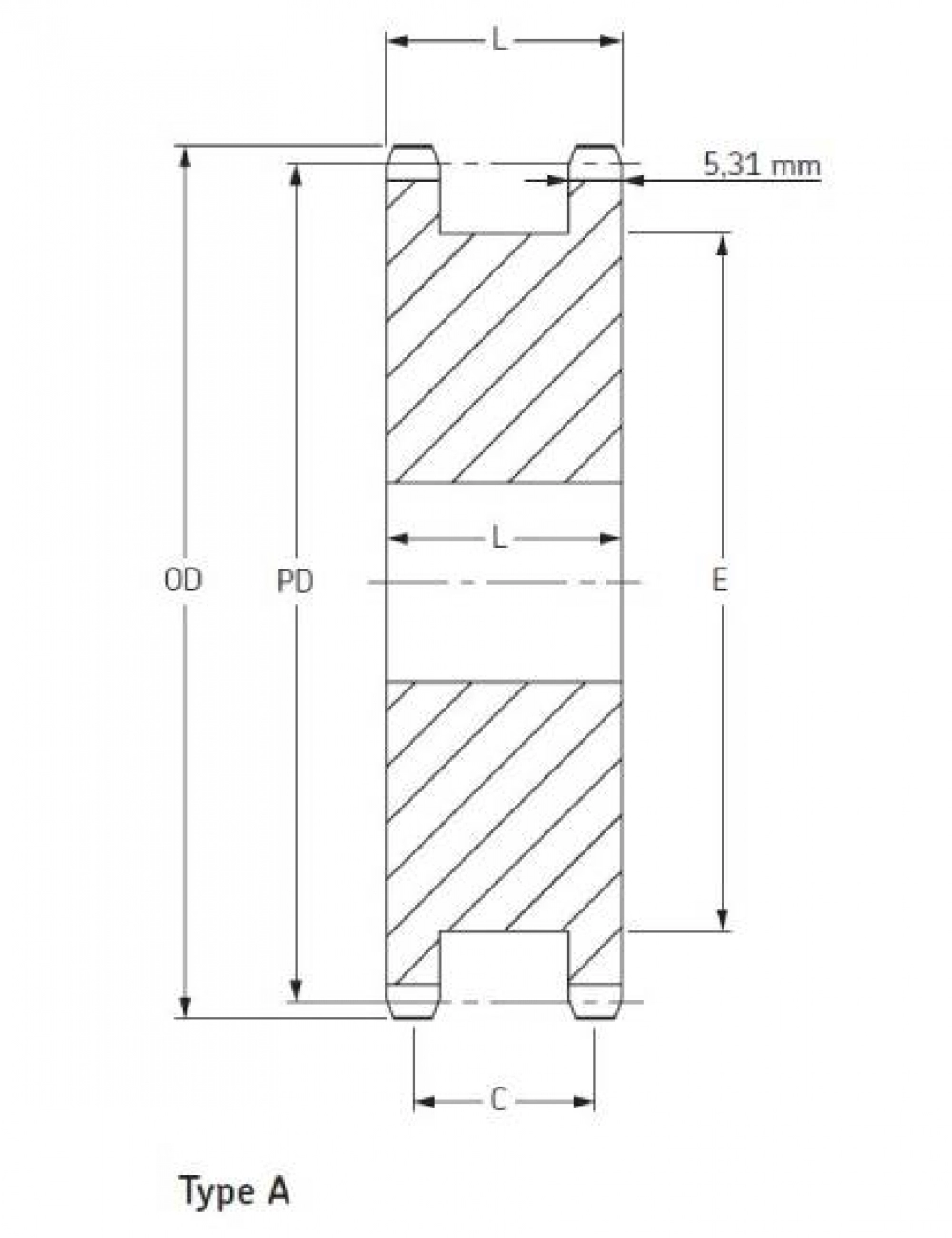

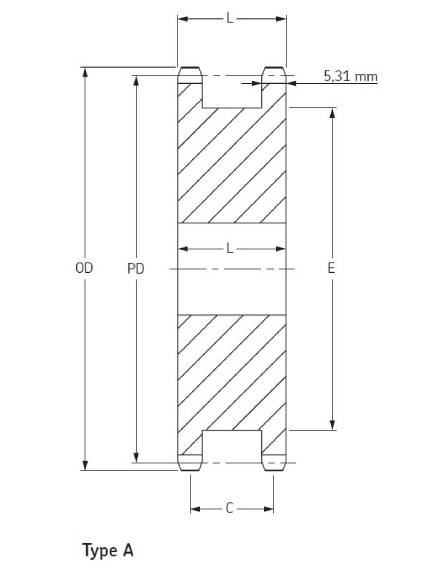

ISO PHS 12B - 1DSAXX

No.Teeth = 12
DIMENSIONS :Pitch diameter = 73.61 mm , Bore min. = 20 mm , Bore max. = 35 mm , L = 45.0 mm , C = 33.9 mm, E = 53 mm

No.Teeth = 13
DIMENSIONS :Pitch diameter =79.59 mm , Bore min. = 20 mm , Bore max. = 38 mm , L = 45.0 mm , C =33.9 mm, E = 59 mm

No.Teeth = 14
DIMENSIONS :Pitch diameter = 85.62 mm , Bore min. = 20 mm , Bore max. = 42 mm , L = 45.0 mm , C = 33.9 mm, E = 65 mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 91.61 mm , Bore min. = 20 mm , Bore max. = 38 mm , L = 45.0 mm , C = 33.9 mm, E = 71 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 97.63 mm , Bore min. = 20 mm , Bore max. = 46 mm , L = 45.0 mm , C = 33.9 mm, E = 77 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 103.67 mm , Bore min. = 20 mm , Bore max. = 55 mm , L = 45.0 mm , C =33.9 mm, E = 71 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 109.71 mm , Bore min. = 20 mm , Bore max. = 58 mm , L = 45.0 mm , C = 33.9 mm, E = 88 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 115.75 mm , Bore min. = 20 mm , Bore max. = 62 mm , L = 45.0 mm , C = 33.9 mm, E = 71 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 121.78 mm , Bore min. = 24 mm , Bore max. = 65 mm , L = 45.0 mm , C =33.39 mm, E = 100 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 127.82 mm , Bore min. = 24 mm , Bore max. = 70 mm , L = 45.0 mm , C = 33.39 mm, E = 71 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 133.86 mm , Bore min. = 24 mm , Bore max. = 73 mm , L = 45.0 mm , C = 33.39 mm, E = 112 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 139.90 mm , Bore min. = 24 mm , Bore max. = 77 mm , L = 45.0 mm , C = 33.39 mm, E = 71 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 145.94 mm , Bore min. = 24 mm , Bore max. = 81 mm , L = 45.0 mm , C = 33.39 mm, E = 124 mm

No.Teeth = 25
DIMENSIONS :Pitch diameter = 151.94 mm , Bore min. = 24 mm , Bore max. = 85 mm , L = 45.0 mm , C = 33.39 mm, E = 71 mm
