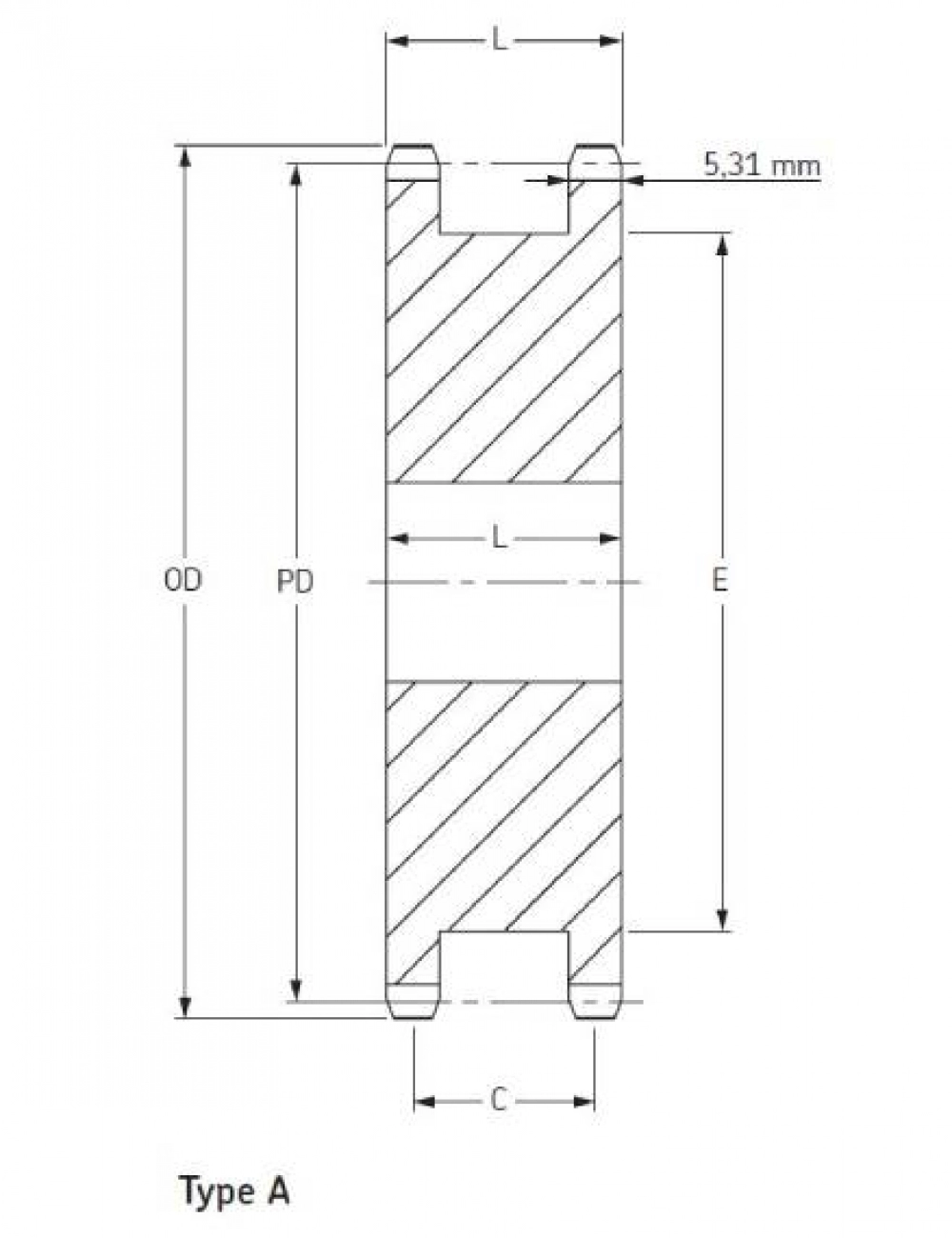

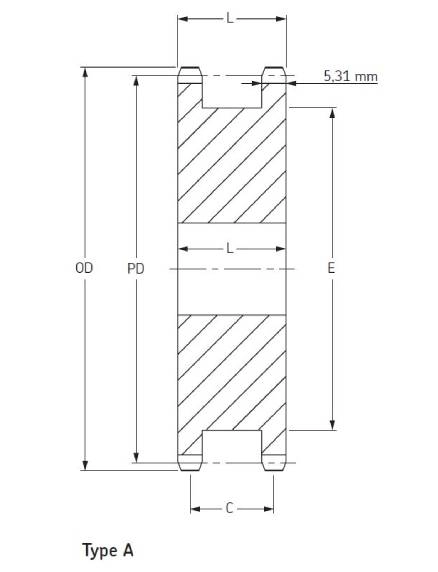

ISO PHS 10B - 1DSAXX

No.Teeth = 12
DIMENSIONS :Pitch diameter = 61.34 mm , Bore min. = 15 mm , Bore max. = 30 mm , L = 37.0 mm , C = 27.9 mm, E = 45 mm

No.Teeth = 13
DIMENSIONS :Pitch diameter = 66.32 mm , Bore min. = 15 mm , Bore max. = 34 mm , L = 37.0 mm , C = 27.9 mm, E = 48 mm

No.Teeth = 14
DIMENSIONS :Pitch diameter = 71.34 mm , Bore min. = 15 mm , Bore max. = 36 mm , L = 37.0 mm , C =27.9 mm, E = 55 mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 76.36 mm , Bore min. = 15 mm , Bore max. = 40 mm , L = 37.0 mm , C = 27.9 mm, E = 58 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 81.37 mm , Bore min. = 15 mm , Bore max. = 42 mm , L = 37.0 mm , C = 27.9 mm, E = 64 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 86.39 mm , Bore min. = 15 mm , Bore max. = 44 mm , L = 37.0 mm , C = 27.9 mm, E = 68 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 91.42 mm , Bore min. = 15 mm , Bore max. = 47 mm , L = 37.0 mm , C = 27.9 mm, E =73 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 96.45 mm , Bore min. = 19 mm , Bore max. = 52 mm , L = 37.0 mm , C = 27.9 mm, E = 79 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 101.49 mm , Bore min. = 19 mm , Bore max. = 57 mm , L = 37.0 mm , C = 27.9 mm, E = 83 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 106.52 mm , Bore min. = 19 mm , Bore max. = 57 mm , L = 37.0 mm , C =27.9 mm, E = 89 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 111.55 mm , Bore min. =19 mm , Bore max. = 65 mm , L = 37.0mm , C = 27.9 mm, E = 93 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 116.58 mm , Bore min. = 19 mm , Bore max. = 65 mm , L = 37.0 mm , C =27.9 mm, E = 99 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 121.62 mm , Bore min. = 19 mm , Bore max. = 69 mm , L = 37.0 mm , C =27.9 mm, E = 103 mm

No.Teeth = 25
DIMENSIONS :Pitch diameter = 126.66 mm , Bore min. = 19 mm , Bore max. = 72 mm , L = 37.0 mm , C = 27.9 mm, E = 109 mm
