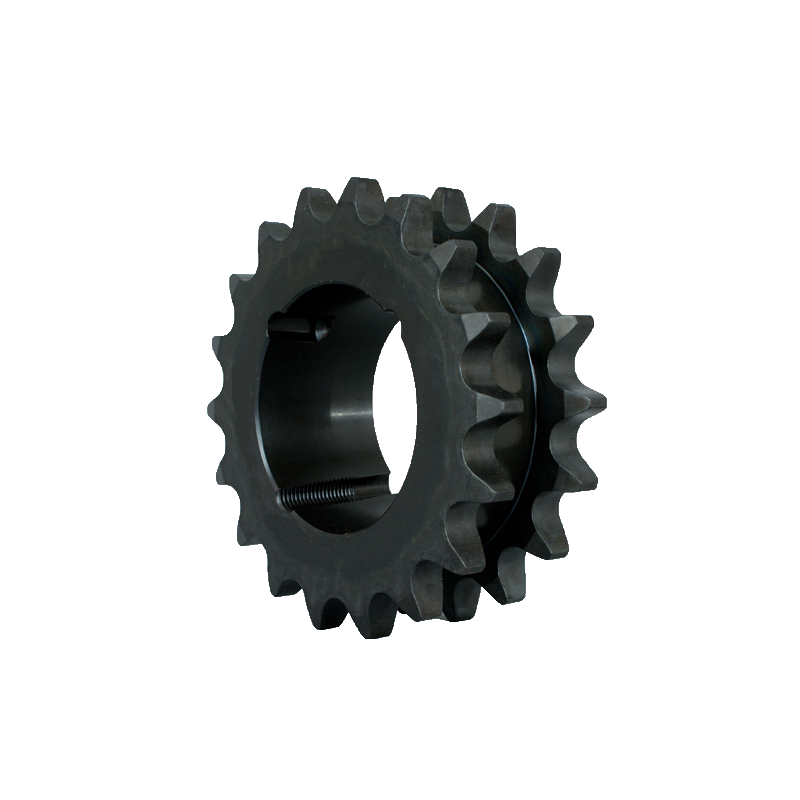

ISO PHS 08B - 1DSTBXX

No.Teeth = 14

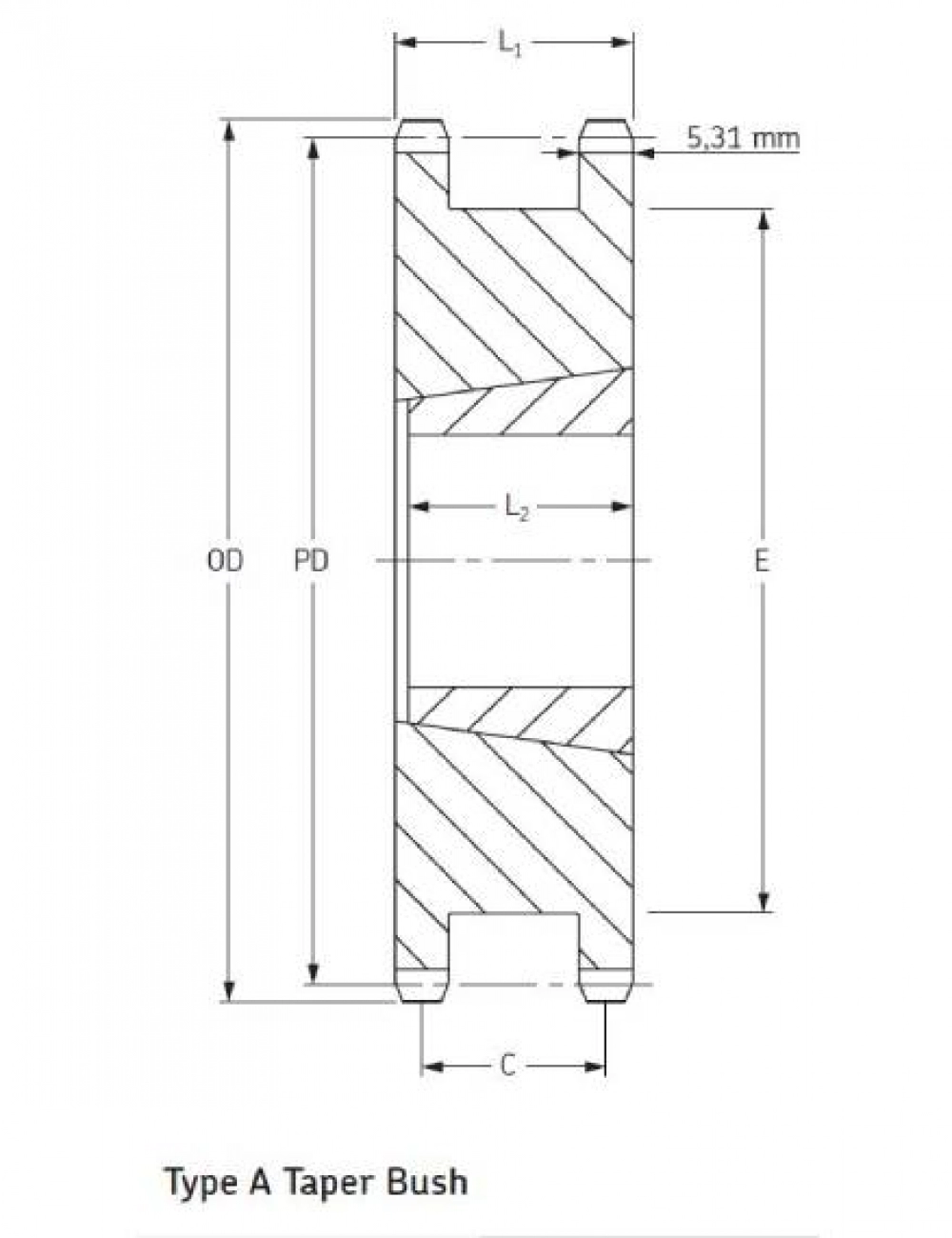

DIMENSIONS :Pitch diameter = 57.07 mm , Bore min. = 9 mm , Bore max. = 25 mm , L1= 35.7 mm , C = 28.58 mm, E = 41 mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 61.09 mm , Bore min. = 9 mm , Bore max. = 25 mm , L1= 35.7 mm , C =28.58 mm, E = 45 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 65.10 mm , Bore min. = 9 mm , Bore max. = 28 mm , L1= 35.7 mm , C = 28.58 mm, E = 49 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 73.6 mm , Bore min. = 11 mm , Bore max. = 32mm , L1= 35.7 mm , C = 28.58 mm, E = 53 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 73.14 mm , Bore min. = 11 mm , Bore max. = 32 mm , L1= 35.7 mm , C = 28.58 mm, E = 58 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 77.15 mm , Bore min. = 11 mm , Bore max. = 32 mm , L1= 35.7 mm , C = 28.58 mm, E = 63 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 81.18 mm , Bore min. = 11 mm , Bore max. = 32 mm , L1= 35.7 mm , C =28.58 mm, E = 66 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 85.22 mm , Bore min. = 14 mm , Bore max. = 42 mm , L1= 35.7 mm , C = 28.58 mm, E = 70 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 89.24 mm , Bore min. = 14 mm , Bore max. = 42 mm , L1= 35.7 mm , C =28.58 mm, E = 74 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 93.27 mm , Bore min. = 14 mm , Bore max. = 42 mm , L1= 35.7 mm , C =28.58 mm, E = 78 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 97.29 mm , Bore min. = 14 mm , Bore max. = 42 mm , L1= 35.7 mm , C = 28.58 mm, E = 82 mm

No.Teeth = 25
DIMENSIONS :Pitch diameter = 101.33 mm , Bore min. = 14 mm , Bore max. = 50 mm , L1= 35.7 mm , C = 28.58 mm, E = 86 mm
