ISO PHS 08B - 1DSAXX

No.Teeth = 12

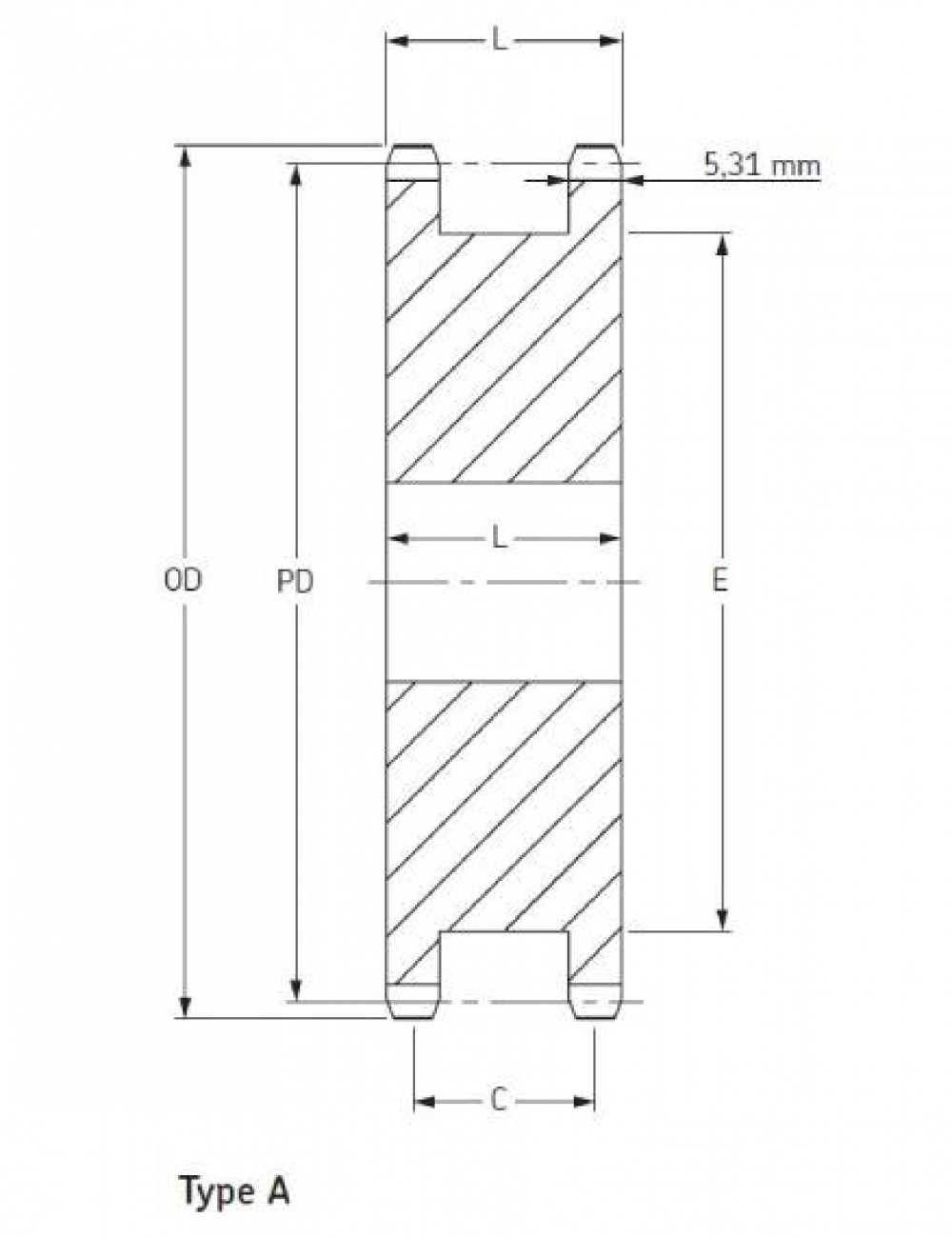

DIMENSIONS :Pitch diameter = 49.07 mm , Bore min. = 10 mm , Bore max. = 24 mm , L = 32 mm , C = 24.8 mm, E = 35 mm

No.Teeth = 13
DIMENSIONS :Pitch diameter = 53.06 mm , Bore min. = 10 mm , Bore max. = 26 mm , L = 32.0 mm , C = 24.8 mm, E = 37 mm

No.Teeth = 14
DIMENSIONS :Pitch diameter = 57.07 mm , Bore min. = 10 mm , Bore max. = 27 mm , L = 32.0 mm , C = 24.8 mm, E = 41 mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 61.09 mm , Bore min. = 10 mm , Bore max. = 30 mm , L = 32.0 mm , C = 24.8mm, E = 45 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 65.10 mm , Bore min. = 12 mm , Bore max. = 34 mm , L = 32.0 mm , C =24.8 mm, E = 50 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 69.11 mm , Bore min. = 12 mm , Bore max. = 36 mm , L = 32.0 mm , C = 24.8 mm, E = 53 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 73.14 mm , Bore min. = 12 mm , Bore max. = 38 mm , L = 32.0 mm , C =24.8 mm, E = 58 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 77.16 mm , Bore min. = 12 mm , Bore max. = 41 mm , L = 32.0 mm , C = 24.8 mm, E = 62 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 81.18 mm , Bore min. = 12 mm , Bore max. = 44 mm , L = 32.0 mm , C = 24.8 mm, E = 66 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 85.22 mm , Bore min. = 15 mm , Bore max. = 46 mm , L = 32.0 mm , C = 24.8 mm, E = 70 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 89.24 mm , Bore min. = 15 mm , Bore max. = 48 mm , L = 32.0 mm , C = 24.8mm, E = 74 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 93.27 mm , Bore min. = 15 mm , Bore max. = 52 mm , L = 32.0 mm , C =24.8 mm, E = 78 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 97.29 mm , Bore min. = 15 mm , Bore max. = 54 mm , L = 32.0 mm , C = 24.8 mm, E = 82 mm

No.Teeth = 25
DIMENSIONS :Pitch diameter = 101.33 mm , Bore min. = 15 mm , Bore max. = 57 mm , L = 32.0 mm , C = 24.8 mm, E = 86 mm
