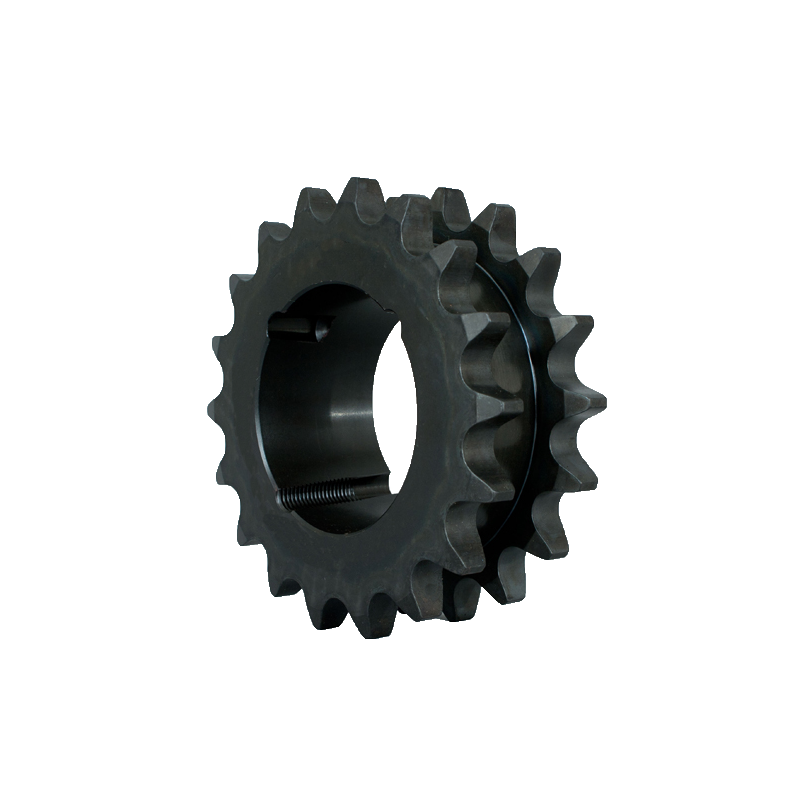

ISO PHS 06B - 1DSTBXX

No.Teeth = 18

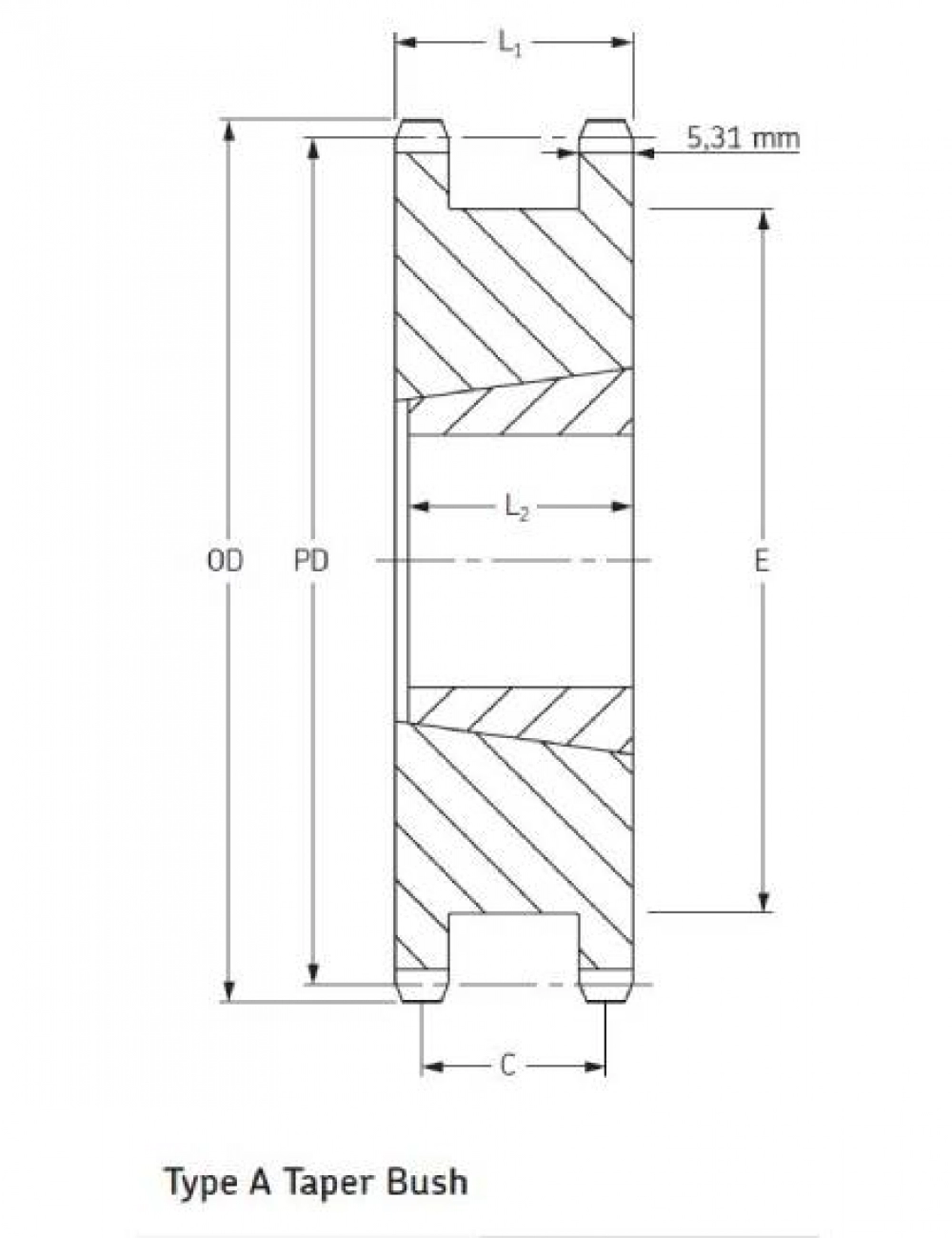

DIMENSIONS :Pitch diameter = 54.85 mm , Bore min. = 9 mm , Bore max. = 25 mm , L1= 23.5 mm , C =18.17 mm, E = 43 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 61.3 mm , Bore min. = 9 mm , Bore max. = 25 mm , L1= 23.5 mm , C = 18.17mm, E = 46 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 64.3 mm , Bore min. = 9 mm , Bore max. = 25 mm , L1= 23.5 mm , C = 18.17 mm, E = 48 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 68.0 mm , Bore min. = 9 mm , Bore max. = 25 mm , L1= 23.5 mm , C = 18.17 mm, E = 52 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 66.93 mm , Bore min. = 9 mm , Bore max. = 25 mm , L1= 23.5 mm , C = 18.17 mm, E = 55 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 69.95 mm , Bore min. = 9 mm , Bore max. = 25 mm , L1= 23.5 mm , C = 18.17 mm, E = 58 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 72.97 mm , Bore min. = 9 mm , Bore max. = 25 mm , L1= 23.5 mm , C = 18.17 mm, E = 61 mm

No.Teeth = 25
DIMENSIONS :Pitch diameter = 76.02 mm , Bore min. = 9 mm , Bore max. = 25 mm , L1= 23.5 mm , C =18.17 mm, E = 64 mm
