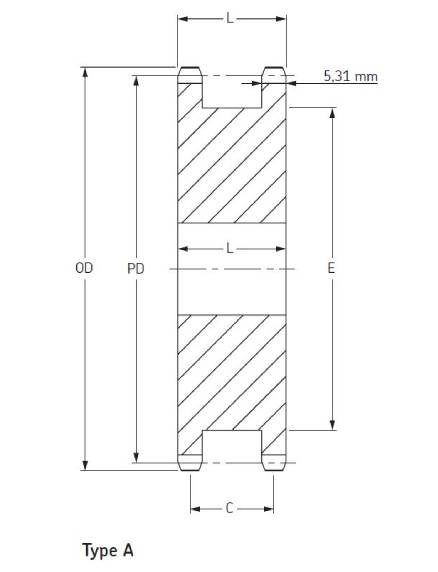

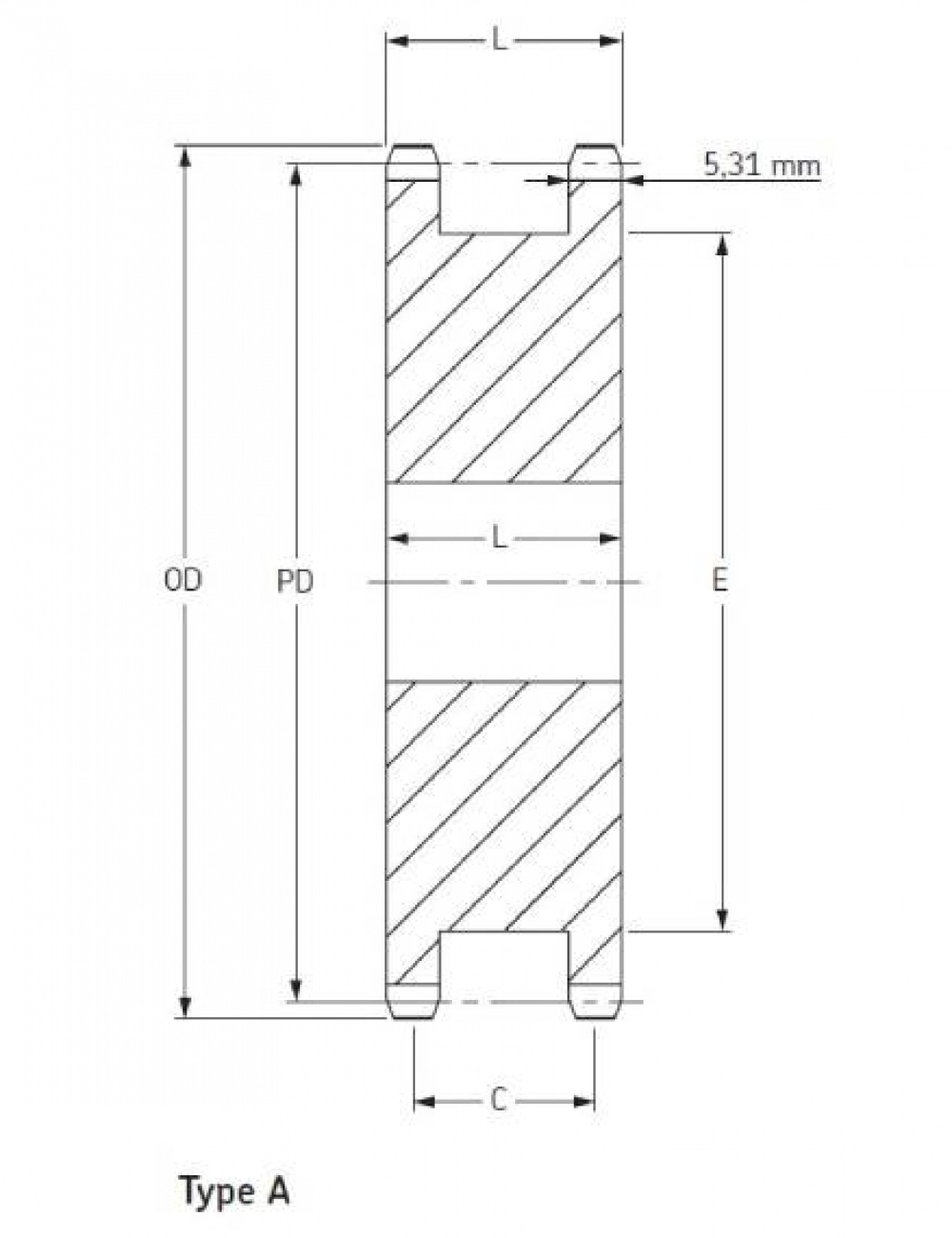

ISO PHS 06B - 1DSAXX

No.Teeth = 14
DIMENSIONS :Pitch diameter = 42.80 mm , Bore min. = 10 mm , Bore max. = 20 mm , L = 25.5 mm , C = 20.3 mm, E = 31 mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 45.81 mm , Bore min. = 10 mm , Bore max. = 23 mm , L = 25.5 mm , C =20.3 mm, E = 34 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 48.82 mm , Bore min. = 10 mm , Bore max. = 25 mm , L = 25.5 mm , C = 20.3mm, E = 37 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 51.83 mm , Bore min. = 12 mm , Bore max. = 27 mm , L = 25.5 mm , C =20.3 mm, E = 40 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 54.85 mm , Bore min. = 12 mm , Bore max. = 29 mm , L = 25.5 mm , C =20.3 mm, E = 43 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 57.87 mm , Bore min. = 12 mm , Bore max. = 31 mm , L = 25.5 mm , C =20.3 mm, E = 46 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 60.89 mm , Bore min. =12 mm , Bore max. = 33 mm , L = 25.5 mm , C =20.3 mm, E = 48 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 63.91 mm , Bore min. = 15 mm , Bore max. = 35 mm , L = 25.5 mm , C = 20.3 mm, E = 52 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 66.93 mm , Bore min. = 15 mm , Bore max. = 36 mm , L = 25.5 mm , C =20.3 mm, E = 55 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 69.95 mm , Bore min. = 15 mm , Bore max. = 38 mm , L = 25.5 mm , C = 20.3 mm, E = 59 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 72.97 mm , Bore min. = 15 mm , Bore max. = 40 mm , L = 25.5 mm , C = 20.3 mm, E = 61 mm

No.Teeth = 25
DIMENSIONS :Pitch diameter = 76.02 mm , Bore min. = 15 mm , Bore max. = 43 mm , L = 25.5 mm , C = 20.3 mm, E = 65 mm
