ชื่อรุ่น :
PHE SMXX - XXXDBSE
แบรนด์
SKF
รายละเอียด :

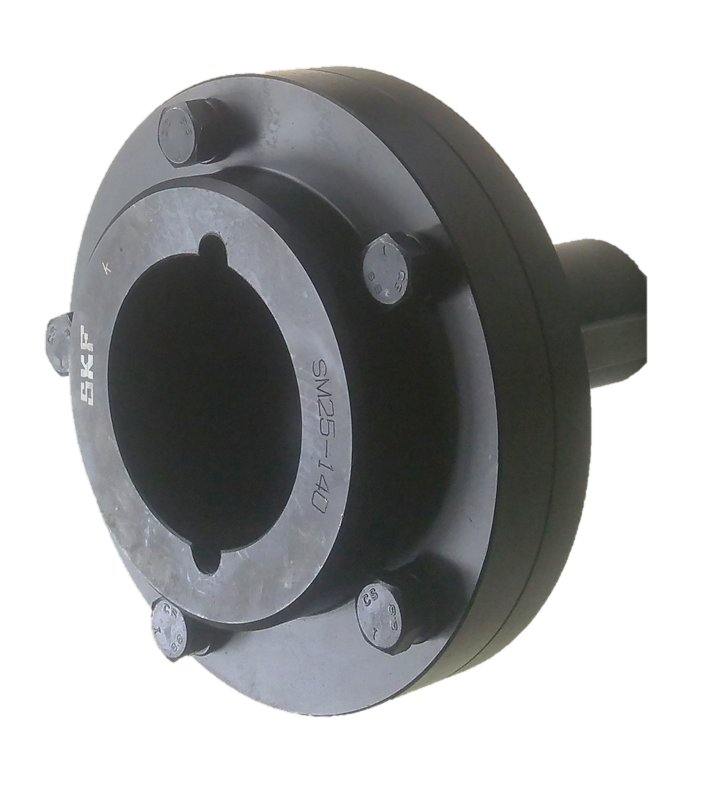

SPACER COUPLING เป็นคัปปลิ้งที่ใช้ส่งกำลังสำหรับเพลาขับ และเพลาตาม ที่มีระยะห่างที่มากเกินไป สามารถใช้ Spacer ต่อเข้ากับเพลาตามระยะห่างที่ต้องการได้
- ใช้งานได้กับรูเพลาได้ตั้งแต่ 11 มม. ถึง 100 มม.
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHE SM12 - 80DBSE
Model description
- Spacer Size = SM12 , Spacer bush size = 1210 , Bore min. = 11 mm , Bore max. = 32 mm
- Couping size = 40 , Couping bush size = 1008 , Bore min. = 9 mm , Bore max. = 25 mm
- Distance between shaft end ( min. = 80 mm , max. = 90 mm. )

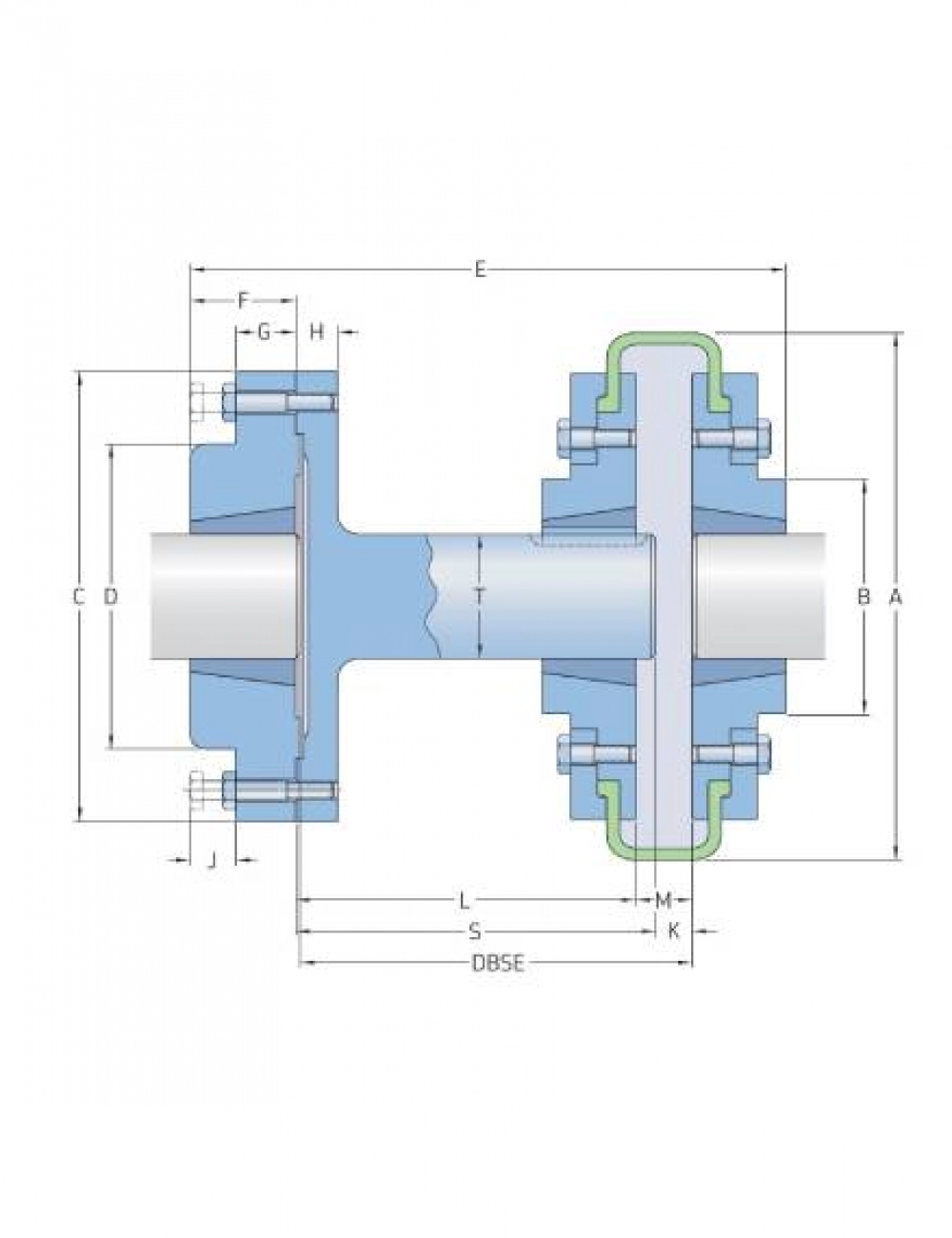

- DIMENSIONS : A = 104 mm , B = 82 mm , C = 118 mm ,D =83 mm , T = 25 mm
Price
Model
PHE SM12 - 100DBSE
Model description
- Spacer Size = SM12 , Spacer bush size = 1210 , Bore min. = 11 mm , Bore max. = 32 mm
- Couping size = 40 , Couping bush size = 1210 , Bore min. = 9 mm , Bore max. = 25 mm
- Distance between shaft end ( min. = 100 mm , max. = 110 mm. )
- DIMENSIONS : A = 104 mm , B = 82 mm , C = 118 mm ,D = 83 mm , T = 25 mm
Price
Model
PHE SM16 - 100DBSE
Model description
- Spacer Size = SM16 , Spacer bush size = 1615 , Bore min. = 14 mm , Bore max. = 42 mm
- Couping size = 60 , Couping bush size = 1610 , Bore min. = 14 mm , Bore max. = 42 mm
- Distance between shaft end ( min. = 100 mm , max. = 124 mm. )
- DIMENSIONS : A = 165 mm , B = 103 mm , C = 127 mm ,D = 80 mm , T = 32 mm
Price
Model
PHE SM16 - 140DBSE
Model description
- Spacer Size = SM16 , Spacer bush size = 1615 , Bore min. = 14 mm , Bore max. = 42 mm Couping size = 60
- Couping bush size = 1610 , Bore min. = 14 mm , Bore max. = 42 mm
- Distance between shaft end ( min. = 140 mm , max. = 164 mm. )
- DIMENSIONS : A = 165 mm , B = 103 mm , C =103 mm ,D = 80 mm , T = 32 mm
Price
Model
PHE SM25 - 100DBSE
Model description
- Spacer Size = SM25 , Spacer bush size = 2517 , Bore min. = 16 mm , Bore max. = 60 mm
- Couping size = 80 , Couping bush size = 2517 , Bore min. = 16 mm , Bore max. = 60 mm
- Distance between shaft end ( min. = 100 mm , max. = 117 mm. )
- DIMENSIONS : A = 211 mm , B = 95 mm , C = 178 mm ,D = 123 mm , T = 48 mm
Price
Model
PHE SM25 - 140DBSE
Model description
- Spacer Size = SM25 , Spacer bush size = 2517 , Bore min. = 16 mm , Bore max. = 60 mm
- Couping size = 90 , Couping bush size = 2517 , Bore min. = 16 mm , Bore max. = 60 mm
- Distance between shaft end ( min. = 140 mm , max. = 158 mm. )
- DIMENSIONS : A = 235 mm , B = 108 mm , C = 178 mm ,D = 123 mm , T = 48 mm
Price
Model
PHE SM25 - 180DBSE
Model description
- Spacer Size = SM25 , Spacer bush size = 2517 , Bore min. = 16 mm , Bore max. = 60 mm
- Couping size = 90 , Couping bush size = 2517 , Bore min. = 16 mm , Bore max. = 60 mm
- Distance between shaft end ( min. = 180 mm , max. = 198 mm. )
- DIMENSIONS : A = 235 mm , B = 108 mm , C = 178 mm ,D = 123 mm , T = 48 mm
Price
Model
PHE SM25- 180DBSE
Model description
- Spacer Size = SM25 , Spacer bush size = 2517 , Bore min. = 16 mm , Bore max. = 60 mm
- Couping size = 80 , Couping bush size = 2517 , Bore min. = 16 , Bore max. = 60 mm
- Distance between shaft end ( min. = 180 mm , max. = 197 mm. )
- DIMENSIONS : A = 211 mm , B = 95 mm , C = 178 mm ,D = 123 mm , T = 48 mm
Price
Model
PHE SM30 - 140DBSE
Model description
- Spacer Size = SM30 , Spacer bush size = 3020 , Bore min. = 25 mm , Bore max. = 75 mm
- Couping size = 110 , Couping bush size = 3020 , Bore min. = 25 mm , Bore max. = 75 mm
- Distance between shaft end ( min. = mm , max. = mm. )
- DIMENSIONS : A = 279 mm , B = 134 mm , C = 216 mm ,D = 146 mm , T = 60 mm
Price
Model
PHE SM30 - 180DBSE
Model description
- Spacer Size = SM30 , Spacer bush size = 3020 , Bore min. = 25 mm , Bore max. = 75 mm
- Couping size = 110 , Couping bush size = 3020 , Bore min. = 25 mm , Bore max. = 75 mm
- Distance between shaft end ( min. = 180 mm , max. = 196 mm. )
- DIMENSIONS : A = 279 mm , B = 134 mm , C = 216 mm ,D = 146 mm , T =60 mm
Price
Model
PHE SM35 - 140DBSE
Model description
- Spacer Size = SM35 , Spacer bush size = 3525 , Bore min. = 35 mm , Bore max. = 100 mm
- Couping size = 140 , Couping bush size = 3525 , Bore min. = 35 mm , Bore max. = 100 mm
- Distance between shaft end ( min. = 140 mm , max. = 163 mm. )
- DIMENSIONS : A = 359 mm , B = 178 mm , C = 248 mm ,D = 178 mm , T = 80 mm
Price
Model
PHE SM35 - 180DBSE
Model description
- Spacer Size = SM35 , Spacer bush size = 3525 , Bore min. = 35 mm , Bore max. = 100 mm
- Couping size = 140 , Couping bush size = 3525 , Bore min. =35 mm , Bore max. =100 mm
- Distance between shaft end ( min. = 180 mm , max. = 203 mm. )
- DIMENSIONS : A = 359 mm , B = 178 mm , C = 248 mm ,D = 178 mm , T = 80 mm
Price
