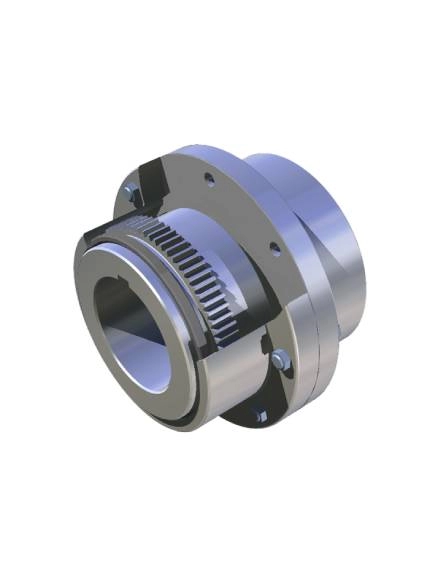

PHE XXGCKIT

Size = 10 ,Bore dimeter min. = 13 mm , Bore max. = 48 mm

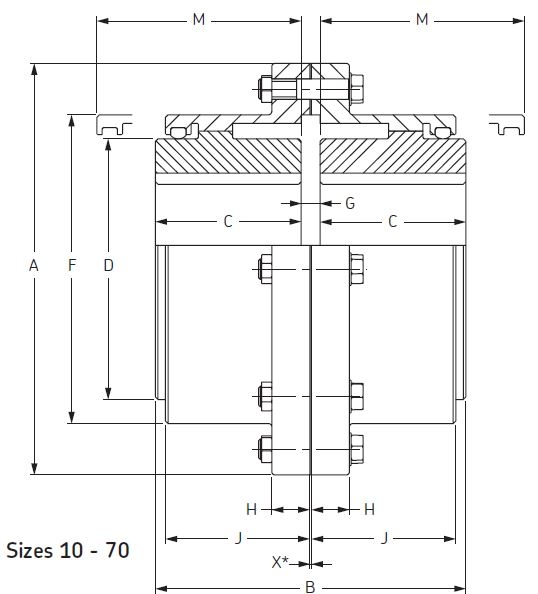

DIMENSIONS : A = 116 mm , B = 89 mm , C = 43 ,D = 69 mm , F = 84 mm , J = 39 mm ,G = 3 mm

Size = 15 ,Bore dimeter min. = 19 mm , Bore max. = 48 mm
DIMENSIONS : A = 152 mm , B = 101 mm , C = 49 ,D = 86 mm , F = 105 mm , J = 39 mm ,G = 3 mm

Size = 20 ,Bore dimeter min. = 25 mm , Bore max. = 73 mm
DIMENSIONS : A = 178 mm , B = 127 mm , C = 62 ,D = 105 mm , F = 126 mm , J = 59 mm ,G = 3 mm

Size = 25 ,Bore dimeter min. = 32 mm , Bore max. = 92 mm
DIMENSIONS : A = 213 mm , B = 159 mm , C = 77 ,D = 131 mm , F = 155 mm , J = 72 mm ,G = 5 mm

Size = 30 ,Bore dimeter min. = 38 mm , Bore max. = 105 mm
DIMENSIONS : A = 240 mm , B = 187 mm , C = 91 ,D = 152 mm , F = 180 mm , J = 84 mm ,G = 5 mm

Size = 35 ,Bore dimeter min. = 51 mm , Bore max. = 124 mm
DIMENSIONS : A = 279 mm , B = 218 mm , C = 106 ,D = 178 mm , F = 211 mm , J = 98 mm ,G = 6 mm

Size = 40 ,Bore dimeter min. = 64 mm , Bore max. = 146 mm
DIMENSIONS : A = 318 mm , B = 248 mm , C = 121 ,D = 210 mm , F = 245 mm , J = 111 mm ,G = 6 mm

Size = 45 ,Bore dimeter min. = 76 mm , Bore max. = 165 mm
DIMENSIONS : A = 346 mm , B = 278 mm , C = 135 ,D = 235 mm , F = 274 mm , J = 123 mm ,G = 8 mm

Size = 50 ,Bore dimeter min. = 89 mm , Bore max. = 178 mm
DIMENSIONS : A =389 mm , B = 314 mm , C = 153 ,D = 254 mm , F = 306 mm , J = 141 mm ,G = 8 mm

Size = 55 ,Bore dimeter min. = 102 mm , Bore max. = 197 mm
DIMENSIONS : A = 425 mm , B = 344 mm , C = 168 ,D = 279 mm , F = 334 mm , J = 158 mm ,G = 8 mm

Size = 60 ,Bore dimeter min. = 114 mm , Bore max. = 222 mm
DIMENSIONS : A = 457 mm , B = 384 mm , C = 188 ,D = 305 mm , F = 366 mm , J = 169 mm ,G = 8 mm

Size = 70 ,Bore dimeter min. = 89 mm , Bore max. = 254 mm
DIMENSIONS : A = 527 mm , B = 452 mm , C = 221 ,D = 343 mm , F = 425 mm , J = 196 mm ,G = 10 mm

Size = 80 ,Bore dimeter min. = 102 mm , Bore max. = 279 mm
DIMENSIONS : A = 591 mm , B = 508 mm , C = 249 ,D =356 mm , F = 572 mm , J = 243 mm ,G = 10 mm

Size = 90 ,Bore dimeter min. = 114 mm , Bore max. = 305 mm
DIMENSIONS : A = 660 mm , B = 565 mm , C = 276 ,D = 394 mm , F = 641 mm , J = 265 mm ,G = 13 mm

Size = 100 ,Bore dimeter min. = 127 mm , Bore max. = 343 mm
DIMENSIONS : A = 711 mm , B = 623 mm , C = 305 ,D = 445 mm , F = 699 mm , J = 294 mm ,G = 13 mm

Size = 110 ,Bore dimeter min. = 140 mm , Bore max. = 387 mm
DIMENSIONS : A = 775 mm , B = 679 mm , C = 333 ,D = 495 mm , F = 749 mm , J = 322 mm ,G = 13 mm

Size = 120 ,Bore dimeter min. = 152 mm , Bore max. = 425 mm
DIMENSIONS : A = 838 mm , B = 719 mm , C = 353 ,D = 546 mm , F = 826 mm , J = 341 mm ,G = 13 mm
