PHE F XXX FTBFLG

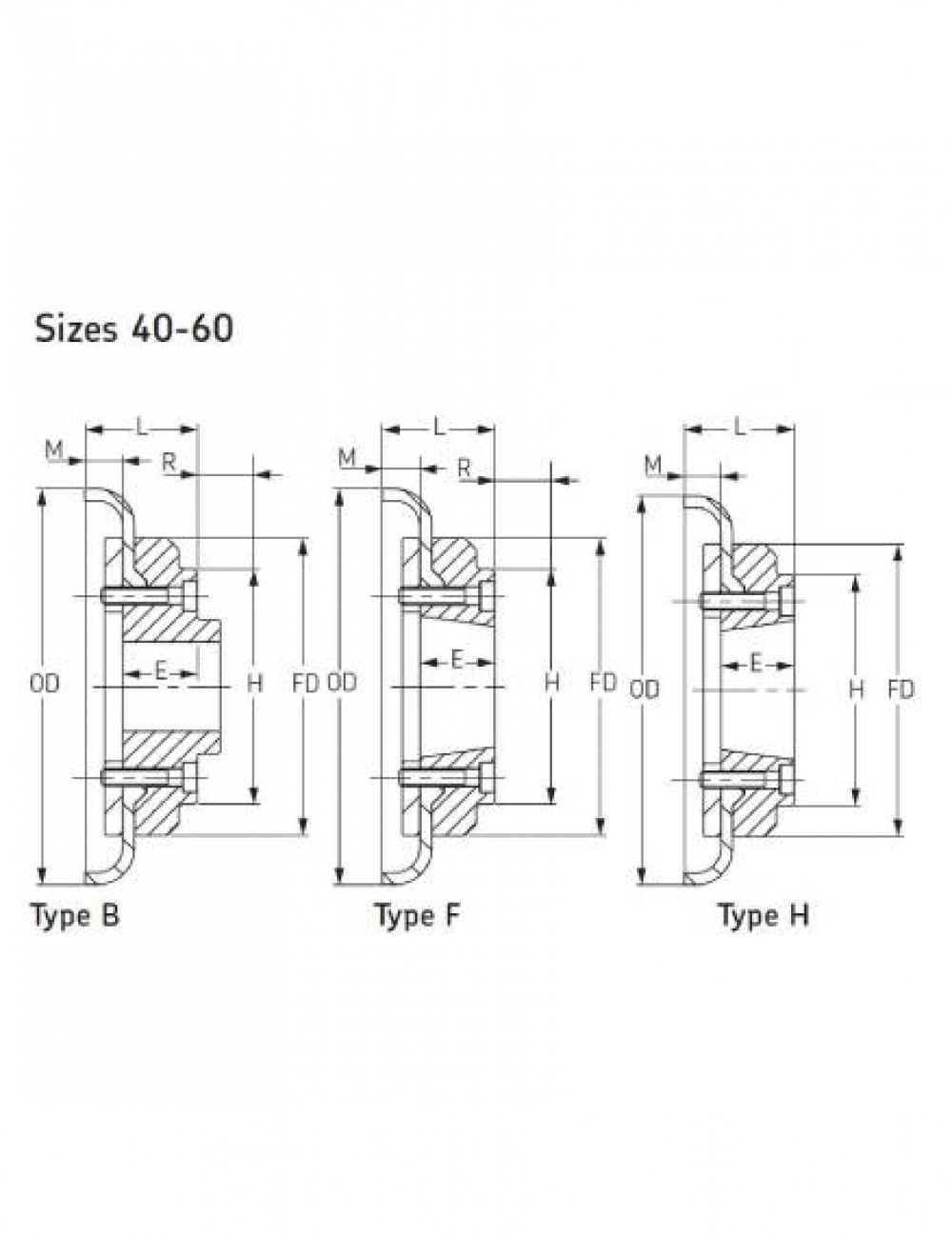

Size = 40 , Types = F , Bush No. 1008 , Bore min. = 9 mm , Bore max. = 25 mm
DIMENSIONS : L = 33 mm , E = 22 mm , OD = 104 mm , FD = 82 mm

Size = 50 , Types = F , Bush No. 1210 , Bore min. = 11 mm , Bore max. = 32 mm
DIMENSIONS : L = 37.5 mm , E = 25 mm , OD = 133 mm , FD = 100 mm , H = 79 mm

Size = 60 , Types = F , Bush No. 1610 , Bore min. = 14 mm , Bore max. = 42 mm
DIMENSIONS : L = 41.5 mm , E = 25 mm , OD = 165 mm , FD = 125 mm , H = 130 mm

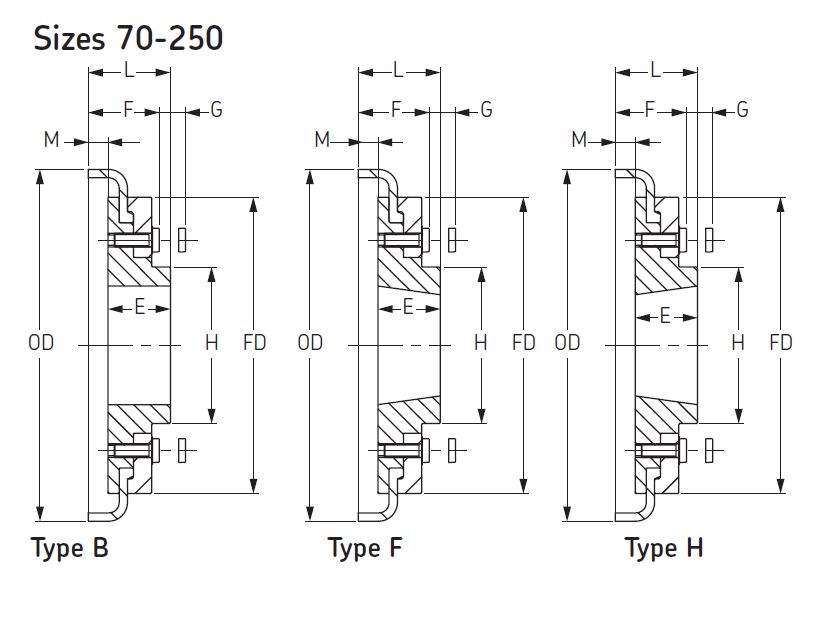

Size = 70 , Types = F , Bush No. 2012 , Bore min. = 14 mm , Bore max. = 50 mm
DIMENSIONS : L = 43.5 mm , E = 32 mm , OD = 187 mm , FD = 142 mm , H = 80 mm

Size = 80 Types = F , Bush No. 2517 , Bore min. = 16 mm , Bore max. = 60 mm
DIMENSIONS : L = 57.5 mm , E = 45 mm , OD = 211 mm , FD = 165 mm , H = 97 mm

Size = 90 , Types = F , Bush No. 2517 , Bore min. = 16 mm , Bore max. = 60 mm
DIMENSIONS : L = 58.5 mm , E = 45 mm , OD = 235 mm , FD = 187 mm , H = 108 mm

Size = 100 , Types = F , Bush No. 3020 , Bore min. = 25 mm , Bore max. = 75 mm
DIMENSIONS : L = 64.5 mm , E = 51 mm , OD = 254 mm , FD = 214 mm , H = 120 mm

Size = 110 , Types = F , Bush No. 3020 , Bore min. = 25 mm , Bore max. = 75 mm
DIMENSIONS : L = 63.5 mm , E = 51 mm , OD = 279 mm , FD = 232 mm , H = 134 mm

Size = 120 , Types = F , Bush No. 3525 , Bore min. = 35 mm , Bore max. = 100 mm
DIMENSIONS : L = 79.5 mm , E = 65 mm , OD = 314 mm , FD = 262 mm , H = 140 mm

Size = 140 , Types = F , Bush No. 3525 , Bore min. = 35 mm , Bore max. = 100 mm
DIMENSIONS : L = 81.0 mm , E = 65 mm , OD = 359 mm , FD = 312.5 mm , H = 180 mm

Size = 160 , Types = F , Bush No. 4030 , Bore min. = 40 mm , Bore max. = 115 mm
DIMENSIONS : L = 91.0 mm , E = 76 mm , OD = 402 mm , FD =348 mm , H = 197 mm

Size = 180 , Types = F , Bush No. 4535 , Bore min. = 55 mm , Bore max. = 125 mm
DIMENSIONS : L = 112.0 mm , E = 89 mm , OD = 470 mm , FD = 396 mm , H = 205 mm

Size = 200 , Types = F , Bush No. 4535 , Bore min. = 55 mm , Bore max. = 113.0 mm
DIMENSIONS : L = 113.0 mm , E = 89 mm , OD = 508 mm , FD = 432 mm , H = 205 mm

Size = 220 , Types = F , Bush No. 5040 , Bore min. = 70 mm , Bore max. = 125 mm
DIMENSIONS : L = 129.5 mm , E = 102 mm , OD = 562 mm , FD = 472 mm , H = 224 mm
