PRODUCT
![]()
ชื่อรุ่น :
Attachments (K - 1 )
แบรนด์
SKF
รายละเอียด :

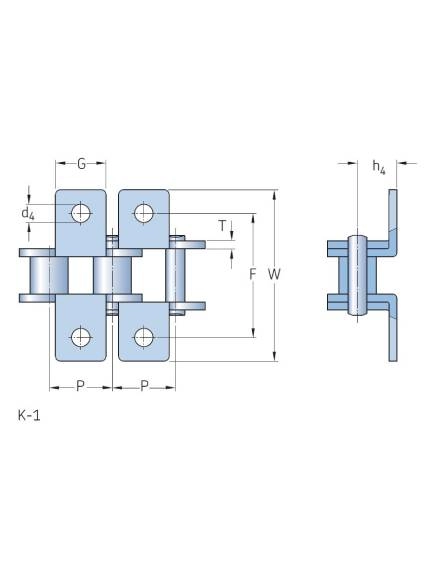

K - 1 โซ่ลำเลียงมีปีกแบบปีกพับ
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHC 2040
Model description
DIAMETER : Pitch (P) = 25.40 mm , G = 19.1 mm , F1 = 25.4 mm, W = 39.6 mm , h4 = 9.1 mm, d4 = 3.4 mm
Price
Model
PHC 2050
Model description
DIAMETER : Pitch (P) = 31.75 mm , G = 23.8 mm , F1 = 31.8 mm, W =49.0 mm , h4 = 11.1 mm, d4 = 5.5 mm
Price
Model
PHC 2060
Model description
DIAMETER : Pitch (P) = 38.10 mm , G = 28.6 mm , F1 =42.9 mm, W = 67.8 mm , h4 = 14.7 mm, d4 = 5.5 mm
Price
Model
PHC 2080
Model description
DIAMETER : Pitch (P) = 50.80 mm , G = 38.1 mm , F1 = 55.6 mm, W = 87.6 mm , h4 = 19.1 mm, d4 = 6.8 mm
Price
Model
PHC 2100
Model description
DIAMETER : Pitch (P) = 63.50 mm , G = 47.6 mm , F1 = 66.6 mm, W = 107.5 mm , h4 = 23.4 mm, d4 = 9.2 mm
Price
Model
PHC 2120
Model description
DIAMETER : Pitch (P) =76.20 mm , G = 57.2 mm , F1 = 79.3 mm, W = 121.4 mm , h4 = 27.8 mm, d4 = 10.5 mm
Price
Model
PHC 208B
Model description
DIAMETER : Pitch (P) = 25.40 mm , G = 23.2 mm , F1 = 25.4 mm, W = 39.6 mm , h4 = 9.1mm, d4 = 11.1 mm
Price
Model
PHC 210B
Model description
DIAMETER : Pitch (P) = 31.75 mm , G = 23.8mm , F1 = 31.8 mm, W =49.0 mm , h4 = 11.1 mm, d4 = 5.5 mm
Price
Model
PHC 212B
Model description
DIAMETER : Pitch (P) = 38.10 mm , G = 35 mm , F1 = 38.1 mm, W = 57.0 mm , h4 = 14.7 mm, d4 = 6.6 mm
Price
Model
PHC 216B
Model description
DIAMETER : Pitch (P) = 50.80 mm , G = 44.0 mm , F1 = 50.8 mm, W = 84.0 mm , h4 = 19.1 mm, d4 = 6.6 mm
Price
Model
PHC 220B
Model description
DIAMETER : Pitch (P) = 63.50 mm , G =52.0 mm , F1 = 63.5 mm, W = 104.0 mm , h4 = 23.4 mm, d4 = 8.4 mm
Price
Model
PHC 224B
Model description
DIAMETER : Pitch (P) = 76.20 mm , G = 60.0 mm , F1 = 76.2 mm, W = 120.0 mm , h4 = 27.8 mm, d4 = 10.5 mm
Price
