PRODUCT
![]()
ชื่อรุ่น :
PHC CLXX - XX
แบรนด์
SKF
รายละเอียด :

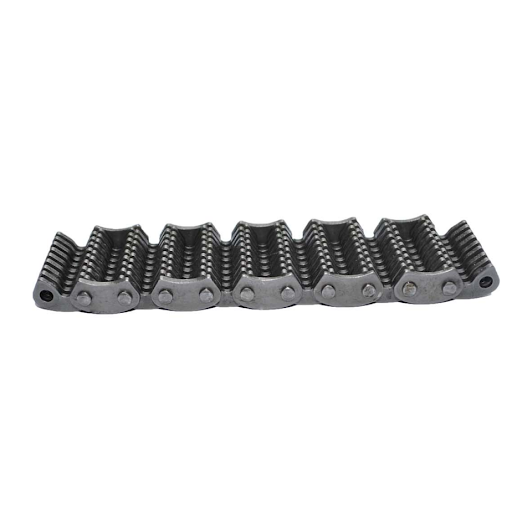

Silent Chains (Flank Contact)
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHC CL06 - 13,5
Model description
DIAMETER : Pitch (P) = 9,53 mm , Distance from hole center ( h1 ) = 5,3 mm , h2 = 10,0 mm , Roller ( d1) max. = 3,95 mm, Inner plates (b1) = 13,5 mm , Pin ( Lc) = 20,0 mm
Price
Model
PHC CL06 - 16,5
Model description
DIAMETER : Pitch (P) = 9,53 mm , Distance from hole center ( h1 ) = 5,3 mm , h2 = 10,0 mm , Roller ( d1) max. = 3,95 mm, Inner plates (b1) = 16,5 mm , Pin ( Lc) = 23,0 mm
Price
Model
PHC CL06 - 19,5
Model description
DIAMETER : Pitch (P) = 9,53 mm , Distance from hole center ( h1 ) = 5,3 mm , h2 = 10,0 mm , Roller ( d1) max. = 3,95 mm, Inner plates (b1) = 19,5 mm , Pin ( Lc) = 26,0 mm
Price
Model
PHC CL06 - 22,5
Model description
DIAMETER : Pitch (P) = 9,53 mm , Distance from hole center ( h1 ) = 5,3 mm , h2 = 10,0 mm , Roller ( d1) max. = 3,95 mm, Inner plates (b1) = 22,5 mm , Pin ( Lc) = 29,0 mm
Price
Model
PHC CL06 - 28,5
Model description
DIAMETER : Pitch (P) = 9,53 mm , Distance from hole center ( h1 ) = 5,3 mm , h2 = 10,0 mm , Roller ( d1) max. = 3,95 mm, Inner plates (b1) = 28,5 mm , Pin ( Lc) = 35,0 mm
Price
Model
PHC CL08 - 19,5
Model description
DIAMETER : Pitch (P) = 12,70 mm , Distance from hole center ( h1 ) = 7,0 mm , h2 = 13,4 mm , Roller ( d1) max. = 5,08 mm, Inner plates (b1) = 19,5 mm , Pin ( Lc) = 26,0 mm
Price
Model
PHC CL08 - 22,5
Model description
DIAMETER : Pitch (P) = 12,70 mm , Distance from hole center ( h1 ) = 7,0 mm , h2 = 13,4 mm , Roller ( d1) max. = 5,08 mm, Inner plates (b1) = 22,5 mm , Pin ( Lc) = 29,0 mm
Price
Model
PHC CL08 - 25,5
Model description
DIAMETER : Pitch (P) = 12,70 mm , Distance from hole center ( h1 ) = 7,0 mm , h2 = 13,4 mm , Roller ( d1) max. = 5,08 mm, Inner plates (b1) = 25,5 mm , Pin ( Lc) = 32,0 mm
Price
Model
PHC CL08 - 28,5
Model description
DIAMETER : Pitch (P) = 12,70 mm , Distance from hole center ( h1 ) = 7,0 mm , h2 = 13,4 mm , Roller ( d1) max. = 5,08 mm, Inner plates (b1) = 28,5 mm , Pin ( Lc) = 35,0 mm
Price
Model
PHC CL08 - 34,5
Model description
DIAMETER : Pitch (P) = 12,70 mm , Distance from hole center ( h1 ) = 7,0 mm , h2 = 13,4 mm , Roller ( d1) max. = 5,08 mm, Inner plates (b1) = 34,5 mm , Pin ( Lc) = 41,0 mm
Price
Model
PHC CL08 - 40,5
Model description
DIAMETER : Pitch (P) = 12,70 mm , Distance from hole center ( h1 ) = 7,0 mm , h2 = 13,4 mm , Roller ( d1) max. = 5,08 mm, Inner plates (b1) = 40,5 mm , Pin ( Lc) = 47,0 mm
Price
Model
PHC CL08 - 46,5
Model description
DIAMETER : Pitch (P) = 12,70 mm , Distance from hole center ( h1 ) = 7,0 mm , h2 = 13,4 mm , Roller ( d1) max. = 5,08 mm, Inner plates (b1) = 46,5 mm , Pin ( Lc) = 53,0 mm
Price
Model
PHC CL08 - 52,5
Model description
DIAMETER : Pitch (P) = 12,70 mm , Distance from hole center ( h1 ) = 7,0 mm , h2 = 13,4 mm , Roller ( d1) max. = 5,08 mm, Inner plates (b1) = 52,5 mm , Pin ( Lc) = 59,0 mm
Price
Model
PHC CL10 - 30,0
Model description
DIAMETER : Pitch (P) = 15,88 mm , Distance from hole center ( h1 ) = 8,7 mm , h2 = 16,7 mm , Roller ( d1) max. = 5,92 mm, Inner plates (b1) = 30,0 mm , Pin ( Lc) = 38,2 mm
Price
Model
PHC CL10 - 38,0
Model description
DIAMETER : Pitch (P) = 15,88 mm , Distance from hole center ( h1 ) = 8,7 mm , h2 = 16,7 mm , Roller ( d1) max. = 5,92 mm, Inner plates (b1) = 38,0 mm , Pin ( Lc) = 46,2 mm
Price
Model
PHC CL10 - 46,0
Model description
DIAMETER : Pitch (P) = 15,88 mm , Distance from hole center ( h1 ) = 8,7 mm , h2 = 16,7 mm , Roller ( d1) max. = 5,92 mm, Inner plates (b1) = 46,0 mm , Pin ( Lc) = 54,2 mm
Price
Model
PHC CL10 - 54,0
Model description
DIAMETER : Pitch (P) = 15,88 mm , Distance from hole center ( h1 ) = 8,7 mm , h2 = 16,7 mm , Roller ( d1) max. = 5,92 mm, Inner plates (b1) = 54,0 mm , Pin ( Lc) = 62,4 mm
Price
Model
PHC CL10 - 62,0
Model description
DIAMETER : Pitch (P) = 15,88 mm , Distance from hole center ( h1 ) = 8,7 mm , h2 = 16,7 mm , Roller ( d1) max. = 5,92 mm, Inner plates (b1) = 62,0 mm , Pin ( Lc) = 70,4 mm
Price
Model
PHC CL12 - 38,0
Model description
DIAMETER : Pitch (P) = 19,05 mm , Distance from hole center ( h1 ) = 10,5 mm , h2 = 20,0 mm , Roller ( d1) max. = 6,90 mm, Inner plates (b1) = 38,0 mm , Pin ( Lc) = 46,5 mm
Price
Model
PHC CL12 - 46,0
Model description
DIAMETER : Pitch (P) = 19,05 mm , Distance from hole center ( h1 ) = 10,5 mm , h2 = 20,0 mm , Roller ( d1) max. = 6,90 mm, Inner plates (b1) = 46,0 mm , Pin ( Lc) = 54,5 mm
Price
Model
PHC CL12 - 54,0
Model description
DIAMETER : Pitch (P) = 19,05 mm , Distance from hole center ( h1 ) = 10,5 mm , h2 = 20,0 mm , Roller ( d1) max. = 6,90 mm, Inner plates (b1) = 54,0 mm , Pin ( Lc) = 62,8 mm
Price
Model
PHC CL12 - 62,0
Model description
DIAMETER : Pitch (P) = 19,05 mm , Distance from hole center ( h1 ) = 10,5 mm , h2 = 20,0 mm , Roller ( d1) max. = 6,90 mm, Inner plates (b1) = 62,0 mm , Pin ( Lc) = 70,8 mm
Price
Model
PHC CL12 - 70,0
Model description
DIAMETER : Pitch (P) = 19,05 mm , Distance from hole center ( h1 ) = 10,5 mm , h2 = 20,0 mm , Roller ( d1) max. = 6,90 mm, Inner plates (b1) = 70,0 mm , Pin ( Lc) = 78,8 mm
Price
Model
PHC CL16 - 45,0
Model description
DIAMETER : Pitch (P) = 25,40 mm , Distance from hole center ( h1 ) = 14,0 mm , h2 = 26,7 mm , Roller ( d1) max. = 8,90 mm, Inner plates (b1) = 45,0 mm , Pin ( Lc) = 53,5 mm
Price
Model
PHC CL16 - 51,0
Model description
DIAMETER : Pitch (P) = 25,40 mm , Distance from hole center ( h1 ) = 14,0 mm , h2 = 26,7 mm , Roller ( d1) max. = 8,90 mm, Inner plates (b1) = 51,0 mm , Pin ( Lc) = 59,5 mm
Price
Model
PHC CL16 - 57,0
Model description
DIAMETER : Pitch (P) = 25,40 mm , Distance from hole center ( h1 ) = 14,0 mm , h2 = 26,7 mm , Roller ( d1) max. = 8,90 mm, Inner plates (b1) = 57,0 mm , Pin ( Lc) = 65,5 mm
Price
Model
PHC CL16 - 69,0
Model description
DIAMETER : Pitch (P) = 25,40 mm , Distance from hole center ( h1 ) = 14,0 mm , h2 = 26,7 mm , Roller ( d1) max. = 8,90 mm, Inner plates (b1) = 69,0 mm , Pin ( Lc) = 77,7 mm
Price
Model
PHC CL16 - 81,0
Model description
DIAMETER : Pitch (P) = 25,40 mm , Distance from hole center ( h1 ) = 14,0 mm , h2 = 26,7 mm , Roller ( d1) max. = 8,90 mm, Inner plates (b1) = 81,0 mm , Pin ( Lc) = 89,7 mm
Price
Model
PHC CL16 - 93,0
Model description
DIAMETER : Pitch (P) = 25,40 mm , Distance from hole center ( h1 ) = 14,0 mm , h2 = 26,7 mm , Roller ( d1) max. = 8,90 mm, Inner plates (b1) = 93,0 mm , Pin ( Lc) = 101,7 mm
Price
Model
PHC CL20 - 57,0
Model description
DIAMETER : Pitch (P) = 31,75 mm , Distance from hole center ( h1 ) = 17,5 mm , h2 = 33,4 mm , Roller ( d1) max. = 10,84 mm, Inner plates (b1) = 57,0 mm , Pin ( Lc) = 69,6 mm
Price
Model
PHC CL20 - 69,0
Model description
DIAMETER : Pitch (P) = 31,75 mm , Distance from hole center ( h1 ) = 17,5 mm , h2 = 33,4 mm , Roller ( d1) max. = 10,84 mm, Inner plates (b1) = 69,0 mm , Pin ( Lc) = 81,6 mm
Price
Model
PHC CL20 - 81,0
Model description
DIAMETER : Pitch (P) = 31,75 mm , Distance from hole center ( h1 ) = 17,5 mm , h2 = 33,4 mm , Roller ( d1) max. = 10,84 mm, Inner plates (b1) = 81,0 mm , Pin ( Lc) = 93,6 mm
Price
Model
PHC CL20 - 93,0
Model description
DIAMETER : Pitch (P) = 31,75 mm , Distance from hole center ( h1 ) = 17,5 mm , h2 = 33,4 mm , Roller ( d1) max. = 10,84 mm, Inner plates (b1) = 93,0 mm , Pin ( Lc) = 105,6 mm
Price
Model
PHC CL20 - 105,0
Model description
DIAMETER : Pitch (P) = 31,75 mm , Distance from hole center ( h1 ) = 17,5 mm , h2 = 33,4 mm , Roller ( d1) max. = 10,84 mm, Inner plates (b1) = 105,0 mm , Pin ( Lc) = 117,6 mm
Price
Model
PHC CL20 - 117,0
Model description
DIAMETER : Pitch (P) = 31,75 mm , Distance from hole center ( h1 ) = 17,5 mm , h2 = 33,4 mm , Roller ( d1) max. = 10,84 mm, Inner plates (b1) = 117,0 mm , Pin ( Lc) = 129,6 mm
Price
