PRODUCT
![]()
ชื่อรุ่น :
PHC C4 - XXX
แบรนด์
SKF
รายละเอียด :

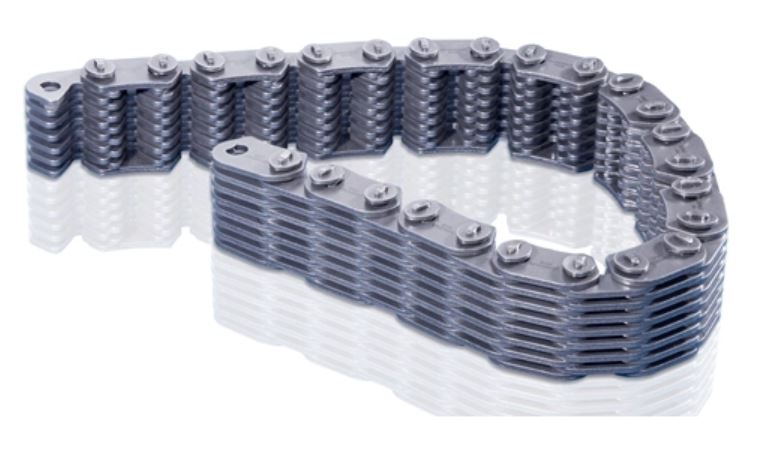

Croth contact
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHC C4 - 120
Model description

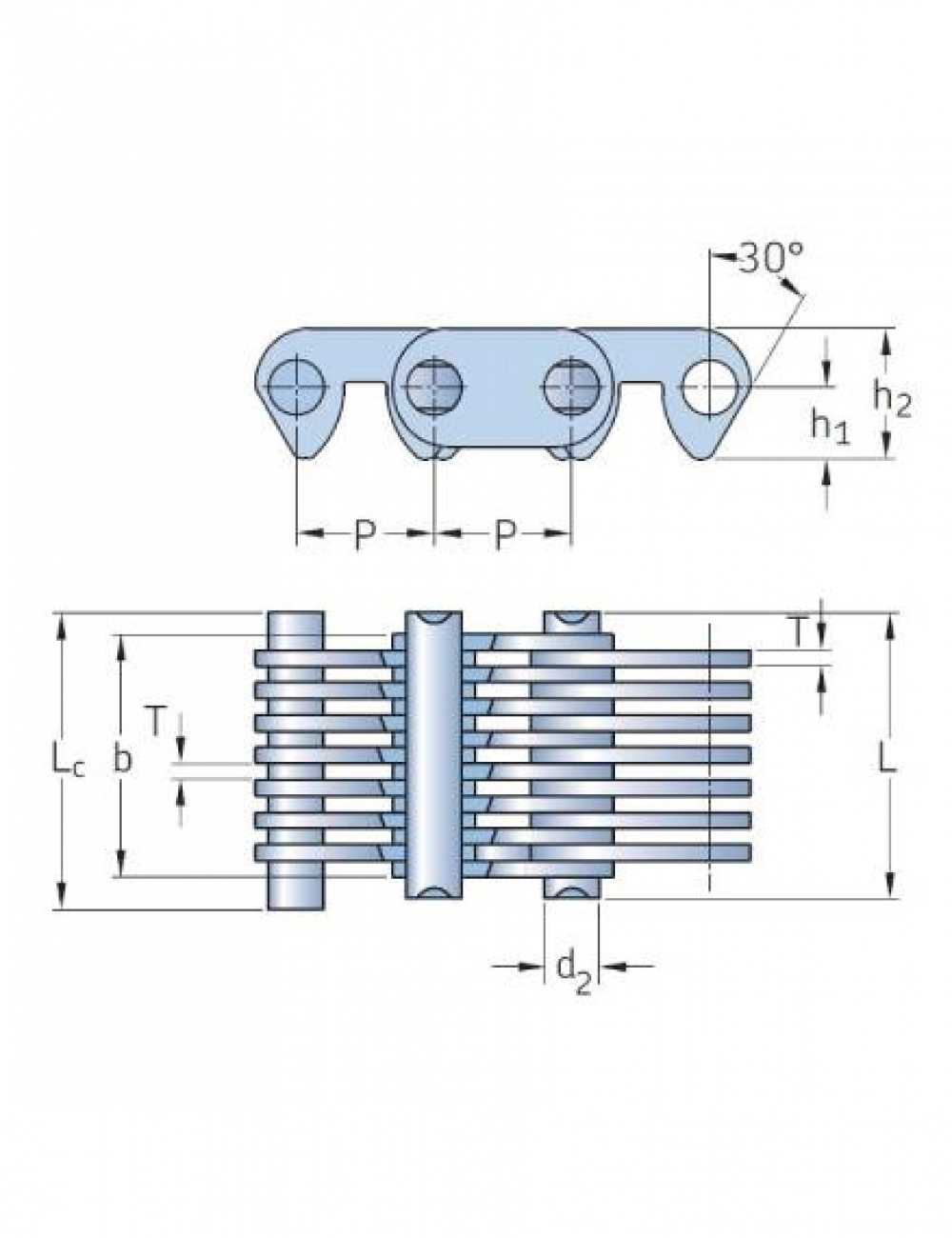

DIAMETER : Pitch (P) = 12,7 mm , Distance from hole center ( h1 ) = 6,62 mm , h2 = 12,1 mm , Chain width ( b) max. = 19,5 mm, Pin (d2) = 5,08 mm , Pin length ( Lc) = 26 mm
Price
Model
PHC C4 - 123
Model description
DIAMETER : Pitch (P) = 12,7 mm , Distance from hole center ( h1 ) = 6,62 mm , h2 = 12,1 mm , Chain width ( b) max. = 22,5 mm, Pin (d2) = 5,08 mm , Pin length ( Lc) = 29 mm
Price
Model
PHC C4 - 129
Model description
DIAMETER : Pitch (P) = 12,7 mm , Distance from hole center ( h1 ) = 6,62 mm , h2 = 12,1 mm , Chain width ( b) max. = 28,5 mm, Pin (d2) = 5,08 mm , Pin length ( Lc) = 35 mm
Price
Model
PHC C4 - 132
Model description
DIAMETER : Pitch (P) = 12,7 mm , Distance from hole center ( h1 ) = 6,62 mm , h2 = 12,1 mm , Chain width ( b) max. = 31,5 mm, Pin (d2) = 5,08 mm , Pin length ( Lc) = 38 mm
Price
Model
PHC C4 - 138
Model description
DIAMETER : Pitch (P) = 12,7 mm , Distance from hole center ( h1 ) = 6,62 mm , h2 = 12,1 mm , Chain width ( b) max. = 37,5 mm, Pin (d2) = 5,08 mm , Pin length ( Lc) = 44 mm
Price
Model
PHC C4 - 150
Model description
DIAMETER : Pitch (P) = 12,7 mm , Distance from hole center ( h1 ) = 6,62 mm , h2 = 12,1 mm , Chain width ( b) max. = 49,5 mm, Pin (d2) = 5,08 mm , Pin length ( Lc) = 56 mm
Price
Model
PHC C4 - 320
Model description
DIAMETER : Pitch (P) = 12,7 mm , Distance from hole center ( h1 ) = 6,62 mm , h2 = 12,1 mm , Chain width ( b) max. = 19,5 mm, Pin (d2) = 5,08 mm , Pin length ( Lc) = 26 mm
Price
Model
PHC C4 - 323
Model description
DIAMETER : Pitch (P) = 12,7 mm , Distance from hole center ( h1 ) = 6,62 mm , h2 = 12,1 mm , Chain width ( b) max. = 22,5 mm, Pin (d2) = 5,08 mm , Pin length ( Lc) = 29 mm
Price
Model
PHC C4 - 329
Model description
DIAMETER : Pitch (P) = 12,7 mm , Distance from hole center ( h1 ) = 6,62 mm , h2 = 12,1 mm , Chain width ( b) max. = 28,5 mm, Pin (d2) = 5,08 mm , Pin length ( Lc) = 35 mm
Price
Model
PHC C4 - 332
Model description
DIAMETER : Pitch (P) = 12,7 mm , Distance from hole center ( h1 ) = 6,62 mm , h2 = 12,1 mm , Chain width ( b) max. = 31,5 mm, Pin (d2) = 5,08 mm , Pin length ( Lc) = 38 mm
Price
Model
PHC C4 - 338
Model description
DIAMETER : Pitch (P) = 12,7 mm , Distance from hole center ( h1 ) = 6,62 mm , h2 = 12,1 mm , Chain width ( b) max. = 37,5 mm, Pin (d2) = 5,08 mm , Pin length ( Lc) = 44 mm
Price
