ชื่อรุ่น :

PHC XXXSHH - 2

แบรนด์

SKF

รายละเอียด :

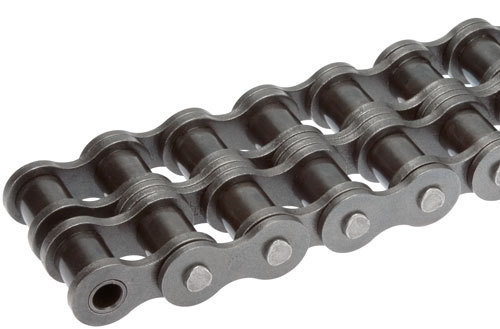

โซ่ส่งกำลังสองชั้น PHH Super Heavy Standard Lenghts are 10 ft. and 5 m.

ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHC 80SHH - 2
Model description

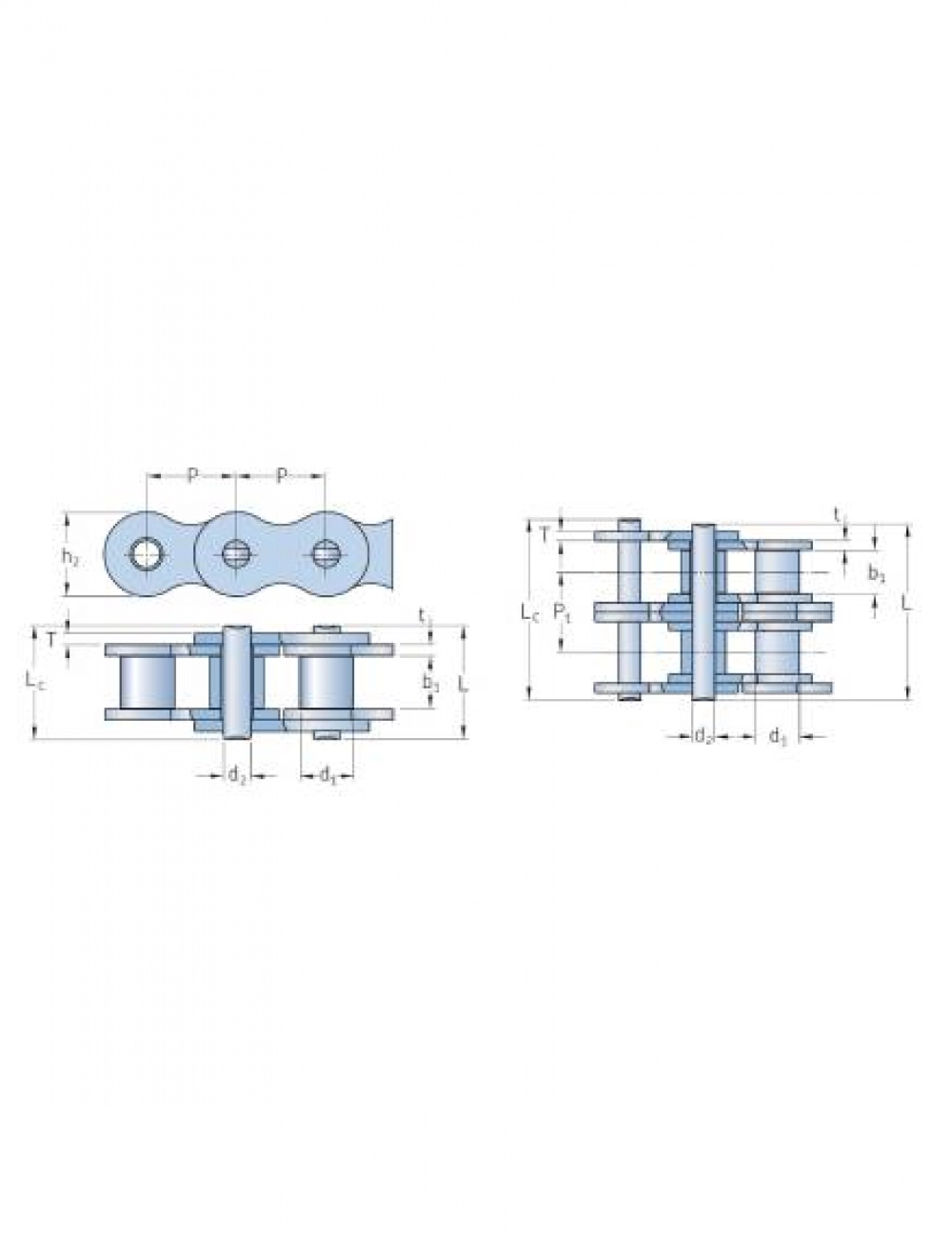

DIAMETER : Pitch (P) = 25,40 mm , h2 = 24,1 mm , Roller ( d1) max. = 15,88 mm, Inner plates (b1) = 15,75 mm , Pin ( Lc) = 72 mm
Price
Model
PHC 100SHH - 2
Model description
DIAMETER : Pitch (P) = 31,75 mm , h2 = 30,1 mm , Roller ( d1) max. = 19,05 mm, Inner plates (b1) = 18,90 mm , Pin ( Lc) = 86 mm
Price
Model
PHC 120SHH - 2
Model description
DIAMETER : Pitch (P) = 38,10 mm , h2 = 36,2 mm , Roller ( d1) max. = 22,23 mm, Inner plates (b1) = 25,22 mm , Pin ( Lc) = 106,4 mm
Price
Model
PHC 140SHH - 2
Model description
DIAMETER : Pitch (P) = 44,45 mm , h2 = 42,2 mm , Roller ( d1) max. = 25,40 mm, Inner plates (b1) = 25,22 mm , Pin ( Lc) = 114,4 mm
Price
Model
PHC 160SHH - 2
Model description
DIAMETER : Pitch (P) = 50,80 mm , h2 = 48,2 mm , Roller ( d1) max. = 28,58 mm, Inner plates (b1) = 31,55 mm , Pin ( Lc) = 134,9 mm
Price
Model
PHC 200SHH - 2
Model description
DIAMETER : Pitch (P) = 63,50 mm , h2 = 60,3 mm , Roller ( d1) max. = 39,68 mm, Inner plates (b1) = 37,85 mm , Pin ( Lc) = 171,8 mm
Price
