PRODUCT
![]()
ชื่อรุ่น :
PHC XX - 1XX
แบรนด์
SKF
รายละเอียด :

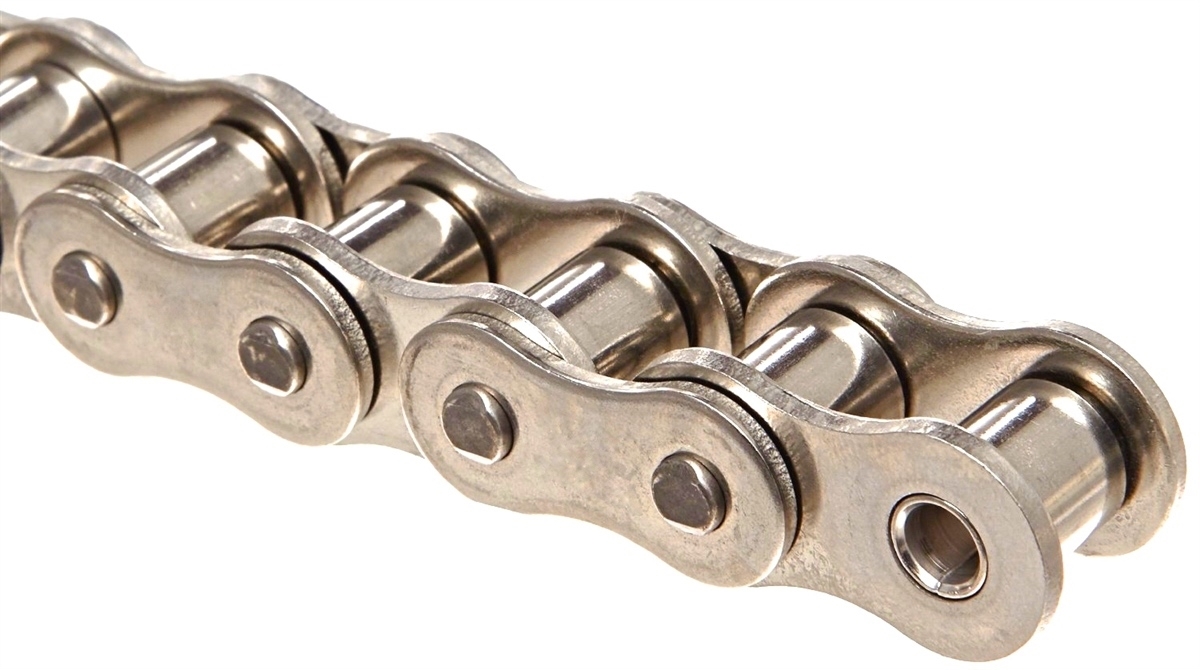

โซ่ชุปสารป้องกันการกัดกร่อน มี DR = Dacrotised , NP = Nickel - plated และ ZP = Zinc - plated
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHC 25 - 1XX
Model description

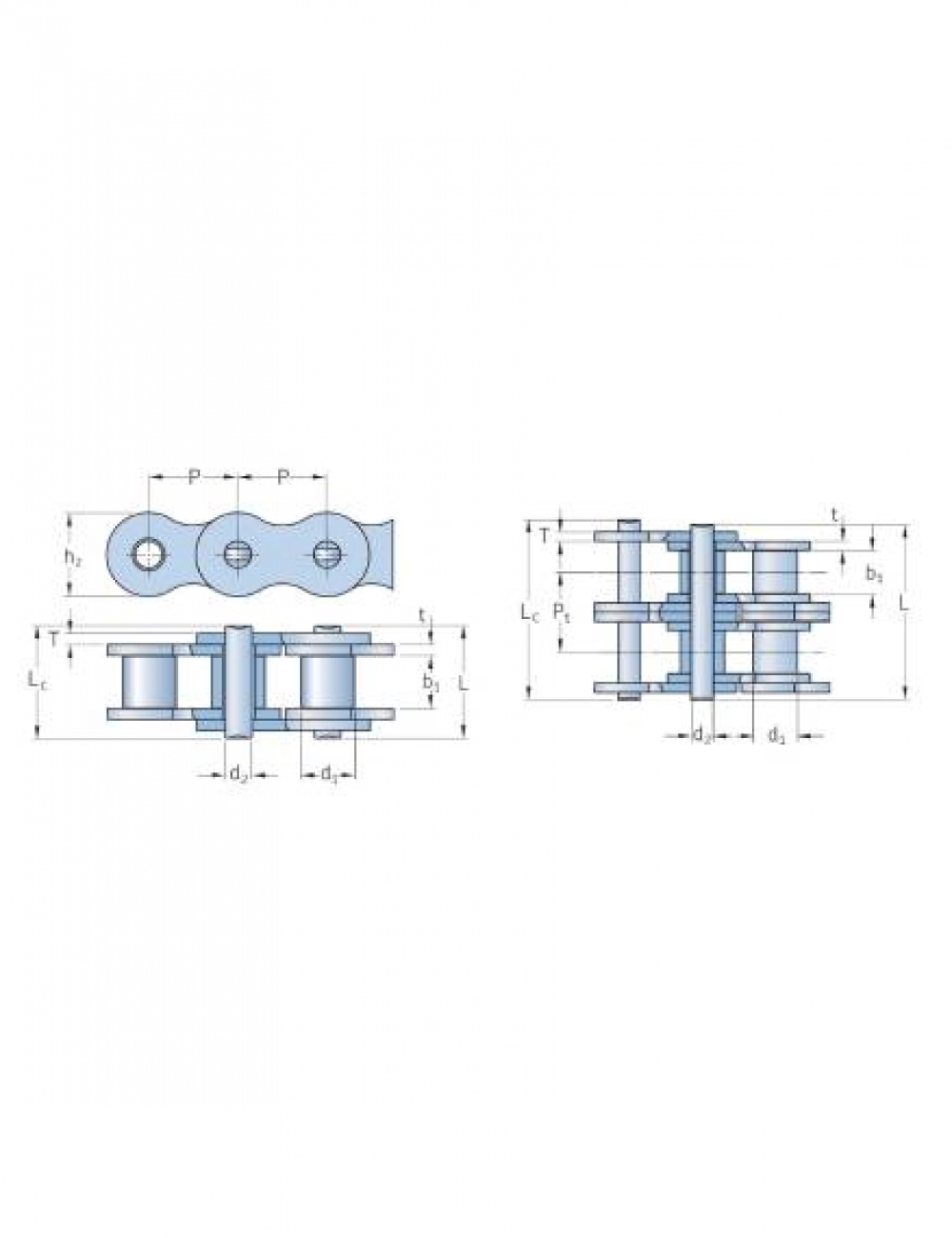

DIAMETER : Pitch (P) = 6,35 mm , h2 = 6,00 mm , Roller ( d1) max. = 3,30 mm, Inner plates (b1) = 3,18 mm , Pin ( Lc) = 8,40 mm
Price
Model
PHC 35 - 1XX
Model description
DIAMETER : Pitch (P) = 9,53 mm , h2 = 9,00 mm , Roller ( d1) max. = 5,08 mm, Inner plates (b1) = 4,77 mm , Pin ( Lc) = 13,17 mm
Price
Model
PHC 40 - 1XX
Model description
DIAMETER : Pitch (P) = 12,70 mm , h2 = 12,00 mm , Roller ( d1) max. = 7,95 mm, Inner plates (b1) = 7,85 mm , Pin ( Lc) = 17,80 mm
Price
Model
PHC 41- 1XX
Model description
DIAMETER : Pitch (P) = 12,70 mm , h2 = 9,91 mm , Roller ( d1) max. = 7,77 mm, Inner plates (b1) = 6,25 mm , Pin ( Lc) = 15,00 mm
Price
Model
PHC 50- 1XX
Model description
DIAMETER : Pitch (P) = 15,88 mm , h2 = 15,09 mm , Roller ( d1) max. = 10,16 mm, Inner plates (b1) = 9,40 mm , Pin ( Lc) = 22,20 mm
Price
Model
PHC 60- 1XX
Model description
DIAMETER : Pitch (P) = 19,05 mm , h2 = 18,00 mm , Roller ( d1) max. = 11,91 mm, Inner plates (b1) = 12,57 mm , Pin ( Lc) = 27,70 mm
Price
Model
PHC 80- 1XX
Model description
DIAMETER : Pitch (P) = 25,40 mm , h2 = 24,00 mm , Roller ( d1) max. = 15,88 mm, Inner plates (b1) = 15,75 mm , Pin ( Lc) = 35,00 mm
Price
Model
PHC 100 - 1XX
Model description
DIAMETER : Pitch (P) = 31,75 mm , h2 = 30,00 mm , Roller ( d1) max. = 19,05 mm, Inner plates (b1) = 18,90 mm , Pin ( Lc) = 44,70 mm
Price
Model
PHC 120 - 1XX
Model description
DIAMETER : Pitch (P) = 38,10 mm , h2 = 35,70 mm , Roller ( d1) max. = 22,23 mm, Inner plates (b1) = 25,22 mm , Pin ( Lc) = 54,30 mm
Price
Model
PHC 140 - 1XX
Model description
DIAMETER : Pitch (P) = 44,45 mm , h2 = 41,00 mm , Roller ( d1) max. = 25,40 mm, Inner plates (b1) = 25,22 mm , Pin ( Lc) = 59,00 mm
Price
Model
PHC 160 - 1XX
Model description
DIAMETER : Pitch (P) = 50,80 mm , h2 = 47,80 mm , Roller ( d1) max. = 28,58 mm, Inner plates (b1) = 31,55 mm , Pin ( Lc) = 69,60 mm
Price
Model
PHC 04B - 1XX
Model description
DIAMETER : Pitch (P) = 6,00 mm , h2 = 5,00 mm , Roller ( d1) max. = 4,00 mm, Inner plates (b1) = 2,80 mm , Pin ( Lc) = 7,80 mm
Price
Model
PHC 05B - 1XX
Model description
DIAMETER : Pitch (P) = 8,00 mm , h2 = 7,10 mm , Roller ( d1) max. = 5,00 mm, Inner plates (b1) = 3,00 mm , Pin ( Lc) = 8,90 mm
Price
Model
PHC 06B - 1XX
Model description
DIAMETER : Pitch (P) = 9,53 mm , h2 = 8,20 mm , Roller ( d1) max. = 6,35 mm, Inner plates (b1) = 5,72 mm , Pin ( Lc) = 14,10 mm
Price
Model
PHC 08B - 1XX
Model description
DIAMETER : Pitch (P) = 12,70 mm , h2 = 11,80 mm , Roller ( d1) max. = 8,51 mm, Inner plates (b1) = 7,75 mm , Pin ( Lc) = 18,20 mm
Price
Model
PHC 10B - 1XX
Model description
DIAMETER : Pitch (P) = 15,88 mm , h2 = 14,70 mm , Roller ( d1) max. = 10,16 mm, Inner plates (b1) = 9,65 mm , Pin ( Lc) = 20,90 mm
Price
Model
PHC 12B - 1XX
Model description
DIAMETER : Pitch (P) = 19,05 mm , h2 = 16,00 mm , Roller ( d1) max. = 12,07 mm, Inner plates (b1) = 11,68 mm , Pin ( Lc) = 24,20 mm
Price
Model
PHC 16B - 1XX
Model description
DIAMETER : Pitch (P) = 25,40 mm , h2 = 21,00 mm , Roller ( d1) max. = 15,88 mm, Inner plates (b1) = 17,02 mm , Pin ( Lc) = 37,40 mm
Price
Model
PHC 20B - 1XX
Model description
DIAMETER : Pitch (P) = 31,75 mm , h2 = 26,40 mm , Roller ( d1) max. = 19,05 mm, Inner plates (b1) = 19,56 mm , Pin ( Lc) = 45,00 mm
Price
Model
PHC 24B - 1XX
Model description
DIAMETER : Pitch (P) = 38,10 mm , h2 = 33,20 mm , Roller ( d1) max. = 25,40 mm, Inner plates (b1) = 25,40 mm , Pin ( Lc) = 57,80 mm
Price
Model
PHC 28B - 1XX
Model description
DIAMETER : Pitch (P) = 44,45 mm , h2 = 36,70 mm , Roller ( d1) max. = 27,94 mm, Inner plates (b1) = 30,99 mm , Pin ( Lc) = 69,50 mm
Price
Model
PHC 32B - 1XX
Model description
DIAMETER : Pitch (P) = 50,80 mm , h2 = 42,00 mm , Roller ( d1) max. = 29,21 mm, Inner plates (b1) = 30,99 mm , Pin ( Lc) = 71,00 mm
Price
