PRODUCT
![]()
ชื่อรุ่น :
PHC XXX - 2
แบรนด์
SKF
รายละเอียด :

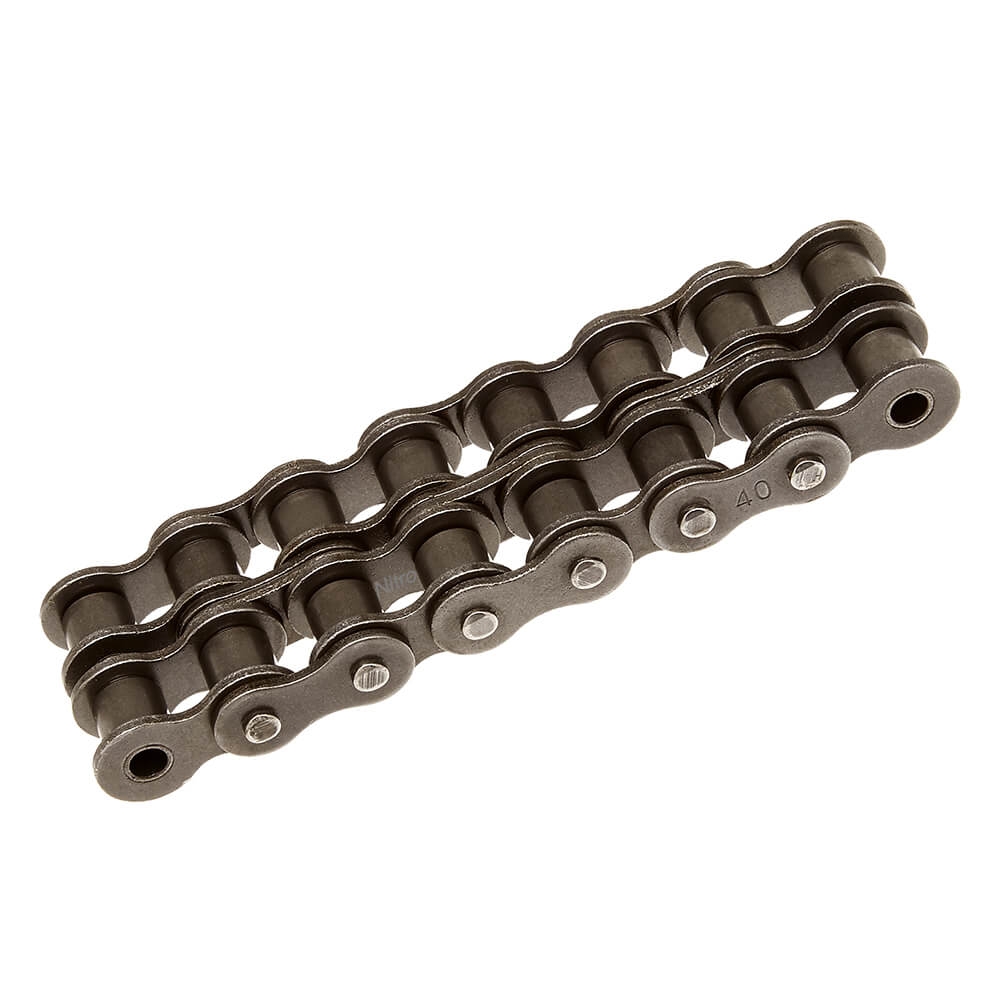

โซ่ส่งกำลังสองชั้น ANSI Standard Lenghts are 10 ft. and 5 m.
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHC 25-2
Model description

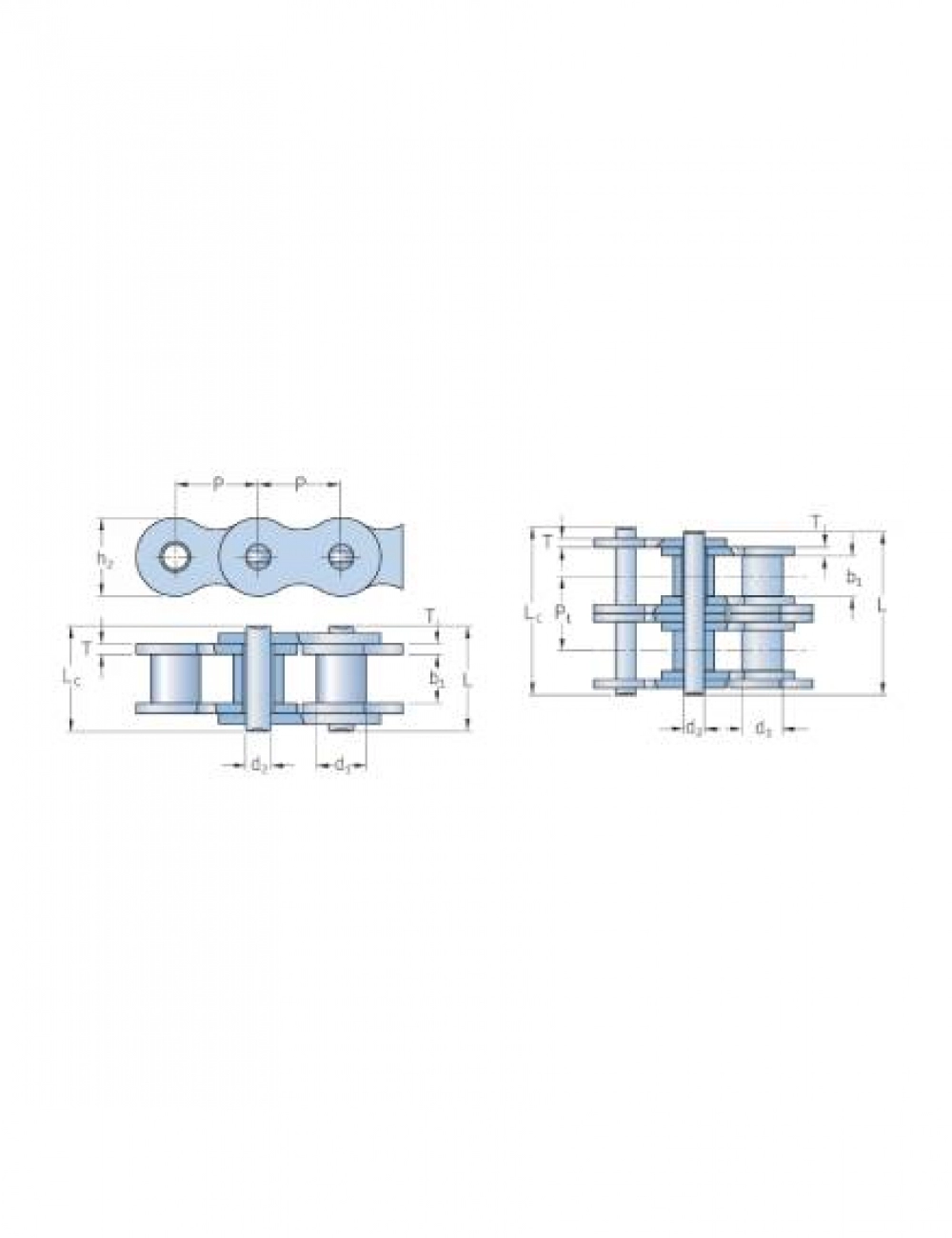

DIAMETER : Pitch (P) = 6.35 mm , h2 = 6.00 mm , Roller ( d1) max. = 3.30 mm, Inner plates (b1) = 3.18 mm , Pin ( Lc) = 15.0 mm
Price
Model
PHC 35-2
Model description
DIAMETER : Pitch (P) = 9.52 mm , h2 = 9.00 mm , Roller ( d1) max. = 5.08 mm, Inner plates (b1) = 4.77 mm , Pin ( Lc) = 23.3 mm
Price
Model
PHC 41-2
Model description
DIAMETER : Pitch (P) = 12.70 mm , h2 = 9.91 mm , Roller ( d1) max. = 7.77 mm, Inner plates (b1) = 6.25 mm , Pin ( Lc) = 26.9 mm
Price
Model
PHC 40-2
Model description
DIAMETER : Pitch (P) = 12.70 mm , h2 = 12.00 mm , Roller ( d1) max. = 7.95 mm, Inner plates (b1) = 7.85 mm , Pin ( Lc) = 32.2 mm
Price
Model
PHC 50-2
Model description
DIAMETER : Pitch (P) = 15.87 mm , h2 = 15.09 mm , Roller ( d1) max. = 10.16 mm, Inner plates (b1) = 9.40 mm , Pin ( Lc) = 40.4 mm
Price
Model
PHC 60-2
Model description
DIAMETER : Pitch (P) = 19.05 mm , h2 = 18.00 mm , Roller ( d1) max. = 11.91 mm, Inner plates (b1) = 12.57 mm , Pin ( Lc) = 50.5 mm
Price
Model
PHC 80-2
Model description
DIAMETER : Pitch (P) = 25.40 mm , h2 = 24.00 mm , Roller ( d1) max. = 15.88 mm, Inner plates (b1) = 15.75 mm , Pin ( Lc) = 64.3 mm
Price
Model
PHC 100-2
Model description
DIAMETER : Pitch (P) = 31.75 mm , h2 = 30.00 mm , Roller ( d1) max. = 19.05 mm, Inner plates (b1) = 18.90 mm , Pin ( Lc) = 80.5 mm
Price
Model
PHC 120-2
Model description
DIAMETER : Pitch (P) = 38.10 mm , h2 = 35.70 mm , Roller ( d1) max. = 22.23 mm, Inner plates (b1) = 25.22 mm , Pin ( Lc) = 99.7 mm
Price
Model
PHC 140-2
Model description
DIAMETER : Pitch (P) = 44.45 mm , h2 = 41.00 mm , Roller ( d1) max. = 25.40 mm, Inner plates (b1) = 25.22 mm , Pin ( Lc) = 107.9 mm
Price
Model
PHC 160-2
Model description
DIAMETER : Pitch (P) = 50.80 mm , h2 = 47.80 mm , Roller ( d1) max. = 28.58 mm, Inner plates (b1) = 31.55 mm , Pin ( Lc) = 128.1 mm
Price
Model
PHC 180-2
Model description
DIAMETER : Pitch (P) = 57.15 mm , h2 = 53.60 mm , Roller ( d1) max. = 35.71 mm, Inner plates (b1) = 35.48 mm , Pin ( Lc) = 144.4 mm
Price
Model
PHC 200-2
Model description
DIAMETER : Pitch (P) = 63.50 mm , h2 = 60.00 mm , Roller ( d1) max. = 39.68 mm, Inner plates (b1) = 37.85 mm , Pin ( Lc) = 158.8 mm
Price
Model
PHC 240-2
Model description
DIAMETER : Pitch (P) = 76.20 mm , h2 = 72.39 mm , Roller ( d1) max. = 47.63 mm, Inner plates (b1) = 47.35 mm , Pin ( Lc) = 190.8 mm
Price
