PRODUCT
![]()
ชื่อรุ่น :
PHC XXXH - 1
แบรนด์
SKF
รายละเอียด :

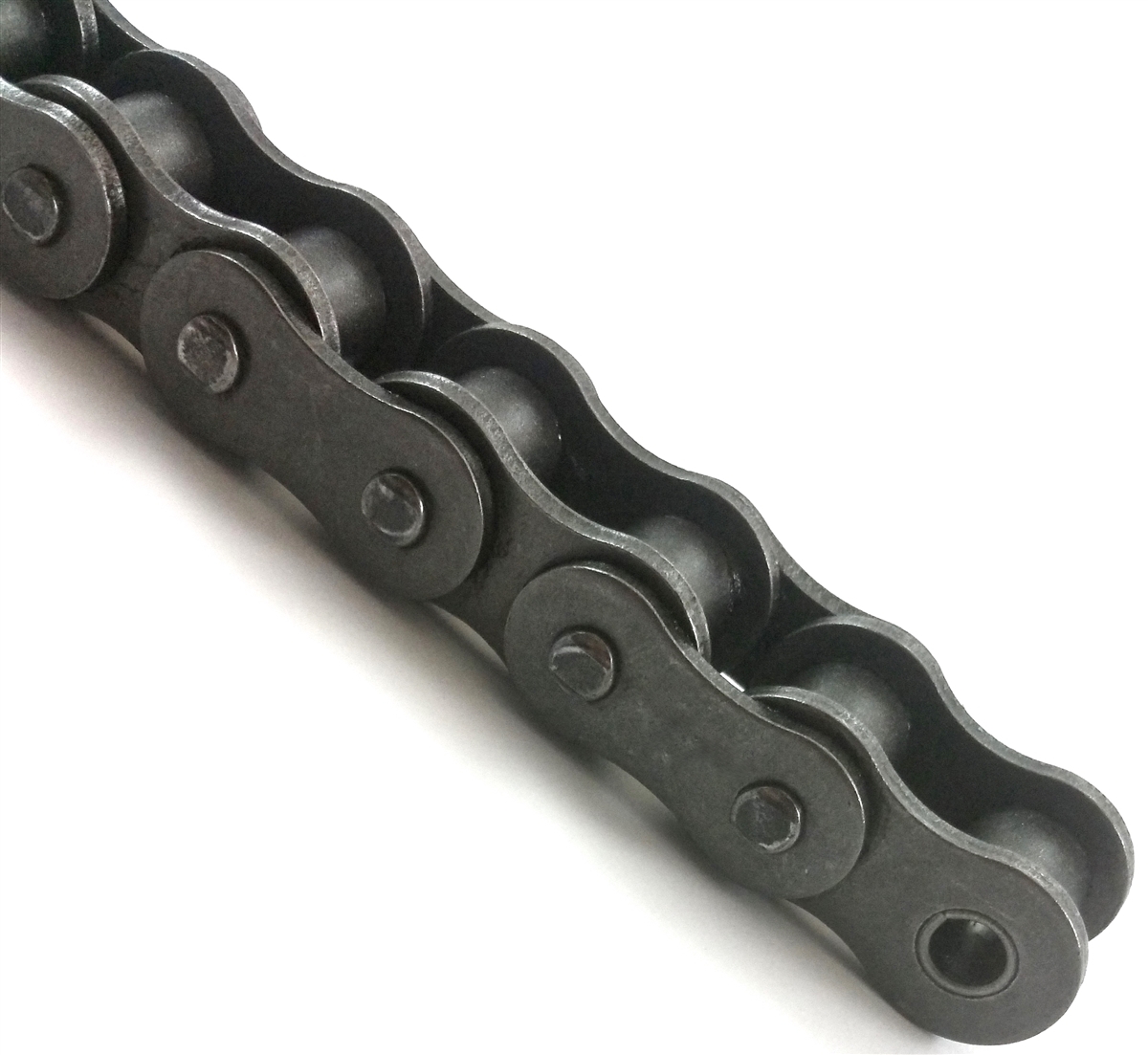

โซ่ส่งกำลังชั้นเดียว ANSI Heavy duty Standard Lenghts are 10 ft. and 5 m.
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHC 35H - 1
Model description

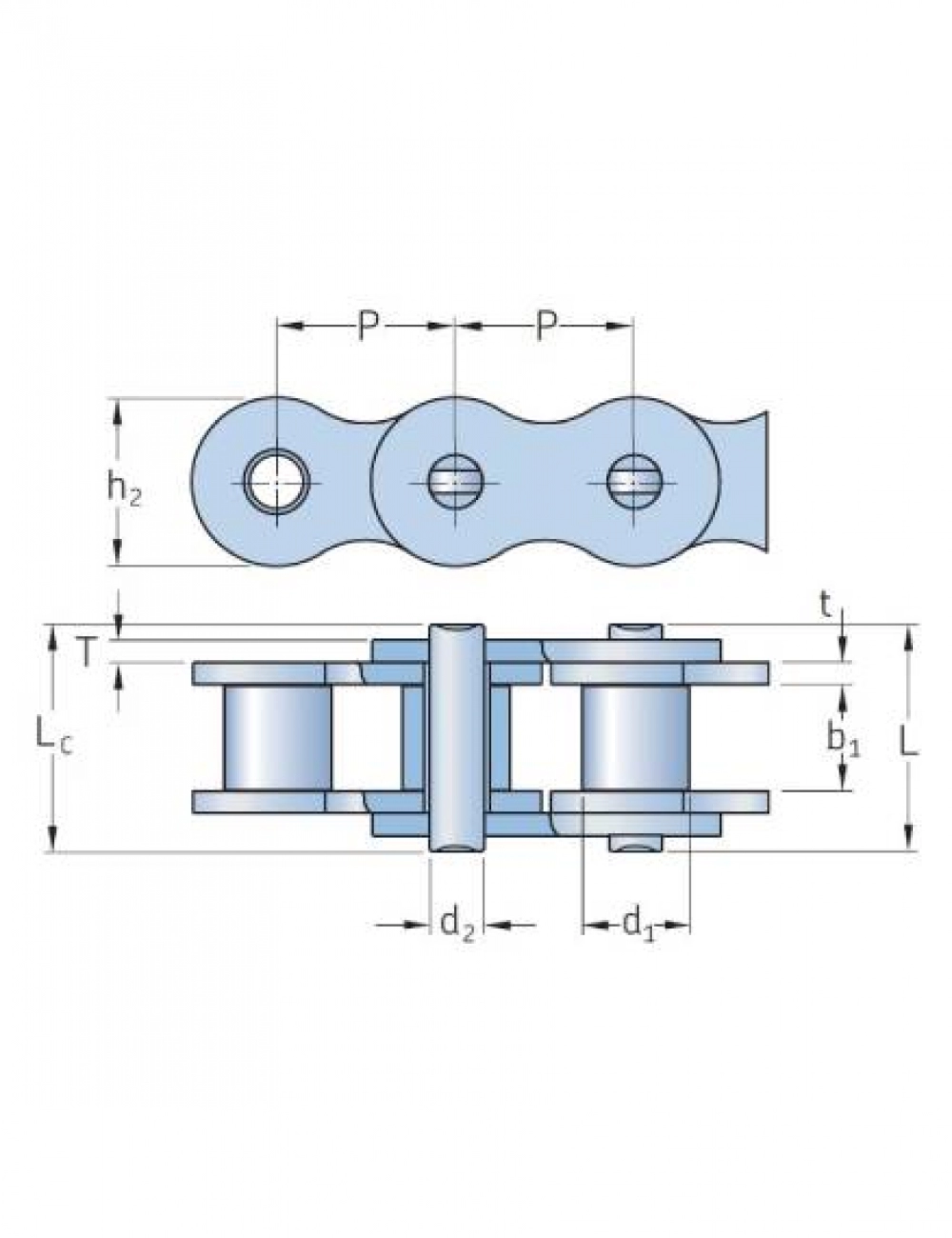

DIAMETER : Pitch (P) = 9.53 mm , h2 = 9.00 mm , Roller ( d1) max. = 5.08 mm, Inner plates (b1) = 4.77 mm , Pin ( Lc) = 14.3 mm
Price
Model
PHC 40H - 1
Model description
DIAMETER : Pitch (P) = 12.70 mm , h2 = 12.00mm , Roller ( d1) max. = 7.95 mm, Inner plates (b1) = 7.85 mm , Pin ( Lc) = 19.9 mm
Price
Model
PHC 50H - 1
Model description
DIAMETER : Pitch (P) = 15.88 mm , h2 = 15.09mm , Roller ( d1) max. = 10.16 mm, Inner plates (b1) = 9.40 mm , Pin ( Lc) = 23.4 mm
Price
Model
PHC 60H - 1
Model description
DIAMETER : Pitch (P) = 19.05 mm , h2 = 18.00 mm , Roller ( d1) max. = 11.91 mm, Inner plates (b1) = 12.57 mm , Pin ( Lc) = 31.0 mm
Price
Model
PHC 80H - 1
Model description
DIAMETER : Pitch (P) = 25.40 mm , h2 = 24.00 mm , Roller ( d1) max. = 15.88 mm, Inner plates (b1) = 15.75 mm , Pin ( Lc) = 37.7 mm
Price
Model
PHC 100H - 1
Model description
DIAMETER : Pitch (P) = 31.75 mm , h2 = 30.00 mm , Roller ( d1) max. = 19.05 mm, Inner plates (b1) = 18.90 mm , Pin ( Lc) = 46.9 mm
Price
Model
PHC 120H - 1
Model description
DIAMETER : Pitch (P) = 38.10 mm , h2 = 35.70 mm , Roller ( d1) max. = 22.23 mm, Inner plates (b1) = 25.22 mm , Pin ( Lc) = 57.5 mm
Price
Model
PHC 140H - 1
Model description
DIAMETER : Pitch (P) = 44.45 mm , h2 = 41.00 mm , Roller ( d1) max. = 25.40 mm, Inner plates (b1) = 25.22 mm , Pin ( Lc) = 62.2 mm
Price
Model
PHC 160H - 1
Model description
DIAMETER : Pitch (P) = 50.80 mm , h2 =47.80 mm , Roller ( d1) max. = 28.58 mm, Inner plates (b1) = 31.55 mm , Pin ( Lc) = 73.0 mm
Price
Model
PHC 180H - 1
Model description
DIAMETER : Pitch (P) = 57.15 mm , h2 = 53.60 mm , Roller ( d1) max. = 35.71 mm, Inner plates (b1) = 35.48 mm , Pin ( Lc) = 81.6 mm
Price
Model
PHC 200H - 1
Model description
DIAMETER : Pitch (P) = 63.50 mm , h2 = 60.00 mm , Roller ( d1) max. = 39.68 mm, Inner plates (b1) = 37.85 mm , Pin ( Lc) = 93.5 mm
Price
Model
PHC 240H - 1
Model description
DIAMETER : Pitch (P) = 76.20 mm , h2 = 72.30 mm , Roller ( d1) max. = 47.63 mm, Inner plates (b1) = 47.35 mm , Pin ( Lc) = 115.9 mm
Price
