PRODUCT
![]()
ชื่อรุ่น :
PHC LLXXXX
แบรนด์
SKF
รายละเอียด :
BS/ISO LL0822-LL4888
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHC LL0822
Model description

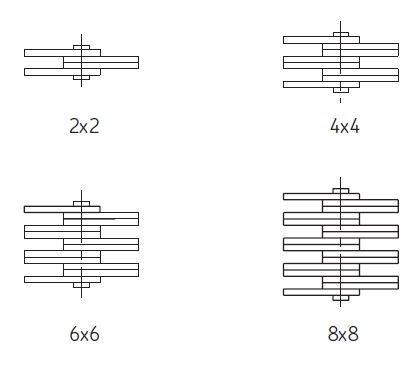

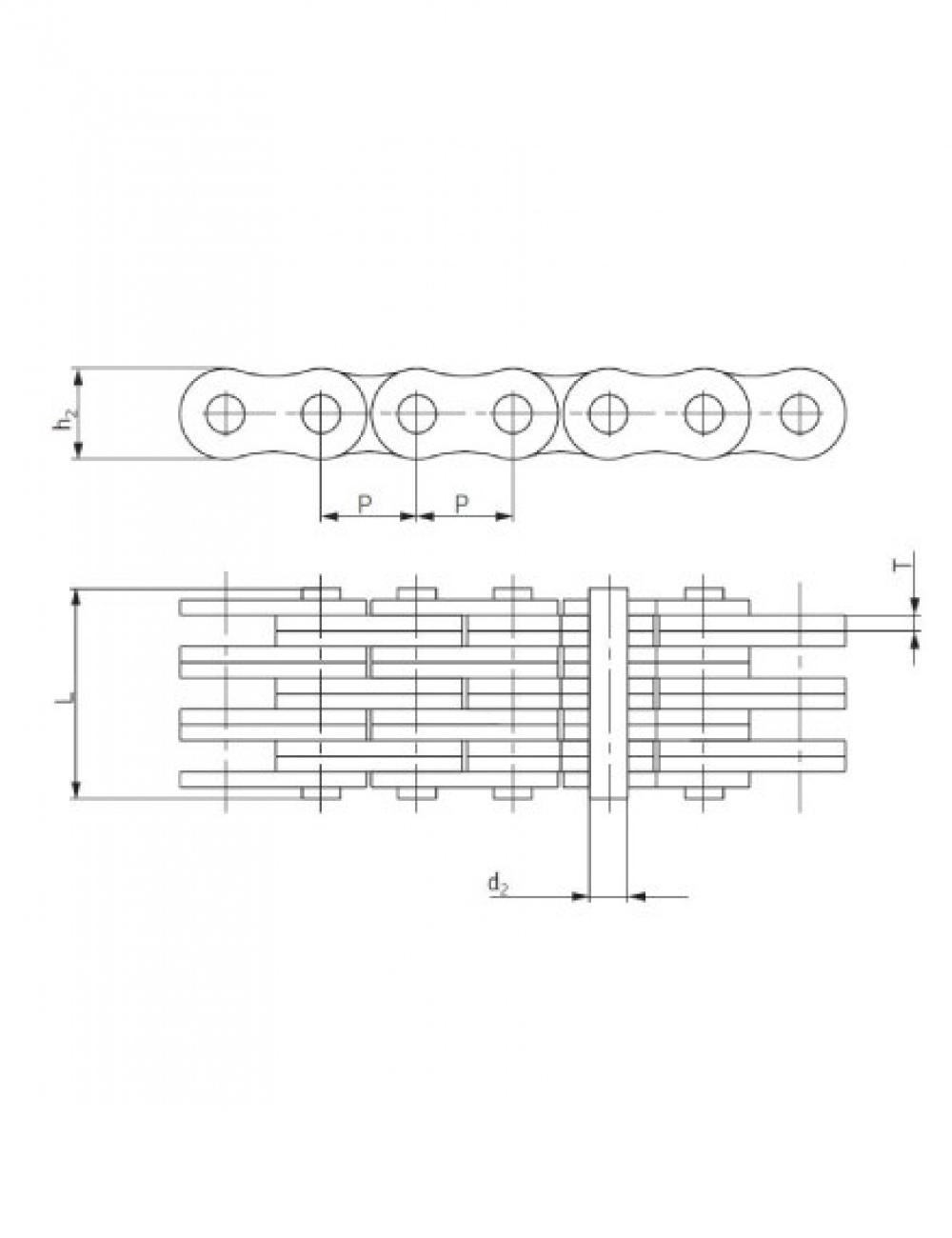

DIAMETER : Pitch (P) = 12,70 mm , h2 = 10,60 mm , Plate lacing = 2x2 mm, Plate thickness ( T ) = 1,60 mm ,Pin (d2) = 4,45 mm , Pin length ( L) = 8,9 mm
Price
Model
PHC LL0844
Model description
DIAMETER : Pitch (P) = 12,70 mm , h2 = 10,60 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 1,60 mm ,Pin (d2) = 4,45 mm , Pin length ( L) = 15,6 mm
Price
Model
PHC LL0866
Model description
DIAMETER : Pitch (P) = 12,70 mm , h2 = 10,60 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 1,60 mm ,Pin (d2) = 4,45 mm , Pin length ( L) = 22,0 mm
Price
Model
PHC LL0888
Model description
DIAMETER : Pitch (P) = 12,70 mm , h2 = 10,60 mm , Plate lacing = 8x8 mm, Plate thickness ( T ) = 1,60 mm ,Pin (d2) = 4,45 mm , Pin length ( L) = 28,5 mm
Price
Model
PHC LL1022
Model description
DIAMETER : Pitch (P) = 15,88 mm , h2 = 13,70 mm , Plate lacing = 2x2 mm, Plate thickness ( T ) = 1,60 mm ,Pin (d2) = 5,08 mm , Pin length ( L) = 9,2 mm
Price
Model
PHC LL1044
Model description
DIAMETER : Pitch (P) = 15,88 mm , h2 = 13,70 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 1,60 mm ,Pin (d2) = 5,08 mm , Pin length ( L) = 15,8 mm
Price
Model
PHC LL1066
Model description
DIAMETER : Pitch (P) = 15,88 mm , h2 = 13,70 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 1,60 mm ,Pin (d2) = 5,08 mm , Pin length ( L) = 22,1 mm
Price
Model
PHC LL1088
Model description
DIAMETER : Pitch (P) = 15,88 mm , h2 = 13,70 mm , Plate lacing = 8x8 mm, Plate thickness ( T ) = 1,60 mm ,Pin (d2) = 5,08 mm , Pin length ( L) = 28,8 mm
Price
Model
PHC LL1222
Model description
DIAMETER : Pitch (P) = 19,05 mm , h2 = 16,00 mm , Plate lacing = 2x2 mm, Plate thickness ( T ) = 1,85 mm ,Pin (d2) = 5,72 mm , Pin length ( L) = 10,4 mm
Price
Model
PHC LL1244
Model description
DIAMETER : Pitch (P) = 19,05 mm , h2 = 16,00 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 1,85 mm ,Pin (d2) = 5,72 mm , Pin length ( L) = 17,9 mm
Price
Model
PHC LL1266
Model description
DIAMETER : Pitch (P) = 19,05 mm , h2 = 16,00 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 1,85 mm ,Pin (d2) = 5,72 mm , Pin length ( L) = 25,4 mm
Price
Model
PHC LL1288
Model description
DIAMETER : Pitch (P) = 19,05 mm , h2 = 16,00 mm , Plate lacing = 8x8 mm, Plate thickness ( T ) = 1,85 mm ,Pin (d2) = 5,72 mm , Pin length ( L) = 32,9 mm
Price
Model
PHC LL1622
Model description
DIAMETER : Pitch (P) = 25,40 mm , h2 = 21,00 mm , Plate lacing = 2x2 mm, Plate thickness ( T ) = 3,10 mm ,Pin (d2) = 8,28 mm , Pin length ( L) = 17,2 mm
Price
Model
PHC LL1644
Model description
DIAMETER : Pitch (P) = 25,40 mm , h2 = 21,00 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 3,10 mm ,Pin (d2) = 8,28 mm , Pin length ( L) = 29,6 mm
Price
Model
PHC LL1666
Model description
DIAMETER : Pitch (P) = 25,40 mm , h2 = 21,00 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 3,10 mm ,Pin (d2) = 8,28 mm , Pin length ( L) = 42,4 mm
Price
Model
PHC LL1688
Model description
DIAMETER : Pitch (P) = 25,40 mm , h2 = 21,00 mm , Plate lacing = 8x8 mm, Plate thickness ( T ) = 3,10 mm ,Pin (d2) = 8,28 mm , Pin length ( L) = 54,9 mm
Price
Model
PHC LL2022
Model description
DIAMETER : Pitch (P) = 31,75 mm , h2 = 26,40 mm , Plate lacing = 2x2 mm, Plate thickness ( T ) = 3,50 mm ,Pin (d2) = 10,19 mm , Pin length ( L) = 20,1 mm
Price
Model
PHC LL2044
Model description
DIAMETER : Pitch (P) = 31,75 mm , h2 = 26,40 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 3,50 mm ,Pin (d2) = 10,19 mm , Pin length ( L) = 33,8 mm
Price
Model
PHC LL2066
Model description
DIAMETER : Pitch (P) = 31,75 mm , h2 = 26,40 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 3,50 mm ,Pin (d2) = 10,19 mm , Pin length ( L) = 50,1 mm
Price
Model
PHC LL2088
Model description
DIAMETER : Pitch (P) = 31,75 mm , h2 = 26,40 mm , Plate lacing = 8x8 mm, Plate thickness ( T ) = 3,50 mm ,Pin (d2) = 10,19 mm , Pin length ( L) = 64,0 mm
Price
Model
PHC LL2422
Model description
DIAMETER : Pitch (P) = 38,10 mm , h2 = 33,40 mm , Plate lacing = 2x2 mm, Plate thickness ( T ) = 5,00 mm ,Pin (d2) = 14,63 mm , Pin length ( L) = 28,4 mm
Price
Model
PHC LL2444
Model description
DIAMETER : Pitch (P) = 38,10 mm , h2 = 33,40 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 5,00 mm ,Pin (d2) = 14,63 mm , Pin length ( L) = 46,3 mm
Price
Model
PHC LL2466
Model description
DIAMETER : Pitch (P) = 38,10 mm , h2 = 33,40 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 5,00 mm ,Pin (d2) = 14,63 mm , Pin length ( L) = 66,4 mm
Price
Model
PHC LL2488
Model description
DIAMETER : Pitch (P) = 38,10 mm , h2 = 33,40 mm , Plate lacing = 8x8 mm, Plate thickness ( T ) = 5,00 mm ,Pin (d2) = 14,63 mm , Pin length ( L) = 86,6 mm
Price
Model
PHC LL2822
Model description
DIAMETER : Pitch (P) = 44,45 mm , h2 = 37,08 mm , Plate lacing = 2x2 mm, Plate thickness ( T ) = 6,00 mm ,Pin (d2) = 15,90 mm , Pin length ( L) = 32,2 mm
Price
Model
PHC LL2844
Model description
DIAMETER : Pitch (P) = 44,45 mm , h2 = 37,08 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 6,00 mm ,Pin (d2) = 15,90 mm , Pin length ( L) = 56,4 mm
Price
Model
PHC LL2866
Model description
DIAMETER : Pitch (P) = 44,45 mm , h2 = 37,08 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 6,00 mm ,Pin (d2) = 15,90 mm , Pin length ( L) = 80,8 mm
Price
Model
PHC LL2888
Model description
DIAMETER : Pitch (P) = 44,45 mm , h2 = 37,08 mm , Plate lacing = 8x8 mm, Plate thickness ( T ) = 6,00 mm ,Pin (d2) = 15,90 mm , Pin length ( L) = 105,2 mm
Price
Model
PHC LL3222
Model description
DIAMETER : Pitch (P) = 50,80 mm , h2 = 42,00 mm , Plate lacing = 2x2 mm, Plate thickness ( T ) = 6,40 mm ,Pin (d2) = 17,81 mm , Pin length ( L) = 60,6 mm
Price
Model
PHC LL3266
Model description
DIAMETER : Pitch (P) = 50,80 mm , h2 = 42,00 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 6,40 mm ,Pin (d2) = 17,81 mm , Pin length ( L) = 86,4 mm
Price
Model
PHC LL3288
Model description
DIAMETER : Pitch (P) = 50,80 mm , h2 = 42,00 mm , Plate lacing = 8x8 mm, Plate thickness ( T ) = 6,40 mm ,Pin (d2) = 17,81 mm , Pin length ( L) = 112,2 mm
Price
Model
PHC LL4022
Model description
DIAMETER : Pitch (P) = 63,50 mm , h2 = 52,76 mm , Plate lacing = 2x2 mm, Plate thickness ( T ) = 8,00 mm ,Pin (d2) = 22,89 mm , Pin length ( L) = 42,2 mm
Price
Model
PHC LL4044
Model description
DIAMETER : Pitch (P) = 63,50 mm , h2 = 52,76 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 8,00 mm ,Pin (d2) = 22,89 mm , Pin length ( L) = 74,4 mm
Price
Model
PHC LL4066
Model description
DIAMETER : Pitch (P) = 63,50 mm , h2 = 52,76 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 8,00 mm ,Pin (d2) = 22,89 mm , Pin length ( L) = 106,5 mm
Price
Model
PHC LL4088
Model description
DIAMETER : Pitch (P) = 63,50 mm , h2 = 52,76 mm , Plate lacing = 8x8 mm, Plate thickness ( T ) = 8,00 mm ,Pin (d2) = 22,89 mm , Pin length ( L) = 140,0 mm
Price
Model
PHC LL4822
Model description
DIAMETER : Pitch (P) = 76,20 mm , h2 = 63,88 mm , Plate lacing = 2x2 mm, Plate thickness ( T ) = 10,00 mm ,Pin (d2) = 29,24 mm , Pin length ( L) = 54,6 mm
Price
Model
PHC LL4844
Model description
DIAMETER : Pitch (P) = 76,20 mm , h2 = 63,88 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 10,00 mm ,Pin (d2) = 29,24 mm , Pin length ( L) = 92,6 mm
Price
Model
PHC LL4866
Model description
DIAMETER : Pitch (P) = 76,20 mm , h2 = 63,88 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 10,00 mm ,Pin (d2) = 29,24 mm , Pin length ( L) = 133,4 mm
Price
Model
PHC LL4888
Model description
DIAMETER : Pitch (P) = 76,20 mm , h2 = 63,88 mm , Plate lacing = 8x8 mm, Plate thickness ( T ) = 10,00 mm ,Pin (d2) = 29,24 mm , Pin length ( L) = 174,2 mm
Price
