PRODUCT
![]()
ชื่อรุ่น :

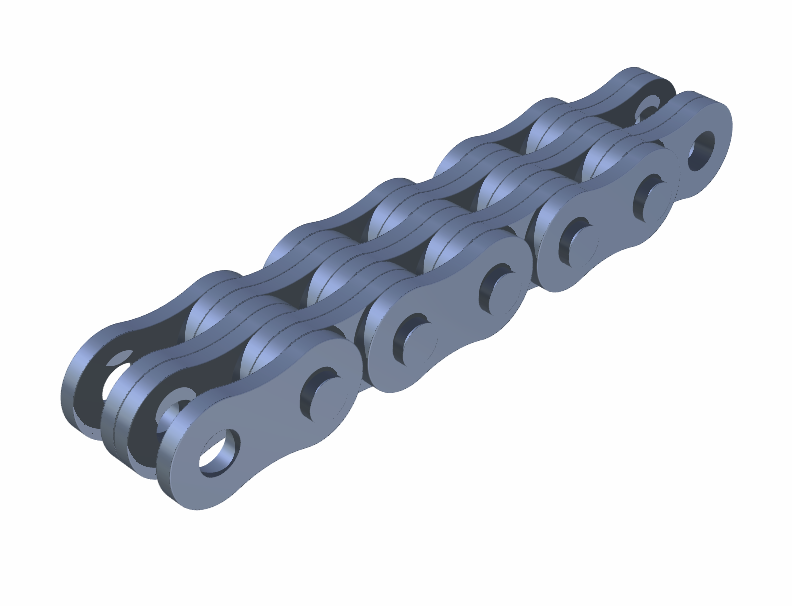

PHC BLXXXX
แบรนด์
SKF
รายละเอียด :
ANSI BL1022-BL2088
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHC BL1022
Model description

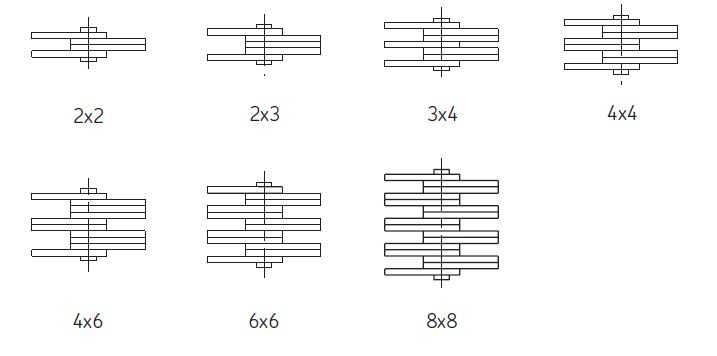

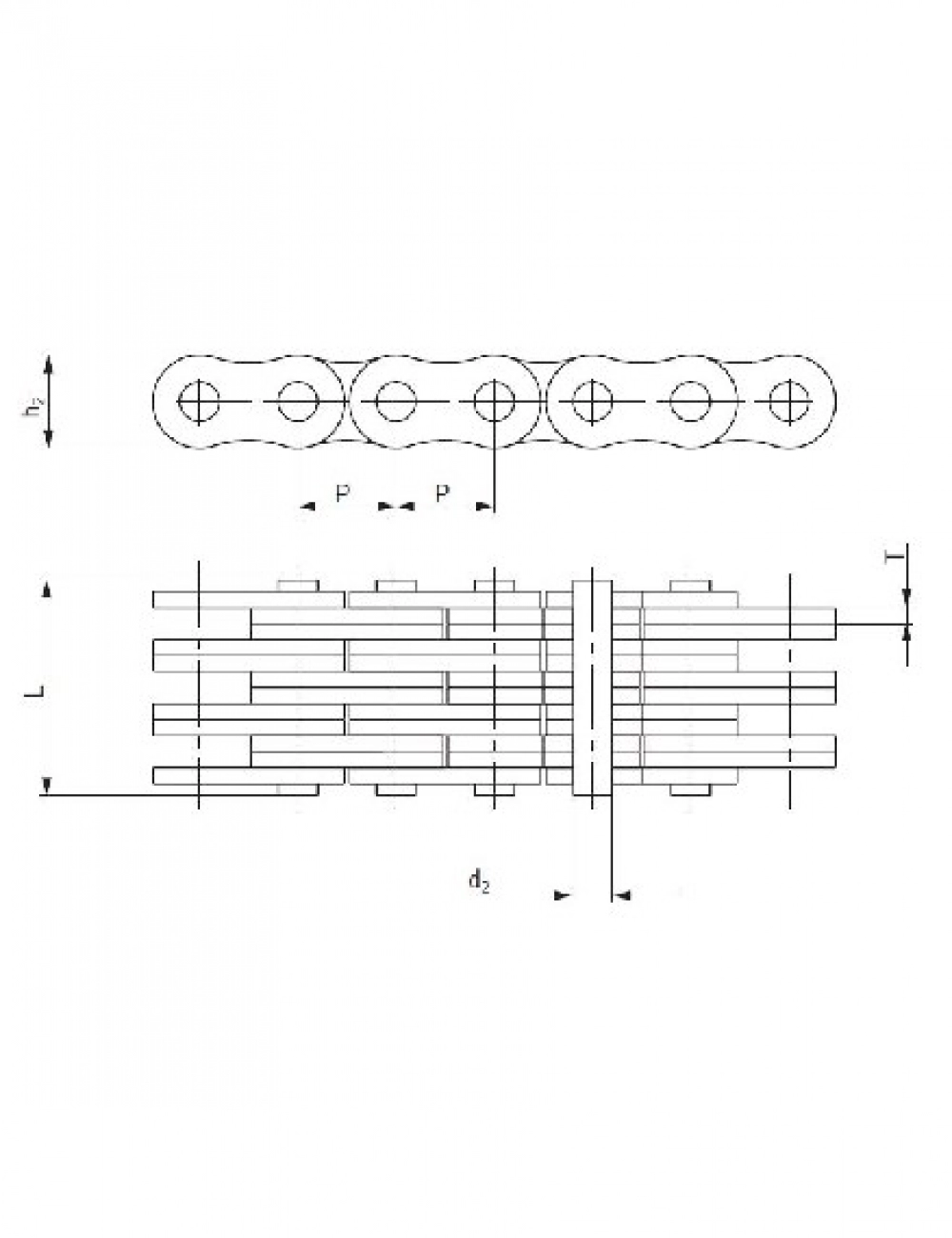

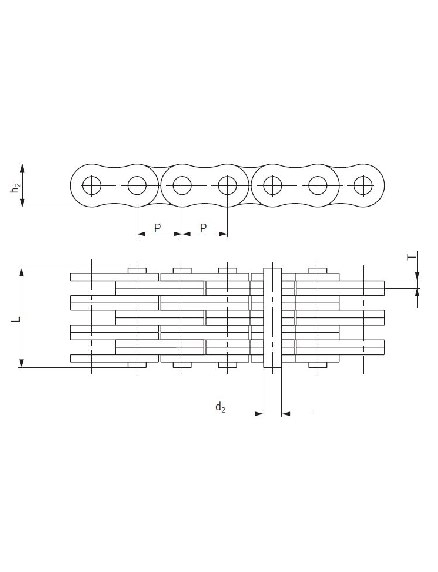

DIAMETER : Pitch (P) = 31,75 mm , h2 = 30,18 mm , Plate lacing = 2x2 mm, Plate thickness ( T ) = 4,90 mm ,Pin (d2) = 11,11 mm , Pin length ( L) = 25,37 mm
Price
Model
PHC BL1023
Model description
DIAMETER : Pitch (P) = 31,75 mm , h2 = 30,18 mm , Plate lacing = 2x3 mm, Plate thickness ( T ) = 4,90 mm ,Pin (d2) = 11,11 mm , Pin length ( L) = 30,33 mm
Price
Model
PHC BL1034
Model description
DIAMETER : Pitch (P) = 31,75 mm , h2 = 30,18 mm , Plate lacing = 3x4 mm, Plate thickness ( T ) = 4,90 mm ,Pin (d2) = 11,11 mm , Pin length ( L) = 40,23 mm
Price
Model
PHC BL1044
Model description
DIAMETER : Pitch (P) = 31,75 mm , h2 = 30,18 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 4,90 mm ,Pin (d2) = 11,11 mm , Pin length ( L) = 45,19 mm
Price
Model
PHC BL1046
Model description
DIAMETER : Pitch (P) = 31,75 mm , h2 = 30,18 mm , Plate lacing = 4x6 mm, Plate thickness ( T ) = 4,90 mm ,Pin (d2) = 11,11 mm , Pin length ( L) = 55,09 mm
Price
Model
PHC BL1066
Model description
DIAMETER : Pitch (P) = 31,75 mm , h2 = 30,18 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 4,90 mm ,Pin (d2) = 11,11 mm , Pin length ( L) = 65,00 mm
Price
Model
PHC BL1088
Model description
DIAMETER : Pitch (P) = 31,75 mm , h2 = 30,18 mm , Plate lacing = 8x8 mm, Plate thickness ( T ) = 4,90 mm ,Pin (d2) = 11,11 mm , Pin length ( L) = 84,81 mm
Price
Model
PHC BL1222
Model description
DIAMETER : Pitch (P) = 38,10 mm , h2 = 36,20 mm , Plate lacing = 2x2 mm, Plate thickness ( T ) = 5,77 mm ,Pin (d2) = 12,71 mm , Pin length ( L) = 29,62 mm
Price
Model
PHC BL1223
Model description
DIAMETER : Pitch (P) = 38,10 mm , h2 = 36,20 mm , Plate lacing = 2x3 mm, Plate thickness ( T ) = 5,77 mm ,Pin (d2) = 12,71 mm , Pin length ( L) = 35,43 mm
Price
Model
PHC BL1234
Model description
DIAMETER : Pitch (P) = 38,10 mm , h2 = 36,20 mm , Plate lacing = 3x4 mm, Plate thickness ( T ) = 5,77 mm ,Pin (d2) = 12,71 mm , Pin length ( L) = 47,07 mm
Price
Model
PHC BL1244
Model description
DIAMETER : Pitch (P) = 38,10 mm , h2 = 36,20 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 5,77 mm ,Pin (d2) = 12,71 mm , Pin length ( L) = 52,88 mm
Price
Model
PHC BL1246
Model description
DIAMETER : Pitch (P) = 38,10 mm , h2 = 36,20 mm , Plate lacing = 4x6 mm, Plate thickness ( T ) = 5,77 mm ,Pin (d2) = 12,71 mm , Pin length ( L) = 64,52 mm
Price
Model
PHC BL1266
Model description
DIAMETER : Pitch (P) = 38,10 mm , h2 = 36,20 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 5,77 mm ,Pin (d2) = 12,71 mm , Pin length ( L) = 76,15 mm
Price
Model
PHC BL1288
Model description
DIAMETER : Pitch (P) = 38,10 mm , h2 = 36,20 mm , Plate lacing = 8x8 mm, Plate thickness ( T ) = 5,77 mm ,Pin (d2) = 12,71 mm , Pin length ( L) = 99,42 mm
Price
Model
PHC BL1422
Model description
DIAMETER : Pitch (P) = 44,45 mm , h2 = 42,24 mm , Plate lacing = 2x2 mm, Plate thickness ( T ) = 6,55 mm ,Pin (d2) = 14,29 mm , Pin length ( L) = 33,55 mm
Price
Model
PHC BL1423
Model description
DIAMETER : Pitch (P) = 44,45 mm , h2 = 42,24 mm , Plate lacing = 2x3 mm, Plate thickness ( T ) = 6,55 mm ,Pin (d2) = 14,29 mm , Pin length ( L) = 40,16 mm
Price
Model
PHC BL1434
Model description
DIAMETER : Pitch (P) = 44,45 mm , h2 = 42,24 mm , Plate lacing = 3x4 mm, Plate thickness ( T ) = 6,55 mm ,Pin (d2) = 14,29 mm , Pin length ( L) = 53,37 mm
Price
Model
PHC BL1444
Model description
DIAMETER : Pitch (P) = 44,45 mm , h2 = 42,24 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 6,55 mm ,Pin (d2) = 14,29 mm , Pin length ( L) = 59,97 mm
Price
Model
PHC BL1446
Model description
DIAMETER : Pitch (P) = 44,45 mm , h2 = 42,24 mm , Plate lacing = 4x6 mm, Plate thickness ( T ) = 6,55 mm ,Pin (d2) = 14,29 mm , Pin length ( L) = 73,18 mm
Price
Model
PHC BL1466
Model description
DIAMETER : Pitch (P) = 44,45 mm , h2 = 42,24 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 6,55 mm ,Pin (d2) = 14,29 mm , Pin length ( L) = 86,39 mm
Price
Model
PHC BL1488
Model description
DIAMETER : Pitch (P) = 44,45 mm , h2 = 42,24 mm , Plate lacing = 8x8 mm, Plate thickness ( T ) = 6,55 mm ,Pin (d2) = 14,29 mm , Pin length ( L) = 112,80 mm
Price
Model
PHC BL1622
Model description
DIAMETER : Pitch (P) = 50,80 mm , h2 = 48,26 mm , Plate lacing = 2x2 mm, Plate thickness ( T ) = 7,52 mm ,Pin (d2) = 17,46 mm , Pin length ( L) = 39,01 mm
Price
Model
PHC BL1623
Model description
DIAMETER : Pitch (P) = 50,80 mm , h2 = 48,26 mm , Plate lacing = 2x3 mm, Plate thickness ( T ) = 7,52 mm ,Pin (d2) = 17,46 mm , Pin length ( L) = 46,58 mm
Price
Model
PHC BL1634
Model description
DIAMETER : Pitch (P) = 50,80 mm , h2 = 48,26 mm , Plate lacing = 3x4 mm, Plate thickness ( T ) = 7,52 mm ,Pin (d2) = 17,46 mm , Pin length ( L) = 61,72 mm
Price
Model
PHC BL1644
Model description
DIAMETER : Pitch (P) = 50,80 mm , h2 = 48,26 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 7,52 mm ,Pin (d2) = 17,46 mm , Pin length ( L) = 69,29 mm
Price
Model
PHC BL1646
Model description
DIAMETER : Pitch (P) = 50,80 mm , h2 = 48,26 mm , Plate lacing = 4x6 mm, Plate thickness ( T ) = 7,52 mm ,Pin (d2) = 17,46 mm , Pin length ( L) = 84,43 mm
Price
Model
PHC BL1666
Model description
DIAMETER : Pitch (P) = 50,80 mm , h2 = 48,26 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 7,52 mm ,Pin (d2) = 17,46 mm , Pin length ( L) = 99,57 mm
Price
Model
PHC BL1688
Model description
DIAMETER : Pitch (P) = 50,80 mm , h2 = 48,26 mm , Plate lacing = 8x8 mm, Plate thickness ( T ) = 7,52 mm ,Pin (d2) = 17,46 mm , Pin length ( L) = 129,84 mm
Price
Model
PHC BL2022
Model description
DIAMETER : Pitch (P) = 63,50 mm , h2 = 60,33 mm , Plate lacing = 2x2 mm, Plate thickness ( T ) = 9,91 mm ,Pin (d2) = 23,81 mm , Pin length ( L) = 51,74 mm
Price
Model
PHC BL2023
Model description
DIAMETER : Pitch (P) = 63,50 mm , h2 = 60,33 mm , Plate lacing = 2x3 mm, Plate thickness ( T ) = 9,91 mm ,Pin (d2) = 23,81 mm , Pin length ( L) = 61,70 mm
Price
Model
PHC BL2034
Model description
DIAMETER : Pitch (P) = 63,50 mm , h2 = 60,33 mm , Plate lacing = 3x4 mm, Plate thickness ( T ) = 9,91 mm ,Pin (d2) = 23,81 mm , Pin length ( L) = 81,61 mm
Price
Model
PHC BL2044
Model description
DIAMETER : Pitch (P) = 63,50 mm , h2 = 60,33 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 9,91 mm ,Pin (d2) = 23,81 mm , Pin length ( L) = 91,57 mm
Price
Model
PHC BL2046
Model description
DIAMETER : Pitch (P) = 63,50 mm , h2 = 60,33 mm , Plate lacing = 4x6 mm, Plate thickness ( T ) = 9,91 mm ,Pin (d2) = 23,81 mm , Pin length ( L) = 111,48 mm
Price
Model
PHC BL2066
Model description
DIAMETER : Pitch (P) = 63,50 mm , h2 = 60,33 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 9,91 mm ,Pin (d2) = 23,81 mm , Pin length ( L) = 131,39 mm
Price
Model
PHC BL2088
Model description
DIAMETER : Pitch (P) = 63,50 mm , h2 = 60,33 mm , Plate lacing = 8x8 mm, Plate thickness ( T ) = 9,91 mm ,Pin (d2) = 23,81 mm , Pin length ( L) = 171,22 mm
Price
