PRODUCT
![]()
ชื่อรุ่น :
PHC 1XXX
แบรนด์
SKF
รายละเอียด :
Leaf Chains
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHC 1234
Model description

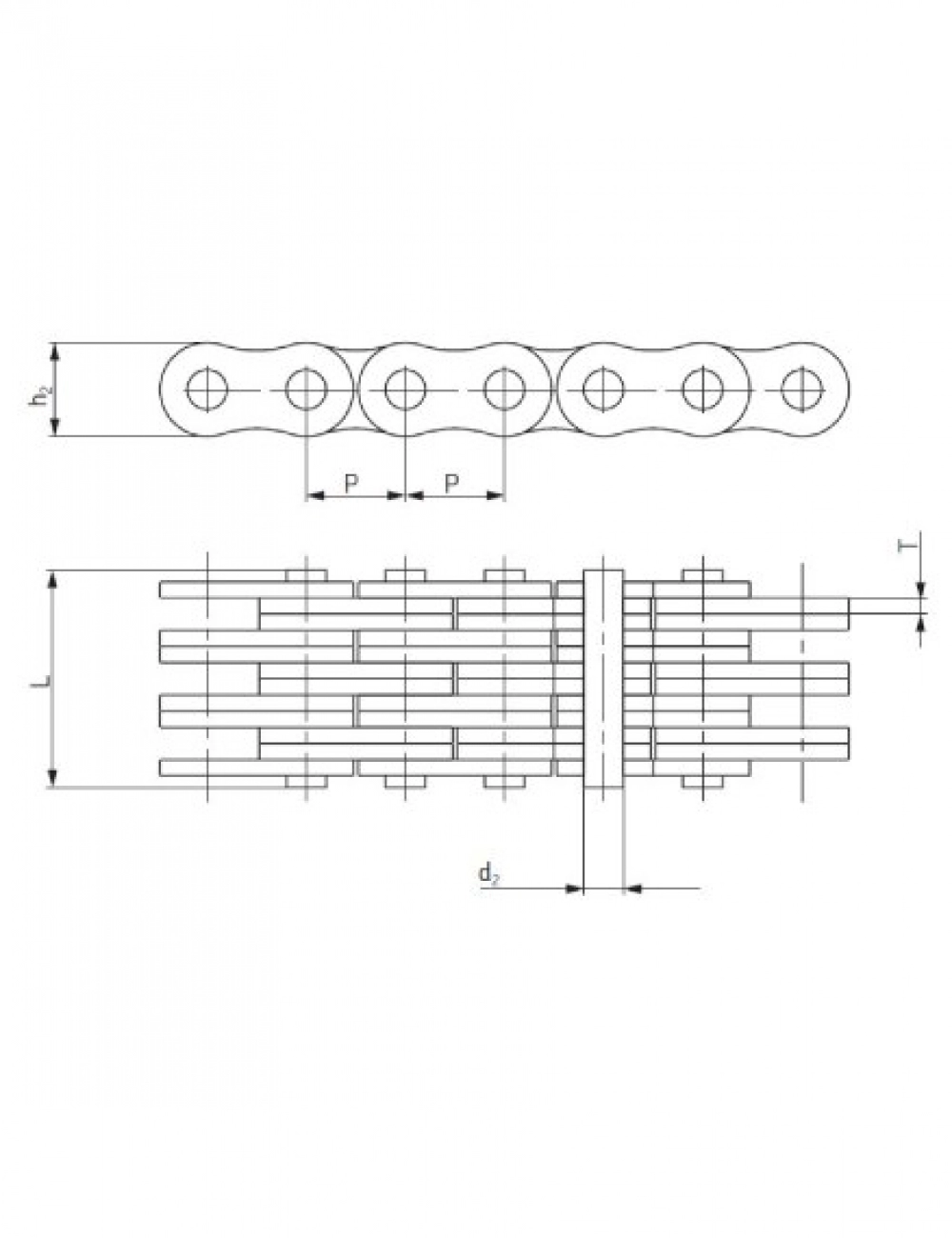

DIAMETER : Pitch (P) = 12,70 mm , h2 = 10,6 mm , Plate lacing = 3x4 mm, Plate thickness ( T ) = 1,70 mm ,Pin (d2) = 4,45 mm , Pin length ( L) = 14,2 mm
Price
Model
PHC 1256
Model description
DIAMETER : Pitch (P) = 12,70 mm , h2 = 10,6 mm , Plate lacing = 5x6 mm, Plate thickness ( T ) = 1,70 mm ,Pin (d2) = 4,45 mm , Pin length ( L) = 21,1 mm
Price
Model
PHC 1288
Model description
DIAMETER : Pitch (P) = 12,70 mm , h2 = 10,6 mm , Plate lacing = 8x8 mm, Plate thickness ( T ) = 1,70 mm ,Pin (d2) = 4,45 mm , Pin length ( L) = 29,9 mm
Price
Model
PHC 1523
Model description
DIAMETER : Pitch (P) = 15,88 mm , h2 = 12,7 mm , Plate lacing = 2x3 mm, Plate thickness ( T ) = 1,94 mm ,Pin (d2) = 5,08 mm , Pin length ( L) = 12,1 mm
Price
Model
PHC 1534
Model description
DIAMETER : Pitch (P) = 15,88 mm , h2 = 12,7 mm , Plate lacing = 3x4 mm, Plate thickness ( T ) = 1,94 mm ,Pin (d2) = 5,08 mm , Pin length ( L) = 16,0 mm
Price
Model
PHC 1544
Model description
DIAMETER : Pitch (P) = 15,88 mm , h2 = 12,7 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 1,94 mm ,Pin (d2) = 5,08 mm , Pin length ( L) = 18,1 mm
Price
Model
PHC 1545
Model description
DIAMETER : Pitch (P) = 15,88 mm , h2 = 12,7 mm , Plate lacing = 4x6 mm, Plate thickness ( T ) = 1,94 mm ,Pin (d2) = 5,08 mm , Pin length ( L) = 20,3 mm
Price
Model
PHC 1556
Model description
DIAMETER : Pitch (P) = 15,88 mm , h2 = 12,7 mm , Plate lacing = 5x6 mm, Plate thickness ( T ) = 1,94 mm ,Pin (d2) = 5,08 mm , Pin length ( L) = 24,0 mm
Price
Model
PHC 1566
Model description
DIAMETER : Pitch (P) = 15,88 mm , h2 = 12,7 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 1,94 mm ,Pin (d2) = 5,08 mm , Pin length ( L) = 26,2 mm
Price
Model
PHC 1567
Model description
DIAMETER : Pitch (P) = 15,88 mm , h2 = 12,7 mm , Plate lacing = 6x7 mm, Plate thickness ( T ) = 1,94 mm ,Pin (d2) = 5,08 mm , Pin length ( L) = 28,0 mm
Price
Model
PHC 1578
Model description
DIAMETER : Pitch (P) = 15,88 mm , h2 = 12,7 mm , Plate lacing = 7x8 mm, Plate thickness ( T ) = 1,94 mm ,Pin (d2) = 5,08 mm , Pin length ( L) = 32,5 mm
Price
Model
PHC 1588
Model description
DIAMETER : Pitch (P) = 15,88 mm , h2 = 12,7 mm , Plate lacing = 8x8 mm, Plate thickness ( T ) = 1,94 mm ,Pin (d2) = 5,08 mm , Pin length ( L) = 34,0 mm
Price
Model
PHC 1944
Model description
DIAMETER : Pitch (P) = 19,05 mm , h2 = 15,0 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 2,29 mm ,Pin (d2) = 5,72 mm , Pin length ( L) = 21,3 mm
Price
Model
PHC 1966
Model description
DIAMETER : Pitch (P) = 19,05 mm , h2 = 15,0 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 2,29 mm ,Pin (d2) = 5,72 mm , Pin length ( L) = 30,7 mm
Price
Model
PHC 1988
Model description
DIAMETER : Pitch (P) = 19,05 mm , h2 = 15,0 mm , Plate lacing = 8x8 mm, Plate thickness ( T ) = 2,29 mm ,Pin (d2) = 5,72 mm , Pin length ( L) = 40,0 mm
Price
