PRODUCT
![]()
ชื่อรุ่น :
Conveyor PHC CXXXX
แบรนด์
SKF
รายละเอียด :

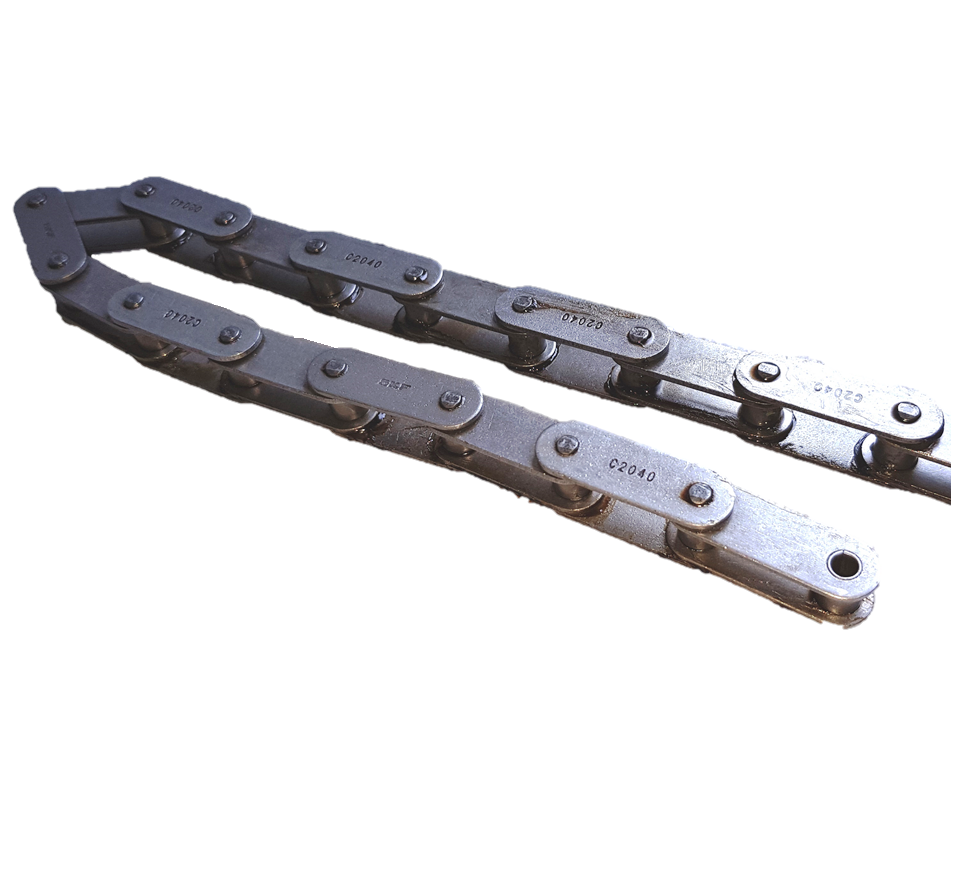

ANSI Double pitch Chains
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHC C2040
Model description

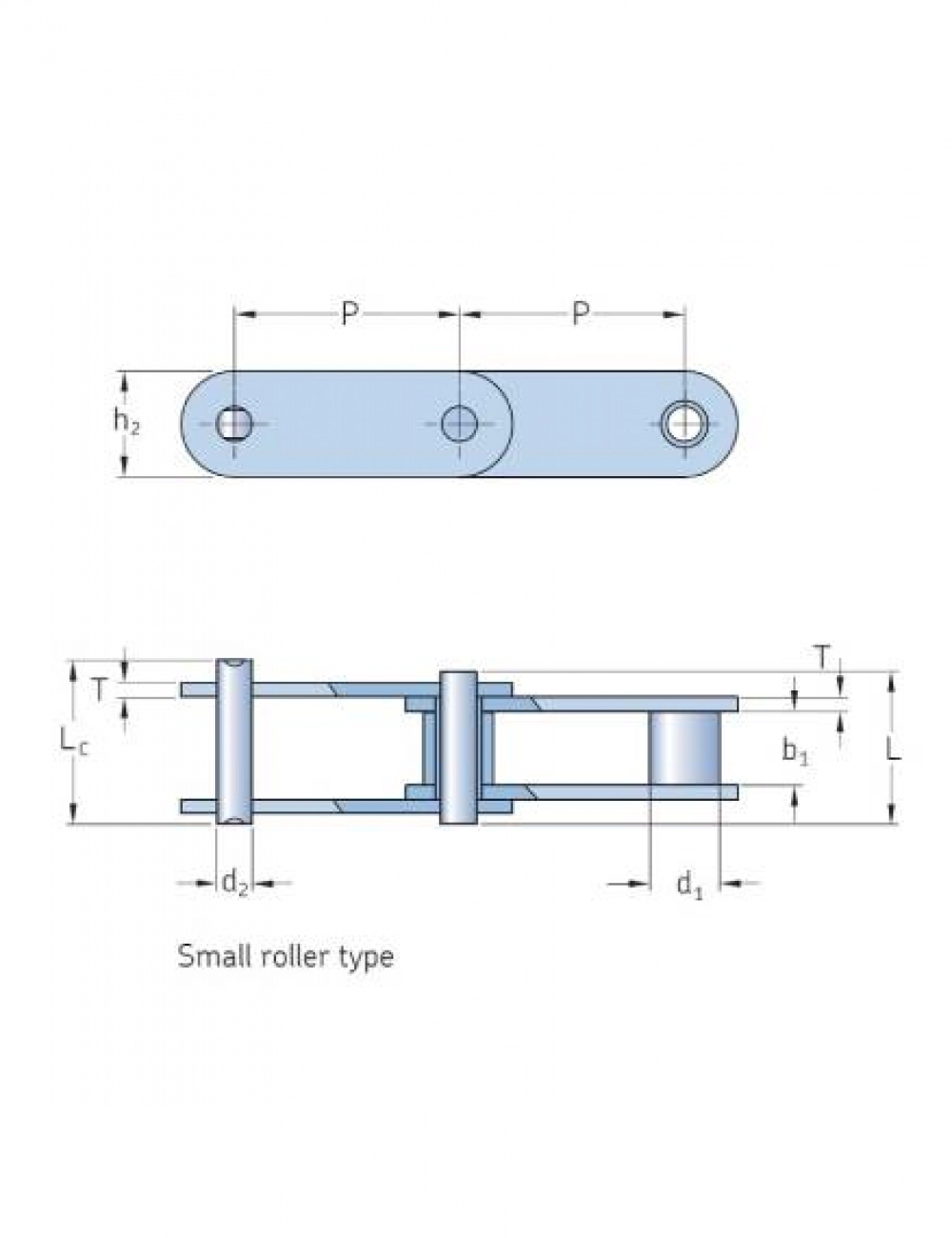

DIAMETER : Pitch (P) = 15.40 mm , h2 = 12.0 mm , Roller ( d1) max. = 7.95 mm, Inner plates (b1) = 7.85 mm , Pin ( Lc) = 17.8 mm
Price
Model
PHC C2042
Model description
DIAMETER : Pitch (P) = 25.40 mm , h2 = 12.0 mm , Roller ( d1) max. = 15.88 mm, Inner plates (b1) = 7.85 mm , Pin ( Lc) = 17.8 mm
Price
Model
PHC C2040H
Model description
DIAMETER : Pitch (P) = 25.40 mm , h2 = 12.0 mm , Roller ( d1) max. = 7.95 mm, Inner plates (b1) = 7.85 mm , Pin ( Lc) = 19.9 mm
Price
Model
PHC C2050
Model description
DIAMETER : Pitch (P) = 31.75 mm , h2 = 15.0 mm , Roller ( d1) max. = 10.16 mm, Inner plates (b1) = 9.40 mm , Pin ( Lc) = 22.2 mm
Price
Model
PHC C2052
Model description
DIAMETER : Pitch (P) = 31.75 mm , h2 = 15.0 mm , Roller ( d1) max. = 19.05 mm, Inner plates (b1) = 9.40 mm , Pin ( Lc) = 22.2 mm
Price
Model
PHC C2060
Model description
DIAMETER : Pitch (P) = 38.10 mm , h2 = 18.0 mm , Roller ( d1) max. = 11.91 mm, Inner plates (b1) = 12.57 mm , Pin ( Lc) = 27.7 mm
Price
Model
PHC C2062
Model description
DIAMETER : Pitch (P) = 38.10 mm , h2 = 18.0 mm , Roller ( d1) max. = 22.23 mm, Inner plates (b1) = 12.57 mm , Pin ( Lc) = 27.7 mm
Price
Model
PHC C2060H
Model description
DIAMETER : Pitch (P) = 38.10 mm , h2 = 18.0 mm , Roller ( d1) max. = 11.91 mm, Inner plates (b1) = 12.57 mm , Pin ( Lc) = 31.6 mm
Price
Model
PHC C2062H
Model description
DIAMETER : Pitch (P) = 38.10 mm , h2 = 18.0 mm , Roller ( d1) max. = 22.23 mm, Inner plates (b1) = 12.57 mm , Pin ( Lc) =31.6 mm
Price
Model
PHC C2080
Model description
DIAMETER : Pitch (P) = 50.80 mm , h2 = 24.0 mm , Roller ( d1) max. = 15.88 mm, Inner plates (b1) = 15.75 mm , Pin ( Lc) = 36.5 mm
Price
Model
PHC C2082
Model description
DIAMETER : Pitch (P) = 50.80 mm , h2 = 24.0 mm , Roller ( d1) max. = 28.58 mm, Inner plates (b1) = 15.75 mm , Pin ( Lc) = 36.5 mm
Price
Model
PHC C2080H
Model description
DIAMETER : Pitch (P) = 50.80 mm , h2 = 24.0 mm , Roller ( d1) max. = 15.88 mm, Inner plates (b1) = 15.75 mm , Pin ( Lc) = 39.4 mm
Price
Model
PHC C2082H
Model description
DIAMETER : Pitch (P) = 50.80 mm , h2 = 24.0 mm , Roller ( d1) max. = 28.58 mm, Inner plates (b1) = 15.75 mm , Pin ( Lc) = 39.4 mm
Price
Model
PHC C2100
Model description
DIAMETER : Pitch (P) = 63.50 mm , h2 = 30.0 mm , Roller ( d1) max. = 19.05 mm, Inner plates (b1) = 18.90 mm , Pin ( Lc) = 44.7 mm
Price
Model
PHC C2102
Model description
DIAMETER : Pitch (P) = 63.50 mm , h2 =30.0 mm , Roller ( d1) max. =39.67 mm, Inner plates (b1) = 18.90 mm , Pin ( Lc) = 44.7 mm
Price
Model
PHC C2100H
Model description
DIAMETER : Pitch (P) = 63.50 mm , h2 = 30.0 mm , Roller ( d1) max. = 19.05 mm, Inner plates (b1) = 18.90 mm , Pin ( Lc) =46.9 mm
Price
Model
PHC C2102H
Model description
DIAMETER : Pitch (P) = 63.50 mm , h2 = 30.0 mm , Roller ( d1) max. = 39.67 mm, Inner plates (b1) = 18.90 mm , Pin ( Lc) = 46.9 mm
Price
Model
PHC C2120
Model description
DIAMETER : Pitch (P) = 76.20 mm , h2 = 35.7mm , Roller ( d1) max. = 22.23 mm, Inner plates (b1) = 25.22mm , Pin ( Lc) = 54.3 mm
Price
Model
PHC C2122
Model description
DIAMETER : Pitch (P) = 76.20 mm , h2 =35.7 mm , Roller ( d1) max. = 44.45 mm, Inner plates (b1) = 25.22 mm , Pin ( Lc) = 54.3 mm
Price
Model
PHC C2120H
Model description
DIAMETER : Pitch (P) = 76.20 mm , h2 =35.7 mm , Roller ( d1) max. = 22.23 mm, Inner plates (b1) = 25.22 mm , Pin ( Lc) = 57.5 mm
Price
Model
PHC C2122H
Model description
DIAMETER : Pitch (P) = 76.20 mm , h2 = 35.7 mm , Roller ( d1) max. = 44.45 mm, Inner plates (b1) = 25.22 mm , Pin ( Lc) = 57.5 mm
Price
Model
PHC C2160
Model description
DIAMETER : Pitch (P) = 101.60mm , h2 = 47.8mm , Roller ( d1) max. = 28.58 mm, Inner plates (b1) = 31.75mm , Pin ( Lc) = 69.6 mm
Price
Model
PHC C2162
Model description
DIAMETER : Pitch (P) = 101.60 mm , h2 = 47.8mm , Roller ( d1) max. = 57.15 mm, Inner plates (b1) =31.75 mm , Pin ( Lc) = 69.6 mm
Price
Model
PHC C2160H
Model description
DIAMETER : Pitch (P) = 101.60 mm , h2 = 47.8 mm , Roller ( d1) max. = 28.58 mm, Inner plates (b1) = 31.75 mm , Pin ( Lc) = 73.0 mm
Price
Model
PHC C2162H
Model description
DIAMETER : Pitch (P) = 101.60 mm , h2 = 47.8 mm , Roller ( d1) max. = 57.15 mm, Inner plates (b1) = 31.75 mm , Pin ( Lc) = 73.0 mm
Price
