PRODUCT
![]()
ชื่อรุ่น :
PHH WHXX
แบรนด์
SKF
รายละเอียด :
ดูรูปสินค้าเพิ่มเติม
Model
Model description
Price
Bushing size : 1210

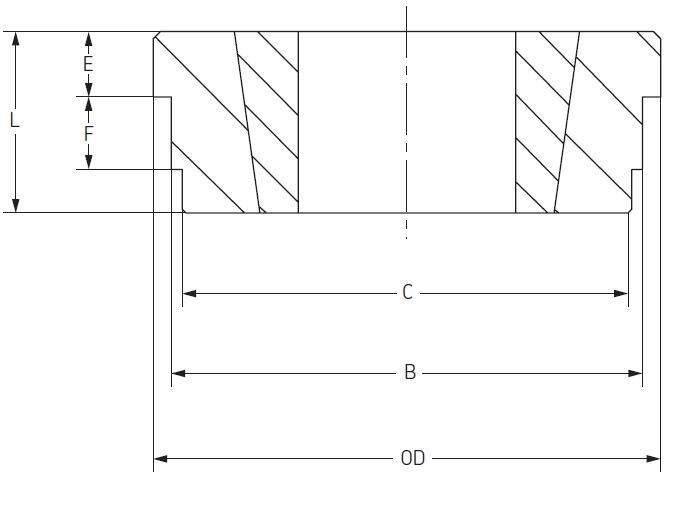

DIMENSIONS : OD = 70 mm , B = 65 mm , C = 64.5 mm ,L =25 mm, E= 9 mm, F =10 mm
Bushing size : 1610
DIMENSIONS : OD =80 mm , B = 75 mm , C =74.5 mm ,L = 25 mm, E= 9 mm, F = 10 mm
Bushing size : 2012
DIMENSIONS : OD = 95 mm , B = 90 mm , C = 89.5 mm ,L =32 mm, E=12 mm, F = 12 mm
Bushing size : 2517
DIMENSIONS : OD = 115 mm , B = 110 mm , C = 109.5 mm ,L =44 mm, E= 19 mm, F =15 mm
Bushing size : 3020
DIMENSIONS : OD = 145 mm , B = 140 mm , C = 139.5 mm ,L =50 mm, E=20 mm, F =15 mm
Bushing size : 3535
DIMENSIONS : OD = 190 mm , B = 100 mm , C = 179.5 mm ,L =89 mm, E= 25 mm, F = 25 mm
Bushing size : 4030
DIMENSIONS : OD = 200 mm , B = 190 mm , C = 189.5 mm ,L = 76 mm, E= 32 mm, F = 30 mm
Bushing size : 4040
DIMENSIONS : OD = 200 mm , B = 190 mm , C = 189.5 mm ,L = 101 mm, E= 32 mm, F = 30 mm
Bushing size : 4535
DIMENSIONS : OD = 210 mm , B =200 mm , C = 199.5 mm ,L =89 mm, E= 40 mm, F =30 mm
Bushing size : 4545
DIMENSIONS : OD = 210 mm , B = 200 mm , C = 199.5 mm ,L = 114 mm, E= 40 mm, F = 30 mm
Bushing size : 5040
DIMENSIONS : OD = 230 mm , B = 220 mm , C = 219.5 mm ,L = 102 mm, E= 40 mm, F = 35 mm
Bushing size : 5050
DIMENSIONS : OD = 230 mm , B = 220 mm , C = 219.5 mm ,L =127 mm, E= 40 mm, F = 35 mm
