PRODUCT
![]()
ชื่อรุ่น :
PHS 80 - 3BXX
แบรนด์
SKF
รายละเอียด :

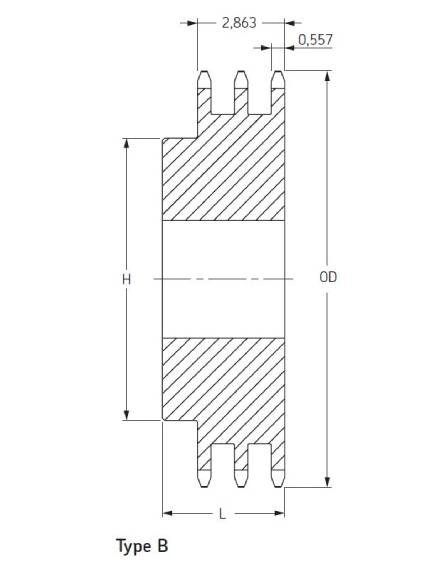

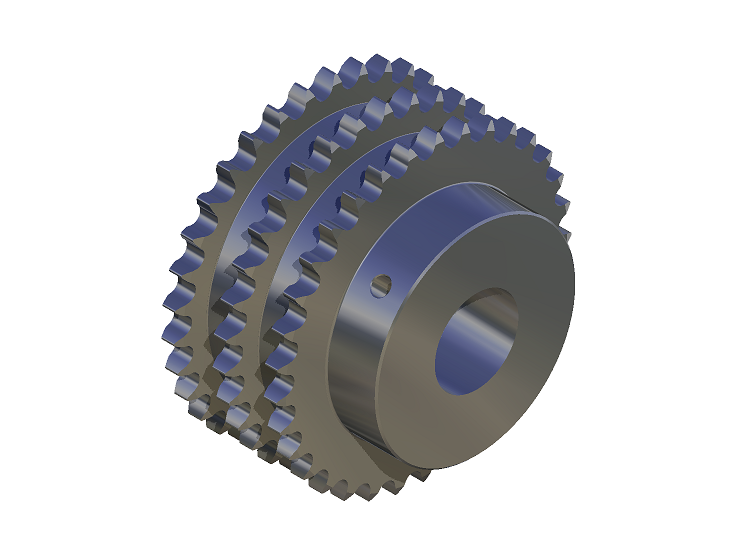

เฟื่องโซ่สามชั้น Pitch = 1"
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 80 - 3B11
Model description
No.Teeth = 11
DIMENSIONS : Outside diameter = 4.01 inch , Type = B , Bore min = 1 inch , Bore max = 1 3/4 inch ,H = 2 1/2 in. , L = 3 5/8 in.
Price
Model
PHS 80 - 3B12
Model description
No.Teeth = 12
DIMENSIONS : Outside diameter = 4.33 inch , Type = B , Bore min = 1 inch , Bore max = 1 7/8 inch ,H = 2 27/32 in. , L = 3 5/8 in.
Price
Model
PHS 80 - 3B13
Model description
No.Teeth = 13
DIMENSIONS : Outside diameter = 4.66 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/4 inch ,H = 3 5/32 in. , L = 3 5/8 in.
Price
Model
PHS 80 - 3B14
Model description
No.Teeth = 14
DIMENSIONS : Outside diameter = 4.98 inch , Type = B , Bore min = 1 inch , Bore max = 2 3/8 inch ,H = 3 15/32 in. , L = 3 5/8 in.
Price
Model
PHS 80 - 3B15
Model description
No.Teeth = 15
DIMENSIONS : Outside diameter = 5.30 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/2 inch ,H = 3 51/64 in. , L =3 5/8 in.
Price
Model
PHS 80 - 3B16
Model description
No.Teeth = 16
DIMENSIONS : Outside diameter = 5.63 inch , Type = B , Bore min = 1 inch , Bore max = 2 3/4 inch ,H = 4 in. , L = 3 7/8 in.
Price
Model
PHS 80 - 3B17
Model description
No.Teeth = 17
DIMENSIONS : Outside diameter = 5.95 inch , Type = B , Bore min = 1 inch , Bore max = 3 inch ,H = 4 27/64 in. , L = 3 7/8 in.
Price
Model
PHS 80 - 3B18
Model description
No.Teeth = 18
DIMENSIONS : Outside diameter = 6.27 inch , Type = B , Bore min = 1 inch , Bore max = 3 1/4 inch ,H = 4 47/64 in. , L =3 7/8 in.
Price
Model
PHS 80 - 3B19
Model description
No.Teeth = 19
DIMENSIONS : Outside diameter = 6.59 inch , Type = B , Bore min = 1 inch , Bore max = 3 5/16 inch ,H = 5 in. , L = 3 7/8 in.
Price
Model
PHS 80 - 3B20
Model description
No.Teeth = 20
DIMENSIONS : Outside diameter = 6.91 inch , Type = B , Bore min = 1 inch , Bore max = 3 5/16 inch ,H = 5 in. , L = 3 7/8 in.
Price
Model
PHS 80 - 3B21
Model description
No.Teeth = 21
DIMENSIONS : Outside diameter = 7.24 inch , Type = B , Bore min = 1 inch , Bore max = 3 5/16 inch ,H = 5 in. , L = 3 7/8 in.
Price
Model
PHS 80 - 3B22
Model description
No.Teeth = 22
DIMENSIONS : Outside diameter = 7.56 inch , Type = B , Bore min = 1 inch , Bore max = 3 5/16 inch ,H = 5 in. , L = 3 7/8 in.
Price
Model
PHS 80 - 3B23
Model description
No.Teeth = 23
DIMENSIONS : Outside diameter = 7.88 inch , Type = B , Bore min = 1 inch , Bore max =3 5/16 inch ,H = 5 in. , L = 3 7/8 in.
Price
Model
PHS 80 - 3B24
Model description
No.Teeth = 24
DIMENSIONS : Outside diameter = 8.20 inch , Type = B , Bore min = 1 inch , Bore max = 3 1/2 inch ,H = 5 1/4 in. , L = 3 7/8 in.
Price
Model
PHS 80 - 3B25
Model description
No.Teeth = 25
DIMENSIONS : Outside diameter = 8.52 inch , Type = B , Bore min = 1 inch , Bore max = 3 1/2 inch ,H = 5 1/4 in. , L = 3 7/8 in.
Price
Model
PHS 80 - 3B26
Model description
No.Teeth = 26
DIMENSIONS : Outside diameter = 8.84 inch , Type = B , Bore min = 1 inch , Bore max = 3 1/2 inch ,H = 5 1/4 in. , L =3 7/8 in.
Price
Model
PHS 80 - 3B30
Model description
No.Teeth = 30
DIMENSIONS : Outside diameter = 10.11 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 3/4 inch ,H =5 3/4 in. , L = 4 1/4 in.
Price
Model
PHS 80 - 3B35
Model description
No.Teeth = 35
DIMENSIONS : Outside diameter = 11.71 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 3/4 inch ,H = 5 3/4 in. , L = 4 1/4 in.
Price
Model
PHS 80 - 3B36
Model description
No.Teeth = 36
DIMENSIONS : Outside diameter = 12.03 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 3/4 inch ,H = 5 3/4 in. , L = 4 1/4 in.
Price
