PRODUCT
![]()
ชื่อรุ่น :
PHS 60 - 3BXX
แบรนด์
SKF
รายละเอียด :

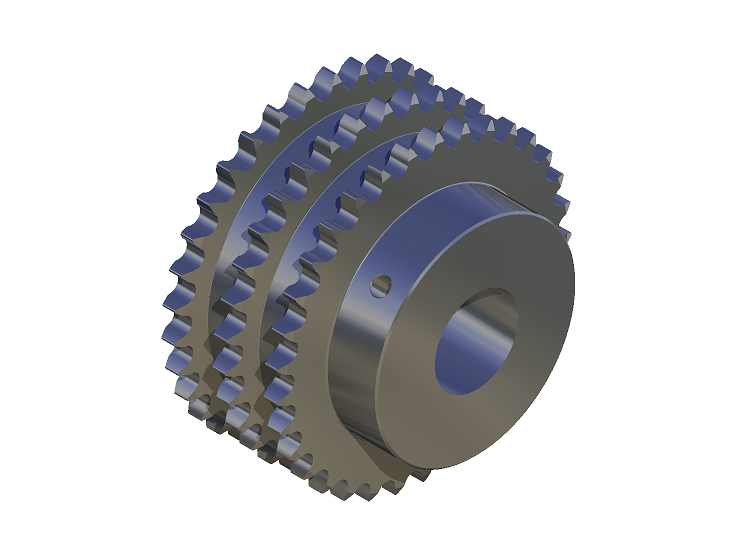

เฟื่องโซ่สามชั้น Pitch = 3/4"
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 60 - 3B11
Model description
No.Teeth = 11

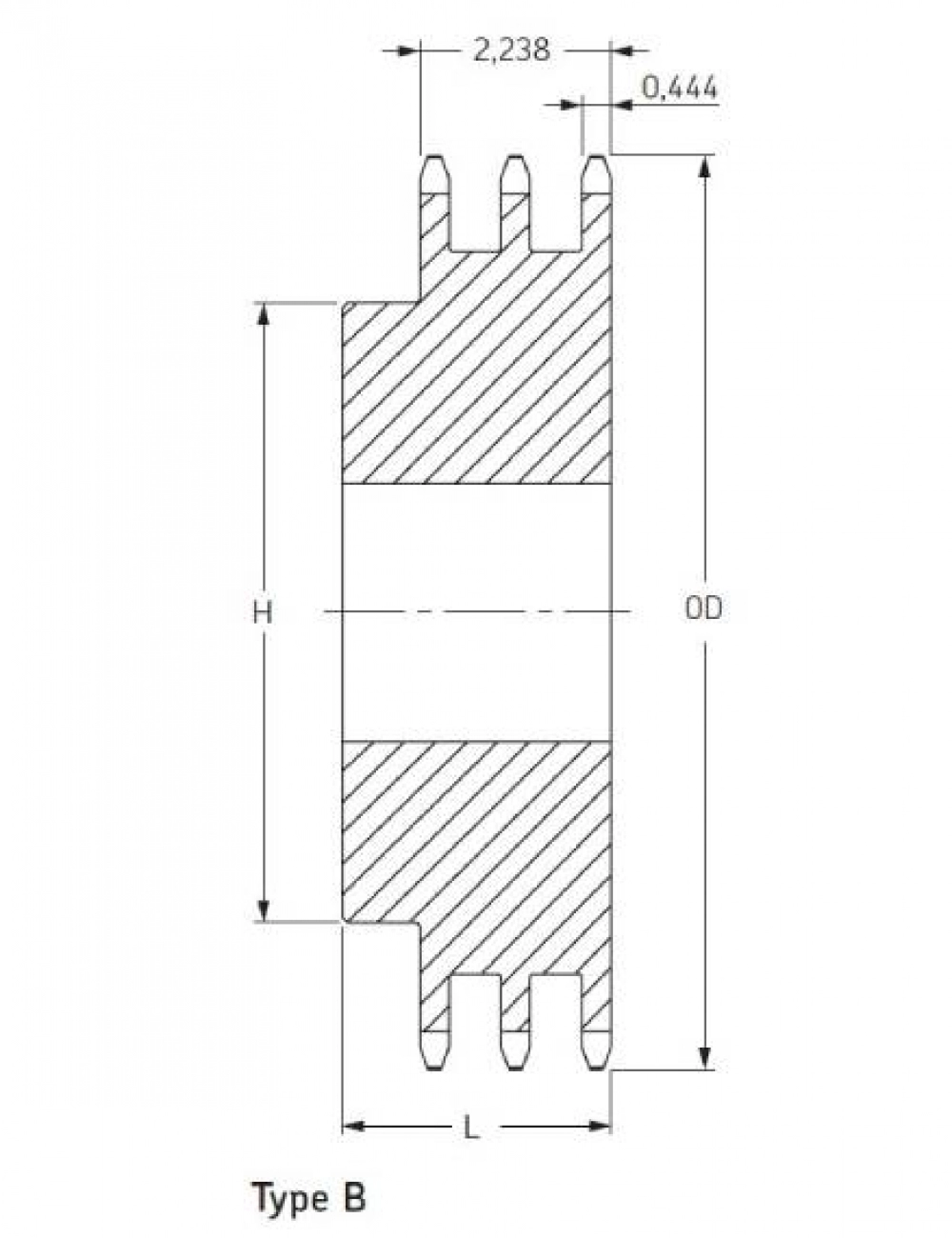

DIMENSIONS : Outside diameter = 3.00 inch , Type = B , Bore min = 1 inch , Bore max = 1 1/4 inch ,H = 1 13/16 in. , L = 3 in.
Price
Model
PHS 60 - 3B12
Model description
No.Teeth = 12
DIMENSIONS : Outside diameter = 3.25 inch , Type = B , Bore min = 1 inch , Bore max = 1 7/16 inch ,H = 2 1/8 in. , L =3 in.
Price
Model
PHS 60 - 3B13
Model description
No.Teeth = 13
DIMENSIONS : Outside diameter = 3.49 inch , Type = B , Bore min = 1 inch , Bore max = 1 1/2 inch ,H = 2 1/4 in. , L = 3 in.
Price
Model
PHS 60 - 3B14
Model description
No.Teeth = 14
DIMENSIONS : Outside diameter = 3.74 inch , Type = B , Bore min = 1 inch , Bore max = 1 3/4 inch ,H = 2 1/2 in. , L = 3 in.
Price
Model
PHS 60 - 3B15
Model description
No.Teeth = 15
DIMENSIONS : Outside diameter =3.98 inch , Type = B , Bore min = 1 inch , Bore max = 1 7/8 inch ,H = 2 13/16 in. , L = 3 in.
Price
Model
PHS 60 - 3B16
Model description
No.Teeth = 16
DIMENSIONS : Outside diameter =4.22 inch , Type = B , Bore min = 1 inch , Bore max = 2 inch ,H = 3 in. , L = 3 in.
Price
Model
PHS 60 - 3B17
Model description
No.Teeth = 17
DIMENSIONS : Outside diameter = 4.46 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/4 inch ,H = 3 1/4 in. , L = 3 in.
Price
Model
PHS 60 - 3B18
Model description
No.Teeth = 18
DIMENSIONS : Outside diameter = 4.70 inch , Type = B , Bore min = 1 inch , Bore max = 2 3/8 inch ,H = 3 1/2 in. , L = 3 in.
Price
Model
PHS 60 - 3B19
Model description
No.Teeth = 19
DIMENSIONS : Outside diameter = 4.95 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/2 inch ,H =3 11/16 in. , L = 3 in.
Price
Model
PHS 60 - 3B20
Model description
No.Teeth = 20
DIMENSIONS : Outside diameter = 5.19 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/2 inch ,H = 3 3/4 in. , L = 3 in.
Price
Model
PHS 60 - 3B21
Model description
No.Teeth = 21
DIMENSIONS : Outside diameter = 5.43 inch , Type = B , Bore min = 1 inch , Bore max = 2 3/4 inch ,H = 4 1/8 in. , L = 3 in.
Price
Model
PHS 60 - 3B22
Model description
No.Teeth = 22
DIMENSIONS : Outside diameter = 5.67 inch , Type = B , Bore min = 1 inch , Bore max = 2 3/4 inch ,H = 4 1/4 in. , L = 3 in.
Price
Model
PHS 60 - 3B23
Model description
No.Teeth = 23
DIMENSIONS : Outside diameter = 5.91 inch , Type = B , Bore min = 1 inch , Bore max = 2 3/4 inch ,H = 4 1/4 in. , L =3 in.
Price
Model
PHS 60 - 3B24
Model description
No.Teeth = 24
DIMENSIONS : Outside diameter = 6.15 inch , Type = B , Bore min = 1 inch , Bore max = 2 3/4 inch ,H = 4 1/4 in. , L = 3 in.
Price
Model
PHS 60 - 3B25
Model description
No.Teeth = 25
DIMENSIONS : Outside diameter = 6.39 inch , Type = B , Bore min = 1 inch , Bore max = 2 3/4 inch ,H = 4 1/4 in. , L = 3 in.
Price
Model
PHS 60 - 3B26
Model description
No.Teeth = 26
DIMENSIONS : Outside diameter = 6.63 inch , Type = B , Bore min = 1 inch , Bore max = 2 3/4 inch ,H = 4 1/4 in. , L = 3 in.
Price
Model
PHS 60 - 3B30
Model description
No.Teeth = 30
DIMENSIONS : Outside diameter = 7.59 inch , Type = B , Bore min = 1 inch , Bore max = 2 3/4 inch ,H = 4 1/4 in. , L = 3 in.
Price
Model
PHS 60 - 3B35
Model description
No.Teeth = 35
DIMENSIONS : Outside diameter = 8.78 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,H = 4 1/2 in. , L = 3 1/4 in.
Price
Model
PHS 60 - 3B36
Model description
No.Teeth = 36
DIMENSIONS : Outside diameter = 9.02 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,H = 4 1/2 in. , L = 3 1/4 in.
Price
Model
PHS 60 - 3B42
Model description
No.Teeth =42
DIMENSIONS : Outside diameter = 10.46 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 1/4 nch ,H = 4 3/4 in. , L = 3 5/8 in.
Price
Model
PHS 60 - 3B45
Model description
No.Teeth = 45
DIMENSIONS : Outside diameter = 11.18 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 1/4 inch ,H = 4 3/4 in. , L = 3 5/8 in.
Price
