PRODUCT
![]()
ชื่อรุ่น :
PHS 50 - 3BXX
แบรนด์
SKF
รายละเอียด :

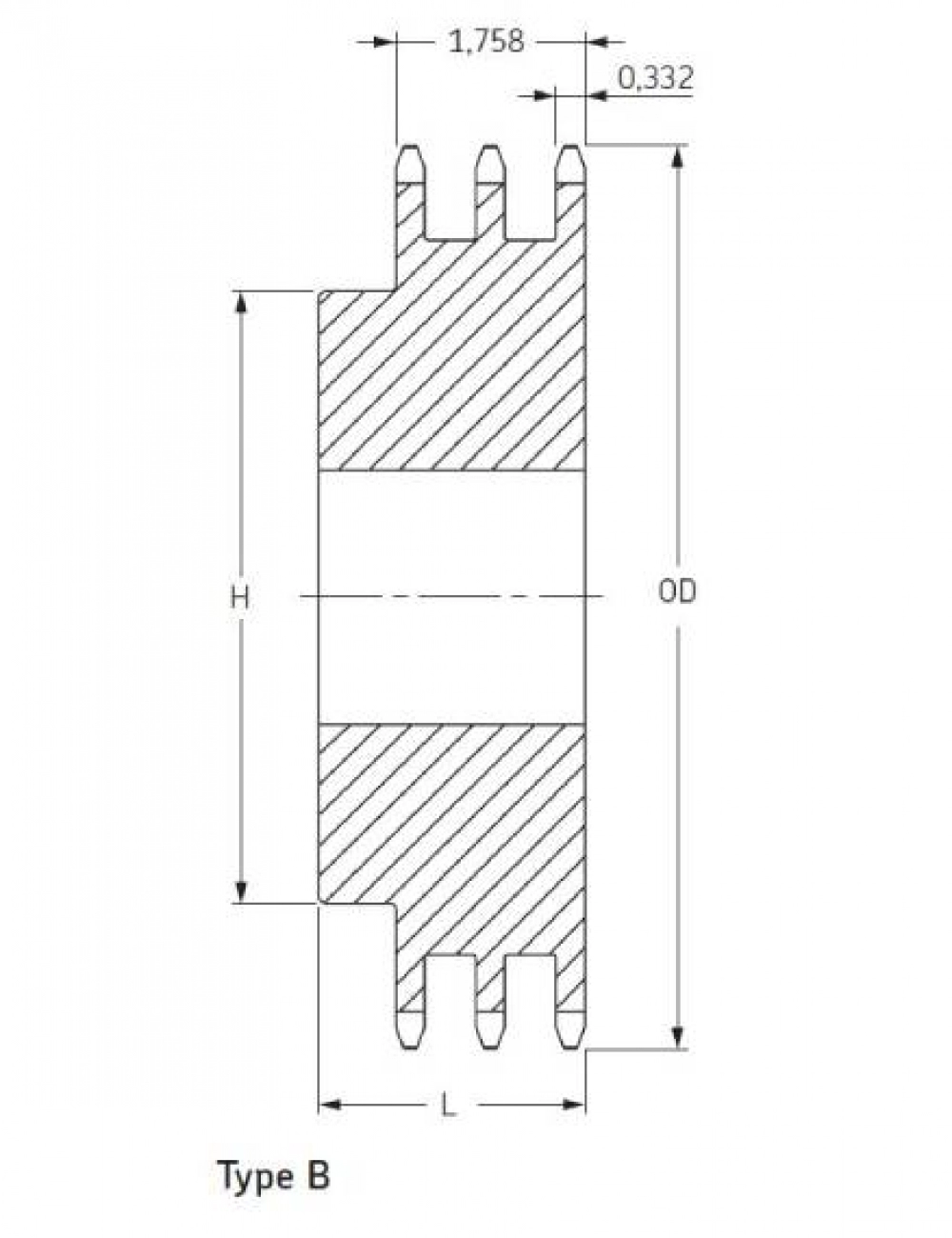

เฟื่องโซ่สามชั้น Pitch = 5/8"
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 50 - 3B11
Model description
No.Teeth = 11
DIMENSIONS : Outside diameter = 2.50 inch , Type = B , Bore min = 5/8 inch , Bore max =15/16 inch ,H = 1 15/32 in. , L = 2 1/2 in.
Price
Model
PHS 50 - 3B12
Model description
No.Teeth = 12
DIMENSIONS : Outside diameter = 2.71 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 1/8 inch ,H = 1 11/16 in. , L = 2 1/2 in.
Price
Model
PHS 50 - 3B13
Model description
No.Teeth = 13
DIMENSIONS : Outside diameter = 2.91 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 5/16 inch ,H = 1 7/8 in. , L = 2 1/2 in.
Price
Model
PHS 50 - 3B14
Model description
No.Teeth = 14
DIMENSIONS : Outside diameter = 3.11 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 3/8 inch ,H = 2 1/16 in. , L = 2 1/2 in.
Price
Model
PHS 50 - 3B15
Model description
No.Teeth = 15
DIMENSIONS : Outside diameter = 3.32 inch , Type = B , Bore min = 3/4 inch , Bore max = 1 1/2 inch ,H = 2 5/16 in. , L = 2 1/2 in.
Price
Model
PHS 50 - 3B16
Model description
No.Teeth = 16
DIMENSIONS : Outside diameter = 3.52 inch , Type = B , Bore min = 3/4 inch , Bore max = 1 3/4 inch ,H = 2 1/2 in. , L = 2 1/2 in.
Price
Model
PHS 50 - 3B17
Model description
No.Teeth = 17
DIMENSIONS : Outside diameter = 3.72 inch , Type = B , Bore min = 3/4 inch , Bore max =1 7/8 inch ,H = 2 11/16 in. , L = 2 1/2 in.
Price
Model
PHS 50 - 3B18
Model description
No.Teeth = 18
DIMENSIONS : Outside diameter = 3.92 inch , Type = B , Bore min = 3/4 inch , Bore max = 1 15/16 inch ,H = 2 15/16 in. , L = 2 1/2 in.
Price
Model
PHS 50 - 3B19
Model description
No.Teeth = 19
DIMENSIONS : Outside diameter = 4.12 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/8 inch ,H = 3 1/8 in. , L = 2 1/2 in.
Price
Model
PHS 50 - 3B20
Model description
No.Teeth = 20
DIMENSIONS : Outside diameter = 4.32 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/4 inch ,H = 3 1/4 in. , L = 2 5/8 in.
Price
Model
PHS 50 - 3B21
Model description
No.Teeth = 21
DIMENSIONS : Outside diameter = 4.52 inch , Type = B , Bore min = 1 inch , Bore max = 2 3/8 inch ,H = 3 1/2 in. , L = 2 5/8 in.
Price
Model
PHS 50 - 3B22
Model description
No.Teeth = 22
DIMENSIONS : Outside diameter = 4.72 inch , Type = B , Bore min = 1 inch , Bore max = 2 3/8 inch ,H = 3 9/16 in. , L = 2 5/8 in.
Price
Model
PHS 50 - 3B23
Model description
No.Teeth = 23
DIMENSIONS : Outside diameter = 4.92 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/2 inch ,H = 3 5/8 in. , L = 2 5/8 in.
Price
Model
PHS 50 - 3B24
Model description
No.Teeth = 24
DIMENSIONS : Outside diameter = 5.12 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/2 inch ,H = 3 5/8 in. , L = 2 5/8 in.
Price
Model
PHS 50 - 3B25
Model description
No.Teeth = 25
DIMENSIONS : Outside diameter = 5.32 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/2 inch ,H = 3 5/8 in. , L = 2 5/8 in.
Price
Model
PHS 50 - 3B26
Model description
No.Teeth = 26
DIMENSIONS : Outside diameter = 5.52 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/2 inch ,H = 3 5/8 in. , L = 1 5/8 in.
Price
Model
PHS 50 - 3B30
Model description
No.Teeth = 30
DIMENSIONS : Outside diameter = 6.32 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/2 inch ,H = 3 3/4 in. , L = 2 5/8 in.
Price
Model
PHS 50 - 3B36
Model description
No.Teeth = 36
DIMENSIONS : Outside diameter = 7.52 inch , Type = B , Bore min = 1 3/16 inch , Bore max = 2 3/4 inch ,H = 4 in. , L = 2 3/4 in.
Price
Model
PHS 50 - 3B42
Model description
No.Teeth = 42
DIMENSIONS : Outside diameter = 8.72 inch , Type = B , Bore min = 1 3/16 inch , Bore max = 2 3/4 inch ,H = 4 in. , L =2 3/4 in.
Price
Model
PHS 50 - 3B48
Model description
No.Teeth = 48
DIMENSIONS : Outside diameter = 9.91 inch , Type = B , Bore min = 1 3/16 inch , Bore max = 2 3/4 inch ,H = 4 in. , L = 3 1/8 in.
Price
Model
PHS 50 - 3B52
Model description
No.Teeth = 52
DIMENSIONS : Outside diameter = 10.71 inch , Type = B , Bore min = 1 3/16 inch , Bore max = 2 3/4 inch ,H =4 in. , L = 3 1/8 in.
Price
Model
PHS 50 - 3B60
Model description
No.Teeth = 60
DIMENSIONS : Outside diameter = 12.3 0 inch , Type = B , Bore min = 1 5/16 inch , Bore max = 3 inch ,H = 4 1/2 in. , L = 3 1/8 in.
Price
Model
PHS 50 - 3B68
Model description
No.Teeth = 68
DIMENSIONS : Outside diameter = 13.89 inch , Type = B , Bore min = 1 5/16 inch , Bore max = 3 inch ,H = 4 1/2 in. , L = 3 1/8 in.
Price
