PRODUCT
![]()
ชื่อรุ่น :
PHS 35 - 3BXX
แบรนด์
SKF
รายละเอียด :

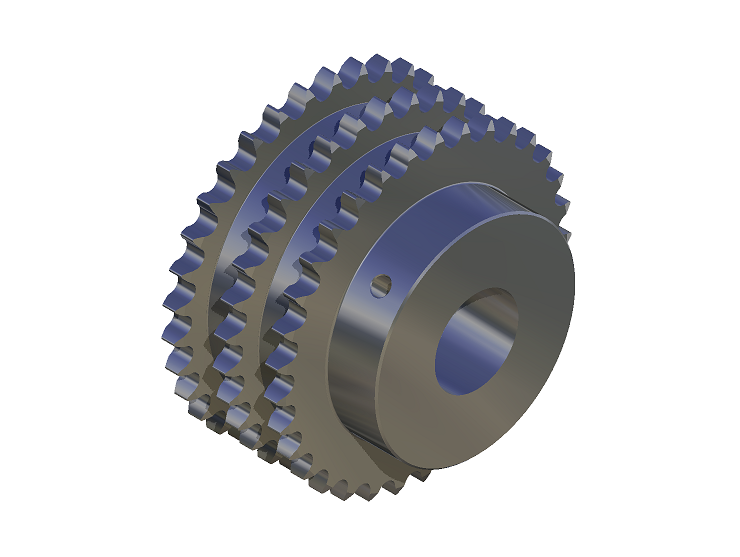

เฟื่องโซ่สามชั้น Pitch = 3/8"
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 35 - 3B13
Model description
No.Teeth = 13

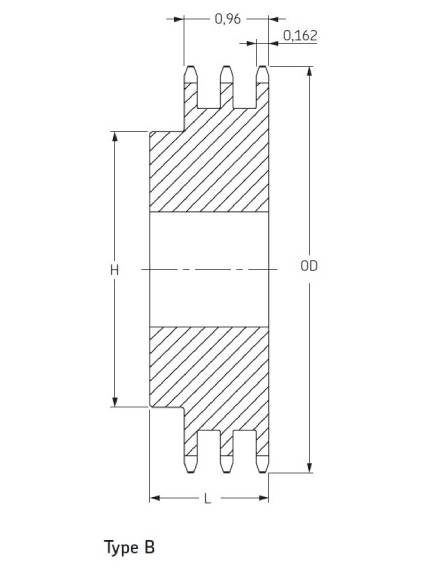

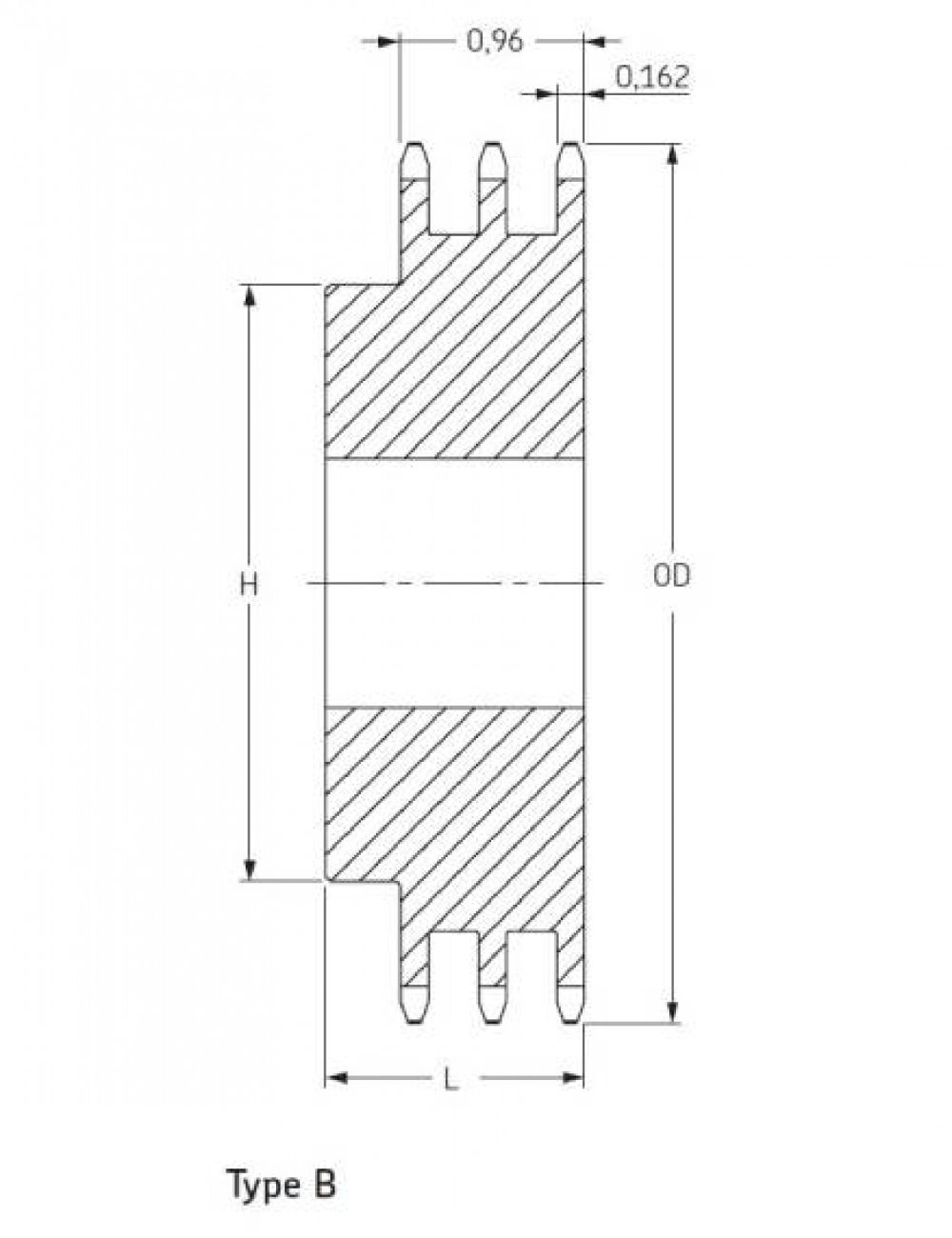

DIMENSIONS : Outside diameter = 1.75 inch , Type = B , Bore min = 1/2 inch , Bore max = 11/16 inch ,H = 1 7/64 in. , L = 1 3/4 in.
Price
Model
PHS 35 - 3B14
Model description
No.Teeth = 14
DIMENSIONS : Outside diameter = 1.87 inch , Type = B , Bore min = 1/2 inch , Bore max = 7/8 inch ,H = 1 1/4 in. , L = 1 3/4 in.
Price
Model
PHS 35 - 3B15
Model description
No.Teeth = 15
DIMENSIONS : Outside diameter = 1.99 inch , Type = B , Bore min = 1/2 inch , Bore max = 15/16 inch ,H = 1 13/32 in. , L = 1 3/4 in.
Price
Model
PHS 35 - 3B16
Model description
No.Teeth = 16
DIMENSIONS : Outside diameter = 2.11 inch , Type = B , Bore min = 1/2 inch , Bore max = 15/16 inch ,H = 1 15/32 in. , L = 1 3/4 in.
Price
Model
PHS 35 - 3B17
Model description
No.Teeth = 17
DIMENSIONS : Outside diameter = 2.23 inch , Type = B , Bore min = 1/2 inch , Bore max = 11/16 inch ,H = 1 19/32 in. , L = 1 3/4 in.
Price
Model
PHS 35 - 3B18
Model description
No.Teeth = 18
DIMENSIONS : Outside diameter = 2.35 inch , Type = B , Bore min = 1/2 inch , Bore max = 13/16 inch ,H = 1 23/32 in. , L = 1 3/4 in.
Price
Model
PHS 35 - 3B19
Model description
No.Teeth = 19
DIMENSIONS : Outside diameter = 2.47 inch , Type = B , Bore min = 1/2 inch , Bore max = 15/16 inch ,H = 1 7/8 in. , L = 1 3/4 in.
Price
Model
PHS 35 - 3B20
Model description
No.Teeth = 20
DIMENSIONS : Outside diameter = 2.59 inch , Type = B , Bore min = 3/4 inch , Bore max = 15/16 inch ,H = 1 15/16 in. , L = 1 7/8 in.
Price
Model
PHS 35 - 3B21
Model description
No.Teeth = 21
DIMENSIONS : Outside diameter = 2.71 inch , Type = B , Bore min = 3/4 inch , Bore max = 1 3/8 inch ,H = 2 1/16 in. , L = 1 7/8 in.
Price
Model
PHS 35 - 3B22
Model description
No.Teeth = 22
DIMENSIONS : Outside diameter = 2.83 inch , Type = B , Bore min = 3/4 inch , Bore max = 1 7/16 inch ,H = 2 3/16 in. , L = 1 7/8 in.
Price
Model
PHS 35 - 3B23
Model description
No.Teeth = 23
DIMENSIONS : Outside diameter = 2.95 inch , Type = B , Bore min = 3/4 inch , Bore max = 1 1/2 inch ,H = 2 1/4 in. , L = 1 7/8 in.
Price
Model
PHS 35 - 3B24
Model description
No.Teeth = 24
DIMENSIONS : Outside diameter = 3.07 inch , Type = B , Bore min = 3/4 inch , Bore max = 1 1/2 inch ,H = 2 1/4 in. , L = 1 7/8 in.
Price
Model
PHS 35 - 3B25
Model description
No.Teeth = 25
DIMENSIONS : Outside diameter = 3.19 inch , Type = B , Bore min = 3/4 inch , Bore max = 1 1/2 inch ,H = 2 1/4 in. , L = 1 7/8 in.
Price
Model
PHS 35 - 3B26
Model description
No.Teeth = 26
DIMENSIONS : Outside diameter = 3.31 inch , Type = B , Bore min = 3/4 inch , Bore max = 1 1/2 inch ,H = 2 1/2 in. , L = 1 7/8 in.
Price
Model
PHS 35 - 3B30
Model description
No.Teeth = 30
DIMENSIONS : Outside diameter = 3.79 inch , Type = B , Bore min = 3/4 inch , Bore max = 1 3/4 inch ,H = 2 1/2 in. , L = 1 7/8 in.
Price
Model
PHS 35 - 3B36
Model description
No.Teeth = 36
DIMENSIONS : Outside diameter = 4.51 inch , Type = B , Bore min = 3/4 inch , Bore max = 1 3/4 inch ,H = 2 1/2 in. , L = 1 7/8 in.
Price
Model
PHS 35 - 3B42
Model description
No.Teeth = 42
DIMENSIONS : Outside diameter = 5.23 inch , Type = B , Bore min = 3/4 inch , Bore max = 1 3/4 inch ,H = 2 1/2 in. , L = 1 7/8 in.
Price
Model
PHS 35 - 3B48
Model description
No.Teeth = 48
DIMENSIONS : Outside diameter = 5.95 inch , Type = B , Bore min = 3/4 inch , Bore max = 1 3/4 inch ,H =2 1/2 in. , L = 1 7/8 in.
Price
Model
PHS 35 - 3B52
Model description
No.Teeth = 52
DIMENSIONS : Outside diameter = 6.43 inch , Type = B , Bore min = 3/4 inch , Bore max = 1 3/4 inch ,H = 2 1/2 in. , L = 1 7/8 in.
Price
Model
PHS 35 - 3B60
Model description
No.Teeth = 60
DIMENSIONS : Outside diameter = 7.38 inch , Type = B , Bore min = 3/4 inch , Bore max = 1 3/4 inch ,H = 2 1/2 in. , L = 1 7/8 in.
Price
Model
PHS 35 - 3B68
Model description
No.Teeth = 68
DIMENSIONS : Outside diameter = 8.34 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 3/8 inch ,H = 3 1/2 in. , L = 1 7/8 in.
Price
Model
PHS 35 - 3B72
Model description
No.Teeth = 72
DIMENSIONS : Outside diameter =8.81 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 3/8 inch ,H = 3 1/2 in. , L = 1 7/8 in.
Price
Model
PHS 35 - 3B76
Model description
No.Teeth = 76
DIMENSIONS : Outside diameter = 9.29 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 3/8 inch ,H = 3 1/2 in. , L = 1 7/8 in.
Price
Model
PHS 35 - 3B84
Model description
No.Teeth = 84
DIMENSIONS : Outside diameter = 10.25 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 3/8 inch ,H = 3 1/2 in. , L = 1 7/8 in.
Price
Model
PHS 35 - 3B95
Model description
No.Teeth = 95
DIMENSIONS : Outside diameter = 11.56 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/2 inch ,H = 3 3/4 in. , L = 2 1/8 in.
Price
Model
PHS 35 - 3B96
Model description
No.Teeth = 96
DIMENSIONS : Outside diameter = 11.68 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/2 inch ,H = 3 3/4 in. , L = 2 1/8 in.
Price
Model
PHS 35 - 3B102
Model description
No.Teeth = 102
DIMENSIONS : Outside diameter = 12.40 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/2 inch ,H = 3 3/4 in. , L = 2 1/8 in.
Price
