PRODUCT
![]()
ชื่อรุ่น :
PHS 100 - 3BXX
แบรนด์
SKF
รายละเอียด :

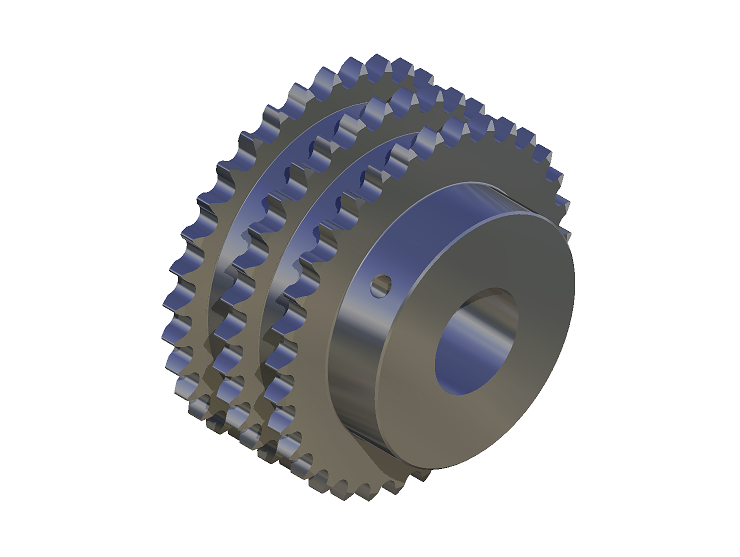

เฟื่องโซ่สามชั้น Pitch = 1.1/4"
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 100 - 3B11
Model description
No.Teeth = 11

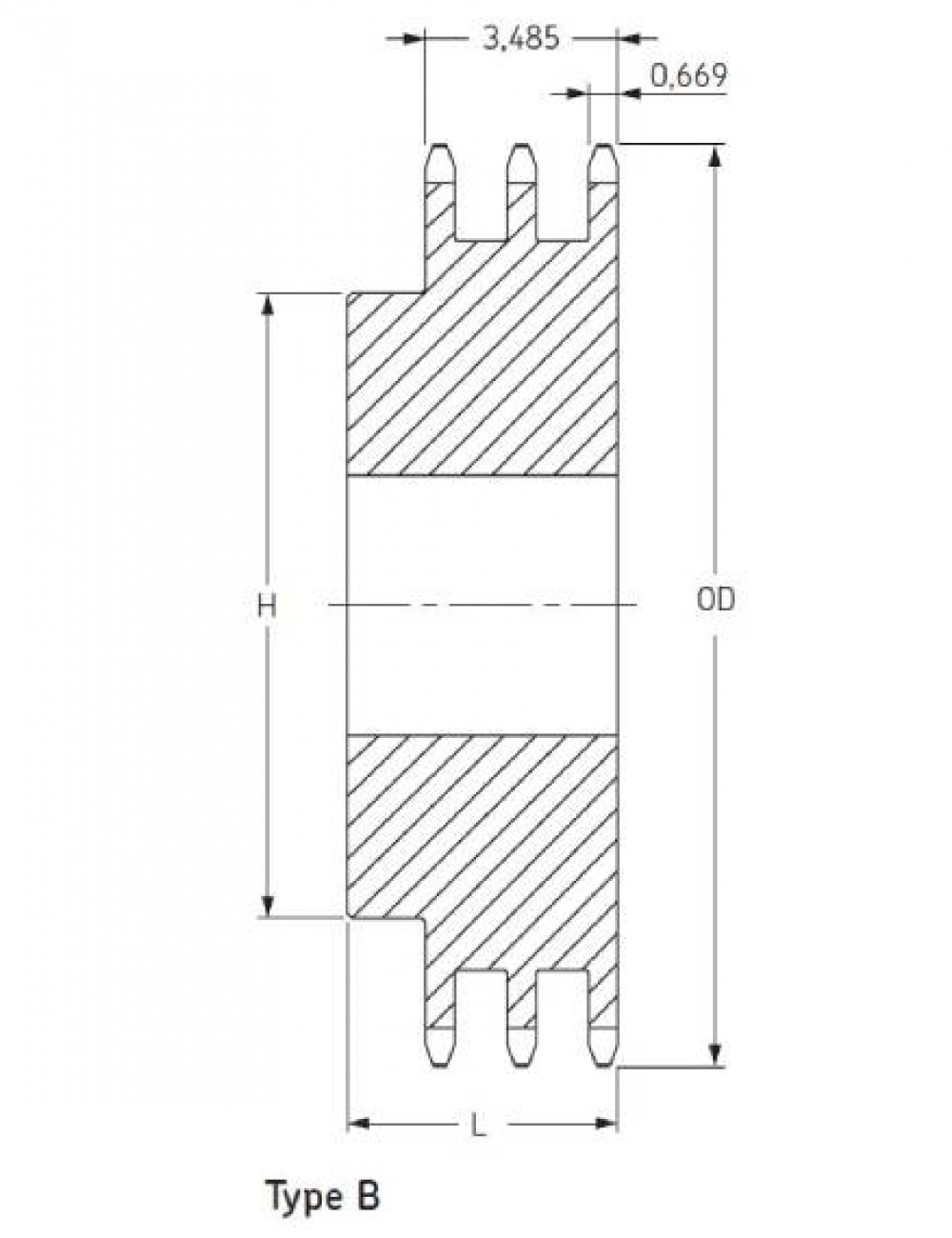

DIMENSIONS : Outside diameter = 5.01 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/8 inch ,H = 3 1/8 in. , L = 4 1/4 in.
Price
Model
PHS 100 - 3B12
Model description
No.Teeth = 12
DIMENSIONS : Outside diameter = 5.42 inch , Type = B , Bore min = 1 1/8 inch , Bore max = 2 1/4 inch ,H = 3 3/8 in. , L = 4 1/4 in.
Price
Model
PHS 100 - 3B13
Model description
No.Teeth = 13
DIMENSIONS : Outside diameter = 5.82 inch , Type = B , Bore min = 1 1/8 inch , Bore max = 2 1/2 inch ,H = 3 13/16 in. , L = 4 1/4 in.
Price
Model
PHS 100 - 3B14
Model description
No.Teeth = 14
DIMENSIONS : Outside diameter = 6.23 inch , Type = B , Bore min = 1 1/8 inch , Bore max = 2 3/4 inch ,H = 4 3/16 in. , L = 4 1/4 in.
Price
Model
PHS 100 - 3B15
Model description
No.Teeth = 15
DIMENSIONS : Outside diameter = 6.63 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 1/8 inch ,H =4 5/8 in. , L = 4 1/2 in.
Price
Model
PHS 100 - 3B16
Model description
No.Teeth = 16
DIMENSIONS : Outside diameter = 7.03 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 5/16 inch ,H = 5 in. , L = 4 1/2 in.
Price
Model
PHS 100 - 3B17
Model description
No.Teeth = 17
DIMENSIONS : Outside diameter = 7.44 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 1/2 inch ,H = 5 1/4 in. , L = 4 1/2 in.
Price
Model
PHS 100 - 3B18
Model description
No.Teeth = 18
DIMENSIONS : Outside diameter = 7.84 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 1/2 inch ,H =5 1/4 in. , L = 4 3/4 in.
Price
Model
PHS 100 - 3B19
Model description
No.Teeth = 19
DIMENSIONS : Outside diameter = 8.24 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 3/4 inch ,H = 5 1/2 in. , L = 4 3/4 in.
Price
Model
PHS 100 - 3B20
Model description
No.Teeth = 20
DIMENSIONS : Outside diameter = 8.64 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 3/4 inch ,H = 5 1/2 in. , L = 4 3/4 in.
Price
Model
PHS 100 - 3B21
Model description
No.Teeth = 21
DIMENSIONS : Outside diameter = 9.04 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 3/4 inch ,H = 5 1/2 in. , L = 4 3/4 in.
Price
Model
PHS 100 - 3B22
Model description
No.Teeth = 22
DIMENSIONS : Outside diameter = 9.44 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 3/4 inch ,H = 5 1/2 in. , L = 4 3/4 in.
Price
Model
PHS 100 - 3B23
Model description
No.Teeth = 23
DIMENSIONS : Outside diameter = 9.84 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 3/4 inch ,H = 5 1/2 in. , L = 4 3/4 in.
Price
Model
PHS 100 - 3B24
Model description
No.Teeth = 24
DIMENSIONS : Outside diameter = 10.25 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 3/4 inch ,H = 5 3/4 in. , L = 4 3/4 in.
Price
Model
PHS 100 - 3B25
Model description
No.Teeth = 25
DIMENSIONS : Outside diameter = 19.64 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 3/4 inch ,H = 5 3/4 in. , L =4 3/4 in.
Price
Model
PHS 100 - 3B26
Model description
No.Teeth = 26
DIMENSIONS : Outside diameter = 11.05 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 3 13/16 inch ,H = 5 3/4 in. , L = 4 3/4 in.
Price
Model
PHS 100 - 3B30
Model description
No.Teeth = 30
DIMENSIONS : Outside diameter = 12.64 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 3 13/16 inch ,H = 5 3/4 in. , L = 4 3/4 in.
Price
