PRODUCT
![]()
ชื่อรุ่น :
ANSI PHS 60 - 1TBXX
แบรนด์
SKF
รายละเอียด :

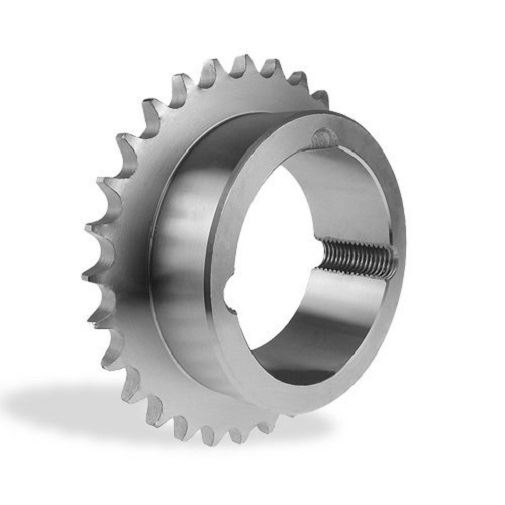

เฟื่องโซ่ชั้นเดียว Pitch = 3/4" มีดุมยื่น 1 ข้าง ล็อดเพลาด้วยเทเปอร์บู๊ธ
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 60 - 1TB11
Model description
No.Teeth = 11 , Bushing Size = 1008

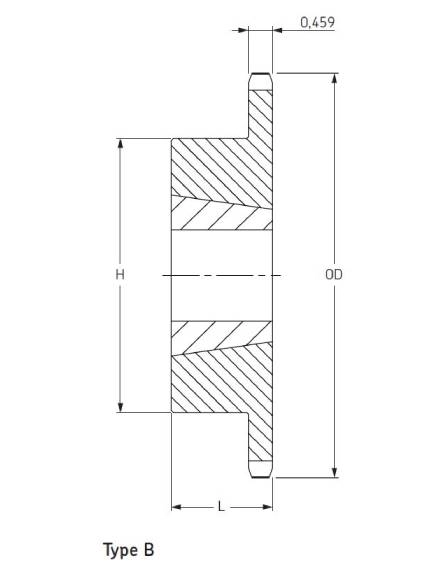

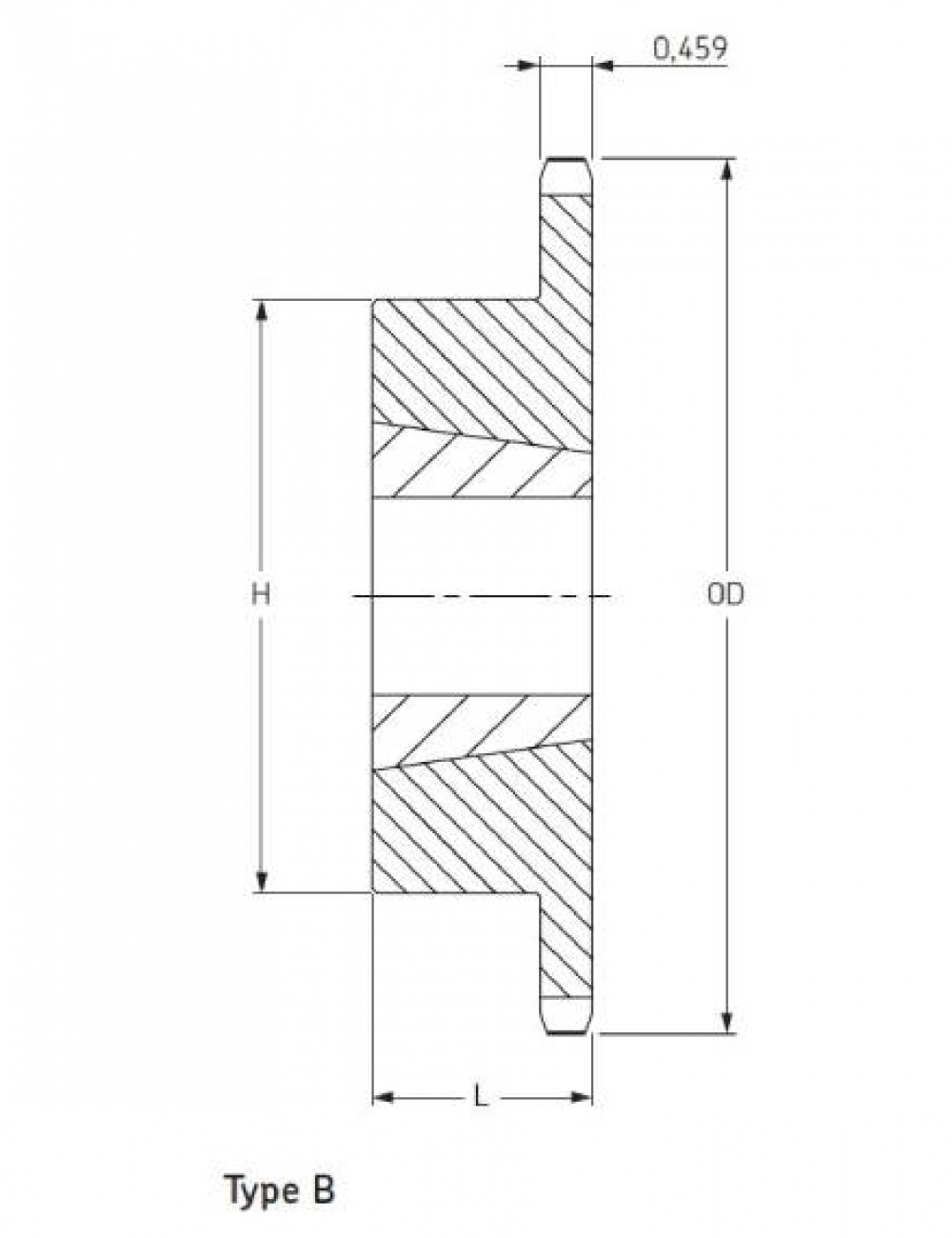

DIMENSIONS :Outside diameter = 3.004 inch , Type = B , Bore min = 3/8 inch , Bore max = 1 inch ,L = 7/8 in. , H = 1 13/16 in.
Price
Model
PHS 60 - 1TB12
Model description
No.Teeth = 12 , Bushing Size = 1008
DIMENSIONS :Outside diameter = 3.249 inch , Type = B , Bore min = 3/8 inch , Bore max = 1 inch ,L =7/8 in. , H = 1 15/16 in.
Price
Model
PHS 60 - 1TB13
Model description
No.Teeth = 13 , Bushing Size = 1210
DIMENSIONS :Outside diameter = 3.493 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 1/4 inch ,L = 1 in. , H = 2 15/16 in.
Price
Model
PHS 60 - 1TB14
Model description
No.Teeth = 14 , Bushing Size = 1210
DIMENSIONS :Outside diameter = 3.736 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 1/4 inch ,L = 1 in. , H= 2 15/16 in.
Price
Model
PHS 60 - 1TB15
Model description
No.Teeth = 15 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 3.979 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 2 25/32 in.
Price
Model
PHS 60 - 1TB16
Model description
No.Teeth = 16 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 4.221 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 in.
Price
Model
PHS 60 - 1TB17
Model description
No.Teeth = 17 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 4.462 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
Model
PHS 60 - 1TB18
Model description
No.Teeth = 18 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 4.704 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
Model
PHS 60 - 1TB19
Model description
No.Teeth = 19 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 4.945 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
Model
PHS 60 - 1TB20
Model description
No.Teeth = 20 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 5.185 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 60 - 1TB21
Model description
No.Teeth = 21 , Bushing Size =2012
DIMENSIONS :Outside diameter = 5.185 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 60 - 1TB22
Model description
No.Teeth = 22 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 5.666 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 60 - 1TB23
Model description
No.Teeth = 23 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 5.907 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 60 - 1TB24
Model description
No.Teeth = 24 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 6.147 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 60 - 1TB25
Model description
No.Teeth = 25 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 6.387 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 60 - 1TB26
Model description
No.Teeth = 26 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 6.627 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 60 - 1TB27
Model description
No.Teeth = 27 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 6.867 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H =3 9/16 in.
Price
Model
PHS 60 - 1TB28
Model description
No.Teeth = 28 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 7.107 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 60 - 1TB30
Model description
No.Teeth = 30 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 7.586 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H =3 9/16 in.
Price
Model
PHS 60 - 1TB32
Model description
No.Teeth = 32 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 8.065 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 60 - 1TB35
Model description
No.Teeth = 35 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 8.783 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L =1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 60 - 1TB36
Model description
No.Teeth = 36 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 9.022 inch , Type = B , Bore min = 3/4 inch , Bore max =2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 60 - 1TB40
Model description
No.Teeth = 40 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 9.980 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 60 - 1TB42
Model description
No.Teeth = 42 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 10.458 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 60 - 1TB45
Model description
No.Teeth = 45 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 11.175 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H =3 9/16 in.
Price
Model
PHS 60 - 1TB48
Model description
No.Teeth = 48 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 11.893 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 60 - 1TB54
Model description
No.Teeth = 54 , Bushing Size = 2517
DIMENSIONS :Outside diameter = 13.327 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 4 1/4 in.
Price
Model
PHS 60 - 1TB60
Model description
No.Teeth = 60 , Bushing Size = 2517
DIMENSIONS :Outside diameter = 14.761 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H =4 1/4 in.
Price
Model
PHS 60 - 1TB70
Model description
No.Teeth = 70 , Bushing Size =2517
DIMENSIONS :Outside diameter = 17.150 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/3 inch ,L = 1 3/4 in. , H = 4 1/4 in.
Price
Model
PHS 60 - 1TB72
Model description
No.Teeth = 72 , Bushing Size = 2517
DIMENSIONS :Outside diameter = 17.628 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/3 inch ,L = 1 3/4 in. , H =4 1/4 in.
Price
Model
PHS 60 - 1TB80
Model description
No.Teeth = 80 , Bushing Size = 2517
DIMENSIONS :Outside diameter = 19.539 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/3 inch ,L = 1 3/4 in. , H = 4 1/4 in.
Price
Model
PHS 60 - 1TB84
Model description
No.Teeth = 84 , Bushing Size = 2517
DIMENSIONS :Outside diameter = 20.494 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/3 inch ,L = 1 3/4 in. , H = 4 1/4 in.
Price
