PRODUCT
![]()
ชื่อรุ่น :
ANSI PHS 35 - 1TBXX
แบรนด์
SKF
รายละเอียด :

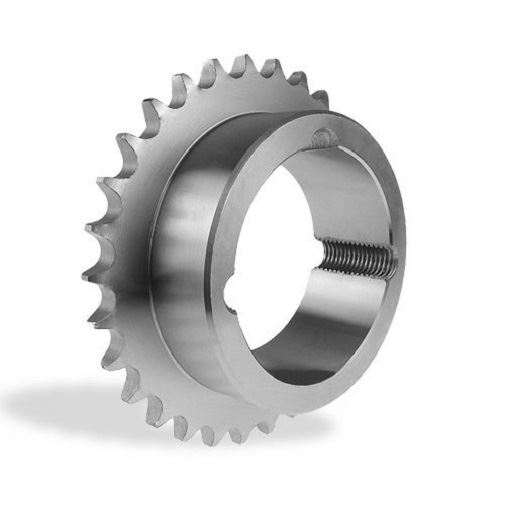

เฟื่องโซ่ชั้นเดียว Pitch = 3/8" มีดุมยื่น 1 ข้าง ล็อดเพลาด้วยเทเปอร์บู๊ธ
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 35 - 1TB18
Model description
No.Teeth = 18 , Bushing Size = 1008

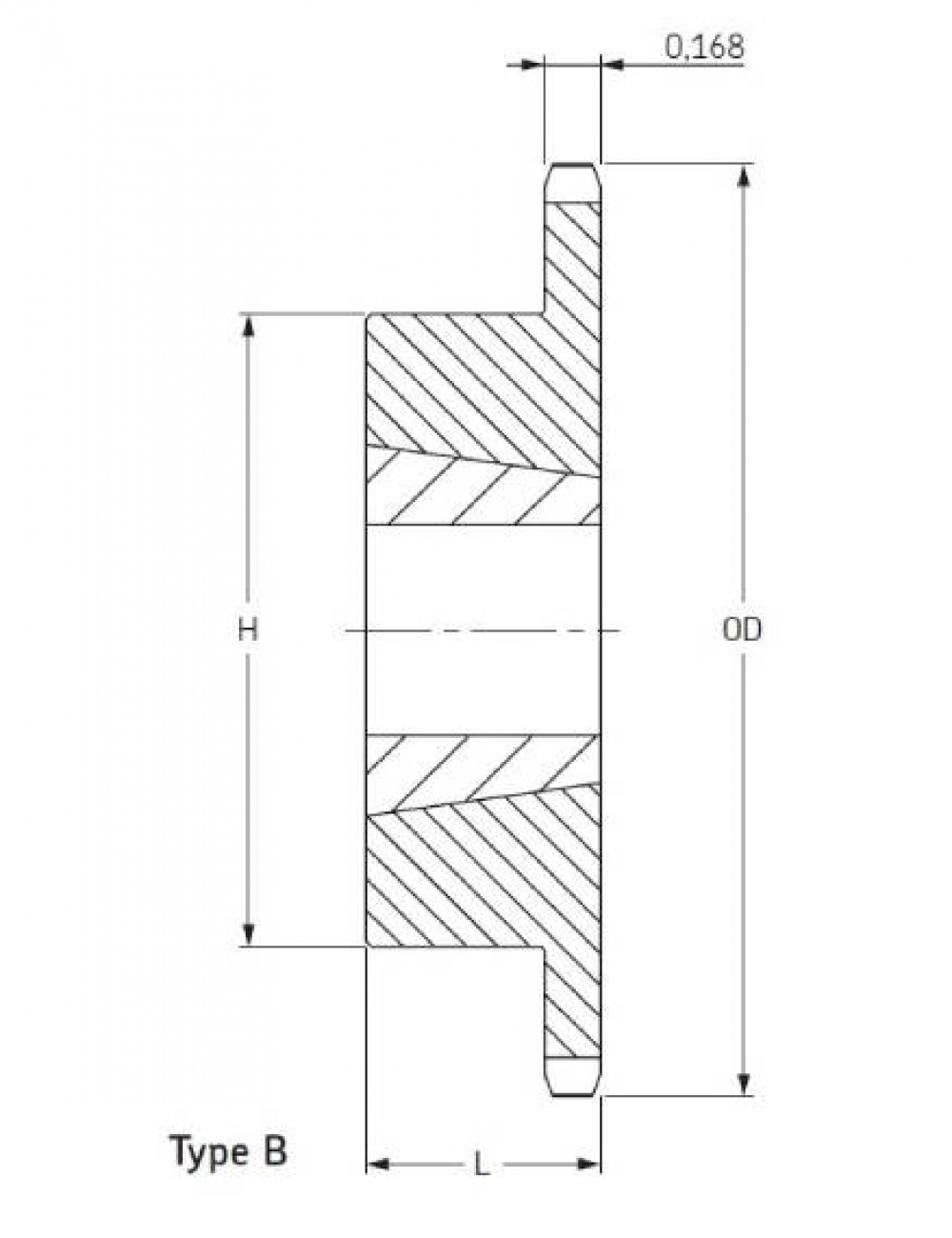

DIMENSIONS :Outside diameter = 2.352 inch , Type = B , Bore min =3/8 inch , Bore max = 1 inch ,L = 7/8 in. , H = 1 7/8 in.
Price
Model
PHS 35 - 1TB19
Model description
No.Teeth = 19 , Bushing Size = 1008
DIMENSIONS :Outside diameter = 2.472 inch , Type = B , Bore min = 3/8 inch , Bore max = 1 inch ,L = 7/8 in. , H = 1 13/16 in.
Price
Model
PHS 35 - 1TB20
Model description
No.Teeth = 20 , Bushing Size = 1008
DIMENSIONS :Outside diameter = 2.593 inch , Type = B , Bore min = 3/8 inch , Bore max = 1 inch ,L = 7/8 in. , H = 1 15/16 in.
Price
Model
PHS 35 - 1TB21
Model description
No.Teeth = 21 , Bushing Size = 1008
DIMENSIONS :Outside diameter = 2.713 inch , Type = B , Bore min = 3/8 inch , Bore max = 1 inch ,L = 7/8 in. , H = 2 1/16 in.
Price
Model
PHS 35 - 1TB22
Model description
No.Teeth = 22 , Bushing Size = 1210
DIMENSIONS :Outside diameter = 2.883 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 1/4 inch ,L = 1 in. , H =2 3/8 in.
Price
Model
PHS 35 - 1TB23
Model description
No.Teeth = 23 , Bushing Size = 1210
DIMENSIONS :Outside diameter = 2.954 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 1/4 inch ,L =1 in. , H = 2 7/16 in.
Price
Model
PHS 35 - 1TB24
Model description
No.Teeth = 24 , Bushing Size = 1210
DIMENSIONS :Outside diameter = 3.074 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 1/4 inch ,L = 1 in. , H = 2 7/16 in.
Price
Model
PHS 35 - 1TB25
Model description
No.Teeth = 25 , Bushing Size = 1210
DIMENSIONS :Outside diameter = 3.314 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 1/4 inch ,L = 1 in. , H = 2 7/16 in.
Price
Model
PHS 35 - 1TB26
Model description
No.Teeth = 26 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 3.314 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 2 7/8 in.
Price
Model
PHS 35 - 1TB28
Model description
No.Teeth = 28 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 3.553 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H =2 7/8 in.
Price
Model
PHS 35 - 1TB30
Model description
No.Teeth = 30 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 3.793 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/8 in.
Price
Model
PHS 35 - 1TB32
Model description
No.Teeth = 32 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 4.032 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
Model
PHS 35 - 1TB35
Model description
No.Teeth = 35 , Bushing Size = 1610
DIMENSIONS :Outside diameter =v4.392 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H =3 1/4 in.
Price
Model
PHS 35 - 1TB36
Model description
No.Teeth = 36 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 4.511 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
Model
PHS 35 - 1TB40
Model description
No.Teeth = 40 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 4.990 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
Model
PHS 35 - 1TB42
Model description
No.Teeth = 42 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 5.229 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
Model
PHS 35 - 1TB45
Model description
No.Teeth = 45 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 5.588 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
Model
PHS 35 - 1TB48
Model description
No.Teeth = 48 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 5.946 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
Model
PHS 35 - 1TB54
Model description
No.Teeth = 54 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 6.663 inch , Type = B , Bore min = 1 /2 inch , Bore max = 1 5/8 inch ,L =1 in. , H =3 1/4 in.
Price
Model
PHS 35 - 1TB60
Model description
No.Teeth = 60 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 7.380 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
Model
PHS 35 - 1TB70
Model description
No.Teeth = 70 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 8.575 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
Model
PHS 35 - 1TB72
Model description
No.Teeth = 72 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 8.814 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
Model
PHS 35 - 1TB80
Model description
No.Teeth = 80 , Bushing Size = 1610
DIMENSIONS :Outside diameter =9.770 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
Model
PHS 35 - 1TB84
Model description
No.Teeth = 84 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 10.247 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
Model
PHS 35 - 1TB96
Model description
No.Teeth = 96 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 11.680 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
Model
PHS 35 - 1TB112
Model description
No.Teeth = 112 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 13.590 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
