PRODUCT
![]()
ชื่อรุ่น :
ANSI PHS 120 - 1TBXX
แบรนด์
SKF
รายละเอียด :

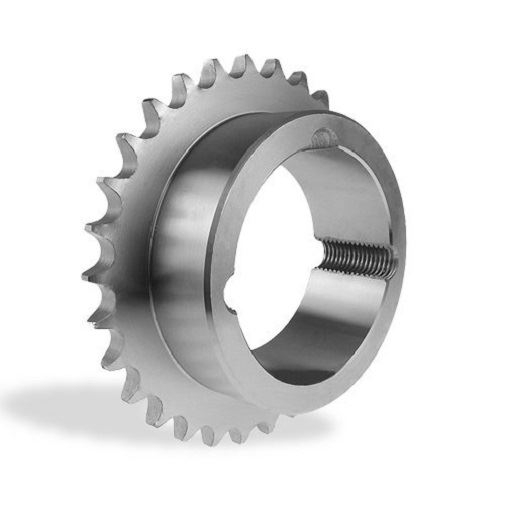

เฟื่องโซ่ชั้นเดียว Pitch = 1. 1/2" ล็อดเพลาด้วยเทเปอร์บู๊ธ
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 120 - 1TB12
Model description
No.Teeth = 12 , Bushing Size = 2012

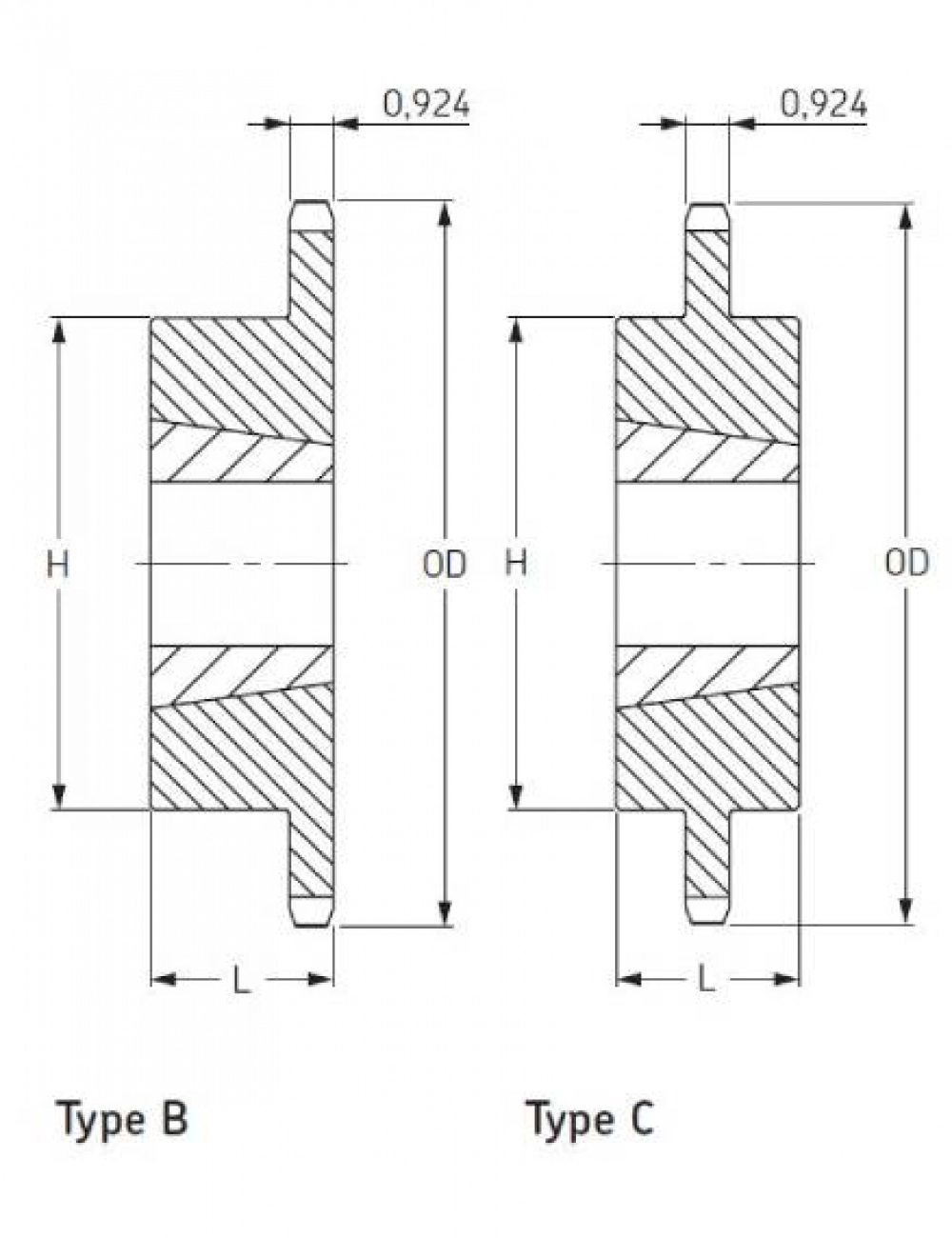

DIMENSIONS :Outside diameter = 6.498 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 120 - 1TB13
Model description
No.Teeth = 13 , Bushing Size = 2517
DIMENSIONS :Outside diameter = 6.896 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 4 1/4 in.
Price
Model
PHS 120 - 1TB14
Model description
No.Teeth = 14 , Bushing Size = 2517
DIMENSIONS :Outside diameter = 7.472 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L 1 3/4 = in. , H = 4 1/4 in.
Price
Model
PHS 120 - 1TB15
Model description
No.Teeth = 15 , Bushing Size = 2517
DIMENSIONS :Outside diameter = 7.957 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 4 1/4 in.
Price
Model
PHS 120 - 1TB16
Model description
No.Teeth = 16 , Bushing Size = 3020
DIMENSIONS :Outside diameter = 8.441 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Model
PHS 120 - 1TB17
Model description
No.Teeth = 17 , Bushing Size = 3020
DIMENSIONS :Outside diameter = 8.924 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Model
PHS 120 - 1TB18
Model description
No.Teeth = 18 , Bushing Size = 3020
DIMENSIONS :Outside diameter = 9.407 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Model
PHS 120 - 1TB19
Model description
No.Teeth = 19 , Bushing Size = 3020
DIMENSIONS :Outside diameter = 9.889 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L =2 in. , H =5 1/4 in.
Price
Model
PHS 120 - 1TB20
Model description
No.Teeth = 20 , Bushing Size = 3020
DIMENSIONS :Outside diameter = 20.371 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Model
PHS 120 - 1TB21
Model description
No.Teeth = 21 , Bushing Size = 3020
DIMENSIONS :Outside diameter = 10.851 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Model
PHS 120 - 1TB24
Model description
No.Teeth = 24 , Bushing Size = 3020
DIMENSIONS :Outside diameter =12.294 inch , Type = B , Bore min =1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Model
PHS 120 - 1TB26
Model description
No.Teeth = 26 , Bushing Size = 3020
DIMENSIONS :Outside diameter = 13.254 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Model
PHS 120 - 1TB30
Model description
No.Teeth = 30 , Bushing Size = 3020
DIMENSIONS :Outside diameter = 15.171 inch , Type = B , Bore min =1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Model
PHS 120 - 1TB35
Model description
No.Teeth = 35 , Bushing Size = 3020
DIMENSIONS :Outside diameter = 17.566 inch , Type = C , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Model
PHS 120 - 1TB45
Model description
No.Teeth = 45 , Bushing Size = 3030
DIMENSIONS :Outside diameter = 22.351 inch , Type = C , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 3 in. , H = 5 7/8 in.
Price
Model
PHS 120 - 1TB60
Model description
No.Teeth = 60 , Bushing Size = 3535
DIMENSIONS :Outside diameter = 29.522 inch , Type = C , Bore min = 1 1/2 inch , Bore max = 3 1/2 inch ,L = 3 1/2 in. , H = 6 1/2 in.
Price
Model
PHS 120 - 1TB70
Model description
No.Teeth = 70 , Bushing Size = 3535
DIMENSIONS :Outside diameter = 34.301 inch , Type = C , Bore min = 1 1/2 inch , Bore max = 3 1/2 inch ,L = 3 1/2 in. , H =6 1/2 in.
Price
Model
PHS 120 - 1TB80
Model description
No.Teeth = 80 , Bushing Size = 3535
DIMENSIONS :Outside diameter = 39.078 inch , Type = C , Bore min = 1 1/2 inch , Bore max = 3 1/2 inch ,L = 3 1/2 in. , H = 6 1/2 in.
Price
