PRODUCT
![]()
ชื่อรุ่น :
ANSI PHS 80 - 1BXX
แบรนด์
SKF
รายละเอียด :

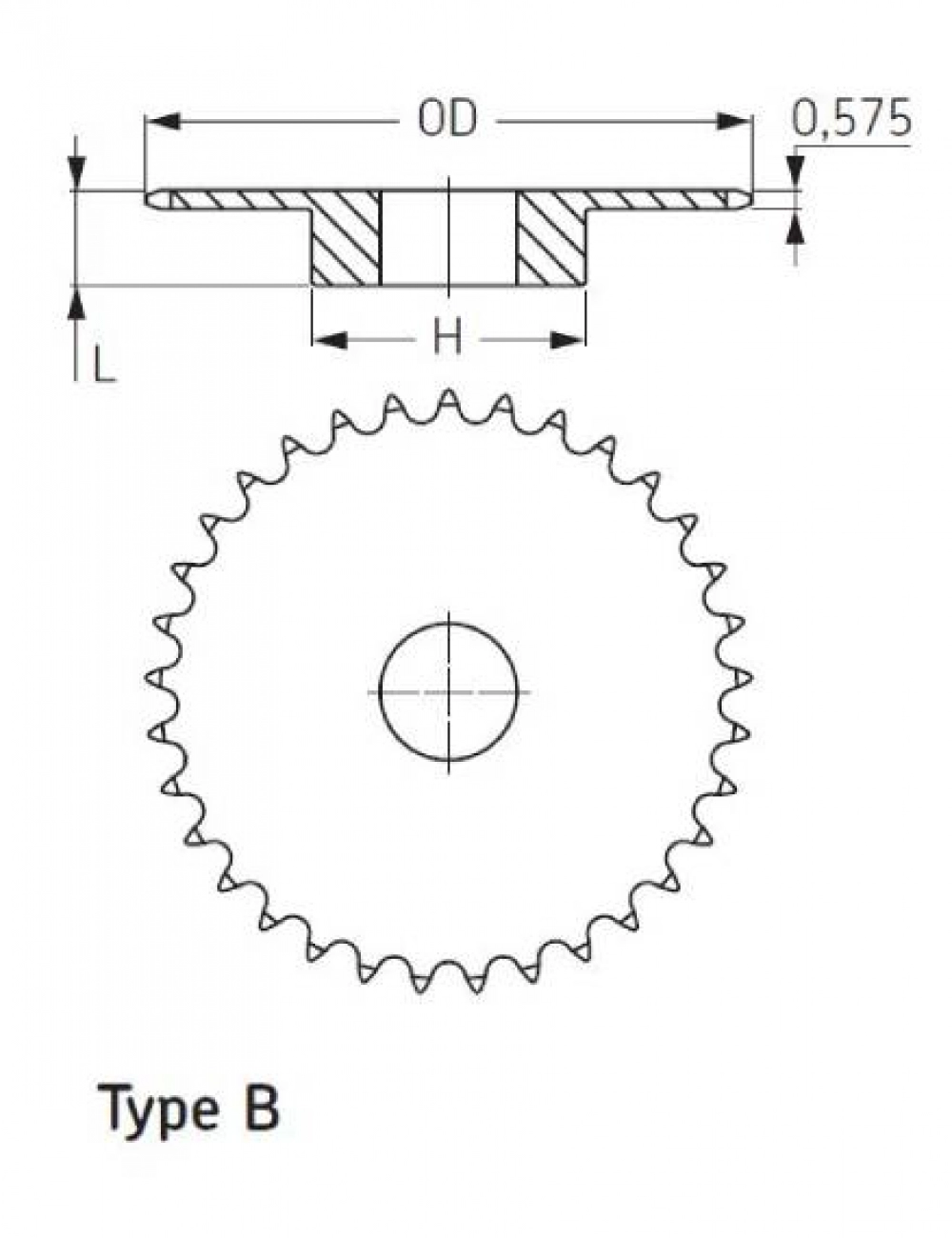

เฟื่องโซ่ชั้นเดียว Pitch = 1" มีดุมยื่น 1 ข้าง
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 80-1B8
Model description
No.Teeth = 8
DIMENSIONS :Outside diameter = 3.01 in. , Type = B , Bore min. = 1 in. , Bore max. = 1 in. ,H = 1 15/16 in. , L = 1 5/8 in.
Price
Model
PHS 80-1B9
Model description
No.Teeth = 9
DIMENSIONS :Outside diameter = 3.35 in. , Type = B , Bore min. = 1 in. , Bore max. = 1 5/16 in. ,H = 2 1/4 in. , L = 1 5/8 in.
Price
Model
PHS 80-1B10
Model description
No.Teeth = 10
DIMENSIONS :Outside diameter = 3.68 in. , Type = B , Bore min. = 1 in. , Bore max. = 1 1/2 in. ,H = 2 9/16 in. , L = 1 5/8 in.
Price
Model
PHS 80-1B11
Model description
No.Teeth = 11
DIMENSIONS :Outside diameter = 4.01 in. , Type = B , Bore min. = 1 in. , Bore max. = 1 5/8 in. ,H = 2 13/16 in. , L = 1 5/8 in.
Price
Model
PHS 80-1B12
Model description
No.Teeth = 12
DIMENSIONS :Outside diameter = 4.33 in. , Type = B , Bore min. = 1 in. , Bore max. = 1 7/8 in. ,H = 3 1/8 in. , L = 1 5/8 in.
Price
Model
PHS 80-1B13
Model description
No.Teeth = 13
DIMENSIONS :Outside diameter = 4.66 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 in. ,H = 3 in. , L = 1 1/2 in.
Price
Model
PHS 80-1B14
Model description
No.Teeth = 14
DIMENSIONS :Outside diameter = 4.98 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 1/4 in. ,H = 3 1/4 in. , L = 1 1/2 in.
Price
Model
PHS 80-1B15
Model description
No.Teeth = 15
DIMENSIONS :Outside diameter = 5.30 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 1/2 in. ,H = 3 13/16 in. , L = 1 1/2 in.
Price
Model
PHS 80-1B16
Model description
No.Teeth = 16
DIMENSIONS :Outside diameter = 5.63 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 1/2 in.
Price
Model
PHS 80-1B17
Model description
No.Teeth = 17
DIMENSIONS :Outside diameter = 5.95 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 1/2 in.
Price
Model
PHS 80-1B18
Model description
No.Teeth =18
DIMENSIONS :Outside diameter = 6.27 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 1/2 in.
Price
Model
PHS 80-1B19
Model description
No.Teeth = 19
DIMENSIONS :Outside diameter = 6.59 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 1/2 in.
Price
Model
PHS 80-1B20
Model description
No.Teeth =20
DIMENSIONS :Outside diameter = 6.91 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H =4 1/4 in. , L = 1 1/2 in.
Price
Model
PHS 80-1B21
Model description
No.Teeth = 21
DIMENSIONS :Outside diameter = 7.24 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H =4 1/4 in. , L = 1 3/4 in.
Price
Model
PHS 80-1B22
Model description
No.Teeth = 22
DIMENSIONS :Outside diameter = 7.56 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 3/4 in.
Price
Model
PHS 80-1B23
Model description
No.Teeth = 23
DIMENSIONS :Outside diameter = 7.88 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 3/4 in.
Price
Model
PHS 80-1B24
Model description
No.Teeth = 24
DIMENSIONS :Outside diameter = 8.20 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H =4 1/4 in. , L = 1 3/4 in.
Price
Model
PHS 80-1B25
Model description
No.Teeth = 25
DIMENSIONS :Outside diameter = 8.52 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 3/4 in.
Price
Model
PHS 80-1B26
Model description
No.Teeth = 26
DIMENSIONS :Outside diameter = 8.84 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 1/4 in. ,H = 4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B27
Model description
No.Teeth = 27
DIMENSIONS :Outside diameter = 9.16 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 1/4 in. ,H = 4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B28
Model description
No.Teeth = 28
DIMENSIONS :Outside diameter =9.48 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 1/4 in. ,H = 4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B29
Model description
No.Teeth = 29
DIMENSIONS :Outside diameter = 9.80 in. , Type = B , Bore min. = 1 3/16 in. , Bore max. = 3 1/4 in. ,H = 4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B30
Model description
No.Teeth = 30
DIMENSIONS :Outside diameter = 10.11 in. , Type = B , Bore min. = 1 3/16 in. , Bore max. = 3 1/4 in. ,H = 4 3/4 in. , L =2 in.
Price
Model
PHS 80-1B31
Model description
No.Teeth = 31
DIMENSIONS :Outside diameter = 10.43 in. , Type = B , Bore min. = 1 3/16 in. , Bore max. = 3 1/4 in. ,H =4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B32
Model description
No.Teeth = 32
DIMENSIONS :Outside diameter = 10.75 in. , Type = B , Bore min. = 1 3/16 in. , Bore max. =3 1/4 in. ,H = 4 3/4 in. , L =2 in.
Price
Model
PHS 80-1B33
Model description
No.Teeth = 33
DIMENSIONS :Outside diameter = 11.07 in. , Type = B , Bore min. = 1 3/16 in. , Bore max. = 3 1/4 in. ,H = 4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B34
Model description
No.Teeth = 34
DIMENSIONS :Outside diameter = 11.39 in. , Type = B , Bore min. = 1 3/16 in. , Bore max. = 3 1/4 in. ,H = 4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B35
Model description
No.Teeth = 35
DIMENSIONS :Outside diameter = 11.71 in. , Type = B , Bore min. = 1 3/16 in. , Bore max. = 3 1/4 in. ,H = 4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B36
Model description
No.Teeth = 36
DIMENSIONS :Outside diameter = 12.03 in. , Type = B , Bore min. = 1 3/16 in. , Bore max. = 3 1/4 in. ,H = 4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B37
Model description
No.Teeth = 37
DIMENSIONS :Outside diameter = 12.35 in. , Type = B , Bore min. = 1 3/16 in. , Bore max. = 3 1/4 in. ,H = 4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B38
Model description
No.Teeth = 38
DIMENSIONS :Outside diameter = 12.67 in. , Type = B , Bore min. = 1 3/16 in. , Bore max. = 3 1/4 in. ,H = 4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B39
Model description
No.Teeth = 39
DIMENSIONS :Outside diameter =12.99 in. , Type = B , Bore min. = 1 3/16 in. , Bore max. = 3 1/4 in. ,H = 4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B40
Model description
No.Teeth = 40
DIMENSIONS :Outside diameter = 13.31 in. , Type = B , Bore min. = 1 3/16 in. , Bore max. = 3 1/4 in. ,H =4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B41
Model description
No.Teeth = 41
DIMENSIONS :Outside diameter = 13.63 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 1/4 in. ,H = 4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B42
Model description
No.Teeth = 42
DIMENSIONS :Outside diameter = 13.94 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 1/4 in. ,H = 4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B43
Model description
No.Teeth = 43
DIMENSIONS :Outside diameter = 14.26 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 1/4 in. ,H = 4 3/4 in. , L =2 in.
Price
Model
PHS 80-1B44
Model description
No.Teeth = 44
DIMENSIONS :Outside diameter = 14.58 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 1/4 in. ,H =4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B45
Model description
No.Teeth = 45
DIMENSIONS :Outside diameter = 14.90 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 1/4 in. ,H = 4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B46
Model description
No.Teeth = 46
DIMENSIONS :Outside diameter = 15.22 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 1/4 in. ,H = 4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B47
Model description
No.Teeth = 47
DIMENSIONS :Outside diameter = 15.54 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 1/4 in. ,H =4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B48
Model description
No.Teeth = 48
DIMENSIONS :Outside diameter = 15.86 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. =3 1/4 in. ,H = 4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B49
Model description
No.Teeth = 49
DIMENSIONS :Outside diameter = 16.18 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 1/4 in. ,H = 4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B50
Model description
No.Teeth = 50
DIMENSIONS :Outside diameter = 16.50 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 1/4 in. ,H = 4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B51
Model description
No.Teeth = 51
DIMENSIONS :Outside diameter = 16.81 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 1/4 in. ,H = 4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B52
Model description
No.Teeth = 52
DIMENSIONS :Outside diameter = 17.13 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 1/4 in. ,H =4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B53
Model description
No.Teeth = 53
DIMENSIONS :Outside diameter = 17.45 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 1/4 in. ,H =4 3/4 in. , L = 2 in.
Price
Model
PHS 80-1B54
Model description
No.Teeth = 54
DIMENSIONS :Outside diameter = 17.77 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 1/4 in. ,H = 5 1/4 in. , L = 2 in.
Price
Model
PHS 80-1B55
Model description
No.Teeth = 55
DIMENSIONS :Outside diameter = 18.09 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 1/4 in. ,H = 5 1/4 in. , L = 2 in.
Price
Model
PHS 80-1B56
Model description
No.Teeth = 56
DIMENSIONS :Outside diameter = 18.41 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. =3 1/4 in. ,H = 5 1/4 in. , L = 2 in.
Price
Model
PHS 80-1B57
Model description
No.Teeth = 57
DIMENSIONS :Outside diameter = 18.73 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 1/4 in. ,H =5 1/4 in. , L = 2 in.
Price
Model
PHS 80-1B58
Model description
No.Teeth = 58
DIMENSIONS :Outside diameter = 19.04 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 1/4 in. ,H = 5 1/4 in. , L = 2 in.
Price
Model
PHS 80-1B59
Model description
No.Teeth = 59
DIMENSIONS :Outside diameter = 19.36 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 1/4 in. ,H = 5 1/4 in. , L = 2 in.
Price
Model
PHS 80-1B60
Model description
No.Teeth = 60
DIMENSIONS :Outside diameter = 19.68 in. , Type = B , Bore min. =1 1/4 in. , Bore max. = 3 1/4 in. ,H = 5 1/4 in. , L = 2 in.
Price
Model
PHS 80-1B65
Model description
No.Teeth = 65
DIMENSIONS :Outside diameter = 21.27 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. =3 1/4 in. ,H = 5 1/4 in. , L = 2 in.
Price
