PRODUCT
![]()
ชื่อรุ่น :
ANSI PHS 60 - 1BXX
แบรนด์
SKF
รายละเอียด :

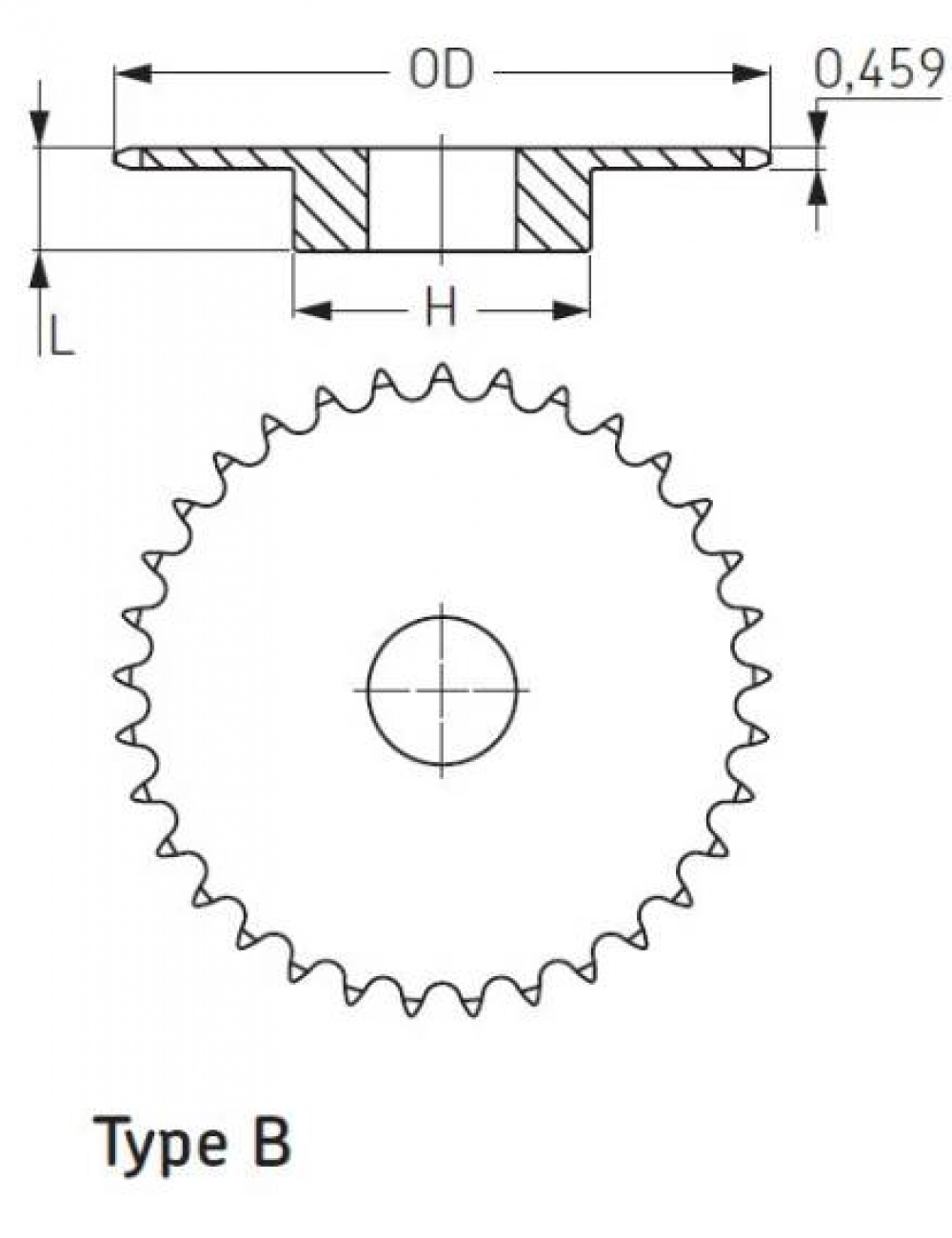

เฟื่องโซ่ชั้นเดียว Pitch = 3/4" มีดุมยื่น 1 ข้าง
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 60-1B8
Model description
No.Teeth = 8
DIMENSIONS :Outside diameter = 2.26 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 5/8 in. ,H = 1 15/32 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B9
Model description
No.Teeth = 9
DIMENSIONS :Outside diameter = 2.51 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 7/8 in. ,H =1 9/16 in. , L = 1 11/4 in.
Price
Model
PHS 60-1B10
Model description
No.Teeth = 10
DIMENSIONS :Outside diameter = 2.76 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 1 1/8 in. ,H = 1 15/16 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B11
Model description
No.Teeth = 11
DIMENSIONS :Outside diameter = 3.00 in. , Type = B , Bore min. = 3/5 in. , Bore max. = 1 5/16 in. ,H = 2 1/16 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B12
Model description
No.Teeth = 12
DIMENSIONS :Outside diameter = 3.25 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 1 3/8 in. ,H = 2 3/8 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B13
Model description
No.Teeth = 13
DIMENSIONS :Outside diameter = 3.49 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 1 1/2 in. ,H = 2 11/32 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B14
Model description
No.Teeth = 14
DIMENSIONS :Outside diameter = 3.74 in. , Type = B , Bore min. = 3/4 in. , Bore max. =1 3/4 in. ,H = 2 9/16 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B15
Model description
No.Teeth = 15
DIMENSIONS :Outside diameter = 3.98 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 1 7/8 in. ,H =2 7/8 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B16
Model description
No.Teeth = 16
DIMENSIONS :Outside diameter = 4.22 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 in. ,H = 3 1/16 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B17
Model description
No.Teeth = 17
DIMENSIONS :Outside diameter = 4.46 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 1/4 in. ,H = 3 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B18
Model description
No.Teeth = 18
DIMENSIONS :Outside diameter = 4.70 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/8 in. ,H = 3 1/2 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B19
Model description
No.Teeth = 19
DIMENSIONS :Outside diameter = 4.95 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/8 in. ,H = 3 1/2 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B20
Model description
No.Teeth = 20
DIMENSIONS :Outside diameter = 5.19 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 5/8 in. ,H = 3 7/8 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B21
Model description
No.Teeth = 21
DIMENSIONS :Outside diameter = 5.43 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B22
Model description
No.Teeth = 22
DIMENSIONS :Outside diameter = 5.67 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B23
Model description
No.Teeth = 23
DIMENSIONS :Outside diameter = 5.91 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B24
Model description
No.Teeth = 24
DIMENSIONS :Outside diameter = 6.15 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B25
Model description
No.Teeth = 25
DIMENSIONS :Outside diameter = 6.39 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B26
Model description
No.Teeth = 26
DIMENSIONS :Outside diameter = 6.63 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B27
Model description
No.Teeth = 27
DIMENSIONS :Outside diameter = 6.87 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B28
Model description
No.Teeth = 28
DIMENSIONS :Outside diameter = 7.11 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B29
Model description
No.Teeth = 29
DIMENSIONS :Outside diameter = 7.35 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B30
Model description
No.Teeth = 30
DIMENSIONS :Outside diameter = 7.59 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/4 in. ,H =4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B31
Model description
No.Teeth = 31
DIMENSIONS :Outside diameter = 7.83 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B32
Model description
No.Teeth = 32
DIMENSIONS :Outside diameter = 8.07 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B33
Model description
No.Teeth = 33
DIMENSIONS :Outside diameter = 8.30 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B34
Model description
No.Teeth = 34
DIMENSIONS :Outside diameter = 8.54 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B35
Model description
No.Teeth = 35
DIMENSIONS :Outside diameter = 8.78 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B36
Model description
No.Teeth = 36
DIMENSIONS :Outside diameter = 9.02 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B37
Model description
No.Teeth = 37
DIMENSIONS :Outside diameter = 9.26 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B38
Model description
No.Teeth = 38
DIMENSIONS :Outside diameter = 9.50 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B39
Model description
No.Teeth = 39
DIMENSIONS :Outside diameter = 9.74 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B40
Model description
No.Teeth = 40
DIMENSIONS :Outside diameter = 9.98 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B41
Model description
No.Teeth = 41
DIMENSIONS :Outside diameter = 10.22 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H =4 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B42
Model description
No.Teeth = 42
DIMENSIONS :Outside diameter = 10.46 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L =1 1/4 in.
Price
Model
PHS 60-1B43
Model description
No.Teeth = 43
DIMENSIONS :Outside diameter = 10.70 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B44
Model description
No.Teeth = 44
DIMENSIONS :Outside diameter = 10.94 in. , Type = B , Bore min. = 15/16 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B45
Model description
No.Teeth = 45
DIMENSIONS :Outside diameter = 11.18 in. , Type = B , Bore min. = 15/16 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B46
Model description
No.Teeth = 46
DIMENSIONS :Outside diameter = 11.42 in. , Type = B , Bore min. = 15/16 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B47
Model description
No.Teeth = 47
DIMENSIONS :Outside diameter = 11.65 in. , Type = B , Bore min. = 15/16 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B48
Model description
No.Teeth = 48
DIMENSIONS :Outside diameter = 11.89 in. , Type = B , Bore min. = 15/16 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B49
Model description
No.Teeth = 49
DIMENSIONS :Outside diameter = 12.13 in. , Type = B , Bore min. = 15/16 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B50
Model description
No.Teeth = 50
DIMENSIONS :Outside diameter = 12.37 in. , Type = B , Bore min. = 15/16 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B51
Model description
No.Teeth = 51
DIMENSIONS :Outside diameter = 12.61 in. , Type = B , Bore min. = 15/16 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B52
Model description
No.Teeth = 52
DIMENSIONS :Outside diameter = 12.85 in. , Type = B , Bore min. = 15/16 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B53
Model description
No.Teeth = 53
DIMENSIONS :Outside diameter = 13.09 in. , Type = B , Bore min. = 15/16 in. , Bore max. = 2 3/4 in. ,H =4 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B54
Model description
No.Teeth = 54
DIMENSIONS :Outside diameter = 13.33 in. , Type = B , Bore min. = 15/16 in. , Bore max. = 2 3/4 in. ,H =4 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 60-1B55
Model description
No.Teeth = 55
DIMENSIONS :Outside diameter = 13.57 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 3/4 in.
Price
Model
PHS 60-1B56
Model description
No.Teeth = 56
DIMENSIONS :Outside diameter = 13.81 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 3/4 in.
Price
Model
PHS 60-1B57
Model description
No.Teeth = 57
DIMENSIONS :Outside diameter = 14.04 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 3/4 in.
Price
Model
PHS 60-1B58
Model description
No.Teeth = 58
DIMENSIONS :Outside diameter = 14.28 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 3/4 in.
Price
Model
PHS 60-1B59
Model description
No.Teeth = 59
DIMENSIONS :Outside diameter = 14.52 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. =2 3/4 in. ,H = 4 1/4 in. , L = 1 3/4 in.
Price
Model
PHS 60-1B60
Model description
No.Teeth = 60
DIMENSIONS :Outside diameter = 14.76 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 3/4 in.
Price
Model
PHS 60-1B64
Model description
No.Teeth = 64
DIMENSIONS :Outside diameter = 15.72 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 3/4 in.
Price
Model
PHS 60-1B65
Model description
No.Teeth = 65
DIMENSIONS :Outside diameter = 15.96 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 2 3/4 in. ,H =4 1/4 in. , L = 1 3/4 in.
Price
Model
PHS 60-1B66
Model description
No.Teeth = 66
DIMENSIONS :Outside diameter = - in. , Type = - , Bore min. = - in. , Bore max. = - in. ,H = - in. , L = - in.
Price
Model
PHS 60-1B68
Model description
No.Teeth = 68
DIMENSIONS :Outside diameter = 16.67 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L =1 3/4 in.
Price
Model
PHS 60-1B70
Model description
No.Teeth = 70
DIMENSIONS :Outside diameter = 17.15 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. =2 3/4 in. ,H = 4 1/4 in. , L = 1 3/4 in.
Price
Model
PHS 60-1B72
Model description
No.Teeth = 72
DIMENSIONS :Outside diameter = 17.63 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 2 in.
Price
Model
PHS 60-1B76
Model description
No.Teeth = 76
DIMENSIONS :Outside diameter = 18.52 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 2 in.
Price
Model
PHS 60-1B80
Model description
No.Teeth = 80
DIMENSIONS :Outside diameter = 19.54 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 2 3/4 in. ,H =4 1/4 in. , L = 2 in.
Price
Model
PHS 60-1B84
Model description
No.Teeth = 84
DIMENSIONS :Outside diameter = 20.49 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 2 in.
Price
Model
PHS 60-1B90
Model description
No.Teeth = 90
DIMENSIONS :Outside diameter = 21.93 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 5/16 in. ,H = 5 in. , L = 2 1/4 in.
Price
Model
PHS 60-1B96
Model description
No.Teeth = 96
DIMENSIONS :Outside diameter = 23.36 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 3/4 in. ,H = 5 1/2 in. , L = 2 1/4 in.
Price
Model
PHS 60-1B112
Model description
No.Teeth = 112
DIMENSIONS :Outside diameter = 27.18 in. , Type = B , Bore min. = 1 1/4 in. , Bore max. = 3 3/4 in. ,H = 5 1/2 in. , L = 2 1/4 in.
Price
