PRODUCT
![]()
ชื่อรุ่น :
ANSI PHS 50-1BXX
แบรนด์
SKF
รายละเอียด :

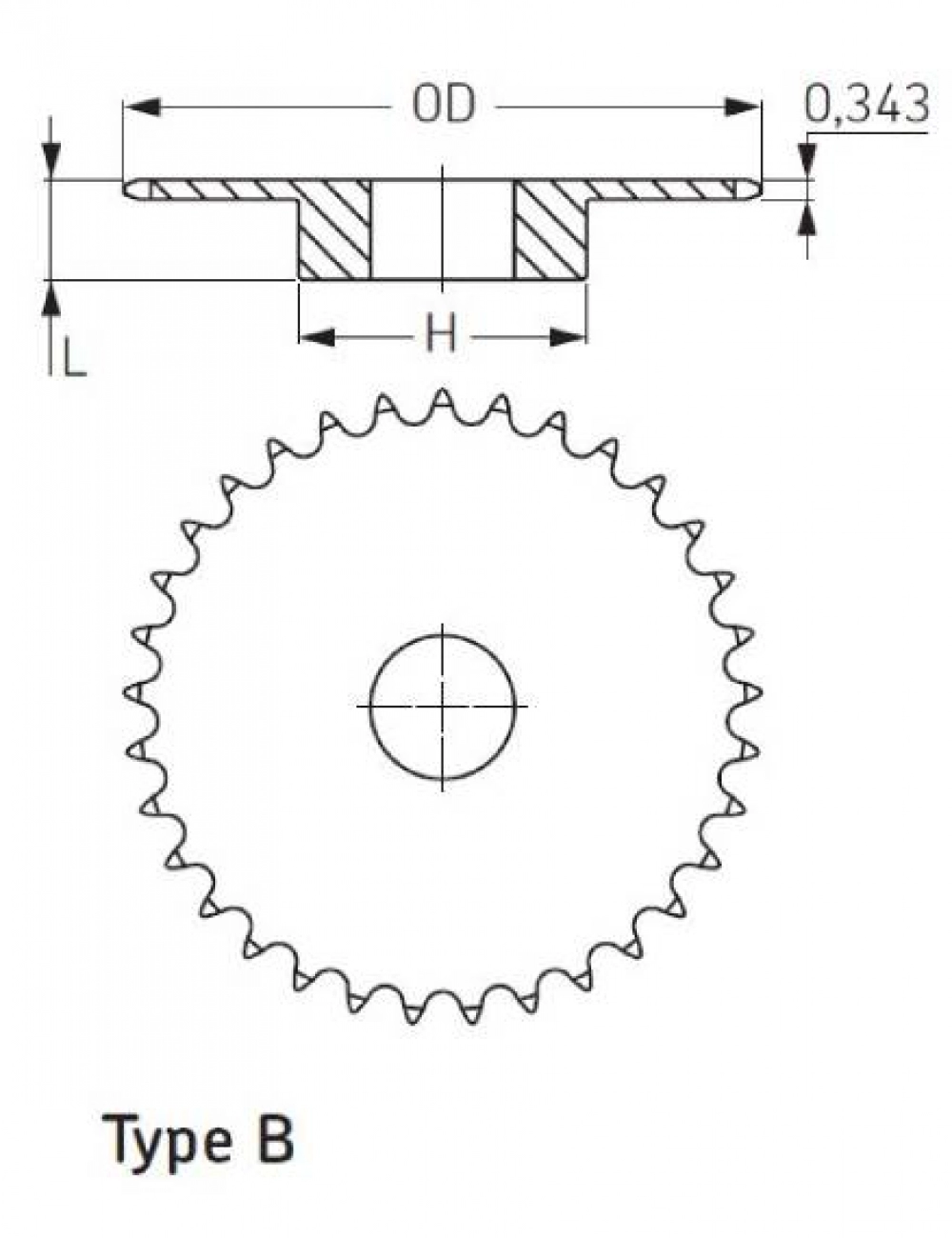

เฟื่องโซ่ชั้นเดียว Pitch = 5/8" มีดุมยื่น 1 ข้าง
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 50-1B8
Model description
No.Teeth = 8
DIMENSIONS :Outside diameter = 1.88 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 5/8 in. ,H = 1 1/8 in. , L = 1 in.
Price
Model
PHS 50-1B9
Model description
No.Teeth = 9
DIMENSIONS :Outside diameter = 2.09 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 3/4 in. ,H = 1 3/8 in. , L = 1 in.
Price
Model
PHS 50-1B10
Model description
No.Teeth = 10
DIMENSIONS :Outside diameter = 2.30 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 7/8 in. ,H = 1 9/16 in. , L = 1 in.
Price
Model
PHS 50-1B11
Model description
No.Teeth = 11
DIMENSIONS :Outside diameter = 2.50 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 1 in. ,H = 1 3/4 in. , L = 1 in.
Price
Model
PHS 50-1B12
Model description
No.Teeth = 12
DIMENSIONS :Outside diameter = 2.71 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 1 1/4 in. ,H = 1 63/64 in. , L = 1 in.
Price
Model
PHS 50-1B13
Model description
No.Teeth = 13
DIMENSIONS :Outside diameter = 2.91 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 1 5/16 in. ,H = 1 7/8 in. , L = 1 in.
Price
Model
PHS 50-1B14
Model description
No.Teeth = 14
DIMENSIONS :Outside diameter = 3.11 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 1 7/16 in. ,H = 2 1/8 in. , L = 1 in.
Price
Model
PHS 50-1B15
Model description
No.Teeth = 15
DIMENSIONS :Outside diameter = 3.32 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 1 1/2 in. ,H = 2 3/8 in. , L = 1 in.
Price
Model
PHS 50-1B16
Model description
No.Teeth = 16
DIMENSIONS :Outside diameter = 3.52 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 1 3/4 in. ,H = 2 1/2 in. , L = 1 in.
Price
Model
PHS 50-1B17
Model description
No.Teeth = 17
DIMENSIONS :Outside diameter = 3.72 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 1 7/8 in. ,H = 2 11/16 in. , L = 1 in.
Price
Model
PHS 50-1B18
Model description
No.Teeth = 18
DIMENSIONS :Outside diameter = 3.92 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 1 7/8 in. ,H = 2 7/8 in. , L = 1 in.
Price
Model
PHS 50-1B19
Model description
No.Teeth = 19
DIMENSIONS :Outside diameter = 4.12 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 2 in. ,H = 3 in. , L = 1 in.
Price
Model
PHS 50-1B20
Model description
No.Teeth = 20
DIMENSIONS :Outside diameter = 4.32 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 in. ,H = 3 in. , L = 1 in.
Price
Model
PHS 50-1B21
Model description
No.Teeth = 21
DIMENSIONS :Outside diameter = 4.52 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 in. ,H = 3 in. , L = 1 in.
Price
Model
PHS 50-1B22
Model description
No.Teeth = 22
DIMENSIONS :Outside diameter = 4.72 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 in. ,H = 3 in. , L = 1 in.
Price
Model
PHS 50-1B23
Model description
No.Teeth = 23
DIMENSIONS :Outside diameter = 4.92 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 in. ,H = 3 in. , L = 1 in.
Price
Model
PHS 50-1B24
Model description
No.Teeth = 24
DIMENSIONS :Outside diameter = 5.12 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 in. ,H = 3 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B25
Model description
No.Teeth = 25
DIMENSIONS :Outside diameter = 5.32 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 in. ,H =3 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B26
Model description
No.Teeth = 26
DIMENSIONS :Outside diameter = 5.52 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 in. ,H = 3 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B27
Model description
No.Teeth = 27
DIMENSIONS :Outside diameter = 5.72 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 in. ,H = 3 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B28
Model description
No.Teeth = 28
DIMENSIONS :Outside diameter = 5.92 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 in. ,H = 3 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B29
Model description
No.Teeth = 29
DIMENSIONS :Outside diameter = 6.12 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 in. ,H = 3 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B30
Model description
No.Teeth = 30
DIMENSIONS :Outside diameter = 6.32 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 1/4 in. ,H = 3 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B31
Model description
No.Teeth = 31
DIMENSIONS :Outside diameter = 6.52 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 1/4 in. ,H =3 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B32
Model description
No.Teeth = 32
DIMENSIONS :Outside diameter =6.72 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 1/4 in. ,H = 3 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B33
Model description
No.Teeth = 33
DIMENSIONS :Outside diameter = 6.92 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 1/4 in. ,H = 3 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B34
Model description
No.Teeth = 34
DIMENSIONS :Outside diameter = 7.12 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 1/4 in. ,H = 3 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B35
Model description
No.Teeth = 35
DIMENSIONS :Outside diameter = 7.32 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 1/4 in. ,H = 3 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B36
Model description
No.Teeth = 36
DIMENSIONS :Outside diameter = 7.52 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 1/4 in. ,H = 3 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B37
Model description
No.Teeth = 37
DIMENSIONS :Outside diameter =7.72 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 1/4 in. ,H = 3 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B38
Model description
No.Teeth = 38
DIMENSIONS :Outside diameter = 7.92 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 1/4 in. ,H =3 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B39
Model description
No.Teeth = 39
DIMENSIONS :Outside diameter = 8.12 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 1/4 in. ,H = 3 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B40
Model description
No.Teeth = 40
DIMENSIONS :Outside diameter = 8.32 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 1/4 in. ,H = 3 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B41
Model description
No.Teeth = 41
DIMENSIONS :Outside diameter = 8.52 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 1/4 in. ,H = 3 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B42
Model description
No.Teeth = 42
DIMENSIONS :Outside diameter = 8.72 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 1/4 in. ,H = 3 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B43
Model description
No.Teeth = 43
DIMENSIONS :Outside diameter = 8.91 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 1/4 in. ,H = 3 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B44
Model description
No.Teeth = 44
DIMENSIONS :Outside diameter = 9.11 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 1/4 in. ,H = 3 1/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B45
Model description
No.Teeth = 45
DIMENSIONS :Outside diameter = 9.31 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 1/2 in. ,H = 3 3/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B46
Model description
No.Teeth = 46
DIMENSIONS :Outside diameter = 9.51 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 1/2 in. ,H = 3 3/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B47
Model description
No.Teeth = 47
DIMENSIONS :Outside diameter = 9.71 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 1/2 in. ,H = 3 3/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B48
Model description
No.Teeth = 48
DIMENSIONS :Outside diameter = 9.91 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 1/2 in. ,H = 3 3/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B49
Model description
No.Teeth = 49
DIMENSIONS :Outside diameter = 10.11 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 1/2 in. ,H =3 3/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B50
Model description
No.Teeth = 50
DIMENSIONS :Outside diameter = 10.31 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 1/2 in. ,H = 3 3/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B51
Model description
No.Teeth = 51
DIMENSIONS :Outside diameter = 10.51 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 1/2 in. ,H = 3 3/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B52
Model description
No.Teeth = 52
DIMENSIONS :Outside diameter = 10.71 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 1/2 in. ,H = 3 3/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B53
Model description
No.Teeth = 53
DIMENSIONS :Outside diameter = 10.91 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 1/2 in. ,H = 3 3/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B54
Model description
No.Teeth = 54
DIMENSIONS :Outside diameter = 11.11 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 1/2 in. ,H =3 3/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B55
Model description
No.Teeth = 55
DIMENSIONS :Outside diameter = 11.31 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 1/2 in. ,H = 3 3/4 in. , L =1 1/4 in.
Price
Model
PHS 50-1B56
Model description
No.Teeth = 56
DIMENSIONS :Outside diameter = 11.50 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 1/2 in. ,H = 3 3/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B57
Model description
No.Teeth = 57
DIMENSIONS :Outside diameter = 11.70 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 1/2 in. ,H = 3 3/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B58
Model description
No.Teeth = 58
DIMENSIONS :Outside diameter = 11.90 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 1/2 in. ,H = 3 3/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B59
Model description
No.Teeth = 59
DIMENSIONS :Outside diameter = 12.10 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 1/2 in. ,H = 3 3/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B60
Model description
No.Teeth = 60
DIMENSIONS :Outside diameter = 12.30 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 1/2 in. ,H = 3 3/4 in. , L = 1 1/4 in.
Price
Model
PHS 50-1B70
Model description
No.Teeth = 70
DIMENSIONS :Outside diameter = 14.29 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 1/2 in. ,H = 3 3/4 in. , L = 1 3/4 in.
Price
Model
PHS 50-1B72
Model description
No.Teeth = 72
DIMENSIONS :Outside diameter = 14.69 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 1/2 in. ,H = 3 3/4 in. , L = 1 3/4 in.
Price
Model
PHS 50-1B76
Model description
No.Teeth = 76
DIMENSIONS :Outside diameter = 15.49 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 1/2 in. ,H = 3 3/4 in. , L = 1 3/4 in.
Price
Model
PHS 50-1B80
Model description
No.Teeth = 80
DIMENSIONS :Outside diameter = 16.28 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H =4 1/4 in. , L = 1 3/4 in.
Price
Model
PHS 50-1B84
Model description
No.Teeth = 84
DIMENSIONS :Outside diameter = 17.08 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 3/4 in.
Price
Model
PHS 50-1B95
Model description
No.Teeth = 95
DIMENSIONS :Outside diameter = 19.27 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 3/4 in.
Price
Model
PHS 50-1B96
Model description
No.Teeth = 96
DIMENSIONS :Outside diameter = 19.47 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 3/4 in.
Price
Model
PHS 50-1B112
Model description
No.Teeth = 112
DIMENSIONS :Outside diameter = 22.65 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H = 4 1/4 in. , L = 1 3/4 in.
Price
