PRODUCT
![]()
ชื่อรุ่น :
ANSI PHS 41-1BXX
แบรนด์
SKF
รายละเอียด :

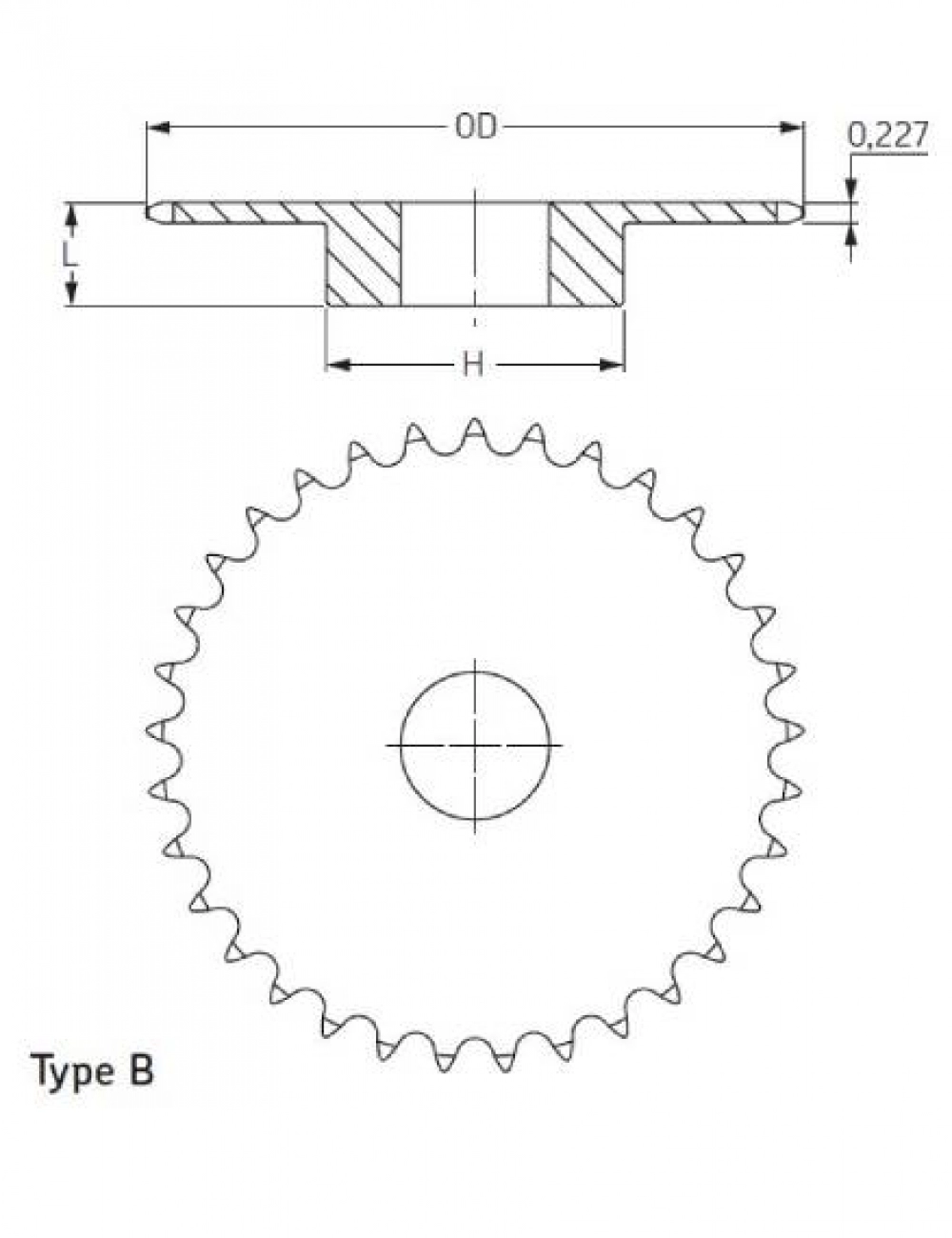

เฟื่องโซ่ชั้นเดียว Pitch = 1/2" มีดุมยื่น 1 ข้าง
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 41-1B6
Model description
No.Teeth = 6
DIMENSIONS :Outside diameter = 1.17 in. , Type = B , Bore min. = 3/8 in. , Bore max. = 3/8 in. ,H = 21/32 in. , L = 7/8 in.
Price
Model
PHS 41-1B7
Model description
No.Teeth = 7
DIMENSIONS :Outside diameter = 1.34 in. , Type = B , Bore min. = 3/8 in. , Bore max. = 3/8 in. ,H = 3/4 in. , L = 7/8 in.
Price
Model
PHS 41-1B8
Model description
No.Teeth = 8
DIMENSIONS :Outside diameter = 1.51 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 1/2 in. ,H =63/64 in. , L = 7/8 in.
Price
Model
PHS 41-1B9
Model description
No.Teeth = 9
DIMENSIONS :Outside diameter = 1.67 in. , Type = B , Bore min. = 1/2 in. , Bore max. =5/8 in. ,H =1 1/8 in. , L = 7/8 in.
Price
Model
PHS 41-1B10
Model description
No.Teeth = 10
DIMENSIONS :Outside diameter = 1.84 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 3/4 in. ,H = 1 1/4 in. , L = 7/8 in.
Price
Model
PHS 41-1B11
Model description
No.Teeth = 11
DIMENSIONS :Outside diameter = 2.00 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 7/8 in. ,H = 1 7/16 in. , L = 7/8 in.
Price
Model
PHS 41-1B12
Model description
No.Teeth = 12
DIMENSIONS :Outside diameter =2.17 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 15/16 in. ,H = 1 9/16 in. , L = 7/8 in.
Price
Model
PHS 41-1B13
Model description
No.Teeth = 13
DIMENSIONS :Outside diameter = 2.33 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 1 in. ,H = 1 9/16 in. , L = 7/8 in.
Price
Model
PHS 41-1B14
Model description
No.Teeth = 14
DIMENSIONS :Outside diameter = 2.49 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 1 1/4 in. ,H = 1 3/4 in. , L = 7/8 in.
Price
Model
PHS 41-1B15
Model description
No.Teeth = 15
DIMENSIONS :Outside diameter = 2.65 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 1 5/16 in. ,H = 1 29/32 in. , L = 7/8 in.
Price
Model
PHS 41-1B16
Model description
No.Teeth = 16
DIMENSIONS :Outside diameter = 2.81 in. , Type = B , Bore min. = 5/8 in. , Bore max. =1 3/8 in. ,H = 2 1/16 in. , L = 7/8 in.
Price
Model
PHS 41-1B17
Model description
No.Teeth = 17
DIMENSIONS :Outside diameter = 2.97 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 1 1/2 in. ,H = 2 15/64 in. , L = 1 in.
Price
Model
PHS 41-1B18
Model description
No.Teeth = 18
DIMENSIONS :Outside diameter = 3.14 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 1 5/8 in. ,H = 2 3/8 in. , L = 1 in.
Price
Model
PHS 41-1B19
Model description
No.Teeth = 19
DIMENSIONS :Outside diameter = 3.30 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 1 3/4 in. ,H =2 15/32 in. , L = 1 in.
Price
Model
PHS 41-1B20
Model description
No.Teeth = 20
DIMENSIONS :Outside diameter = 3.46 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 1 7/8 in. ,H = 2 3/4 in. , L = 1 in.
Price
Model
PHS 41-1B21
Model description
No.Teeth = 21
DIMENSIONS :Outside diameter = 3.62 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 1 7/8 in. ,H = 2 7/8 in. , L = 1 in.
Price
Model
PHS 41-1B22
Model description
No.Teeth = 22
DIMENSIONS :Outside diameter = 3.78 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 2 in. ,H = 3 in. , L = 1 in.
Price
Model
PHS 41-1B23
Model description
No.Teeth = 23
DIMENSIONS :Outside diameter = 3.94 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 2 1/4 in. ,H = 3 3/16 in. , L = 1 in.
Price
Model
PHS 41-1B24
Model description
No.Teeth = 24
DIMENSIONS :Outside diameter = 4.10 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 2 1/4 in. ,H = 3 1/4 in. , L = 1 in.
Price
Model
PHS 41-1B25
Model description
No.Teeth = 25
DIMENSIONS :Outside diameter = 4.26 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 2 1/4 in. ,H = 3 1/4 in. , L = 1 in.
Price
Model
PHS 41-1B26
Model description
No.Teeth =26
DIMENSIONS :Outside diameter = 4.42 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 2 1/4 in. ,H = 3 1/4 in. , L = 1 in.
Price
Model
PHS 41-1B27
Model description
No.Teeth = 27
DIMENSIONS :Outside diameter = 4.58 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 2 1/4 in. ,H = 3 1/4 in. , L = 1 in.
Price
Model
PHS 41-1B28
Model description
No.Teeth = 28
DIMENSIONS :Outside diameter = 4.74 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 2 1/4 in. ,H = 3 1/4 in. , L = 1 in.
Price
Model
PHS 41-1B30
Model description
No.Teeth = 30
DIMENSIONS :Outside diameter = 5.06 in. , Type = B , Bore min. =5/8 in. , Bore max. =2 1/4 in. ,H =3 1/4 in. , L = 1 in.
Price
Model
PHS 41-1B32
Model description
No.Teeth = 32
DIMENSIONS :Outside diameter = 5.38 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 2 1/4 in. ,H = 3 1/4 in. , L = 1 in.
Price
Model
PHS 41-1B35
Model description
No.Teeth = 35
DIMENSIONS :Outside diameter = 5.86 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 2 1/4 in. ,H = 3 1/4 in. , L = 1 in.
Price
Model
PHS 41-1B36
Model description
No.Teeth = 36
DIMENSIONS :Outside diameter = 6.02 in. , Type = B , Bore min. = 5/8 in. , Bore max. =2 1/4 in. ,H = 3 1/4 in. , L = 1 in.
Price
Model
PHS 41-1B40
Model description
No.Teeth = 40
DIMENSIONS :Outside diameter = 6.65 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/8 in. ,H = 3 1/4 in. , L = 1 1/16 in.
Price
Model
PHS 41-1B42
Model description
No.Teeth = 42
DIMENSIONS :Outside diameter = 6.97 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/8 in. ,H = 3 1/2 in. , L = 1 1/16 in.
Price
Model
PHS 41-1B45
Model description
No.Teeth = 45
DIMENSIONS :Outside diameter = 7.45 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/8 in. ,H = 3 1/2 in. , L = 1 1/16 in.
Price
Model
PHS 41-1B48
Model description
No.Teeth = 48
DIMENSIONS :Outside diameter = 7.93 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/8 in. ,H = 3 1/2 in. , L = 1 1/16 in.
Price
Model
PHS 41-1B54
Model description
No.Teeth = 54
DIMENSIONS :Outside diameter = 8.88 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/8 in. ,H = 3 1/2 in. , L = 1 1/16 in.
Price
Model
PHS 41-1B60
Model description
No.Teeth = 60
DIMENSIONS :Outside diameter = 9.84 in. , Type = B , Bore min. = 3/4 in. , Bore max. =2 3/8 in. ,H = 3 1/2 in. , L = 1 1/16 in.
Price
Model
PHS 41-1B70
Model description
No.Teeth = 70
DIMENSIONS :Outside diameter = 11.43 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L =1 3/16 in.
Price
Model
PHS 41-1B72
Model description
No.Teeth = 72
DIMENSIONS :Outside diameter = 11.75 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 3/16 in.
Price
Model
PHS 41-1B80
Model description
No.Teeth = 80
DIMENSIONS :Outside diameter =13.03 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 3/16 in.
Price
Model
PHS 41-1B84
Model description
No.Teeth = 84
DIMENSIONS :Outside diameter = 13.66 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 3/16 in.
Price
Model
PHS 41-1B96
Model description
No.Teeth = 96
DIMENSIONS :Outside diameter = 15.57 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 in.
Price
Model
PHS 41-1B112
Model description
No.Teeth = 112
DIMENSIONS :Outside diameter = 18.12 in. , Type = B , Bore min. = 1 in. , Bore max. = 2 3/4 in. ,H = 4 in. , L = 1 in.
Price
