ชื่อรุ่น :
ANSI PHS 35-1BXX
แบรนด์
SKF
รายละเอียด :

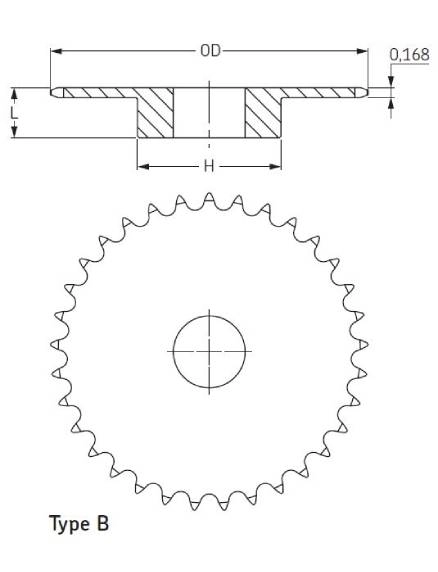

เฟื่องโซ่ชั้นเดียว Pitch = 3/8" มีดุมยื่น 1 ข้าง
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 35-1B8
Model description
No.Teeth = 8
DIMENSIONS :Outside diameter = 1.13 in. , Type = B , Bore min. =3/8 in. , Bore max. = 3/8 in. ,H = 3/4 in. , L= 3/4 in.
Price
Model
PHS 35-1B9
Model description
No.Teeth = 9
DIMENSIONS :Outside diameter =1.26 in. , Type = B , Bore min. = 3/8 in. , Bore max. = 3/8 in. ,H = 27/32 in. , L= 3/4 in.
Price
Model
PHS 35-1B10
Model description
No.Teeth = 10
DIMENSIONS :Outside diameter = 1.38 in. , Type = B , Bore min. = 3/8 in. , Bore max. = 9/16 in. ,H = 31/32 in. , L= 3/4 in.
Price
Model
PHS 35-1B11
Model description
No.Teeth = 11
DIMENSIONS :Outside diameter = 1.50 in. , Type = B , Bore min. = 3/8 in. , Bore max. = 9/16 in. ,H = 1 1/16 in. , L= 3/4 in.
Price
Model
PHS 35-1B12
Model description
No.Teeth = 12
DIMENSIONS :Outside diameter = 1.63 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 9/16 in. ,H = 1 7/32 in. , L= 3/4 in.
Price
Model
PHS 35-1B13
Model description
No.Teeth = 13
DIMENSIONS :Outside diameter = 1.75 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 11/16 in. ,H = 1 1/4 in. , L= 3/4 in.
Price
Model
PHS 35-1B14
Model description
No.Teeth = 14
DIMENSIONS :Outside diameter = 1.87 in. , Type = B , Bore min. = 1/2 in. , Bore max. =7/8 in. ,H = 1 1/4 in. , L= 3/4 in.
Price
Model
PHS 35-1B15
Model description
No.Teeth = 15
DIMENSIONS :Outside diameter = 1.99 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 7/8 in. ,H = 1 11/32 in. , L= 7/8 in.
Price
Model
PHS 35-1B16
Model description
No.Teeth = 16
DIMENSIONS :Outside diameter = 2.11 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 15/16 in. ,H = 1 15/32 in. , L=3/4 in.
Price
Model
PHS 35-1B17
Model description
No.Teeth = 17
DIMENSIONS :Outside diameter = 2.23 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 1 1/16 in. ,H =1 19/32 in. , L=3/4 in.
Price
Model
PHS 35-1B18
Model description
No.Teeth = 18
DIMENSIONS :Outside diameter = 2.35 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 1 3/16 in. ,H = 1 23/32 in. , L= 3/4 in.
Price
Model
PHS 35-1B19
Model description
No.Teeth = 19
DIMENSIONS :Outside diameter = 2.47 in. , Type = B , Bore min. = 1/2 in. , Bore max. =1 1/4 in. ,H = 1 27/32 in. , L= 3/4 in.
Price
Model
PHS 35-1B20
Model description
No.Teeth = 20
DIMENSIONS :Outside diameter = 2.59 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 1 5/16 in. ,H = 1 15/16 in. , L= 3/4 in.
Price
Model
PHS 35-1B21
Model description
No.Teeth = 21
DIMENSIONS :Outside diameter = 2.71 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 1 3/8 in. ,H = 2 in. , L= 7/8 in.
Price
Model
PHS 35-1B22
Model description
No.Teeth = 22
DIMENSIONS :Outside diameter = 2.83 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 1 3/8 in. ,H = 2 in. , L= 7/8 in.
Price
Model
PHS 35-1B23
Model description
No.Teeth = 23
DIMENSIONS :Outside diameter = 2.95 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 1 3/8 in. ,H = 2 in. , L= 7/8 in.
Price
Model
PHS 35-1B24
Model description
No.Teeth = 24
DIMENSIONS :Outside diameter = 3.07 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 1 3/8 in. ,H = 2 in. , L= 7/8 in.
Price
Model
PHS 35-1B25
Model description
No.Teeth = 25
DIMENSIONS :Outside diameter = 3.19 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 1 3/8 in. ,H = 2 in. , L= 7/8 in.
Price
Model
PHS 35-1B26
Model description
No.Teeth = 26
DIMENSIONS :Outside diameter = 3.31 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 1 3/8 in. ,H = 2 in. , L= 7/8 in.
Price
Model
PHS 35-1B27
Model description
No.Teeth = 27
DIMENSIONS :Outside diameter = 3.43 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 1 3/8 in. ,H = 2 in. , L= 7/8 in.
Price
Model
PHS 35-1B28
Model description
No.Teeth = 28
DIMENSIONS :Outside diameter = 3.55 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 1 3/8 in. ,H = 2 in. , L= 7/8 in.
Price
Model
PHS 35-1B30
Model description
No.Teeth = 30
DIMENSIONS :Outside diameter = 3,79 in. , Type = B , Bore min. = 1/2 in. , Bore max. =1 3/8 in. ,H = 2 in. , L= 7/8 in.
Price
Model
PHS 35-1B32
Model description
No.Teeth = 32
DIMENSIONS :Outside diameter = 4.03 in. , Type = B , Bore min. = 1/2 in. , Bore max. = 1 3.8 in. ,H = 2 in. , L= 7/8 in.
Price
Model
PHS 35-1B35
Model description
No.Teeth = 35
DIMENSIONS :Outside diameter =4.39 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 1 1/2 in. ,H = 2 1/4 in. , L= 7/8 in.
Price
Model
PHS 35-1B36
Model description
No.Teeth = 36
DIMENSIONS :Outside diameter = 4.51 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 1 1/2 in. ,H = 2 1/4 in. , L= 7/8 in.
Price
Model
PHS 35-1B40
Model description
No.Teeth = 40
DIMENSIONS :Outside diameter = 4.99 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 1 1/2 in. ,H = 2 1/4 in. , L= 1 in.
Price
Model
PHS 35-1B42
Model description
No.Teeth = 42
DIMENSIONS :Outside diameter = 5.23 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 1 1/2 in. ,H = 2 1/4 in. , L= 1 in.
Price
Model
PHS 35-1B45
Model description
No.Teeth = 45
DIMENSIONS :Outside diameter = 5.59 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 1 1/2 in. ,H = 2 1/4 in. , L= 1 in.
Price
Model
PHS 35-1B48
Model description
No.Teeth = 48
DIMENSIONS :Outside diameter =5.95 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 1 1/2 in. ,H = 2 1/4 in. , L= 1 in.
Price
Model
PHS 35-1B54
Model description
No.Teeth = 54
DIMENSIONS :Outside diameter = 6.66 in. , Type = B , Bore min. = 5/8 in. , Bore max. = 1 1/2 in. ,H = 2 1/4 in. , L=1 in.
Price
Model
PHS 35-1B60
Model description
No.Teeth = 60
DIMENSIONS :Outside diameter = 7.38 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 1 1/2 in. ,H = 2 1/4 in. , L= 1 in.
Price
Model
PHS 35-1B70
Model description
No.Teeth = 70
DIMENSIONS :Outside diameter = 8.58 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 1 1/2 in. ,H = 2 1/4 in. , L= 1 in.
Price
Model
PHS 35-1B72
Model description
No.Teeth = 72
DIMENSIONS :Outside diameter = 8.81 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 1 1/2 in. ,H = 2 1/4 in. , L= 1 in.
Price
Model
PHS 35-1B80
Model description
No.Teeth = 80
DIMENSIONS :Outside diameter = 9.77 in. , Type = B , Bore min. = 3/4 in. , Bore max. =1 1/2 in. ,H = 2 1/4 in. , L= 1 in.
Price
Model
PHS 35-1B84
Model description
No.Teeth = 84
DIMENSIONS :Outside diameter = 10.25 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 1 1/2 in. ,H = 2 1/4 in. , L= 1 in.
Price
Model
PHS 35-1B96
Model description
No.Teeth = 96
DIMENSIONS :Outside diameter = 11.68 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 1 1/2 in. ,H = 2 1/4 in. , L= 1 in.
Price
Model
PHS 35-1B112
Model description
No.Teeth = 112
DIMENSIONS :Outside diameter = 13.59 in. , Type = B , Bore min. = 3/4 in. , Bore max. = 1 1/2 in. ,H = 2 1/4 in. , L= 1 in.
Price
