PRODUCT
![]()
ชื่อรุ่น :
PHS 60 - 2TBXX
แบรนด์
SKF
รายละเอียด :

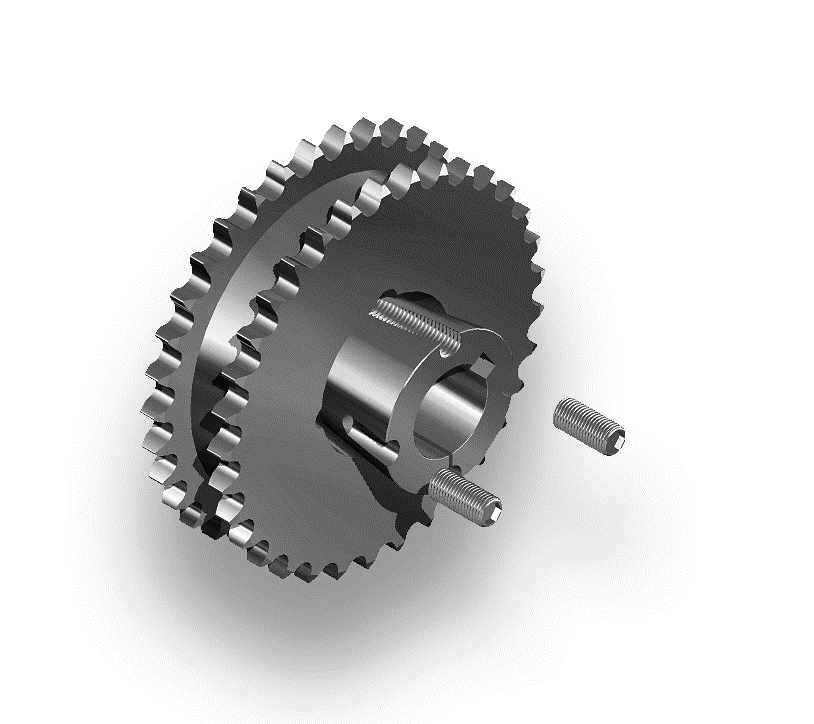

เฟื่องโซ่สองชั้น Pitch = 3/4" ล็อคเพลาด้วยเทเปอร์บู๊ธ
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 60 - 2TB13
Model description
No.Teeth = 13 . Bushing number : 1215

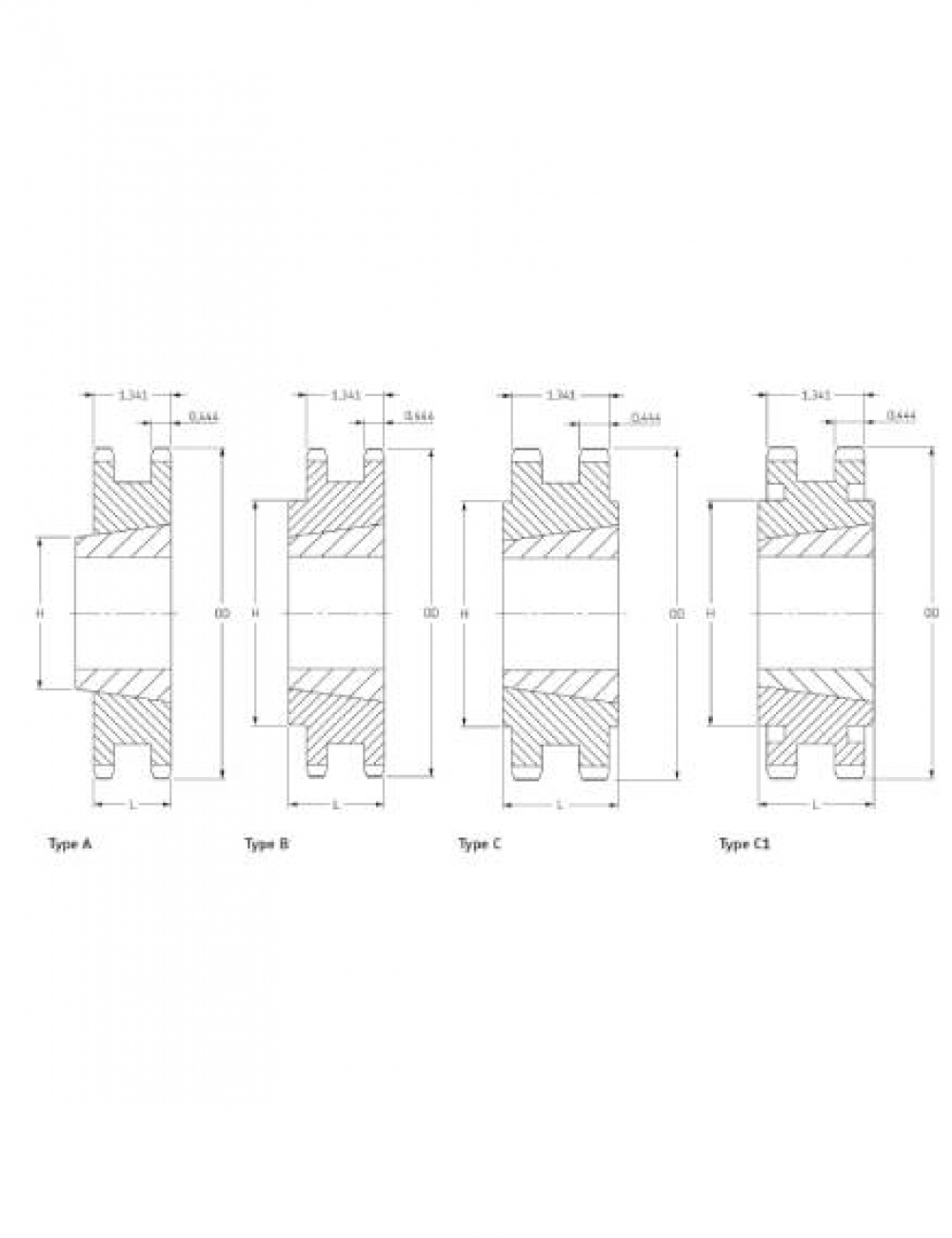

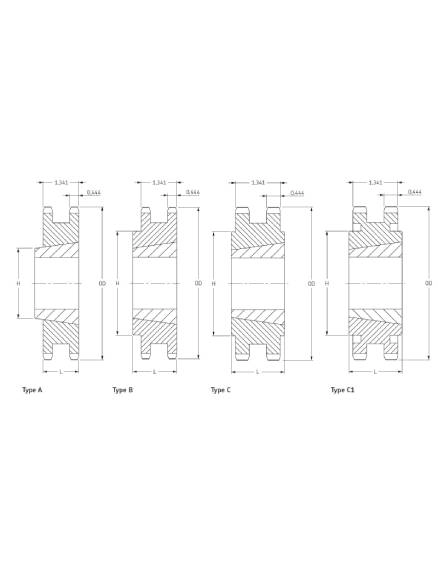

DIMENSIONS : Outside diameter = 3.493 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 1/4 inch ,L = 1 1/2 in. , H = 2 1/4 in
Price
Model
PHS 60 - 2TB14
Model description
No.Teeth = 14 . Bushing number : 1215
DIMENSIONS : Outside diameter = 3.736 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 1/4 inch ,L = 1 1/2 in. , H = 2 1/4 in
Price
Model
PHS 60 - 2TB15
Model description
No.Teeth = 15 . Bushing number : 1615
DIMENSIONS : Outside diameter = 3.979 inch , Type = B , Bore min = 1/2 inch , Bore max =1 5/8 inch ,L = 1 1/2 in. , H = 2 13/16 in
Price
Model
PHS 60 - 2TB16
Model description
No.Teeth = 16 . Bushing number : 1615
DIMENSIONS : Outside diameter = 4.221 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 1/2 in. , H = 3 in
Price
Model
PHS 60 - 2TB17
Model description
No.Teeth = 17 . Bushing number : 1615
DIMENSIONS : Outside diameter = 4.462 inch , Type = A , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 1/2 in. , H = 3 1/4 in
Price
Model
PHS 60 - 2TB18
Model description
No.Teeth = 18 . Bushing number : 2012
DIMENSIONS : Outside diameter = 4.704 inch , Type = A , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = in
Price
Model
PHS 60 - 2TB19
Model description
No.Teeth = 19 . Bushing number : 2012
DIMENSIONS : Outside diameter =4.945 inch , Type = A , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = in
Price
Model
PHS 60 - 2TB20
Model description
No.Teeth = 20 . Bushing number : 2517
DIMENSIONS : Outside diameter = 5.185 inch , Type = B , Bore min = 3/4 inch , Bore max = 1 1/2 inch ,L = 1 3/4 in. , H = 3 61/64 in
Price
Model
PHS 60 - 2TB21
Model description
No.Teeth = 21 . Bushing number : 2517
DIMENSIONS : Outside diameter = 5.426 inch , Type = B , Bore min = 3/4 inch , Bore max = 1 1/2 inch ,L = 1 3/4 in. , H = 4 3/16 in
Price
Model
PHS 60 - 2TB25
Model description
No.Teeth = 25 . Bushing number : 2517
DIMENSIONS : Outside diameter = 6.387 inch , Type = B , Bore min = 3/4 inch , Bore max = 1 1/2 inch ,L = 1 3/4 in. , H = 5 5/32 in
Price
Model
PHS 60 - 2TB30
Model description
No.Teeth = 30 . Bushing number :2517
DIMENSIONS : Outside diameter = 7.586 inch , Type = B , Bore min = 3/4 inch , Bore max = 1 1/2 inch ,L = 1 3/4 in. , H =6 11/32 in
Price
Model
PHS 60 - 2TB36
Model description
No.Teeth = 36 . Bushing number : 2517
DIMENSIONS : Outside diameter = 9.022 inch , Type = C , Bore min = 3/4 inch , Bore max = 1 1/2 inch ,L = 1 3/4 in. , H = 4 1/4 in
Price
Model
PHS 60 - 2TB42
Model description
No.Teeth = 42 . Bushing number : 2517
DIMENSIONS : Outside diameter = 10.458 inch , Type = C , Bore min = 3/4 inch , Bore max = 1 1/2 inch ,L = 1 3/4 in. , H = 4 1/4 in
Price
Model
PHS 60 - 2TB45
Model description
No.Teeth = 45 . Bushing number :2517
DIMENSIONS : Outside diameter = 11.176 inch , Type = C , Bore min = 3/4 inch , Bore max = 1 1/2 inch ,L = 1 3/4 in. , H =4 1/4 in
Price
Model
PHS 60 - 2TB52
Model description
No.Teeth = 52 . Bushing number : 2517
DIMENSIONS : Outside diameter = 12.849 inch , Type = C , Bore min = 3/4 inch , Bore max = 1 1/2 inch ,L = 1 3/4 in. , H = 4 1/4 in
Price
Model
PHS 60 - 2TB60
Model description
No.Teeth = 60 . Bushing number : 2517
DIMENSIONS : Outside diameter = 14.761 inch , Type =C1 , Bore min = 3/4 inch , Bore max = 1 1/2 inch ,L = 1 3/4 in. , H = 4 1/4 in
Price
Model
PHS 60 - 2TB68
Model description
No.Teeth = 68 . Bushing number : 2517
DIMENSIONS : Outside diameter = 16.672 inch , Type = C1 , Bore min = 3/4 inch , Bore max = 1 1/2 inch ,L = 1 3/4 in. , H = 4 1/4 in
Price
Model
PHS 60 - 2TB76
Model description
No.Teeth = 76 . Bushing number : 3020
DIMENSIONS : Outside diameter = 18.583 inch , Type = C1 , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in
Price
Model
PHS 60 - 2TB95
Model description
No.Teeth = 95 . Bushing number : 3020
DIMENSIONS : Outside diameter = 23.121 inch , Type = C1 , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in
Price
