PRODUCT
![]()
ชื่อรุ่น :
PHS 50 - 2TBXX
แบรนด์
SKF
รายละเอียด :

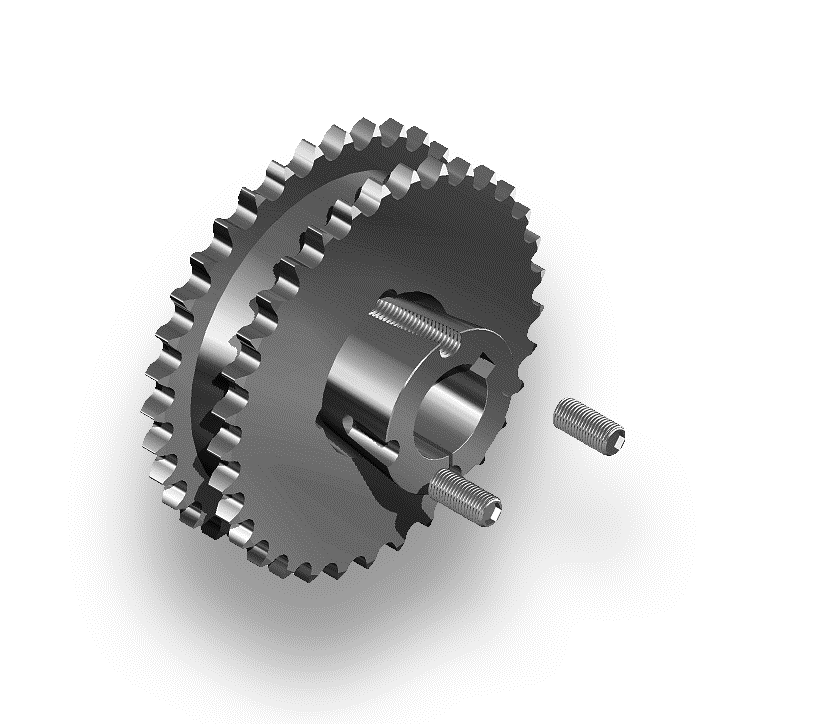

เฟื่องโซ่สองชั้น Pitch = 5/8" ล็อคเพลาด้วยเทเปอร์บู๊ธ
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 50 - 2TB14
Model description
No.Teeth = 14 . Bushing number : 1008
DIMENSIONS : Outside diameter = 3.113 inch , Type = A , Bore min = 3/8 inch , Bore max = 1 inch ,L = 7/8 in. , H = in.
Price
Model
PHS 50 - 2TB15
Model description
No.Teeth = 15 . Bushing number : 1210
DIMENSIONS : Outside diameter = 3.315 inch , Type = A , Bore min = 5/8 inch , Bore max = 1 1/4 inch ,L = 1 in. , H = in.
Price
Model
PHS 50 - 2TB16
Model description
No.Teeth = 16 . Bushing number : 1210
DIMENSIONS : Outside diameter = 3.517 inch , Type = A , Bore min = 5/8 inch , Bore max = 1 1/4 inch ,L = 1 in. , H = in.
Price
Model
PHS 50 - 2TB17
Model description
No.Teeth = 17 . Bushing number : 1610
DIMENSIONS : Outside diameter = 3.719 inch , Type = A , Bore min = 1/2 inch , Bore max =1 5/8 inch ,L = 1 in. , H = in.
Price
Model
PHS 50 - 2TB18
Model description
No.Teeth = 18 . Bushing number : 1610
DIMENSIONS : Outside diameter = 3.920 inch , Type = A , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = in.
Price
Model
PHS 50 - 2TB19
Model description
No.Teeth = 19 . Bushing number : 1610
DIMENSIONS : Outside diameter = 4.120 inch , Type = A , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = in.
Price
Model
PHS 50 - 2TB20
Model description
No.Teeth = 20 . Bushing number :2012
DIMENSIONS : Outside diameter = 4.321 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 1/4 in.
Price
Model
PHS 50 - 2TB21
Model description
No.Teeth = 21 . Bushing number : 2012
DIMENSIONS : Outside diameter = 4.522 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L =1 1/4 in. , H = 3 1/2 in.
Price
Model
PHS 50 - 2TB25
Model description
No.Teeth = 25 . Bushing number : 2012
DIMENSIONS : Outside diameter = 5.322 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 4 9/32 in.
Price
Model
PHS 50 - 2TB30
Model description
No.Teeth =30 . Bushing number : 2517
DIMENSIONS : Outside diameter = 6.321 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 5 9/32 in.
Price
Model
PHS 50 - 2TB36
Model description
No.Teeth = 36 . Bushing number : 2517
DIMENSIONS : Outside diameter = 7.519 inch , Type = C , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H =4 1/4 in.
Price
Model
PHS 50 - 2TB42
Model description
No.Teeth = 42 . Bushing number : 2517
DIMENSIONS : Outside diameter = 8.715 inch , Type = C , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 4 1/2 in.
Price
Model
PHS 50 - 2TB48
Model description
No.Teeth = 48 . Bushing number : 2517
DIMENSIONS : Outside diameter =9.911 inch , Type = C , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 4 1/2 in.
Price
Model
PHS 50 - 2TB52
Model description
No.Teeth = 52 . Bushing number : 2517
DIMENSIONS : Outside diameter = 10.707 inch , Type = C , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 4 3/8 in.
Price
Model
PHS 50 - 2TB60
Model description
No.Teeth = 60 . Bushing number : 2517
DIMENSIONS : Outside diameter = 12.301 inch , Type = C , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 4 3/8 in.
Price
Model
PHS 50 - 2TB68
Model description
No.Teeth = 68 . Bushing number : 2517
DIMENSIONS : Outside diameter = 13.893 inch , Type = C , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H =4 3/8 in.
Price
Model
PHS 50 - 2TB76
Model description
No.Teeth = 76 . Bushing number : 2517
DIMENSIONS : Outside diameter = 15.486 inch , Type = C , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 4 3/8 in.
Price
Model
PHS 50 - 2TB84
Model description
No.Teeth = 84 . Bushing number :2517
DIMENSIONS : Outside diameter = 17.079 inch , Type = C , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 4 3/8 in.
Price
Model
PHS 50 - 2TB95
Model description
No.Teeth = 95 . Bushing number : 2517
DIMENSIONS : Outside diameter = 19.267 inch , Type = C , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 4 3/8 in.
Price
Model
PHS 50 - 2TB102
Model description
No.Teeth = 102 . Bushing number : 2517
DIMENSIONS : Outside diameter = 20.661 inch , Type = C , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L =1 3/4 in. , H = 4 3/8 in.
Price
