PRODUCT
![]()
ชื่อรุ่น :
PHS 35 - 2TBXX
แบรนด์
SKF
รายละเอียด :

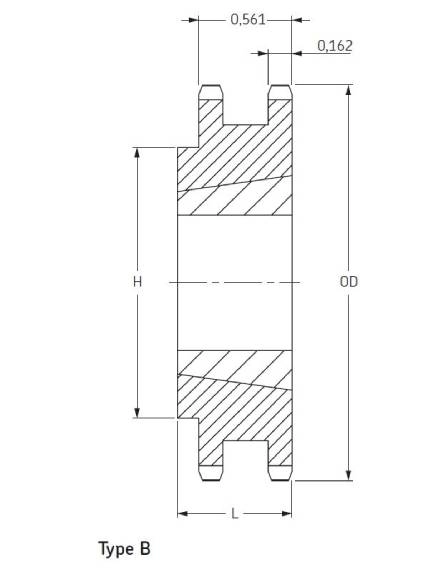

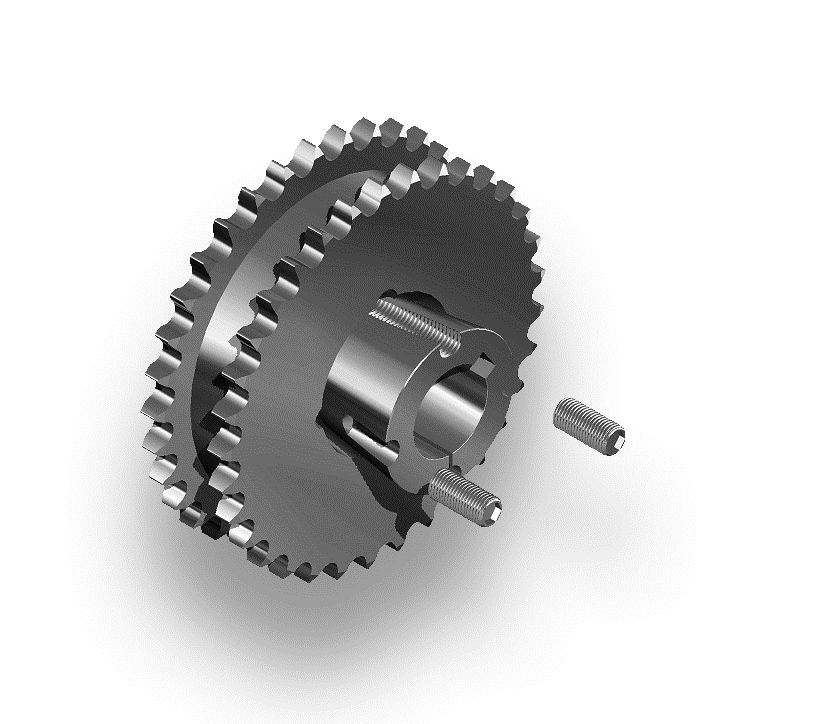

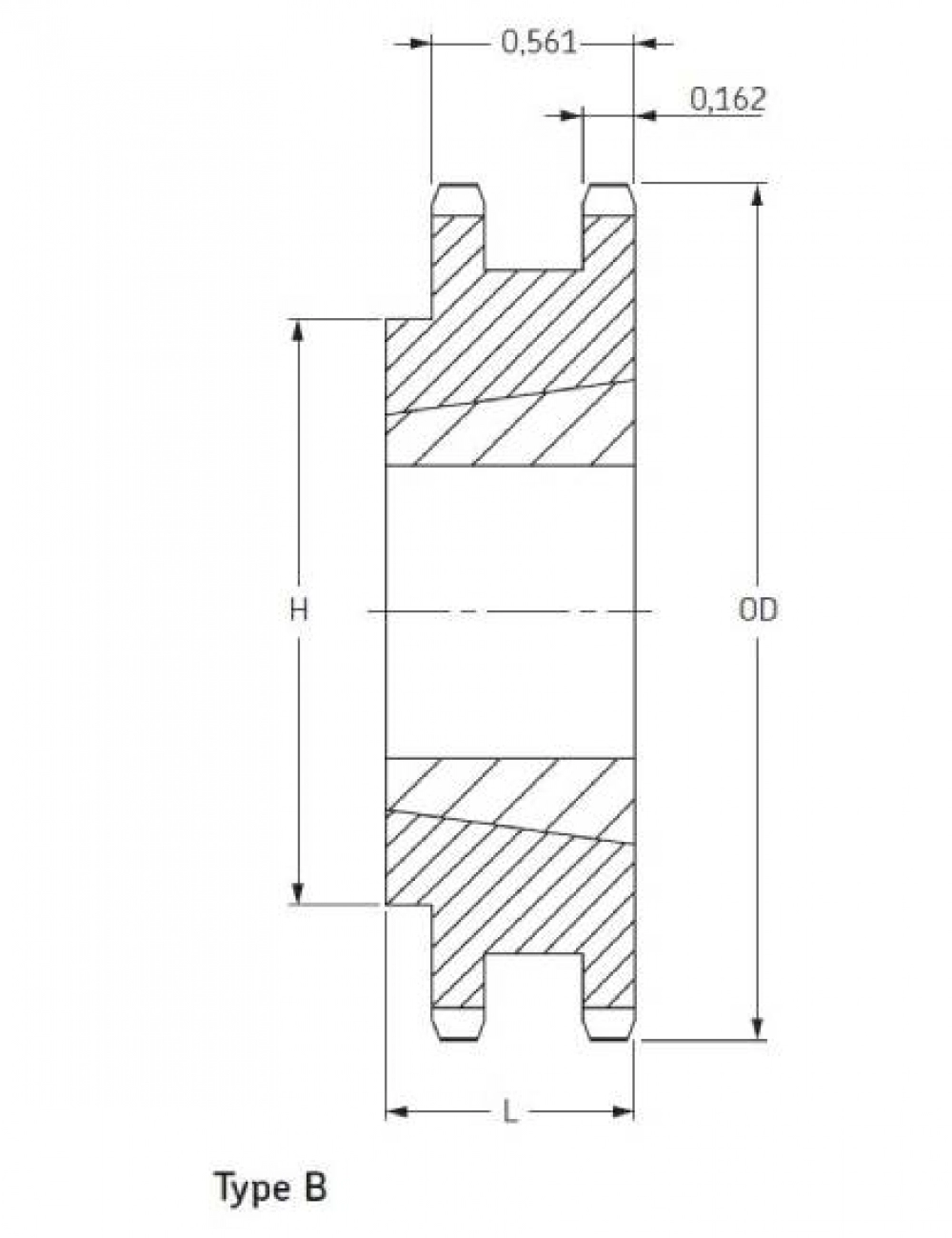

เฟื่องโซ่สองชั้น Pitch = 3/8" ล็อคเพลาด้วยเทเปอร์บู๊ธ
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 35 - 2TB19
Model description
No.Teeth = 19 . Bushing number : 1008
DIMENSIONS : Outside diameter = 2.472 inch , Type = B , Bore min = 3/8 inch , Bore max = 1 inch ,L = 7/8 in. , H =1 53/64 in.
Price
Model
PHS 35 - 2TB20
Model description
No.Teeth = 20 . Bushing number : 1008
DIMENSIONS : Outside diameter = 2.593 inch , Type = B , Bore min = 3/8 inch , Bore max = 1 inch ,L = 7/8 in. , H =1 15/16 in.
Price
Model
PHS 35 - 2TB21
Model description
No.Teeth = 21 . Bushing number :1008
DIMENSIONS : Outside diameter = 2.713 inch , Type = B , Bore min = 3/8 inch , Bore max = 1 inch ,L = 7/8 in. , H = 2 1/16 in.
Price
Model
PHS 35 - 2TB22
Model description
No.Teeth = 22 . Bushing number : 1008
DIMENSIONS : Outside diameter = 2.833 inch , Type = B , Bore min = 3/8 inch , Bore max = 1 inch ,L = 7/8 in. , H = 2 3/16 in.
Price
Model
PHS 35 - 2TB24
Model description
No.Teeth = 24 . Bushing number : 1210
DIMENSIONS : Outside diameter = 3.074 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 1/4 inch ,L = 1 in. , H = 2 7/16 in.
Price
Model
PHS 35 - 2TB26
Model description
No.Teeth = 26 . Bushing number : 1210
DIMENSIONS : Outside diameter = 3.314 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 1/4 inch ,L = 1 in. , H = 2 5/8 in.
Price
Model
PHS 35 - 2TB30
Model description
No.Teeth = 30 . Bushing number : 1610
DIMENSIONS : Outside diameter = 3.793 inch , Type = B , Bore min =1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/8 in.
Price
Model
PHS 35 - 2TB32
Model description
No.Teeth = 32 . Bushing number : 1610
DIMENSIONS : Outside diameter = 4.032 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
Model
PHS 35 - 2TB35
Model description
No.Teeth = 35 . Bushing number : 1610
DIMENSIONS : Outside diameter = 4.392 inch , Type = B , Bore min =1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
Model
PHS 35 - 2TB40
Model description
No.Teeth = 40 . Bushing number : 1610
DIMENSIONS : Outside diameter = 4.990 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
Model
PHS 35 - 2TB45
Model description
No.Teeth = 45 . Bushing number :1610
DIMENSIONS : Outside diameter = 5.558 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
Model
PHS 35 - 2TB48
Model description
No.Teeth = 48 . Bushing number :1610
DIMENSIONS : Outside diameter = 5.946 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 5/8 in.
Price
Model
PHS 35 - 2TB54
Model description
No.Teeth = 54 . Bushing number : 1610
DIMENSIONS : Outside diameter = 6.663 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H =3 5/8 in.
Price
Model
PHS 35 - 2TB60
Model description
No.Teeth = 60 . Bushing number : 1610
DIMENSIONS : Outside diameter = 7.380 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 5/8 in.
Price
Model
PHS 35 - 2TB70
Model description
No.Teeth = 70 . Bushing number : 1610
DIMENSIONS : Outside diameter = 8.575 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 5/8 in.
Price
Model
PHS 35 - 2TB80
Model description
No.Teeth = 80 . Bushing number : 1610
DIMENSIONS : Outside diameter = 9.770 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 5/8 in.
Price
Model
PHS 35 - 2TB96
Model description
No.Teeth = 96 . Bushing number :1610
DIMENSIONS : Outside diameter = 11.680 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 5/8 in.
Price
Model
PHS 35 - 2TB112
Model description
No.Teeth = 112 . Bushing number : 1610
DIMENSIONS : Outside diameter = 13.590 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 5/8 in.
Price
